Summary of Contents for StarTech.com SATDOCK2520

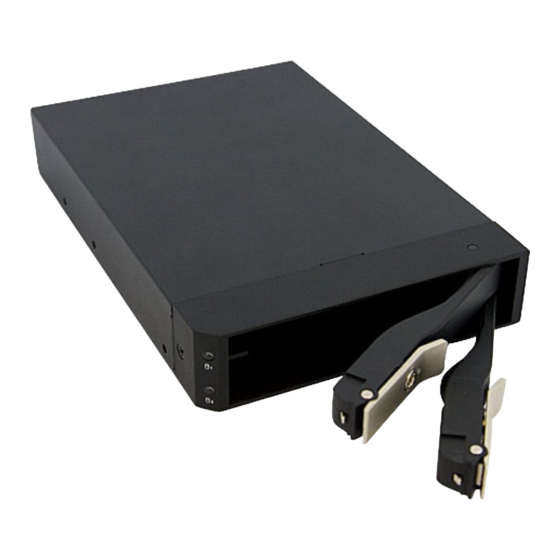

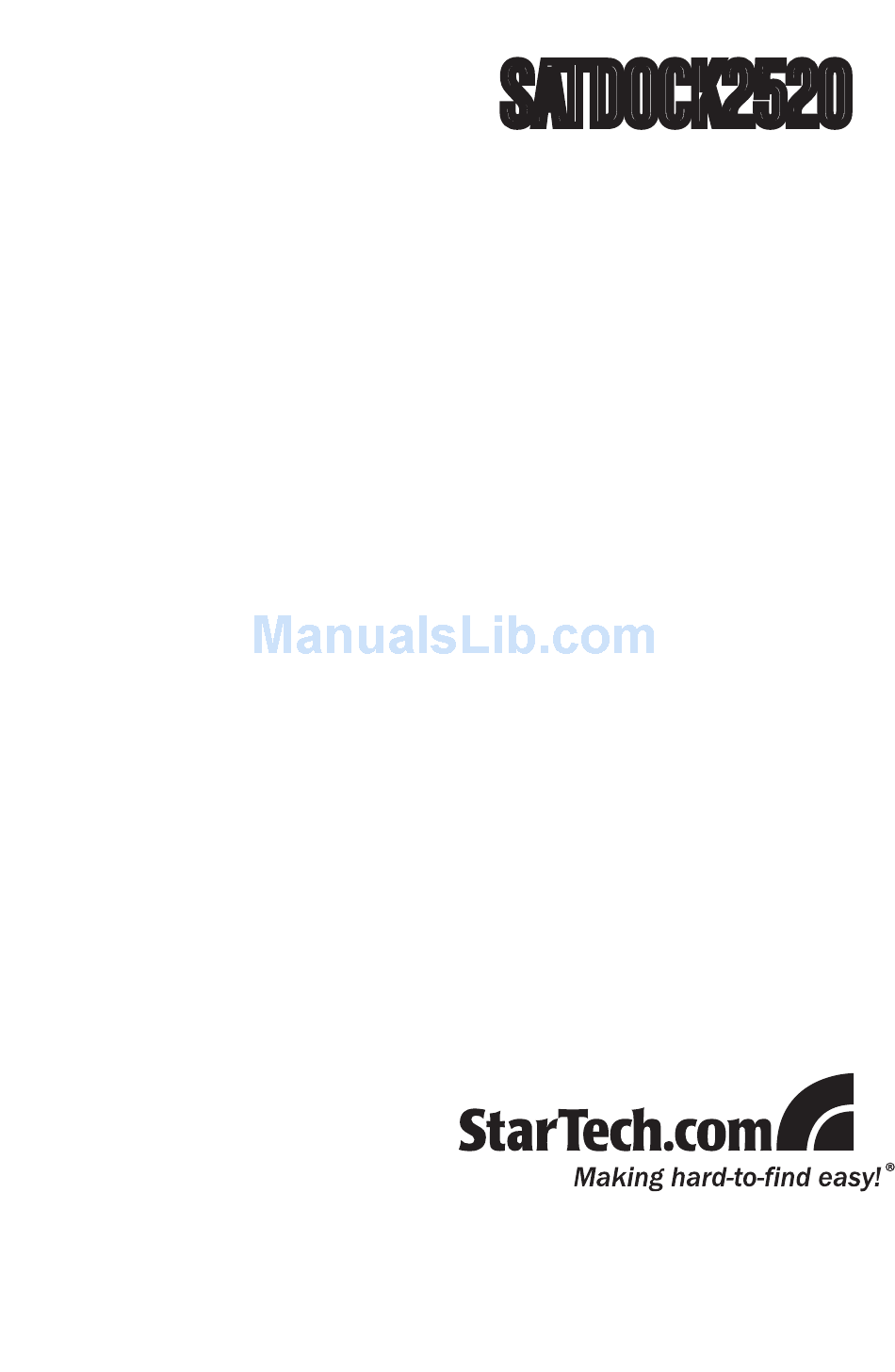

- Page 1 SATDOCK2520 Instruction Manual Serial ATA Hard Drive Mobile Rack 3.5” Trayless SATA Mobile Rack for Dual 2.5” Hard Drives...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Front View ..................2 Rear View ..................2 Installation ............... 3 Hardware Installation ..............3 Driver Installation .................3 How to Use ..............4 Specifications ..............5 Technical Support ............6 Warranty Information ............6... -
Page 4: Introduction
- making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments. Packaging Contents • 1 x SATDOCK2520 hard drive backplane • 1 x Package of mounting screws • 2 x Keys •... -
Page 5: Front View
Front View Door Lock Power/Activity Rear View 15-pin SATA 7-pin SATA power connector... -
Page 6: Installation
Installation WARNING: Hard drives require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Hardware Installation Make sure the computer system is powered off and unplugged from the power source before attempting any hardware installation. -
Page 7: How To Use
How to Use If the SATA controller supports Hot-Swapping drives, then hard drives can be removed and installed into the Mobile Rack without having to shut the computer system off. Refer to the documentation for the SATA controller for details on how to use Hot-Swapping. If not supported, the computer must be shut down first, to install or remove hard drives. -
Page 8: Specifications
Specifications Bus Interface SATA 3.0Gb/s 2 x 7-pin SATA External Connectors 1 x 15-pin SATA power LEDs Power/Activity 9.5mm 2.5” SATA 1.5/3.0 Gbps Hard Drive Compatibility hard drives up to 500GB in capacity* Insertion Rating 15 000 cycles Operating Temperature C to 70 Storage Temperature C to 80... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
Need help?
Do you have a question about the SATDOCK2520 and is the answer not in the manual?
