StarTech.com SLIDESHELFD Quick Start Manual

1U Sliding Server Rack Shelf - 22in Deep
Product ID
SLIDESHELFD - Revision 01
1
2

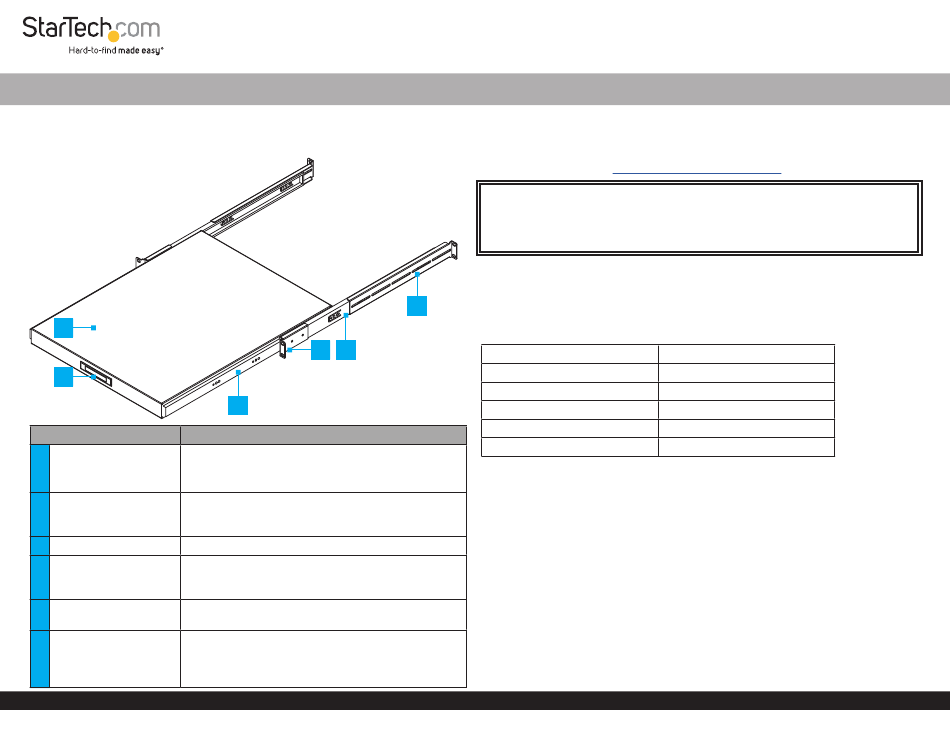

Component
• Place Rack Equipment
1 Shelf Surface
Note: The Sliding Shelf can be installed upside down
and act as a drawer instead.
• Used to Pull or Push the Sliding Shelf
2 Handle • The Handle Rotates 180° allowing it to sit flush
against the front of the Sliding Shelf
3 • Allows the Sliding Shelf to slide in or out of position
Inner Rails x 2
• Used to fasten the Sliding Shelf onto the Front
Front Rack Mount
Mounting Posts of a Rack
4
Bracket x 2
• Attach onto the Outer Rails
• Slots along the Outer Rails allow to adjust and affix
5 Outer Rails x 2
the Rear Rack Mount Brackets at a specific Depth
• Used to fasten the Sliding Shelf onto the Rear
Mounting Posts of a Rack
Rear Rack Mount
6
• Allows to adjust the Mounting Depth
Brackets x 2
• Attach onto the Outer Rails
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
For additional self-service support options and community forums, please visit: www.StarTech.com/support
6
4 5
3
*Product may vary from image
Function
Product Information
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit: www.StarTech.com/SLIDESHELFD
How to Identify the LOT Code Revision Number
The Revision Number (Rev #) appears as the fifth and sixth digits of the LOT code,
located on the sticker affixed to the product and its packaging. If the LOT code sticker
is missing, the product is Rev 01.
Requirements
• Phillips Head Screwdriver
• (Optional) Cage Nut Tool
Package Contents Revision 01
• 1U Sliding Shelf x 1
• Front and Rear Mounts x 2
• Rails x 2
• M4x10mm Screws x 16
• Washers x 16
• Nuts x 16
Warnings!
Read the entire Quick-Start Guide and ensure the instructions are fully understood
before assembling and using this product.
Before adding equipment to this product, ensure this product has been properly
mounted.
Never operate this product if parts are missing or damaged.
Ensure the weight of the equipment does not exceed the weight capacity of this
product. If the weight capacity is exceeded, personal injury or damage to the
equipment is possible. This product can support the following weight: up to 55.1 lb
(25 kg).
All four mounting points must be properly secured to each of the posts on a four-post
rack.
Never exceed the maximum mounting depth specification for this shelf: 24in (609mm).
Quick-Start Guide
• Handle x 1
• Handle Screws x 2
• M5 Screws x 8
• M5 Washers x 8
• M5 Cage Nuts x 8
• Quick-Start Guide x1
Manual Revision: March 18, 2024 4:45 PM
