StarTech.com SECTBLTDT Quick Start Manual

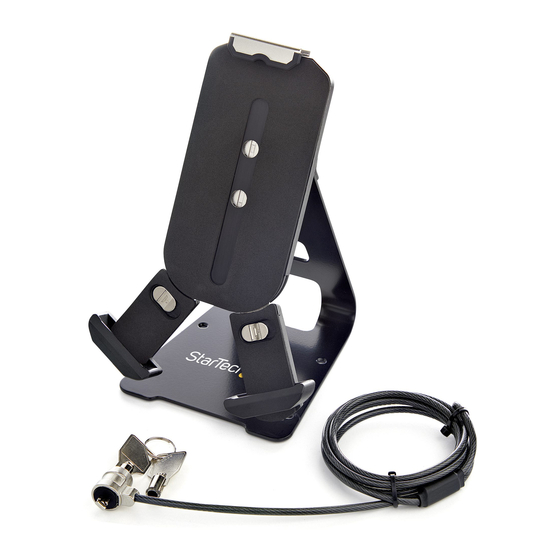

Secure Articulating Universal Tablet Mount

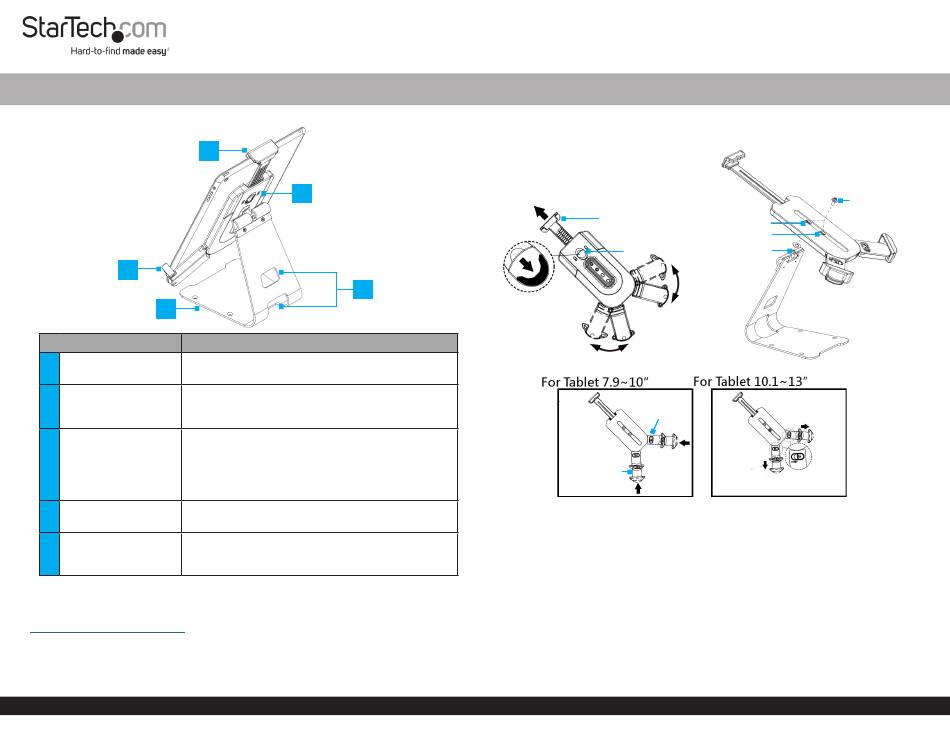

Product Diagram (SECTBLTDT)
Rear View
1
3
4
Component
• Holds a single Tablet
1 Tablet Holder
• Allows for 360° of rotation
• Deters theft
2 Lock Slot x 2
• Insert (up to) two K-Slot Style Laptop Locks (one
included, one sold separately)
• Part of the Tablet Holder
• Three points of contact with the Tablet
3 Tablet Holder Arm
• Integrated Spacers to prevent Tablet scratches
• (Optional) Spacers can be inserted into the Tablet
Holder Arms for thin Tablets
• Holds the Tablet Holder
4 Tablet Stand
• Allows for 180° of tilt
• Route the Tablet Charging Cable and K-Slot
Cable Management
5 Style Laptop Lock Cables through the Tablet
Holes
Stand
Requirements
For the latest requirements, please visit:
www.startech.com/SECTBLTDT
• Tablet
• Size: 7.9 - 13 Inch (200.66 - 330.2 mm)
• Thickness (Maximum): 0.374 Inches (9.5 mm)
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2
5
*Tablet sold separately.
Function
• (Optional -- for mounting) Electric Drill
• (Optional -- for mounting) Writing Utensil (i.e. Pencil, Pen, etc.)
• Phillips Head Screwdriver
Installation
Configure the Tablet Holder
Tablet Holder Arm
(Top)
Tab
(Top)
Figure 1
Tab
(Bottom)
Tablet Holder
Arm (Bottom)
Figure 3
1. Pull and hold the top Tab and extend the top Tablet Holder Arm until it reaches its
full length. (Figure 1)
2. Fold out the two lower Tablet Holder Arms.
3. (Optional -- for thin Tablets) Peel and stick the three Spacers over the existing
Screen Protection Pads located within the tips of all three Tablet Holder Arms.
Install the Tablet Holder
1. While the Table Holder Arm (Top) is fully extended, align the hole in the Tablet
Holder with the Pivot Point on the Tablet Stand. Continue to hold the Tablet
Holder. (Figure 2)
Quick-Start Guide
M4 Screw
Upper Hole
Lower Hole
Pivot Point
Figure 2
Figure 4
Manual Revision: November 11, 2020
