StarTech.com SHELF-2U-14-CENTER-V Quick Start Manual

2U Vented Center-Mount Shelf - 14/20 in. Depth
Product IDs
SHELF-2U-14-CENTER-V
SHELF-2U-20-CENTER-V

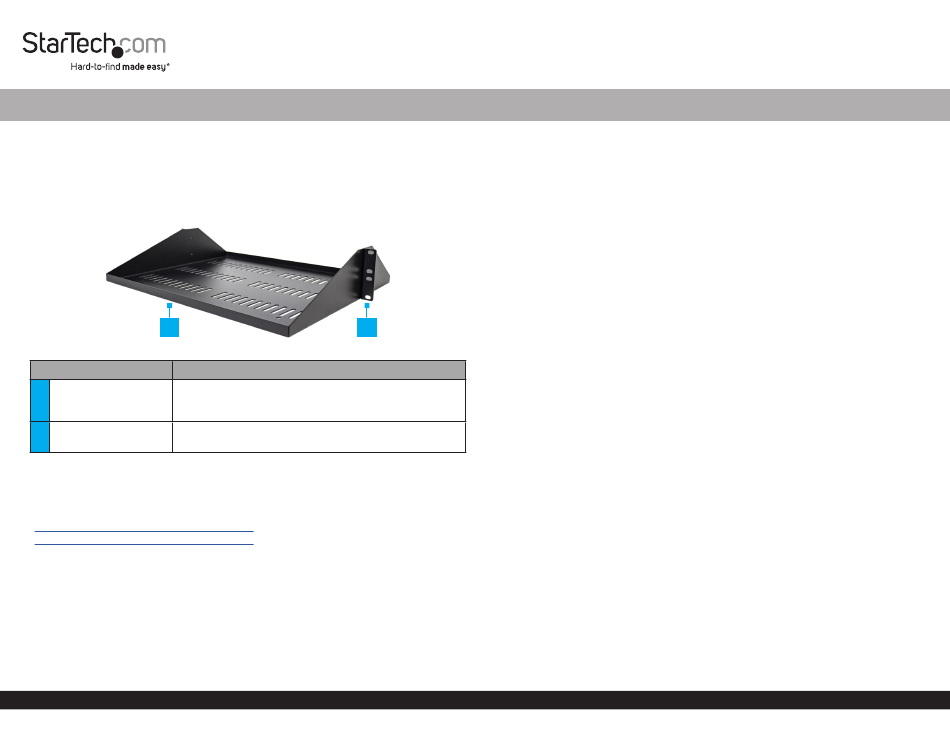

Product Diagram
Front - Angled View
1
Component
• Mount the 2U Vented Center-Mount Shelf with the
1 Shelf Lip Shelf Lip oriented upwards to prevent Equipment
from slipping off
• Mount the 2U Vented Center-Mount Shelf into a
2
Mounting Holes (x 8)
Rack or Cabinet.
Product Information
For the latest manuals, product information, technical specifications, and declarations
of conformance, please visit:
www.StarTech.com/SHELF-2U-14-CENTER-V
www.StarTech.com/SHELF-2U-20-CENTER-V
Requirements
• 2U Available Rack Space
• Phillips Head Screwdriver
• (Optional) Cage Nut Tool
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2
*Product may vary from image
Function
Warnings
• Read the entire manual and ensure the instructions are fully understood before
assembling and/or using this product.
• Before adding equipment to this product, ensure this product has been properly
mounted.
• Ensure the weight of the equipment does not exceed the weight capacity of this
product. If the weight capacity is exceeded, personal injury or damage to the
equipment are possibilities. This product can support the following weight: up to
200.6 lb. (91 kg). This product can only support the maximum weight capacity if 8
M6 Screws / Cage Nuts / Plastic Washers are used to affix this product to a rack or
cabinet.
Package Contents
• 2U Vented Center-Mount Shelf x 1
• M6 Cage Nuts x 10
• M6 Screws x 10
• M6 Plastic Washers x 10
• Quick-Start Guide x 1
Installation
Mount the 2U Vented Center-Mount Shelf into a Rack or Cabinet
Use the included M6 Cage Nuts, M6 Screws, and M6 Plastic Washers to install the 2U
Vented Center-Mount Shelf.
Notes: This product can support the following weight: 200.6 lb. (91 kg).
The following installation instructions are for square mounting holes.
1. Locate a suitable location in a Rack or Cabinet to mount the 2U Vented Center-
Mount Shelf.
Note: The 2U Vented Center-Mount Shelf itself requires 2U of space within a Rack
or Cabinet.
2. Insert the Wing (side) of an M6 Cage Nut into the back of the a Cage Nut Hole.
3. Insert the second Wing of the M6 Cage Nut into the selected Cage Nut Hole, using
pressure by hand, or with a Cage Nut Tool.
Quick-Start Guide
Manual Revision: July 16, 2021 4:42 PM
