Working Load Limit (Wll); Hoist Specifications; Electrical Specifications; Interface With Building - ETC Prodigy FlyPipe Studio Installation Manual

AVERTISSEMENT :
utilisés pour déplacer une charge maximale équivalente ou inférieure à sa
capacité nominale. Une surcharge de l'appareil peut entraîner
l'endommagement du système et d'autres biens, des blessures graves, voire
la mort.

Working Load Limit (WLL)

The Working Load Limit (WLL) of any hoist is the maximum load capacity that a user may apply
to a hoist or a hoist system.
All Prodigy hoists have a Working Load Limit. This is identified on the product label on the side
of the motor box. All Prodigy FlyPipe Studio hoists have a Working Load Limit of 136 kg (300 lb).
Prodigy Working Load Limits include a design-safety factor.
WARNING:

Hoist Specifications

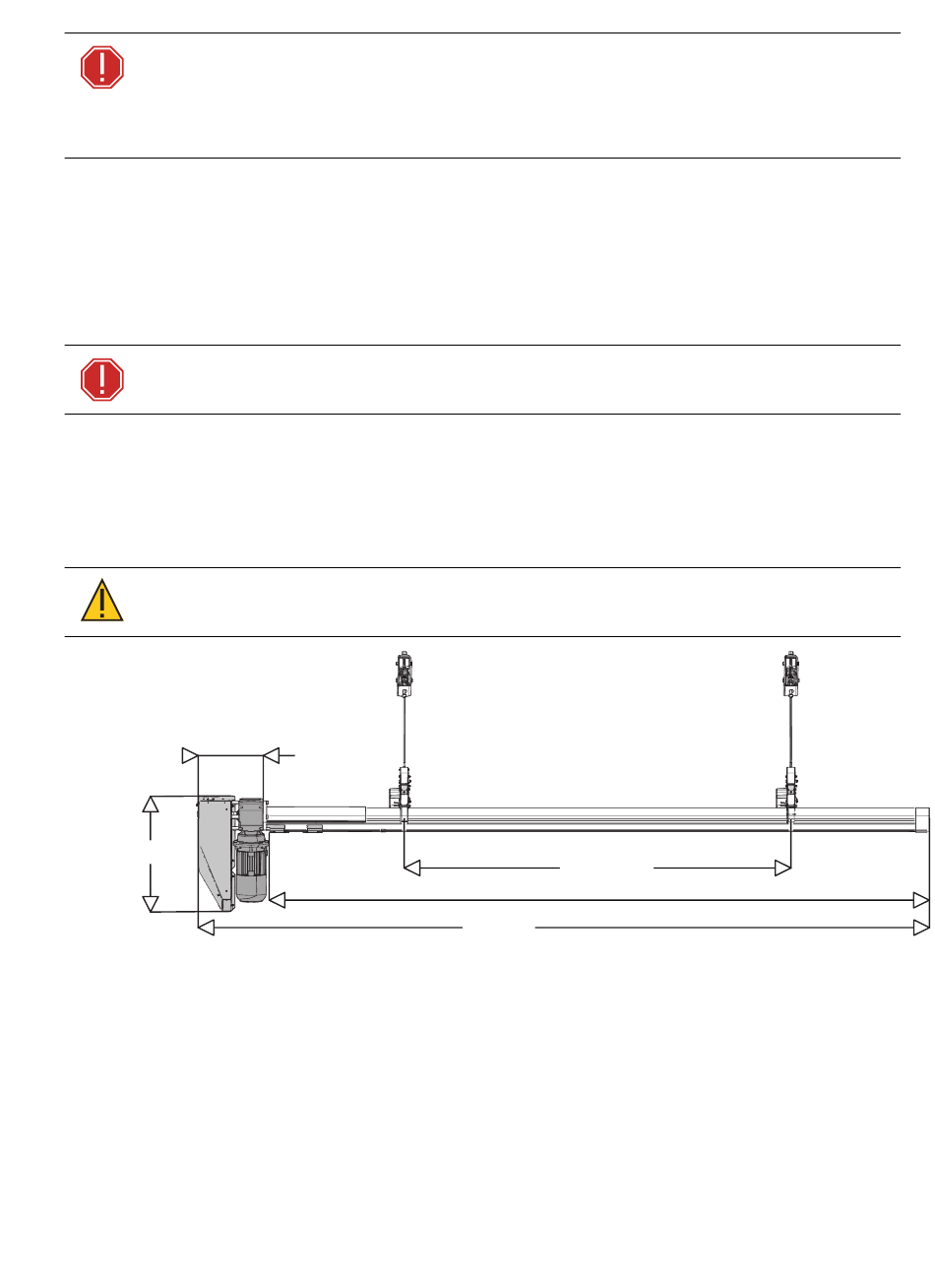

The FlyPipe Studio is a self-climbing hoist made up of a control housing, motor, drum, extrusion,
SafeStop devices, and TwinLine pairs with TwinLine Clamps. The hoist extrusion provides strut
channel on the underside of the hoist body from which you can easily hang fixtures, curtains, or
other equipment.
CAUTION:
Prodigy FlyPipe Studio. ETC recommends using channel nuts without springs.
540 mm
(21.3 in)

Electrical Specifications

FlyPipe Studio 120/208 Volt, 3-phase, 3-wire + ground, 60 Hz, 2.4 A, Motor 0.5HP
•
FlyPipe Studio 277/480 Volt, 3-phase, 3-wire + ground, 60 Hz, 1.6 A, Motor 0.5HP
•
Power and data control cables plug into motor box
•

Interface with Building

Strut channel (i.e. Unistrut® - provided by others) attaches directly to the building
•
structure
Each pair of lift lines (TwinLine) terminate to an adjustable tension beam clamp (TwinLine
•
clamp), which attaches to the strut channel
4
Les porteuse de Prodigy doivent uniquement être
NEVER exceed the Working Load Limit for any hoist.
Using channel hardware with springs can cause severe damage to
299 mm
(11.8 in)
3.36 m (11 ft)
1.78 m (5 ft 10 in)
Prodigy FlyPipe Studio Installation Guide
