Operation/Reference Guide
®
Mio Modero
Device Family
L a s t R e v i s e d : 0 9 / 0 5 / 2 0 0 8
C o n t r o l S y s t e m A c c e s s o r i e s

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIO R-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMX MIO R-2

Summary of Contents for AMX MIO R-2

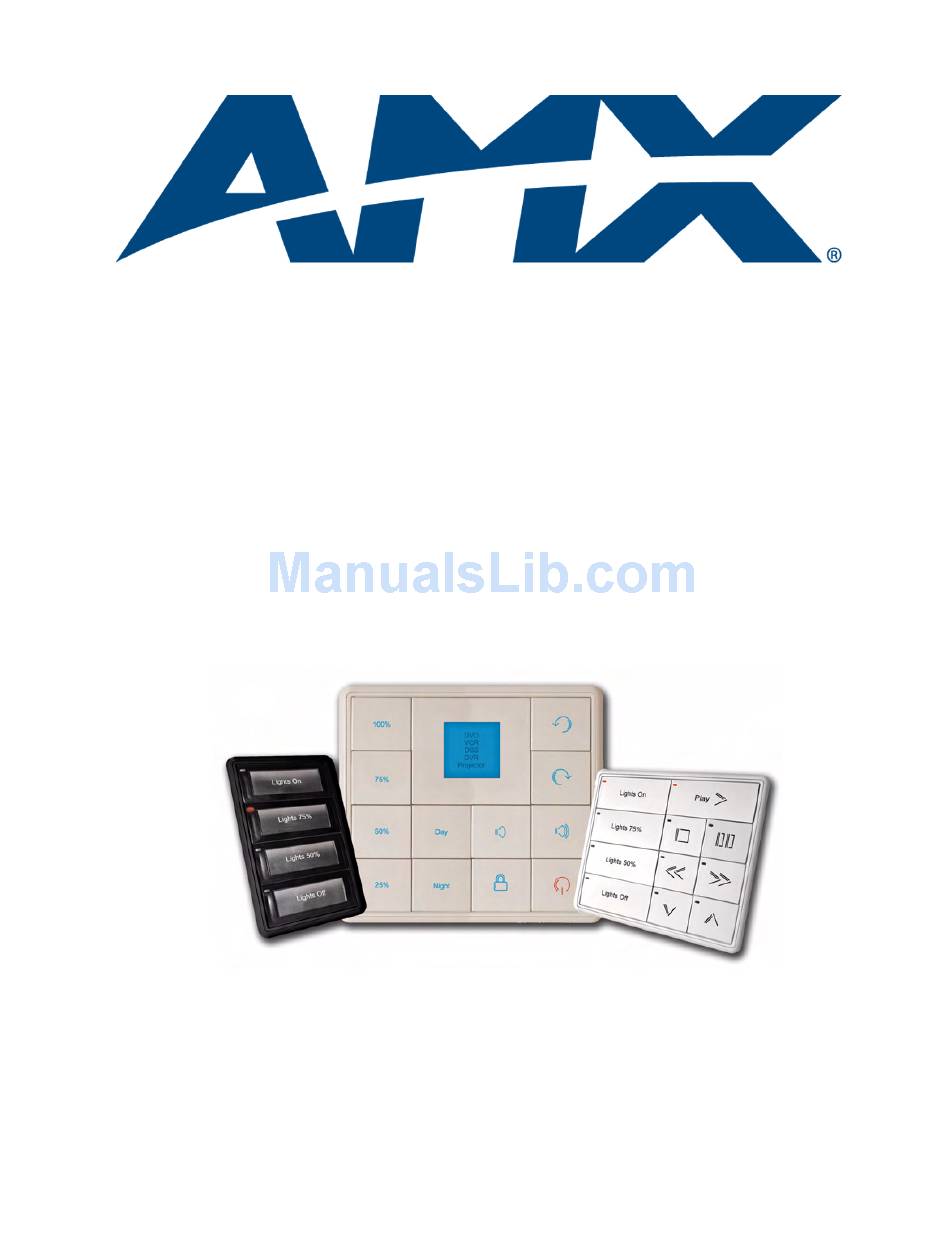

  • Page 1 Operation/Reference Guide ® Mio Modero Device Family L a s t R e v i s e d : 0 9 / 0 5 / 2 0 0 8 C o n t r o l S y s t e m A c c e s s o r i e s...
  • Page 2 RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a third party or by an AMX Dealer for a third party.
  • Page 3 AMX's entire liability and Licensee's exclusive remedy shall be repair or replacement of the AMX Software that does not meet AMX's Limited Warranty and which is returned to AMX. This Limited Warranty is void if failure of the AMX Software has resulted from accident, abuse, or misapplication.

  • Page 5: Table Of Contents

    Table of Contents Overview ...1 Specifications... 2 Available Color Schemes... 3 Mio Modero LCD Feature ... 3 Fixed Menu System ... 3 Proximity Detection "People Sensor"... 3 Installation ...5 Changing Buttons ... 6 To switch out "installation" buttons:... 6 To change custom buttons: ... 7 Mio Modero Prestige ...
  • Page 6 Table of Contents Mio Modero Device Family...

  • Page 7: Overview

    Overview The Mio Modero device family provides a wide range of control capabilities in the form of keypads that are as adept as they are elegant. Each device is available as single style (8 button max) or double style (16 button max) with an optional LCD capped button. The devices are available as follows: Mio Modero Device Family Classic Engraved plastic buttons with a red (active) feedback LED in the upper left corner.

  • Page 8: Specifications

    Overview Specifications The Mio Modero device family keypad specifications are as follows: Specifications Power: Front Panel Components: • LCD (where applicable) - SPI controlled 96 x 96 pixel resolution, monochrome Rear Panel Components: • DIP switch - 8 position mini DIP switch used to set the device address for the Dimensions (HWD): Supported Languages: Weight (range):...

  • Page 9: Available Color Schemes

    Additionally, the LCD has a button cap enabling it to act as a button. Fixed Menu System Using the KeypadBuilder application available for download from www.amx.com, the LCD can be programmed with a Fixed Menu System (FMS) that is navigated via the Mio Modero and its LCD button.
  • Page 10 Overview Mio Modero Device Family...

  • Page 11: Installation

    Installation Before touching the device, discharge the static electricity from your body by touching a grounded metal object. The basic front and rear components of the Mio Modero are as follows: (Front Single) Screw holes FIG. 2 Mio Modero Front and Rear Components Mio Modero Device Family Installation Button Slot to pry...

  • Page 12: Changing Buttons

    Installation Installation Buttons FIG. 3 Sections of The Mio Modero Changing Buttons The Mio Modero Classic and Elite are shipped with "installation" buttons; they are intended to be place holders until your engraved buttons, designed with KeypadBuilder, arrive. To switch out "installation" buttons: 1.

  • Page 13: To Change Custom Buttons

    6. Snap the faceplate on the mounting frame. Be certain to reprogram the Mio Modero to match the new button arrangement; use KeypadBuilder to assign the locations. See the KeypadBuilder Instruction Manual available at www.amx.com. Mio Modero Prestige The Mio Modero Prestige ships with sheets of common menu items and icons for creating inserts for single and double buttons.

  • Page 14: Setting The Axlink Device Number

    If you later change the device number, remove and reconnect the AxLink power connector to enter the new device number into memory. AMX has created Dip Switch2 to assist in calculating dip switch position values. Download the program Dip Switch2 from www.amx.com for free.

  • Page 15: Wiring Guidelines

    Wiring guidelines The Mio Modero requires 12 VDC power to operate properly. The necessary power is supplied via the AxLink cable. The maximum AxLink wiring distance is determined by power consumption, supplied voltage, and the wire gauge used for the cable. The following table lists wire sizes and the maximum lengths allowable based on the maximum power consumption rating of 170 mA.

  • Page 16: Using Axlink For Data With An Auxiliary Power Supply

    Installation Using AxLink for data with an auxiliary power supply Connect the controller’s AxLink connector to the AxLink connector on the rear panel of the Mio Modero device, as shown in FIG. 7. PWR (+) GND (-) FIG. 7 AxLink and 12 VDC power supply wiring diagram If you are not using power from AxLink, disconnect the wiring from the controller before wiring the Mio Modero device.

  • Page 17: Mounting Procedures

    Installation Mounting Procedures FIG. 8 shows the wallbox mounting dimensions for the single and double style Mio Modero. AMX recommends mounting the Mio Modero in a standard one-gang wallbox, a conduit box per NEC specs section 370, with a minimum internal clearance of 2-5/8" x 1-3/4" x 1-5/8" (HWD), but it is possible to mount the Mio Modero to a podium without a wallbox.

  • Page 18: Wallbox Mounting

    Installation FIG. 9 Mio Modero Double Style mounting dimensions Wallbox Mounting 1. Use the cutout dimension for the wallbox to cutout the install surface for the Mio Modero. 2. Confirm that the terminal end of the AxLink cable is disconnected, and not receiving power. 3.

  • Page 19: Podium Mounting

    FIG. 10 Attaching the faceplate to the mounting frame Podium Mounting 1. Use the cutout dimension shown in either FIG. 8 or FIG. 9 to cutout the mounting frame install surface for the Mio Modero. 2. Confirm that the terminal end of the AxLink cable is disconnected, and not receiving power. 3.

  • Page 20: Accent Frame

    Installation Accent Frame While the Mio Modero device family does fit into many International wallboxes, it may be necessary to utilize the optional accent frame to completely cover the wallbox. To install the Mio Modero with the optional accent frame: 1.

  • Page 21: Mio Modero Ir

    AxLink bus to remotely control devices. The Mio Modero IR is in a wall panel that fits into the US-style single-gang enclosure and most International single-gang enclosures. The Mio Modero IR works with AMX 38 kHz and 455 kHz IR transmitters. Faceplate IR Cover FIG.

  • Page 22: Wiring And Installation

    Mio Modero IR Wiring and Installation Set the receive AxLink device number before installing the Mio Modero IR. FIG. 12 illustrates the location of key components on the Mio Modero IR circuit board. Screw holes FIG. 12 Location of key components on the Mio Modero IR circuit board Setting the AxLink Device Number 1.

  • Page 23: Wiring Guidelines

    Wiring Guidelines The Mio Modero IR requires 12 VDC power to operate properly. The power is supplied by the AMX system's AxLink cable. The maximum wiring distance between the Central Controller and the receiver is determined by power consumption, supplied voltage, and the wire gauge used for the cable. The following table lists wire sizes and the maximum lengths allowable between the receiver and the Central Controller.

  • Page 24: Mounting Procedure

    Mio Modero IR Mounting Procedure FIG. 15 shows the wallbox mounting dimensions for the Mio Modero IR. AMX recommends mounting the Mio Modero IR in a standard one-gang wallbox, a conduit box per NEC specs section 370, with a minimum internal clearance of 2-5/8" x 1-3/4" x 1-5/8" (HWD).
  • Page 25 Mio Modero IR FIG. 16 Attaching the faceplate to the mounting frame Mio Modero Device Family...
  • Page 26 Mio Modero IR Mio Modero Device Family...

  • Page 27: Programming The Mio Modero

    Programming The Mio Modero KeypadBuilder Most functionality of the Mio Modero is handled using the application, KeypadBuilder. Go to www.amx.com for the KeypadBuilder Instruction Manual. There are a select number of SEND_COMMANDs the Mio Modero recognizes. Recognized SEND_COMMANDs Below is a list of SEND_COMMANDs accepted by the Mio Modero device family from NetLinx masters.
  • Page 28 Programming The Mio Modero SEND_COMMANDs (Cont.) ^CFG @CST ^FML S ^FML D ^FML D L Combine/Uncombine adjacent buttons Syntax: "'^CFG- <command value>'" Variables: command value = (1= combine, 0= uncombine). Example: SEND_COMMAND Panel,"'^CFG-1'" Set the Key Pad to button combine mode Sets the display contrast for the device.
  • Page 29 SEND_COMMANDs (Cont.) ^FML D L # ^GLY (LCD equipped only) ^JST- (LCD equipped only) ^PRX- Mio Modero Device Family Sets a line of the display to a dynamic line with a level, and sets the level style Syntax: "'^FML-<variable text address range>,D,L,<Level Style>'" Variables: variable text address range = 1 - 4;...
  • Page 30 Programming The Mio Modero SEND_COMMANDs (Cont.) ^SHO SLEEP @SSL @SST @SWK Show or hide text with a set variable text range. Syntax: "'^SHO-<variable text address range>,<command value>'" Variables: variable text address range = 1 - 4; the address range corresponds to the dynamic line number.
  • Page 31 SEND_COMMANDs (Cont.) ^TXT- (LCD equipped only) ^UNI- (LCD equipped only) WAKE Mio Modero Device Family Assign a text string to those LCD buttons with a defined address range. Sets nonunicode text. Syntax: "'^TXT-<variable text address range>,<new text>'" Variables: variable text address range = 1 - 4; the address range corresponds to the dynamic line number.

  • Page 32: Sending Firmware To The Mio Modero Keypads

    Programming The Mio Modero Sending Firmware to The Mio Modero Keypads You need NetLinx studio to update firmware located on the Mio Modero Keypads. To send firmware to the keypads: 1. Open NetLinx Studio. 2. Go to Tools > Firmware Transfers > Send to Axcess Device... This opens the Send to Axcess Dialog Window .
  • Page 33 Programming The Mio Modero Mio Modero Device Family...
  • Page 34 It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
