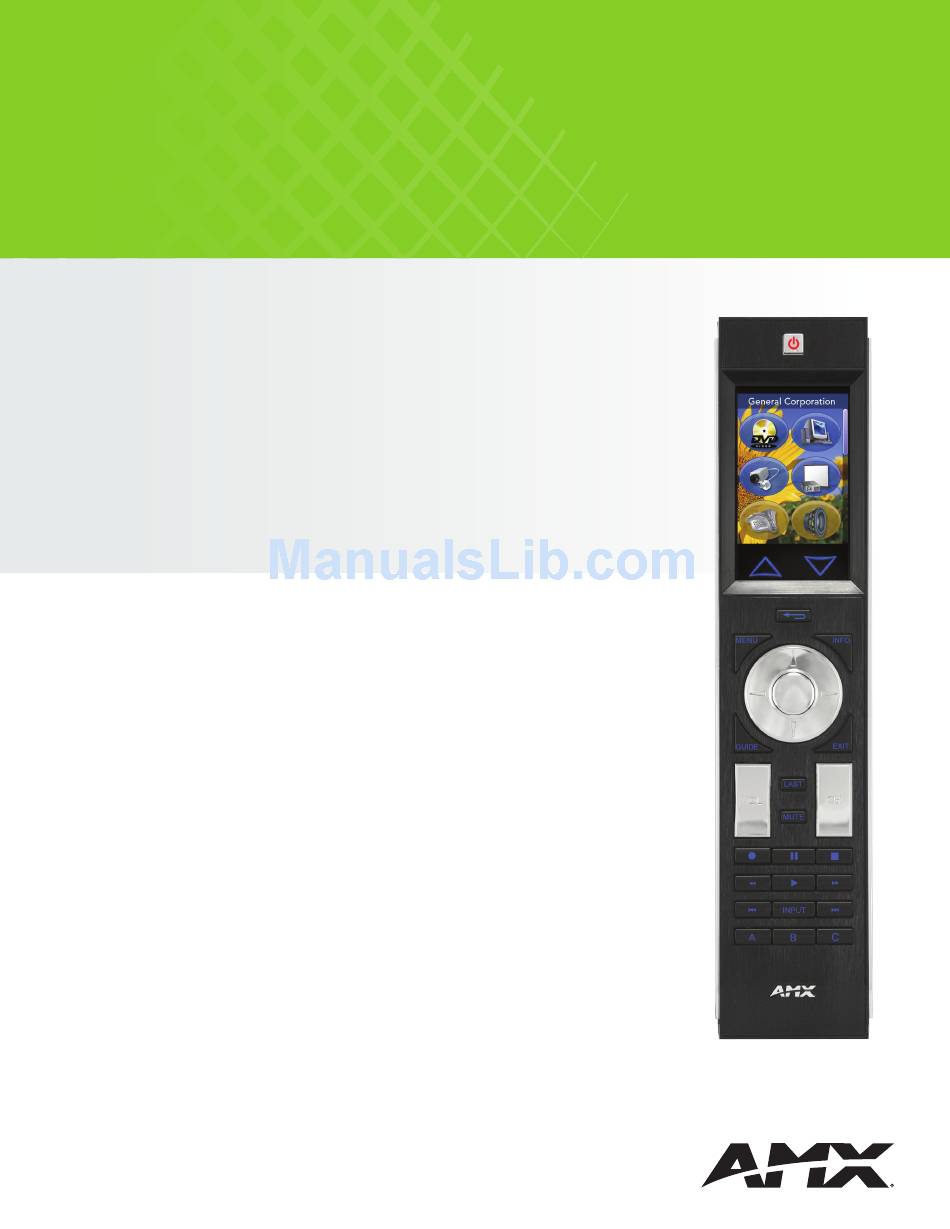

AMX MIO-R4 Datasheet

Mio Remote Controls
Mio Modero
R-4 Remote
The Mio Modero® R-4 remote provides custom control features and includes a 2.4-inch
full-color, active-matrix TFT LCD Touch Panel, ZigBee wireless technology, two-way commu-
nication and unlimited control of devices - all in an elegant handheld rechargeable device.
It has a wide coverage area and signals can be transmitted through walls, ceilings, etc. with
a range of up to 100 feet indoors (dependent upon conditions and construction materials).
The coverage area can be extended by using NetLinx ZigBee Repeaters. And with ZigBee,
any number of R-4s can be used within the same property without interfering with each
other. Includes 29 hard buttons and 2 LCD touch panel buttons to give the user thousands
of options for managing all of the operating functions of each device.

COMMON APPLICATION

The Mio Modero R-4 is an excellent choice for two-way LCD touch control of a wide variety of devices
throughout hotels, residences or buildings of almost any size.
• 2.4-inch color active-matrix TFT LCD Touch Panel
• 240 x 320 pixel resolution
• Transmits/Receives two-way signals using ZigBee Wireless technology
• Virtually unlimited coverage when using NetLinx ZigBee Repeaters
• 29 hard buttons and two LCD buttons
• Supports any connected system device
• Wakes upon touching either the chrome side rails, moving it, or button press
M I O - R 4 D ATA S H E E T
