- Page 1 Operation/Reference Guide Mio Modero ® Device Family L a s t R e v i s e d : 1 2 / 1 6 / 2 0 0 9 C o n t r o l S y s t e m A c c e s s o r i e s...
- Page 2 RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a third party or by an AMX Dealer for a third party.
-
Page 3: Table Of Contents
Mounting Procedure ... 15 Programming The Mio Modero ...17 KeypadBuilder ... 17 SEND_COMMANDs ... 17 @BRT ...17 ^CFG ...18 @CST ...18 ^FML S ...18 ^FML D ...18 ^FML D L ...19 ^FML D L # ...19 Mio Modero Device Family Table of Contents... - Page 4 ^SHO ... 20 SLEEP ... 20 @SSL ... 20 @SST ... 20 @SWK ... 21 ^TXT- ... 21 ^UNI- ... 21 WAKE ... 21 Combining Buttons ... 22 Sending Firmware to The Mio Modero Keypads ... 22 Mio Modero Device Family...
-
Page 5: Overview

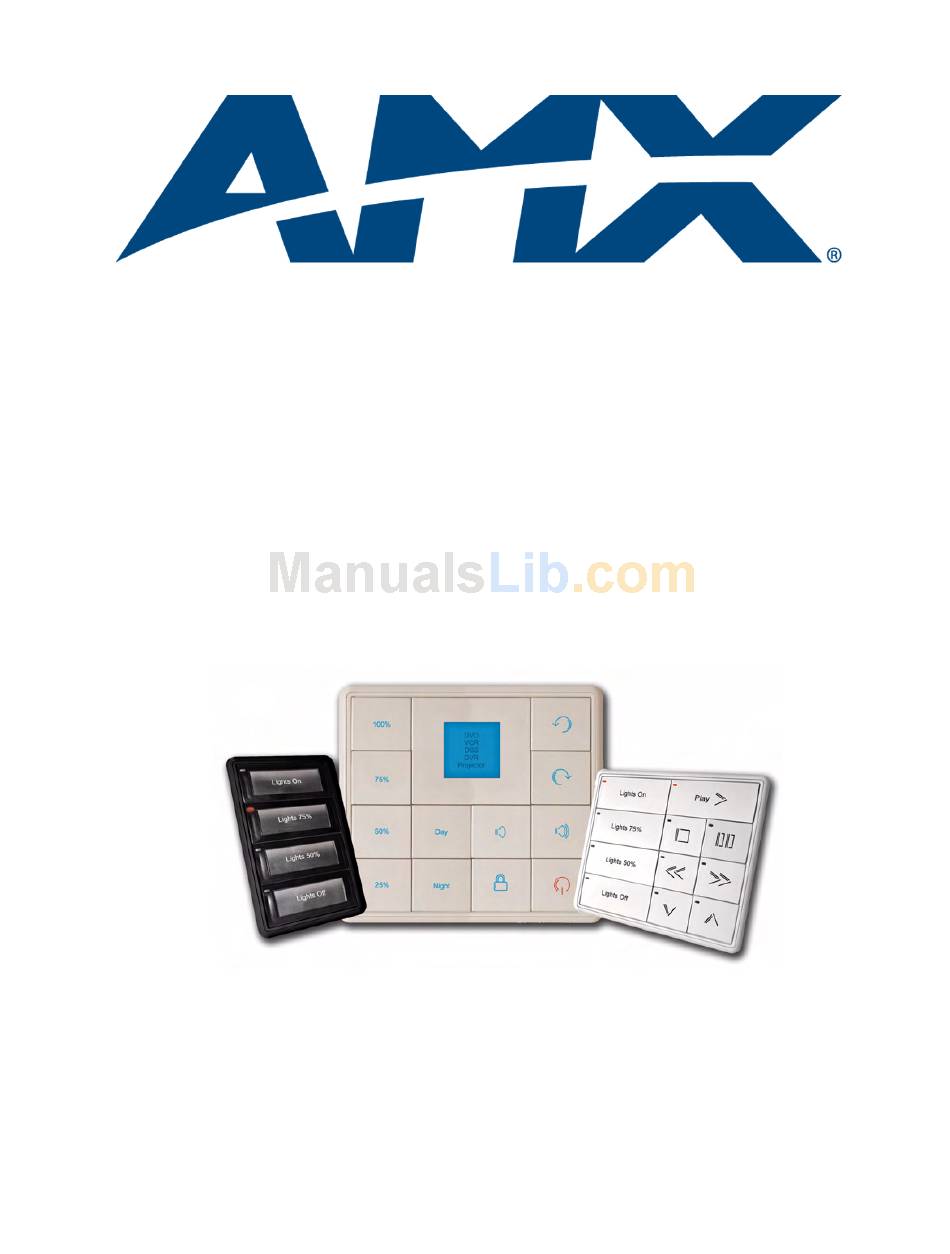

Overview The Mio Modero device family provides a wide range of control capabilities in the form of keypads that are as adept as they are elegant. Each device is available as single style (8 button max) or double style (16 button max) with an optional LCD capped button (FIG. -
Page 6: Available Color Schemes
Mounting: Included Accessories: Optional Accessories: Available Color Schemes The Mio Modero device family is available in a range of colors, and the Elite supports a variety of Lutron color schemes. Mio Modero Color Schemes Mio Modero Classic Mio Modero Prestige... -
Page 7: Mio Modero Lcd Feature
Additionally, the LCD has a button cap enabling it to act as a button. Fixed Menu System Using the KeypadBuilder application available for download from www.amx.com, the LCD can be programmed with a Fixed Menu System (FMS) that is navigated via the Mio Modero and its LCD button. See the KeypadBuilder Instruction Manual for more information on programming Fixed Menu Systems. - Page 8 Overview Mio Modero Device Family...
-
Page 9: Installation
The basic front and rear components of the Mio Modero are as follows: (Front Single) Screw holes FIG. 2 Mio Modero Front and Rear Components Mio Modero Device Family Installation Button Slot to pry button free Screw holes (Rear Single) -
Page 10: Changing Buttons
If the power supply was disconnected in Step 1, reconnect and return power to the device. Snap the faceplate on the mounting frame. Be certain to reprogram the Mio Modero to match the new button arrangement; use KeypadBuilder to assign the locations. See the KeypadBuilder Instruction Manual available at www.amx.com. Mounting Frame... -
Page 11: Mio Modero Prestige
The device number is set by the total value of DIP switch positions that are ON (up). As an example, the DIP switch in FIG. 5 defines device number 129 (1+128=129). FIG. 5 Example Device DIP Switch set to 129 Mio Modero Device Family Window Installation Frame... -
Page 12: Wiring
If you later change the device number, remove and reconnect the AxLink power connector to enter the new device number into memory. AMX has created Dip Switch2 to assist in calculating dip switch position values. Download the program Dip Switch2 from www.amx.com for free. -
Page 13: Axlink Data And Power Connections
Use an auxiliary 12 VDC power supply when the distance between the controller and server exceeds the limits described in Wiring Guidelines table. Connect only the GND (-) wire on the AxLink connector when using an auxiliary 12 VDC power supply. Mio Modero Device Family Installation PWR +... -
Page 14: Mounting Procedures
Installation Mounting Procedures FIG. 8 shows the wallbox mounting dimensions for the single and double style Mio Modero. AMX recommends mounting the Mio Modero in a standard one-gang wallbox, a conduit box per NEC specs section 370, with a minimum internal clearance of 2-5/8" x 1-3/4" x 1-5/8" (HWD), but it is possible to mount the Mio Modero to a podium without a wallbox. -
Page 15: Podium Mounting
Do not overtighten the screws when mounting the mounting frame. The device should be flush with mounting surface. Attach the faceplate to the mounting frame first at the top and swing it to the bottom (see FIG. 10). Mio Modero Device Family Installation... -
Page 16: Accent Frame
Installation Accent Frame While the Mio Modero device family does fit into many International wallboxes, it may be necessary to utilize the optional accent frame to completely cover the wallbox. To install the Mio Modero with the optional accent frame: Use the cutout dimension for the wallbox to cut out the install surface for the Mio Modero. -
Page 17: Mio Modero Ir
AxLink bus to remotely control devices. The Mio Modero IR is in a wall panel that fits into the US-style single-gang enclosure and most International single-gang enclosures. The Mio Modero IR works with AMX 38 kHz and 455 kHz IR transmitters. Faceplate IR Cover FIG. -
Page 18: Wiring And Installation
Wiring Guidelines The Mio Modero IR requires 12 VDC power to operate properly. The power is supplied by the AMX system's AxLink cable. The maximum wiring distance between the Central Controller and the receiver is determined by power consumption, supplied voltage, and the wire gauge used for the cable. -
Page 19: Axlink Data And Power Connections
FIG. 15 shows the wallbox mounting dimensions for the Mio Modero IR. AMX recommends mounting the Mio Modero IR in a standard one-gang wallbox, a conduit box per NEC specs section 370, with a minimum internal clearance of 2-5/8" x 1-3/4" x 1-5/8" (HWD). - Page 20 Attach the faceplate to the mounting frame first at the top and swing it to the bottom. See FIG. 16. FIG. 16 Attaching the faceplate to the mounting frame Mio Modero Device Family...
-
Page 21: Programming The Mio Modero
There are a select number of SEND_COMMANDs the Mio Modero recognizes. SEND_COMMANDs Below is a list of SEND_COMMANDs accepted by the Mio Modero device family from NetLinx masters. As indicated, not every command applies to all Mio Modero devices, e.g., the ^TXT command is not apparent without an LCD upon which to display. -
Page 22: Cfg
• variable text address range = 1 - 4; the address range corresponds to the dynamic line number. • D = Dynamic line type Example: SEND_COMMAND Panel,"'^FML-2,D'" Set Line 2 to a Dynamic Line with no Level Mio Modero Device Family... -
Page 23: Fml D L
• variable text address range = 1 - 4; the address range corresponds to the dynamic line • new text alignment = Value of 1 - 9 corresponds to the following locations: Example: Note: There is no vertical alignment. Mio Modero Device Family "'^FML-<variable text address range>,D,L'" number. SEND_COMMAND Panel,"'^FML-1,D,L'"... -
Page 24: Prx
Syntax: "'@SST-<new text>'" Variable: • new text = 1 - 20 ASCII characters. Default string is STARTUP. Example: SEND_COMMAND Panel,"'@SST-Panel Start'" Sends the string " Panel Start " to the master at time of start up. Mio Modero Device Family... -
Page 25: Swk
Force the device out of screen saver mode. WAKE Syntax: Example: Mio Modero Device Family "'@SWK-<new text>'" SEND_COMMAND Panel,"'@SWK-Wake KeyPad" Sends the string " Wake KeyPad " to the master at time of wake up. "'^TXT-<variable text address range>,<new text>'"... -
Page 26: Combining Buttons
Sending Firmware to The Mio Modero Keypads You will need the NetLinx Studio software application (available to download from www.amx.com) to update firmware located on the Mio Modero Keypads. To send firmware to the keypads: Open NetLinx Studio. - Page 27 Programming The Mio Modero Mio Modero Device Family...
