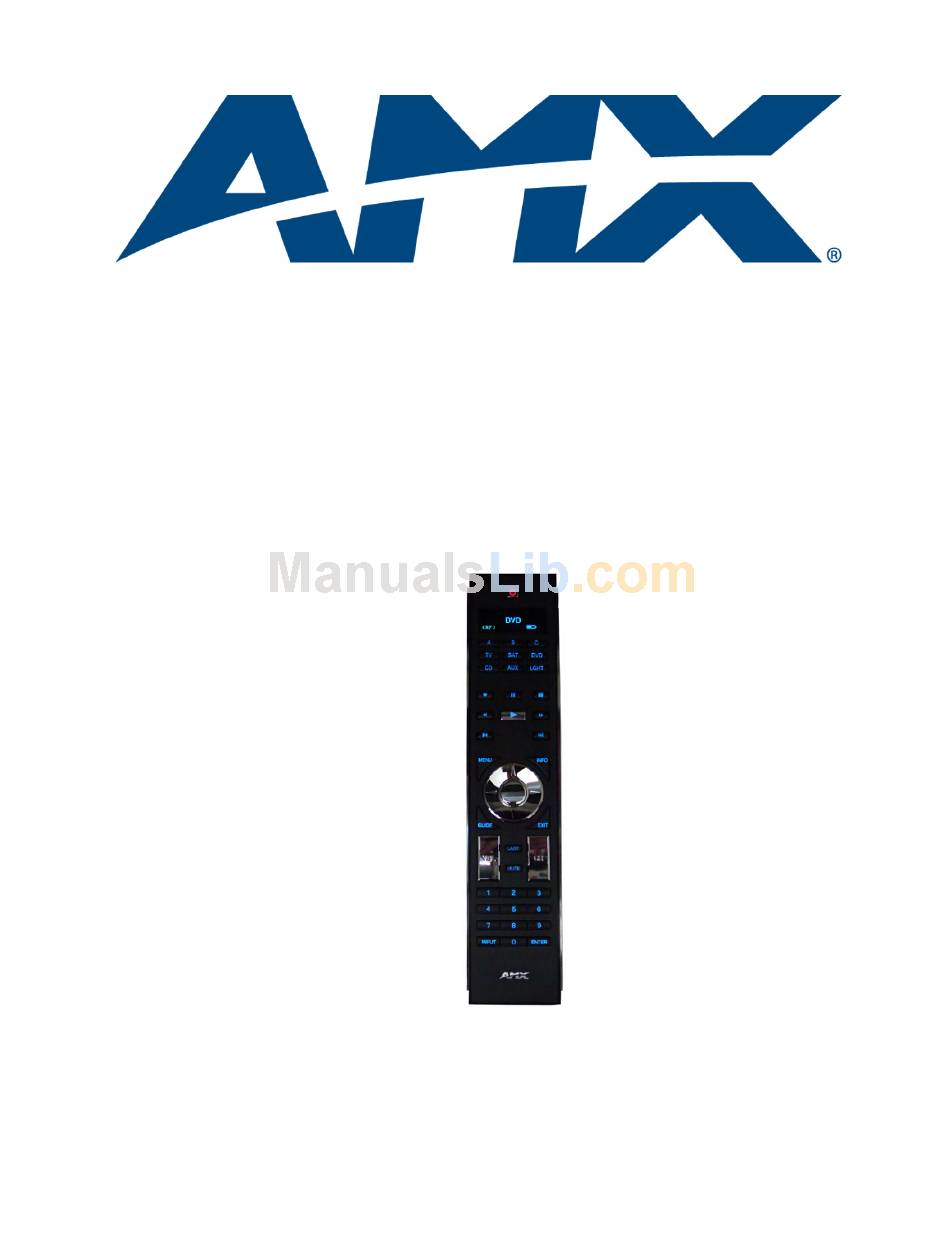

- Page 1 Operation/Reference Guide ® Mio Modero Remote Control Device L a s t R e v i s e d : 9 /2 / 2 0 0 9 M i o R e m o t e C on t r ol s...
- Page 2 RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a third party or by an AMX Dealer for a third party.
- Page 3 AMX's entire liability and Licensee's exclusive remedy shall be repair or replacement of the AMX Software that does not meet AMX's Limited Warranty and which is returned to AMX. This Limited Warranty is void if failure of the AMX Software has resulted from accident, abuse, or misapplication.
-
Page 5: Table Of Contents
Mio Remote Charging Base ...13 Specifications ... 14 Installing The Rechargeable Battery ... 15 Charging The Mio Remote with Charging Base ... 16 Changing Battery Modes ... 16 Configuration Mode ... 16 Battery Type... 16 Mio Modero R-2 Table of Contents... - Page 6 Table of Contents Mio Modero R-2...
-
Page 7: Overview
You need KeypadBuilder to properly program this device. The application and documentation are available from www.amx.com. FIG. 1 The Mio R-2 Device Mio Modero R-2 ® 1 - Power 11 - Volume Up 2 - Guide... -
Page 8: Touch And Tilt Sensor
Operating Environment: • Operating Temperature: 0° to 50° C (32° to 122° F) Other AMX Equipment 4 AAA Alkaline Batteries (5 hours battery life) • AMX 38 KHz/455 KHz IR • 418 RF (1-way) (FG147-418) • 433 RF (1-way) (FG147-433) •... -
Page 9: Fcc Compliance
2. This device must accept all interference, including interference that interferes with the operation of this device. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Mio Modero R-2... - Page 10 Overview Mio Modero R-2...
-
Page 11: Mio R-2 Setup
4. Place the battery door back on the device, slide to lock it in place. Battery Low Indicator When the battery charge level is too low to sustain continuous operation, the LCD flashes, "Battery Low" and the device shuts down. Mio Modero R-2 6 Screw Points Programming Jack Mio R-2 Setup... - Page 12 Mio R-2 Setup Mio Modero R-2...
-
Page 13: Programming The Mio R-2
2.5 mm stereo jack, you can order the programming cable (FG10- 817) from AMX if you do not currently possess one. While loading your configuration file make sure the device is situated as such that the batteries will not fall out. The load will fail if your batteries fall out during the process. -
Page 14: Ir/Rf Code Matrix
B (Macro 2) C (Macro 3) TV (Mode 1) SAT (Mode 2) DVD (Mode 3) CD (Mode 4) AUX (Mode 5) LGHT (Mode 6) 246 STOP B REC J PAUSE C Mode Mode Mode Mode Mode Mode Mio Modero R-2... -
Page 15: Configuration Mode
Press button "2" on the remote to change the sleep timeout from the default. Each time "2" is pressed, the sleep timeout raises incrementally. The pre-determined sleep timeouts are: 3 seconds 6 seconds 9 seconds 12 seconds The display indicates the selected sleep timeout. Mio Modero R-2 Mode Mode Mode Mode Mode Programming The Mio R-2... -
Page 16: Download Mode
Toggle Wheel left/right Last button Exit button Enter button Scrolls character up/down Moves cursor left/right between Backspace (moves cursor back one space and erases previous character) Abort (erases previously selected information without entering it) Done (submits information) Mio Modero R-2... -
Page 17: Updating Mio R-2 Firmware
11. After device firmware download, check one more time to verify the firmware version change. 12. Click Close. 13. Upon confirmation of a successful send, you can exit NetLinx Studio and disconnect the programming jack. Mio Modero R-2 Programming The Mio R-2... -
Page 18: Persistent Serial Commands
# = 0 - 60 in seconds; time to wait before going to sleep. Default is 30. 0 sets the device to never sleep. Example: SEND_COMMAND Panel,"'SLEEP-45'" Forces the device into screen saver mode after 45 seconds. Mio Modero R-2... -
Page 19: Mio Remote Charging Base
The charging base upgrade kit transforms the Mio R-1, R-2 and R-3 into a rechargeable device. Begin with Installing The Rechargeable Battery for the Mio-RCC rechargeable upgrade kit (FG147-03K) or Charging The Mio Remote with Charging Base for the Mio-RCC charging base (FG147-02). FIG. 5 Mio-RCC Charging Base Mio Modero R-2 Mio Remote Charging Base... -
Page 20: Specifications
Mio-RCC Remote Charging Kit (FG147-03K) with Base (FG147-02) Specifications Dimensions (HWD) Weight Included Items: Other AMX Equipment: • Mio-RCC Charging Base (FG147-02) with Power Supply Rubber feet Angle barrel power connector Charging contacts Charging Base - 1.61 (4.09 cm) (height); 4.25 (10.80 cm) (diameter) Lithium Ion Battery - 2.13”... -
Page 21: Installing The Rechargeable Battery
Rechargeable Battery Port Connection FIG. 8 Rechargeable Battery Port on The Mio Remote Mio Modero R-2 Mio Remote Charging Base 6 Screw Points Lithium Ion Battery... -
Page 22: Charging The Mio Remote With Charging Base
The type of battery in the Mio R-1 dictates the battery type you need to set. 3. Press the EXIT key when you are finished. Your settings will not be lost in the event your batteries die or are removed. Mio Modero R-2... - Page 23 Mio Remote Charging Base Mio Modero R-2...
- Page 24 It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
