AMX Mio R-2 Quick Start Manual

Overview
The Mio R-2 remote provides custom control features, contained in an elegant
handheld device. The Mio R-2 controls 6 different device modes, supports 3 macro
functions and is capable of executing 219 functions. The Mio R-2 can transmit in 38
KHz IR, 455 KHz IR, 418 RF (1-way) (FG147-418), 433 RF (1-way) (FG147-433), or
38 KHz and one of the RF frequencies.
Selecting a source device sends a command to the master and runs predetermined
events associated with that source. Selecting a macro will run predefined events,
which might not be associated with sources listed, then return the device to its
previous mode.
You need KeypadBuilder to properly program this device. The application and
documentation are available from www.amx.com.
1
39 40 38
44 42 45
41 43
1 - Power
2 - Guide
4 5
3 - Exit
6
4 - Menu
5 - Information
6 - Move Up
8 10 9
7 - Move Down
8 - Move Left
3
2
9 - Move Right
7
10 - Select
11 - Volume Up
11 13
15
12 - Volume Down
13 - Channel Up
16
14
12
26
28
Numeral Keypad

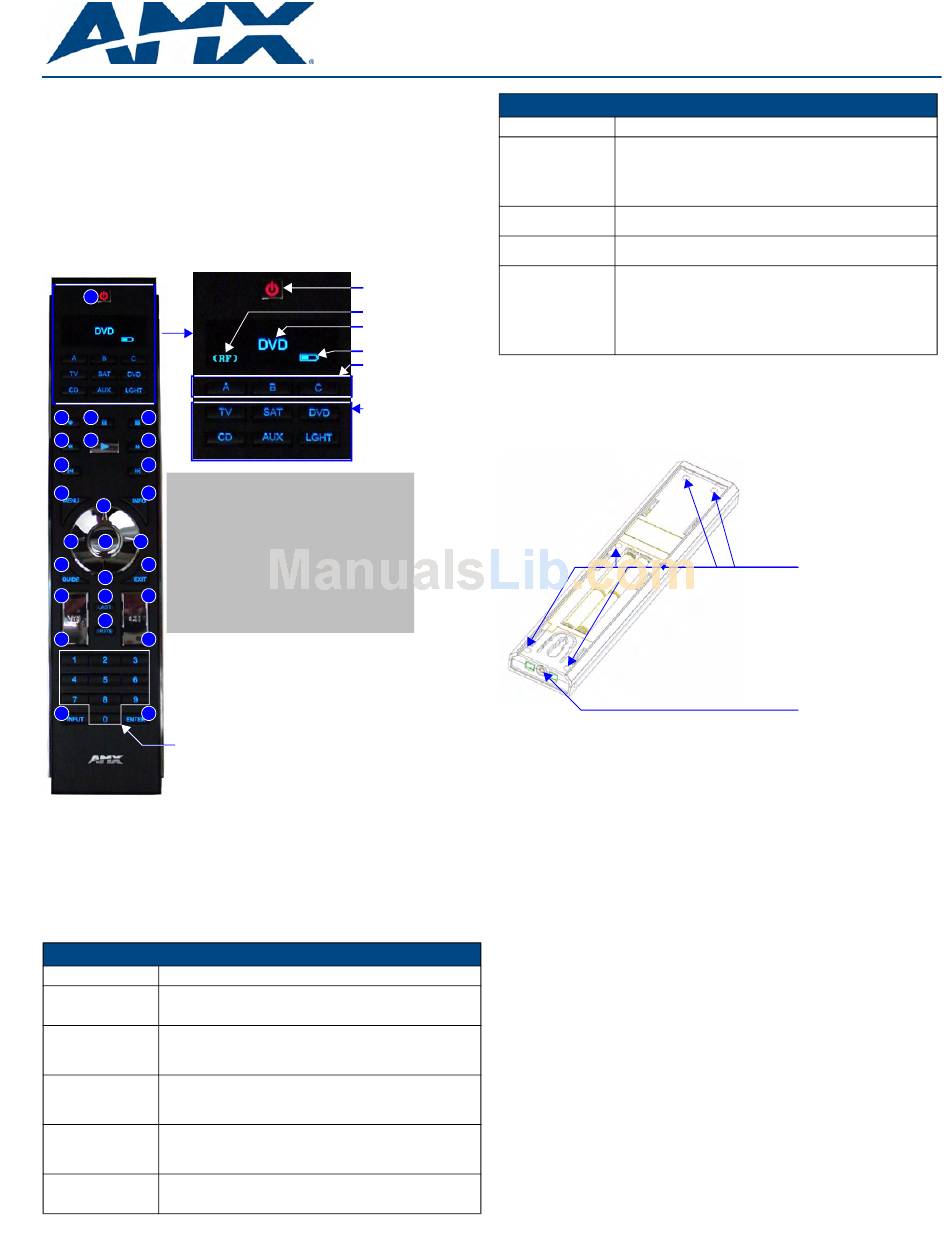

FIG. 1
The Mio R-2 Device
Touch And Tilt Sensor
The Mio R-2 wakes up upon touching either the chrome side rails or pressing a button.
When holding the remote and it times out, you can reawaken the device by tilting it.
Errant jostling such as a bumped table will not wake the device unless you are holding
it.
Specifications
The Mio R-2 device specifications are as follows:
Mio R-2 (FG147-418/433) Specifications
Battery 4 AAA Alkaline Batteries (5 hours battery life)
Transmission • AMX 38 KHz/455 KHz IR
• 418 RF (1-way) (FG147-418)
Frequencies
• 433 RF (1-way) (FG147-433)
Transmission • 100 feet at 38KHz (IR)
• 50 feet at 455KHz (IR)
Range (distance)
• 300 feet at 418 (RF)
with Mio IR Receiver
• 200 feet at 433 (RF)
Transmission • 140 degrees (+/-70° from perpendicular) horizontally from an axis
extending from the end of the remote. (IR)
Range (angle)
• 40 degrees (+/-20° from perpendicular) vertically from an axis
extending from the end of the remote. (IR)
Top Components • LED - blue backlit buttons indicate device is awake
• Display (OLED) - 128 x 32 pixels, active area is 29.42mm x 7.98mm
• Pushbuttons - the power button is red backlit; the rest are blue backlit
buttons. 45 buttons; 9 custom buttons (3 macro and 6 device).
Rear Component • Programming Port - 2.5 mm stereo female conductor jack
• Battery Door
• Rechargeable Battery Connection
Power
Transmission Mode
Current Menu
Battery Meter
Custom Macro
Buttons
Custom Mode
Options
14 - Channel Down
15 - Last Viewed
16 - Mute
26 - Input
28 - Enter
38 - Stop
39 - Record
40 - Pause
41 - Slow Reverse
42 - Play
43 - Slow Forward
44 - Rewind
45 - Forward
Mio R-2
Mio R-2 (FG147-418/433) Specifications (Cont.)
Dimensions (HWD) 9.50 x 2.00 x .74 (241.3 mm x 50.8 mm x 18.80 mm)
Supported Languages: • English
• French
• German
• Greek
• Italian
• Japanese
Weight • .45 lbs (20 kg) without batteries
• .55 lbs (25 kg) with batteries
Operating Environment: • Operating Temperature: 0° to 50° C (32° to 122° F)
• Storage Temperature: -10° to 70° C (14° to 158° F)
Other AMX Equipment • DB-9 extension cable (FG10-727)
• Programming Cable - a 3 wire, 2.5 mm stereo jack (FG10-817)
• Custom engraving (FG147-01)
• Mio-RCC Kit (FG147-03K)
• Mio-RCC Charging Base (FG147-02)
• Mio-RBP Rechargeable Lithium Ion Battery (FG147-10)
• AXR-RF 418 MHZ RF Receiver (FG782-418)
• AXR-RF 433 MHZ RF Receiver (FG782-433)
Installing Your Custom Buttons
1. Flip and turn the Mio R-2 device so that the buttons are facing away from you
and the device is upside down.
2. Holding the device in both hands, place your thumbs on the battery door and
push up to slide the battery door free.
3. Unscrew the 6 screw points indicated in FIG. 2.
FIG. 2
Internal Mio R-2 Components
4. Turn the unit over so the buttons are facing you.
5. Lift the top assembly away from the PCB.
6. If necessary, push out the standard buttons from the front of the top assembly.
7. Drop on your custom button pad and verify the alignment with the guide posts on
the PCB.
8. Place the top assembly back down on the PCB and return the unit over, expos-
ing the 6 screw points.
9. Tighten the 6 screw points.
10. Place the battery door back on the device, slide to lock it in place.
Inserting Batteries into The Mio R-2
To install your 4 AAA batteries into the Mio R-2 device:
1. Flip and turn the Mio R-2 device so that the buttons are facing away from you
and the device is upside down.
2. Holding the device in both hands, place your thumbs on the battery door and
slide the battery door free.
3. Insert the batteries as indicated inside the battery compartment.
4. Place the battery door back on the device, slide to lock it in place.
Battery Low Indicator
When the battery charge level is too low to sustain continuous operation, the LCD
flashes, "Battery Low" and the device shuts down.
Programming The Mio R-2 Using KeypadBuilder
Most functionality of the Mio R-2 is handled using the application, KeypadBuilder. Go
to www.amx.com for the KeypadBuilder Instruction Manual.
There are a select number of Serial Commands the Mio R-2 recognizes. For a full list
and descriptions, consult the Mio R-2 Instruction Manual on www.amx.com.
Using Connector Ports on The Mio R-2
The programming jack is used for communication between the device and
KeypadBuilder. The programming jack uses a three-wire, 2.5 mm stereo jack, you can
order the programming cable (FG10-817) from AMX if you do not currently possess
one. While loading your configuration file make sure the device is situated as such that
the batteries will not fall out. The load will fail if your batteries fall out during the
process. The Mio communicates at 115200 baud rate.
Quick Start Guide
Remote Control Device
• Korean
• Mandarin Chinese
• Portuguese
• Russian
• Spanish
6 Screw Points
Programming Jack
