AXIOMTEK eBOX800-900-FL Series Quick Installation Manual

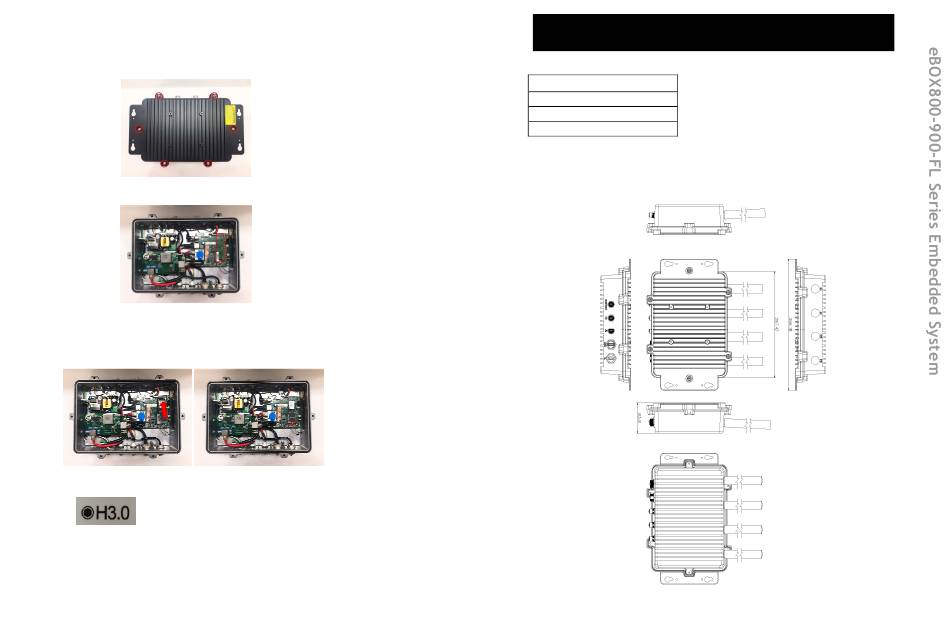

M.2 SSD Installation

Step 1 Turn off the system and unplug the power cord.
Step 2 Turn the system upside down to locate screws at the bottom
as red marked and loosen six screws, then remove the bottom
cover.
Step 3 Remove the bottom cover, and locate the M.2 2280 Key M slot
on the board.
Step 4 Holding the M.2 2280 Key M SSD card at a 30 degree angle up
from horizontal, slowly insert the golden fingers into the M.2
2280 Key M slot until it is fully inserted in. And secure the M.2
2280 Key M SSD card to the carrier by tightening up the one
M3*4L screw to the marked position.
※
Tighting torque for HEX socket set screw: 7.5 kgf
※
HEX KEY specifications are shown below:
Note: Please refer to the user's manual to get more detail information.
4
©Copyright 2018 Axiomtek Co., Ltd.
Version A1 December 2018
Printed in Taiwan
9416K800030E
eBOX800-900-FL Quick Installation Guide

Packing List

System Unit x 1
Quick Installation Guide x 1
Screws Pack x 1
Antennas for WLAN x 2
※ ※ ※ ※ Do not try to apply power to the system if any damaged components.
Dimensions
©Copyright 2018 Axiomtek Co., Ltd.
Version A1 December 2018
Printed in Taiwan
9416K800030E
1
