- Page 1 PU-IR01 Infra red over CAT5/6 extender OPERATION MANUAL...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Operation Controls and Functions Front Panel Diagram Rear Panel Diagram Connection Diagram Specifications... -
Page 3: Introduction
1. Introduction The IR Extender and the Repeater set is perfect for controlling IR controlled source equipment over long distances. Up to five sources can be controlled using this extender set. Two sources can be controlled located locally to the repeater, whilst the remaining three sources can be controlled locally to the extender, which can be located up to 250m away via CAT5/6 cable. -
Page 4: Operation Controls And Functions

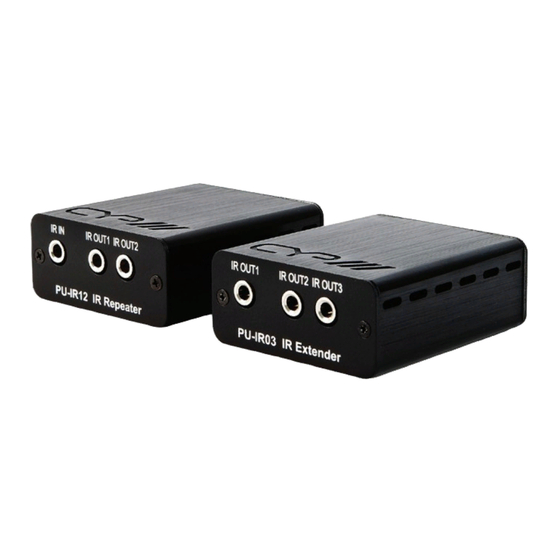

4. Operation Controls and Functions 4.1 Front Panel IR OUT1 IR OUT2 IR OUT3 IR IN IR OUT1 IR OUT2 CIR-03 IR Extender CIR-12 IR Repeater 1. IR OUT1, 2 and 3: Connect your IR Eye Blaster cables to control source equipment. 2. -
Page 5: Rear Panel Diagram
4.2 Rear Panel DC 5V IR CAT5 1. IR CAT5: Connect the CAT 5 cable to Infrared Extender Box with IR receiver. 2. Power: Plug the 5VDC power supply into the unit and connect the adaptor to an AC outlet. Note: 1. -
Page 6: Connection Diagram
5. Connection Diagram 6. Specifications 1 x IR Jack Input Port 1 x CAT5/6 2 x IR Jack, 1 x CAT5/6 Output Port 3 x IR Jack Power Supply 5V/1A DC (both units the same) Dimensions (mm) 60(W) x 50(D) x 25(H) Weight (g) Repeater: 260, Extender: 140 Chassis Material...
