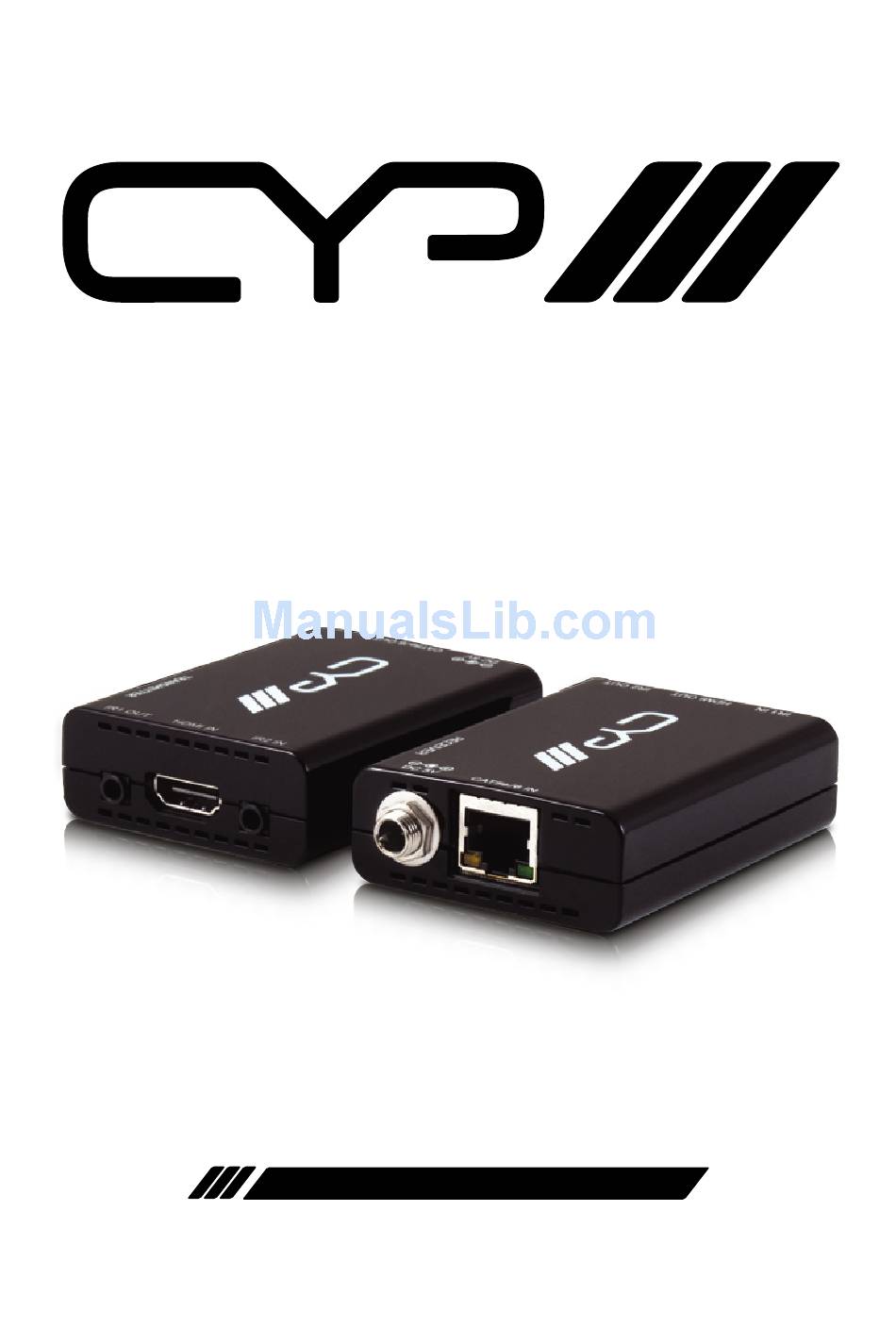

- Page 1 PU-514L-KIT v1.4 HDMI over Single CAT5e/6/7 HDBaseT™ LITE with 2-Way IR (up to 60m) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Transmitter Front and Rear Panels ..8 6.2 Receiver Front and Rear Panels .... 9 6.3 IR Pin Assignment ........10 7. -
Page 6: Introduction
1. INTRODUCTION The PU-514-KIT allows uncompressed HDMI, and 2-way IR signals to be transmitted over a Single CAT5e/6/7 cable. Uncompressed video and audio can be transmitted to distances of up to 60 meters (1080p) or up to 35 meters (4K×2K) and supports High Definition Audio and 3D signals. -
Page 7: Features
5. FEATURES HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant Supports HDMI 1.4 (including HDCP) over a single CAT5e/6/7 up to Complies with HDBaseT™- Lite specifications Full HD resolution support (1080p@60Hz/36-bit), 3D up to 60m, 4Kx2K up to 35m and PC resolution support (VGA to WUXGA) over CAT5e/6 cable HDMI input up to 15m with 8-bit deep colour, or 10m with 12-bit deep colour... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels IR1 OUT/Emitter: Connect to the supplied IR emitter for IR signal transmission to the source equipment. Place the IR emitter in direct line- of-sight of the equipment to be controlled. HDMI IN: Connect to an HDMI source device such as a DVD player or Set- top Box with HDMI cable or DVI to HDMI cable. -
Page 9: Receiver Front And Rear Panels

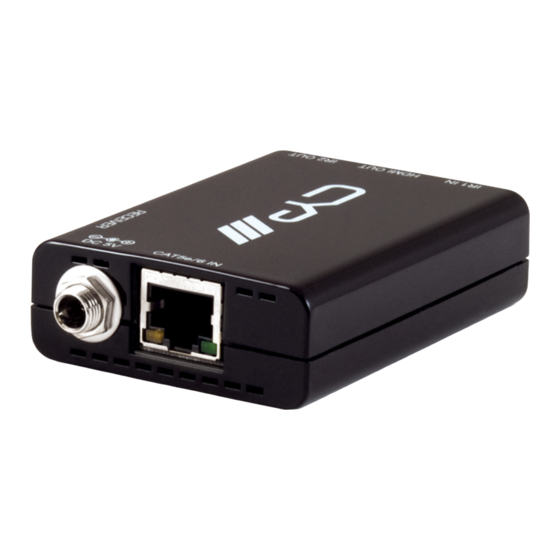

6.2 Receiver Front and Rear Panels DC 5V: Connect the 5V DC power supply to the unit and plug the adaptor into an AC outlet. CAT5e/6/7 IN: Connect to the transmitter unit with a single CAT5e/6/7 cable for transmission of all data signals. The yellow LED will illuminate when both the transmitter and receiver are connected and are powered. -
Page 10: Ir Pin Assignment
6.3 IR Pin Assignment IR Emitter Power 5 V IR Emitter Signal IR Receiver IR Signal Power 5 V Ground... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Player 1.5m HDMI Input 60° 60° IR Receiver IR Emitter Power Supply CAT5e/6/7 Power Supply IR Receiver IR Emitter HDMI Output 60° 1.5m 60° HDTV... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300 MHz/10.2 Gbps Transmitter Input 1×HDMI, 1×IR Receiver Output 1×RJ45, 1×IR Emitter Receiver Input 1×RJ45, 1×IR Receiver Output 1×HDMI, 1×IR Emitter ESD Protection Human Body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 2×5 V/2.6 A DC (US/EU standards, CE/FCC/ UL certified) -
Page 13: Cat5E/6/7 I/O Cable Distance
8.2 CAT5e/6/7 I/O Cable Distance Cable Type Range Pixel clock Video Data Supported Video Rate rate CAT5e/6/7 60 m <=225 MHz <= 5.3 Gbps Up to 1080p, 60 Hz, 36-bit, 3D (HD Video) (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition multimedia Interface Infrared... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
