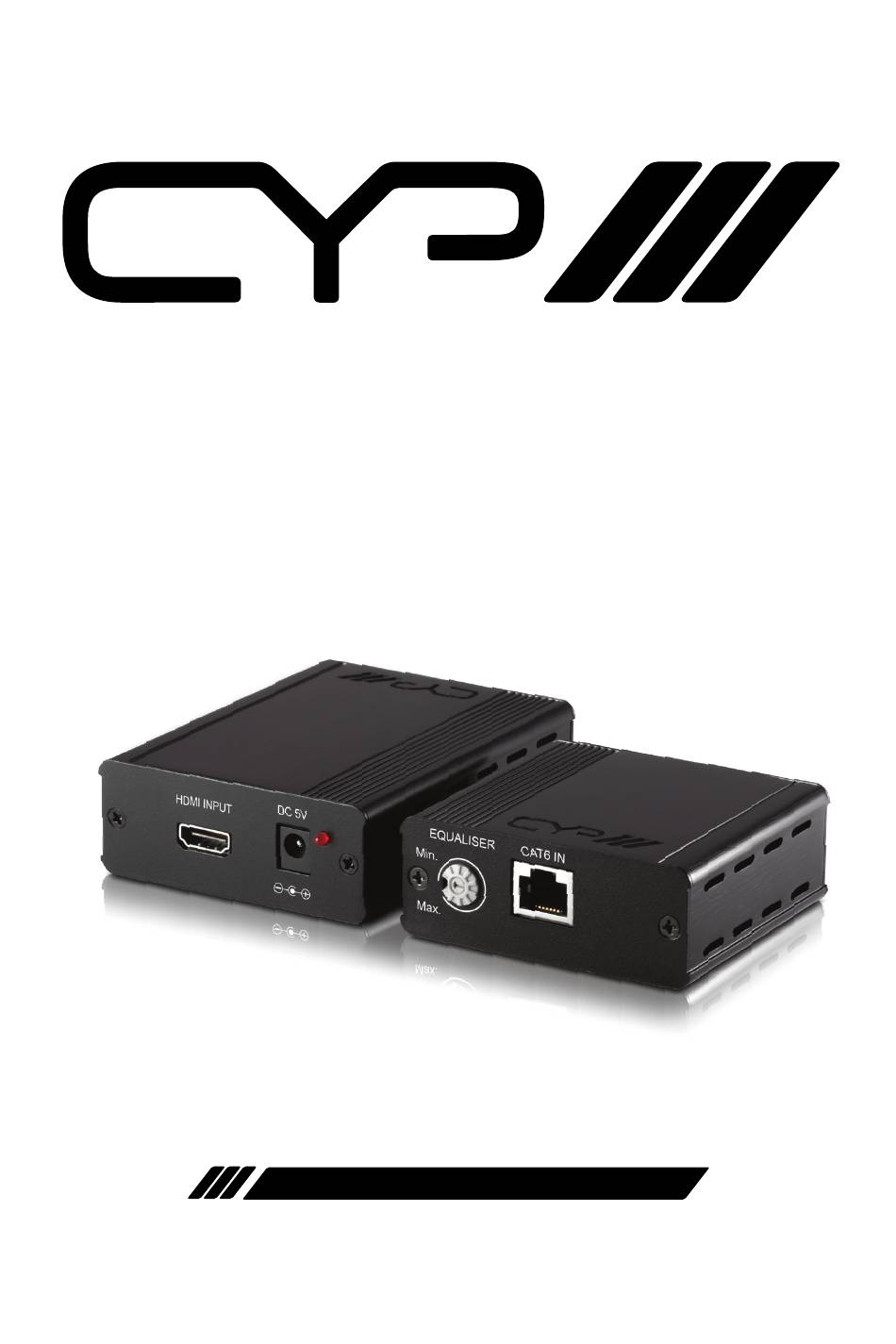

- Page 1 PU-1107-KIT Pure digital HDMI over Single CAT6 Extender Set (Repeatable Version) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Transmitter Front and Rear Panels ..8 6.2 Receiver Front and Rear Panels .... 9 7. -
Page 6: Introduction
1. INTRODUCTION The PU-1107-KIT is an uncompressed Pure Digital solution to extend HDMI signals via a Single CAT6 cable. The PU-1107-KIT extender set can be used with the PU-1107EX Repeater to extend the HDMI signal over Single CAT6 up to a total of 80m (40m either side of the repeater). It has the added benefit of a 7 step HDMI signal equalization switch to optimize the signal strength. -
Page 7: Features
5. FEATURES 7 step EQ adjustment for HDMI signal equalization v1.3 HDMI, HDCP 1.1 & DVI 1.0 compliant. HDMI over a single CAT6 (pure digital transmission) Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission Resolution supported: 480i - 1080p 50/60, 1080p 24, VGA - WUXGA Supports Deep Colour (10 &... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels CAT6 OUT EDID DC 5V HDMI INPUT 10 Bit TV/STD 8 Bit 12 Bit HDMI INPUT: Connect to the HDMI or DVI output port of your source equipment such as a DVD/Blu Ray player or Set-top box with an HDMI cable or link up with another compatible receiver unit to extend a signal over long distances. -
Page 9: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels CAT6 IN DC 5V HDMI OUT MIN. MAX. EQ MIN./MAX.: Turn the 'EQ' equalization wheel from 0~7 to optimize the HDMI signal strength according to the transmission length required. CAT6 IN: Connect to a compatible single CAT6 transmitter device attached to a source device by HDMI (see Section 8.2). -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input DC 5V HDMI INPUT Transmitter Power Supply (PU-1107TX) CAT6 OUT CAT6 Cable INPUT DC 5V Optional HDMI Power Extender Unit CAT6 Supply CAT6 OUT (PU-1107EX) INPUT EDID HDMI CAT6 8 Bit 12 Bit CAT6 Cable CAT6 IN... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 2.25 MHz/6.75 Gbps Transmitter Input Port 1 x HDMI (Female connector) Output Port 1×CAT6 Receiver Input Port 1×CAT6 Output Port 1 x HDMI (Female connector) HDMI Cable Distance Up to 10m for 1080p/8-bit & 12-bit CAT6 Cable Distance Up to 40m for 1080p/8-bit &... - Page 12 9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 cable Consumer Electronics Control HDCP High-bandwidth Digital content protection HDMI High Definition Multimedia Interface...
- Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.01...
