PU-507-KIT
5-Play HDBaseT™ Extender Kit (inc. PoE & single LAN, up to 100m)
OPERATIONS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PU-507-KIT and is the answer not in the manual?

Questions and answers

Summary of Contents for CYP PU-507-KIT

  • Page 1 PU-507-KIT 5-Play HDBaseT™ Extender Kit (inc. PoE & single LAN, up to 100m) OPERATIONS MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Transmitter Front and Rear Panels ..8 6.2 Receiver Front and Rear Panels .... 9 6.3.
  • Page 6: Introduction

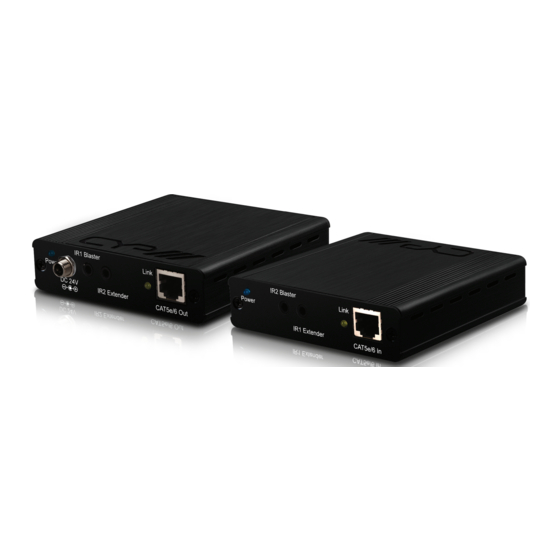

    1. INTRODUCTION The PU-507-KIT allows uncompressed HDMI signals and IP data to be transmitted over a Single CAT5e/6 cable. This solution has the added features of RS-232 and 2-way IR control functionality over the same CAT5e/6 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 metres.
  • Page 7: Features

    5. FEATURES v1.4 HDMI with 3D, 4k - 2k support. HDCP & DVI compliant. Supports HDCP repeating and CEC functions. Uncompressed data transfer over single CAT cable (100m - CAT6; 80m - CAT5e). Uncompressed video 1080p, 60Hz, 48bits Audio support up to 7.1CH & Dolby TrueHD, DTS-HD. 5Play™...
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Front Rear Transmitter IR1 Blaster RS-232 In HDMI In Power DC 24V IR2 Extender HDMI to CAT5e/6 with LAN/IR/RS232 HDMI In: Connect to HDMI source equipment such as a DVD or Blu- ray player.
  • Page 9: Receiver Front And Rear Panels

    6.2 Receiver Front and Rear Panels Front Rear Receiver IR2 Blaster RS-232 Out HDMI Out Power IR1 Extender CAT5e/6 to HDMI with LAN/IR/RS232 HDMI Out: Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal. LAN: Connect to a PC or Laptop to the Internet or network connection.
  • Page 10: D-Sub 9 Pin Definitions

    6.3. D-Sub 9 Pin Definitions Define TX / RX TxD / RxD RxD / TxD...
  • Page 11: Connection Diagram

    7. CONNECTION DIAGRAM DVD or Blu-ray Player Internet Modem or Router 1.5m HDMI CAT5e/6 1.5m 60° RS-232 IR Blaster Power Supply RS-232 In Transmitter HDMI In HDMI to CAT5e/6 with LAN/IR/RS232 IR1 Blaster Power DC 24V IR2 Extender 60° IR Extender RS-232 Equipped PC or Notebook IR Extender...
  • Page 12: Specifications

    8. SPECIFICATIONS Video Bandwidth 300 MHz/9 Gbps Ethernet Speed 100 Mbps Transmitter Input 1×HDMI, 1×IR Extender,1×RS-232, 1×LAN Output 1×CAT5e/6, 1×IR Blaster Receiver Input 1×CAT5e/6, 1×IR Extender Output 1×HDMI, 1×RS-232, 1× IR Blaster, 1× LAN HDMI In/Out Cable Up to 10 Meters Distance CAT6 In/Out Cable Up to 100 Meters...
  • Page 13: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared...
  • Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.02...
