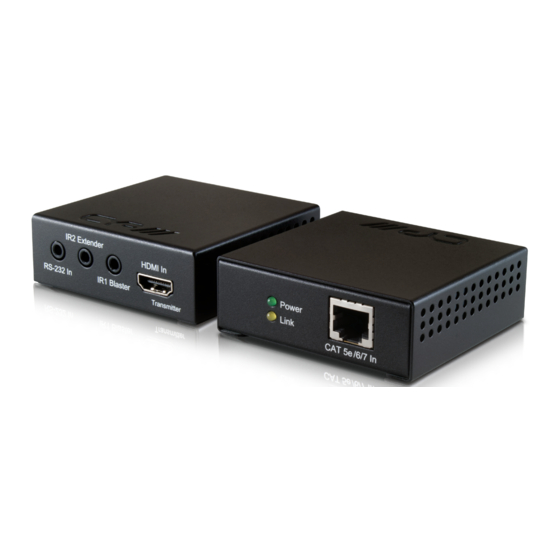

PU-515PL-TX & RX
HDBaseT™ LITE Extender Set with PoE & 2-way IR
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PU-515PL-TX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP PU-515PL-TX

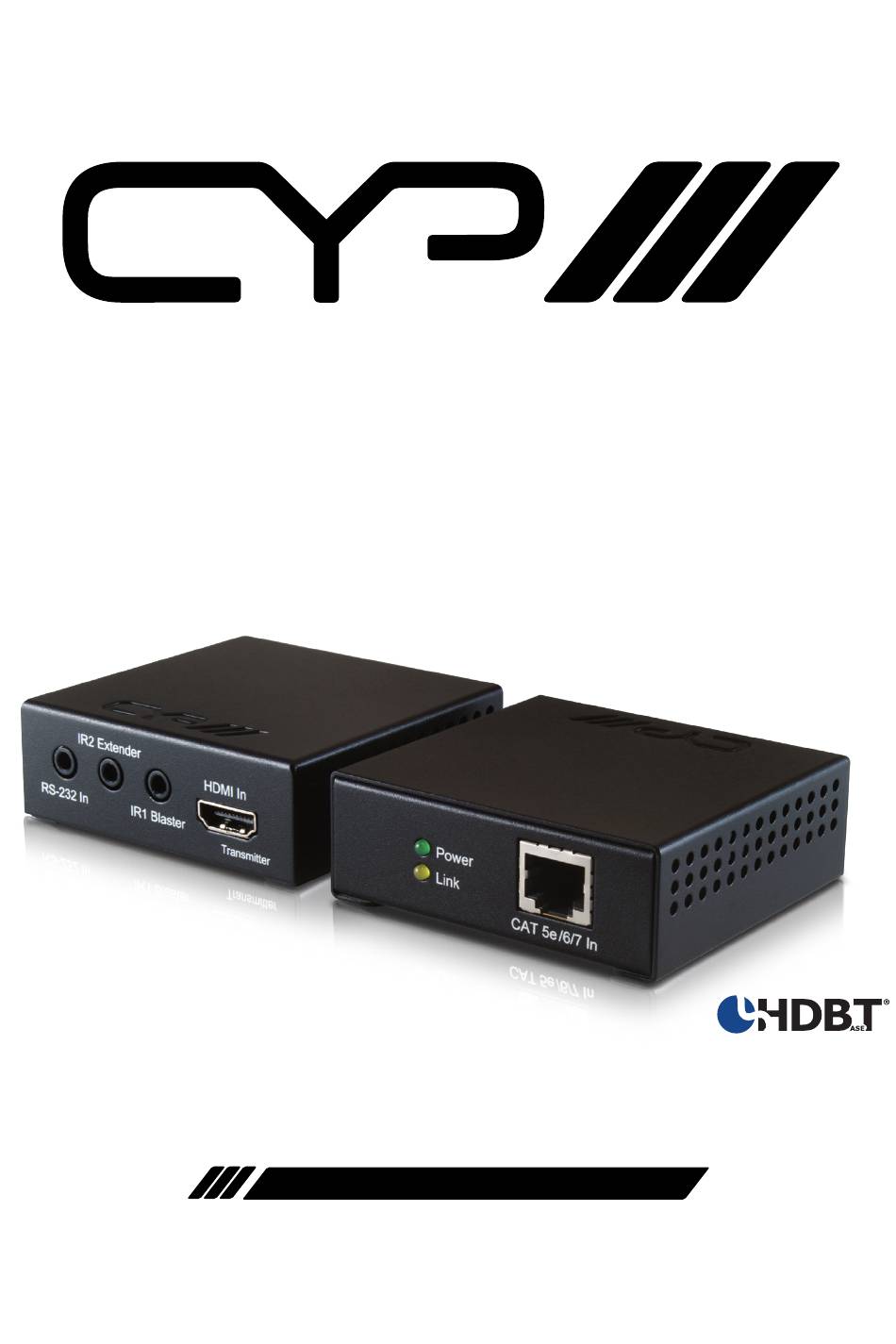

  • Page 1 PU-515PL-TX & RX HDBaseT™ LITE Extender Set with PoE & 2-way IR OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Transmitter Front and Rear Panels ..8 6.2 Receiver Front and Rear Panels .... 9 6.3 D-Sub 9-Pin Definitions ......10 6.4 IR Cable Pin Assignment .......10 7.
  • Page 6: Introduction

    1. INTRODUCTION The HDBaseT HDMI over single CAT5e/6 with bi-directional IR, RS-232 & PoC Transmitter and Receiver set can make your home or office set-up more efficient and easy to use. Uncompressed video and audio can be transmitted up to 70 metres at 1080p or 40 metres at 4K. with the PoC function and added benefit of controls through the built-in RS-232 and IR ports.
  • Page 7: Features

    5. FEATURES HDMI 1.x and DVI 1.0 compliant HDCP compliant Supports HDMI 3D and 4K x 2K features Supports HDCP repeater and CEC bypass Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K through CAT5e/6/7 cable HDMI input resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz( YUV 4:4:4, 8-bit) Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, and Bitstream over HDMI...
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels IR2 Extender HDMI In Power Link RS-232 In IR1 Blaster CAT 5e /6/7 Out Transmitter RS232 In: Connect to a PC/laptop or RS-232 control device (with supplied 3.5 mm mini-jack to D-sub 9-pin adaptor) for the transmission of RS-232 commands.
  • Page 9: Receiver Front And Rear Panels

    6.2 Receiver Front and Rear Panels IR1 Extender HDMI Out Power Link RS-232 Out IR2 Blaster CAT 5e /6/7 In Receiver Power LED: This green LED will illuminate when the device is connected to a power supply. Link LED: This yellow LED will illuminate when both the input and output CAT5e/6/7 signals are connected.
  • Page 10: D-Sub 9-Pin Definitions

    6.3 D-Sub 9-Pin Definitions DEFINE TX/RX TxD/RxD RxD/TxD 6.4 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Ground...
  • Page 11: Connection Diagram

    7. CONNECTION DIAGRAM DVD or Blu-ray Player RS-232 RS-232 HDMI Equipped PC or Adaptor 1.5m Input Notebook 60° IR Blaster 60° Power Supply IR Extender IR2 Extender HDMI In RS-232 In IR1 Blaster Transmitter Power Link CAT 5e /6/7 Out Single CAT5e/6/7 Cable...
  • Page 12: Specifications

    8. SPECIFICATIONS 8.1 Technical Specification Video Bandwidth 340 MHz/10.2 Gbps Transmitter Input 1×HDMI, 1×IR Extender, 1×RS-232 Output 1×RJ45, 1×IR Blaster Receiver Input 1×RJ45, 1×IR Extender Output 1×HDMI, 1×IR Blaster, 1×RS-232 IR Frequency 30 – 50 kHz (30 – 60 kHz under ideal conditions) Baud Rate Up to 115200/sec...
  • Page 13: Cat5E/6/7 Cable Specification

    8.2 CAT5e/6/7 Cable Specification 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6 Cat.6a/7 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (UHD Video) - 4K@24/25/30Hz &...
  • Page 14: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition multimedia Interface Infrared...
  • Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park,Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.02...
