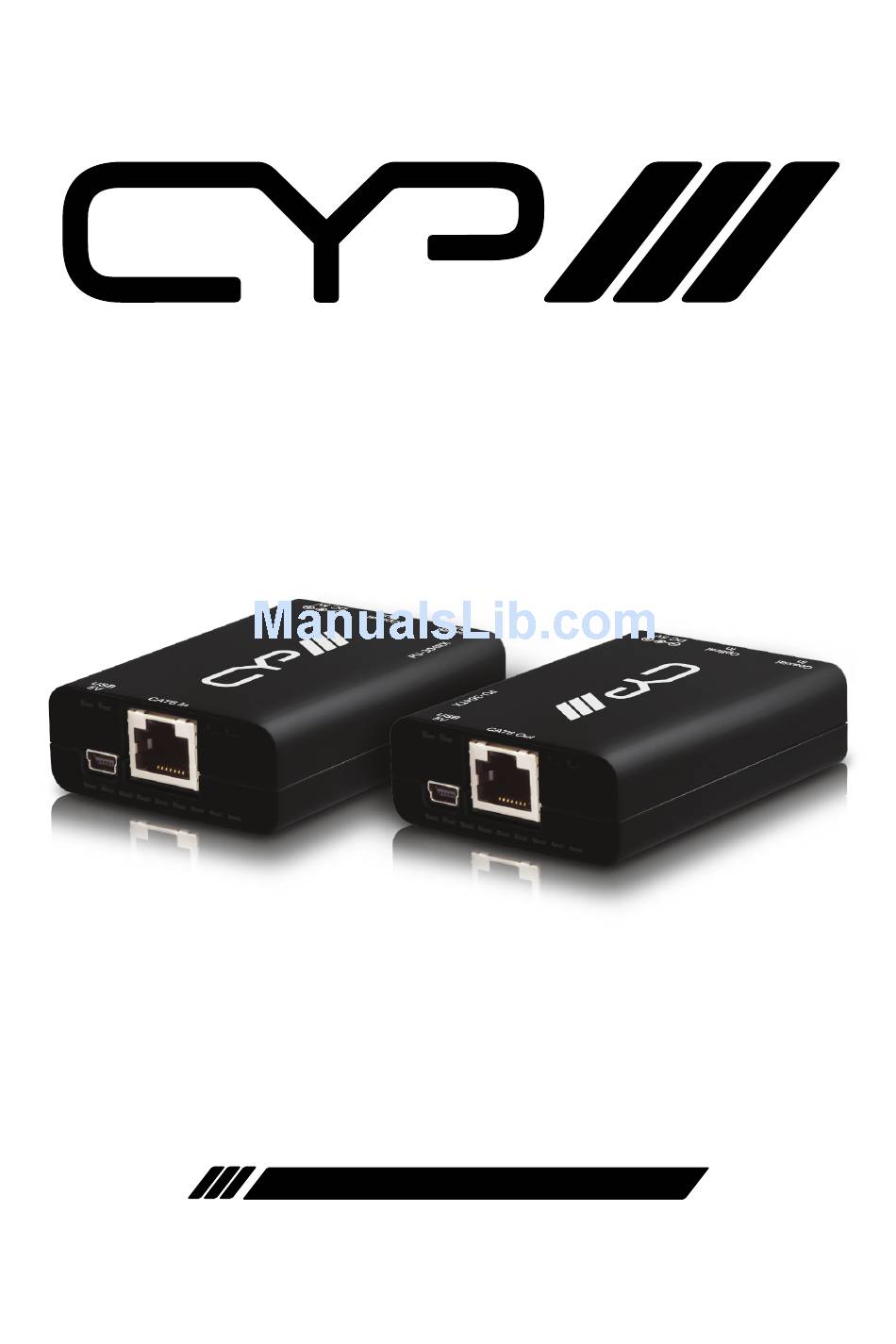

- Page 1 PU-304-KIT Digital Audio over CAT6 Extender TXRX Set OPERATIONS MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........6 5. Operation Controls and Functions ..7 5.1 Transmitter Front and Rear Panels ..7 5.2 Receiver Front and Rear Panels .... 8 5.2 Receiver Front and Rear Panels .... -
Page 6: Introduction

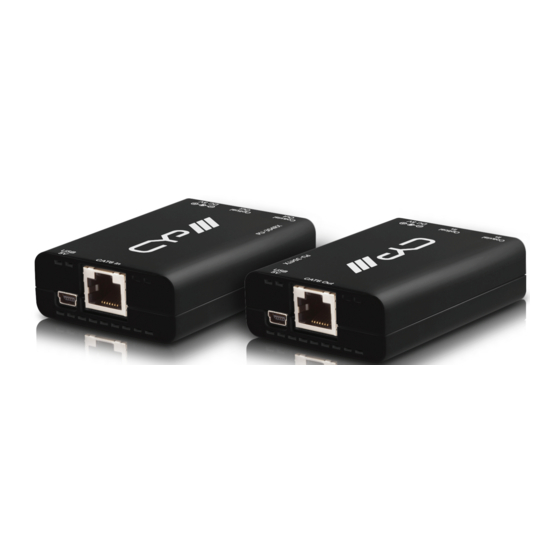

The PU-304-KIT is designed to send digital audio signals over 150m. This device supports both Coaxial and Optical signals and can transmit these signals up to 150m. The PU-304-KIT can be powered using a USB cable or the supplied PSU adaptor for added flexibility in a compact design. Digital... -
Page 7: Operation Controls And Functions
5. OPERATION CONTROLS AND FUNCTIONS 5.1 Transmitter Front and Rear Panels Coaxial Optical CAT6 Out DC 5V Coaxial In Connect to source audio equipment such as DVD or Blu-ray players with a Coaxial digital audio output. Optical In Connect to source audio equipment such as DVD or Blu-ray players with an Optical digital audio output. -
Page 8: Receiver Front And Rear Panels
5.2 Receiver Front and Rear Panels Coaxial Optical CAT6 In DC 5V USB 5V Connect with a USB cable for power supply from computer or notebook. CAT6 In Connect to the receiver unit with a single CAT6 cable. Coaxial OUT Connect to an amplifier or active speakers with coaxial input. -
Page 9: Receiver Front And Rear Panels
5.2 Receiver Front and Rear Panels Coaxial Optical CAT6 In DC 5V Power LED The blue LED will light when the device is powered. 5.4 RJ45 Pin Assignment TRANSMITTER RECEIVER Definition Definition Signal A Signal A Signal B Signal B Cat5/5e/6 Signal C Signal C... -
Page 10: Connection Diagram
6. CONNECTION DIAGRAM DVD/Blu-ray Player CD Player Coaxial Connection Optical Connection Power Supply Transmitter Receiver Coaxial Connection Optical Connection Amplifier... -
Page 11: Specifications
7. SPECIFICATIONS TRANSMITTER Input 1× Coaxial & 1× Optical Output 1× CAT6 RECEIVER Input 1× CAT6 Output 1× Coaxial & 1× Optical CAT6 Cable Distance 150 m Sample Rate 32/44.1/48/88.2 & 96 KHz ESD Protection Human Body ± 6kV (air-gap dis- Model: charge) ±... - Page 12 CYP (UK) Ltd., Unit 6, Metro Ind. Centre, St. John's Road, Isleworth, Middlesex, TW7 6NJ Tel: +44 (0) 20 8232 8842 | Fax: +44 (0) 20 8560 8050 | Email: sales@cypeurope.com www.cypeurope.com...
