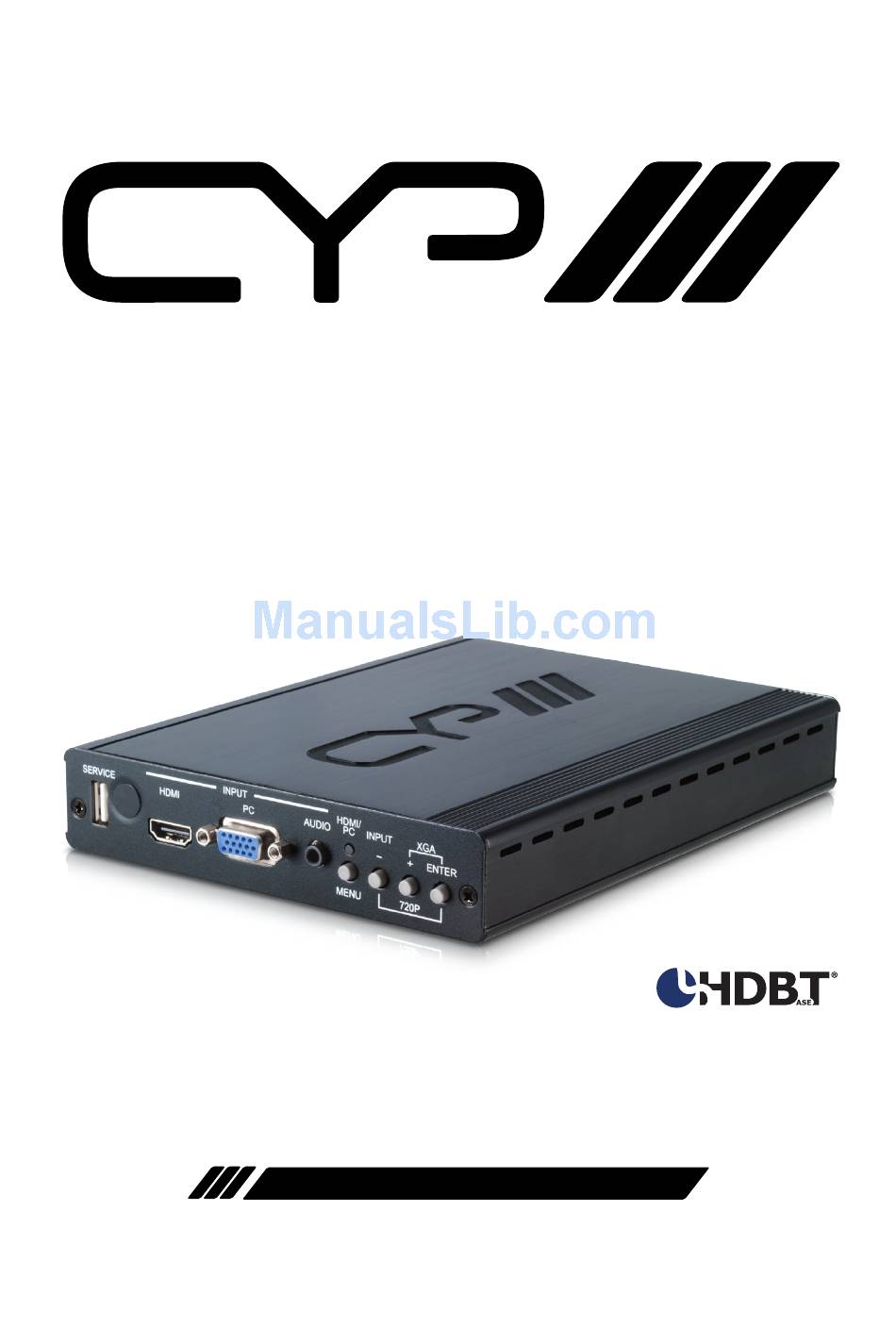

- Page 1 PU-507TX-HDVGA Switchable HDMI & VGA HDBaseT™ Transmitter with Integrated Video Scaling (5Play™ inc. PoE & Single LAN, up to 100m) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Remote Control ........10 6.4 RS-232 Pin Definitions ......11 6.5 RS-232 Commands .........12 6.6 OSD Menu ..........14 6.7 Input Resolution Support .....17... -
Page 6: Introduction
1. INTRODUCTION The PU-507TX-HDVGA allows VGA and uncompressed HDMI signals to be transmitted over a Single CAT5e/6/7 cable to lengths of up to 100 metres. This device features full 5-Play convergence allowing the distribution of Video, Audio, LAN serving, Power over Ethernet (PoE), RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable. -
Page 7: Features
5. FEATURES Supports all v1.4 HDMI resolutions plus 4k. Supports uncompressed video/audio up to 10.2Gbps Common supported resolutions: – HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24 – PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA HDMI, HDCP, & DVI compliant Supports HDCP repeating and CEC functions Uncompressed data transfer over single CAT cable (100m - CAT6/7;... -
Page 8: Operation Controls And Functions

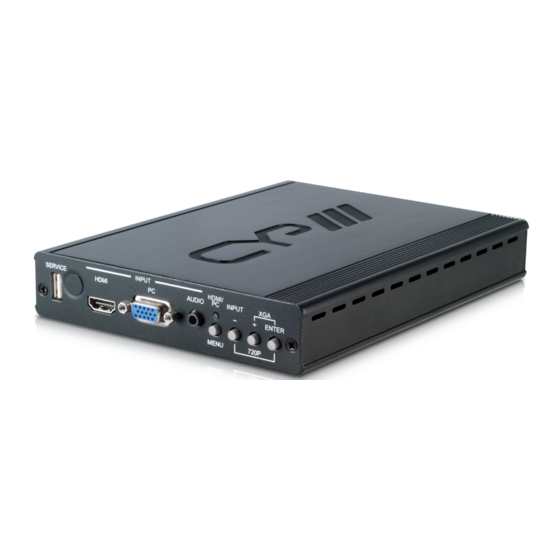

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel INPUT HDMI/ SERVICE HDMI AUDIO INPUT ENTER MENU 720P SERVICE: This port is reserved for firmware update only. IR: IR Receiver window (accepts the remote control signal of this device only). HDMI: Connect to source equipment such as DVD/Video player for video signal sending. -
Page 9: Rear Panel
RS-232 IN: Connect to a PC or Laptop with D-Sub 9-pin male cable to bypass RS-232 commands to the Receiver, or for direct RS-232 control of the PU-507TX-HDVGA. LAN: Connect to an active network for LAN sharing of a total transmission rate up to 100Mbps. -
Page 10: Remote Control
6.3 Remote Control INPUT: Press this button to switch HDMI/PC input source instantly. EXIT: Press this button to exit the menu or escape the current selection under OSD. MENU: Press this button to enter INPUT into the OSD menu. EXIT MENU RESET: Press this button to set the device back into the factory default... -
Page 11: Rs-232 Pin Definitions
6.4 RS-232 Pin Definitions DEFINE TX / RX TxD/RxD RxD/TxD Baud Rate: 9600 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None... -
Page 12: Rs-232 Commands
6.5 RS-232 Commands COMMAND DESCRIPTION S SOURCE 1~2 1=PC 2=HDMI R SOURCE Reports the numerical equivalent for SOURCE setting (as above) S OUTPUT 0~25 0=Native 12=1600×1200 1=640×480 13=1920×1080 2=800×600 16=1920×1200 3=1024×768 17=480p 5=1360×768 18=720p@60 6=1280×720 19=1080p@60 7=1280×800 20=1080i@60 8=1280×1024 22=576p 9=1440×900 23=720p@50 10=1400×1050... - Page 13 R HUE Reports the numerical equivalent for HUE setting S SATURATION 0~60 Setups the numerical equivalent for SATURATION setting (as left) R SATURATION Reports the numerical equivalent for SATURATION setting S SHARPNESS 0~30 Setups the numerical equivalent for SHARPNESS setting (as left) R SHARPNESS Reports the numerical equivalent for SHARPNESS setting...
-
Page 14: Osd Menu
6.6 OSD Menu Layer layer Layer Layer DISPLAY OUTPUT Native 640×480 60 800×600 60 1024×768 60 1360×768 60 1280×720 60 1280×800 60 1280×1024 60 1440×900 60 1400×1050 60 1680×1050 60 1600×1200 60 1920×1080 60 1920×1200 60 720×480p 60 1280×720p 60 1920×1080i 60 1920×1080p 60 720×576p 50... - Page 15 Layer layer Layer Layer INFO MODE INFO PC(PC mode only) AUTO SETUP H_POSITION 0~60 (30) V_POSITION 0~60 (30) PHASE CLOCK WXGA/XGA WXGA RESET COLOUR R OFFSET G OFFSET B OFFSET CONTRAST 0~60 COLOUR BRIGHTNESS 0~60 0~600~60 SATURATION 0~60 SHARPNESS 0~60 MIDDLE HIGH...
- Page 16 Layer layer Layer Layer VOLUME 0~100 DELAY 40mS AUDIO 110mS 150mS SOUND MUTE SETUP FACTORY RESET KEY LOCK INFORMATION INPUT OUTPUT REVISION Note: Items in Bold are the Factory default settings. Items in ( ) are default values.
-
Page 17: Input Resolution Support
6.7 Input Resolution Support INPUT RESOLUTION HDMI NTSC/PAL VGA@60/72/75 Hz SVGA@56/60/72/75 Hz XGA@60/70/75 Hz SXGA@60/75 Hz UXGA@60 Hz 1280×800@60 Hz 1680×1050RB@60 Hz 1920×1080@60 Hz 480i/576i ... -
Page 18: Connection Diagram
7. CONNECTION DIAGRAM PC/NB Video/DVD Player INPUT HDMI/ SERVICE HDMI AUDIO INPUT ENTER MENU 720P DC 24V RS-232 IN CAT5e/6/7 OUT Blaster Extender POWER MODE LINK Compatible Receiver unit HDMI with PoE function IR2 Blaster Power IR1 Extender Router with Internet Connection PC/NB... -
Page 19: Specifications
8. SPECIFICATIONS Output Video Bandwidth 300MHz / 10.2Gbps Ethernet Speed 100 Mbps Input Ports 1×HDMI, 1×PC, 1 x 3.5mm Phone Jack (L/R) , 1×RS-232, 1×LAN, 1×IR Extender Output Ports 1CAT5e/6, 1×IR Blaster CAT5e/6/7 Output Cable Up to 100 Meters Distance Supports Resolution HD: 480i~1080p PC: VGA ~ WUXGA(RB) -
Page 20: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Composite Video Digital Visual Interface HDMI High-Definition Multimedia Interface Infrared WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce blanking) - Page 21 PU-507TX-HDVGA Switchable HDMI & VGA HDBaseT™ Transmitter with Integrated Video Scaling (5Play™ inc. PoE & Single LAN, up to 100m) OPERATION MANUAL...
