Quadro Manual I: Installation Guide
a factory reset. This will restore the factory defaults and clear all settings including
the IP address and the administration password you entered.
Please Note:
default admin password of 19

The Rear Panels of Quadro2xi, 4xi and 16xi

9 RJ45 socket(s) to connect the Quadro to the ISDN-PSTN network using a digital
phone service.

The Rear Panels of Quadro4xa and 16xa

10 RJ11 socket to connect the Quadro via ADSL to the Internet.
Quadro2x, 2xi, Quadro4x, 4xi, 4xa, 4xia, 4xs, 4xis, Quadro16x, 16xi, 16xa, 16xia, 16xs, 16xis; (SW Version 3.0.x)
A Factory Reset forces the default LAN IP address of 172.30.0.1 and

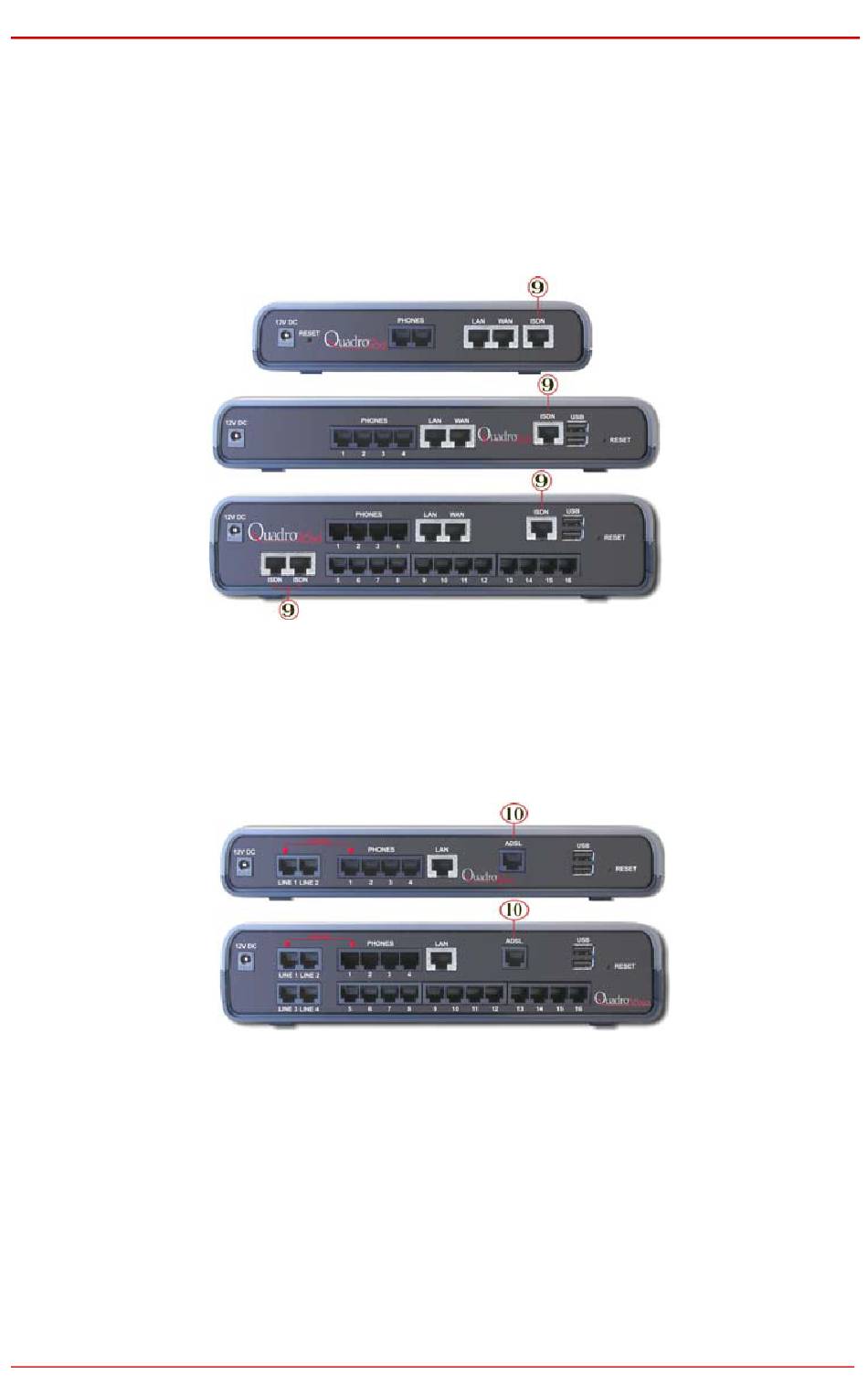

Fig. I-2: Quadro's Rear Panels (ISDN/Ethernet flavors)
Fig. I-3: Quadro's Rear Panels (FXO/ADSL flavors)
