Quadro Manual I: Installation Guide

Hardware Overview

The Rear Panels of Quadro2x, 4x and 16x

Including the rear panel of Quadro4x' special edition with two additional FXO ports.
1 Power supply socket. Use only the power adapter delivered with the Quadro.
2 LINE sockets to connect the Quadro to the PSTN network using standard analog
phone service. These are FXO (Foreign Exchange Office) analog ports.
3 In the event of a power failure, PHONE 1 is connected to LINE 1, allowing the phone
to send/receive phone calls directly to the PSTN network. PHONE 1 is powered by
the PSTN.
Please Note:
other LINE and PHONE ports are not connected together.
4 PHONE sockets with RJ11 connectors enable connectivity of regular analog tele-
phones. These are FXS (Foreign Exchange Station) analog ports. As a factory de-
fault, the phones connected to PHONE sockets 1-3 (1-2 for Quadro2x) are configured
as voice extensions. PHONE socket 4 is preconfigured for a fax machine.
5 RJ45 socket to attach to the Local Area Network (LAN) via an Ethernet CAT 5 cable.
If a PC is connected directly to this socket, a straight cable is used. If an Ethernet
hub, router or switch is used, a crossover cable may be required.
6 RJ45 socket to attach the Internet Uplink (WAN) via an Ethernet CAT 5 cable.
7 The USB socket enables connectivity of USB flash memory providing expansion for
additional voice mails and record data. Refer to the Administrator's Guide for sup-
ported devices.
8 The Reset button may be used in two ways: (1) to initiate a normal reset or (2) to
carry out a factory reset. A normal reset is executed by pressing the Reset button
with a paper clip for an instant.
Pressing the reset button and holding it down for seven seconds or more will execute
Quadro2x, 2xi, Quadro4x, 4xi, 4xa, 4xia, 4xs, 4xis, Quadro16x, 16xi, 16xa, 16xia, 16xs, 16xis; (SW Version 3.0.x)
Only LINE 1 is connected to PHONE 1 during a power failure. The
Hardware Overview

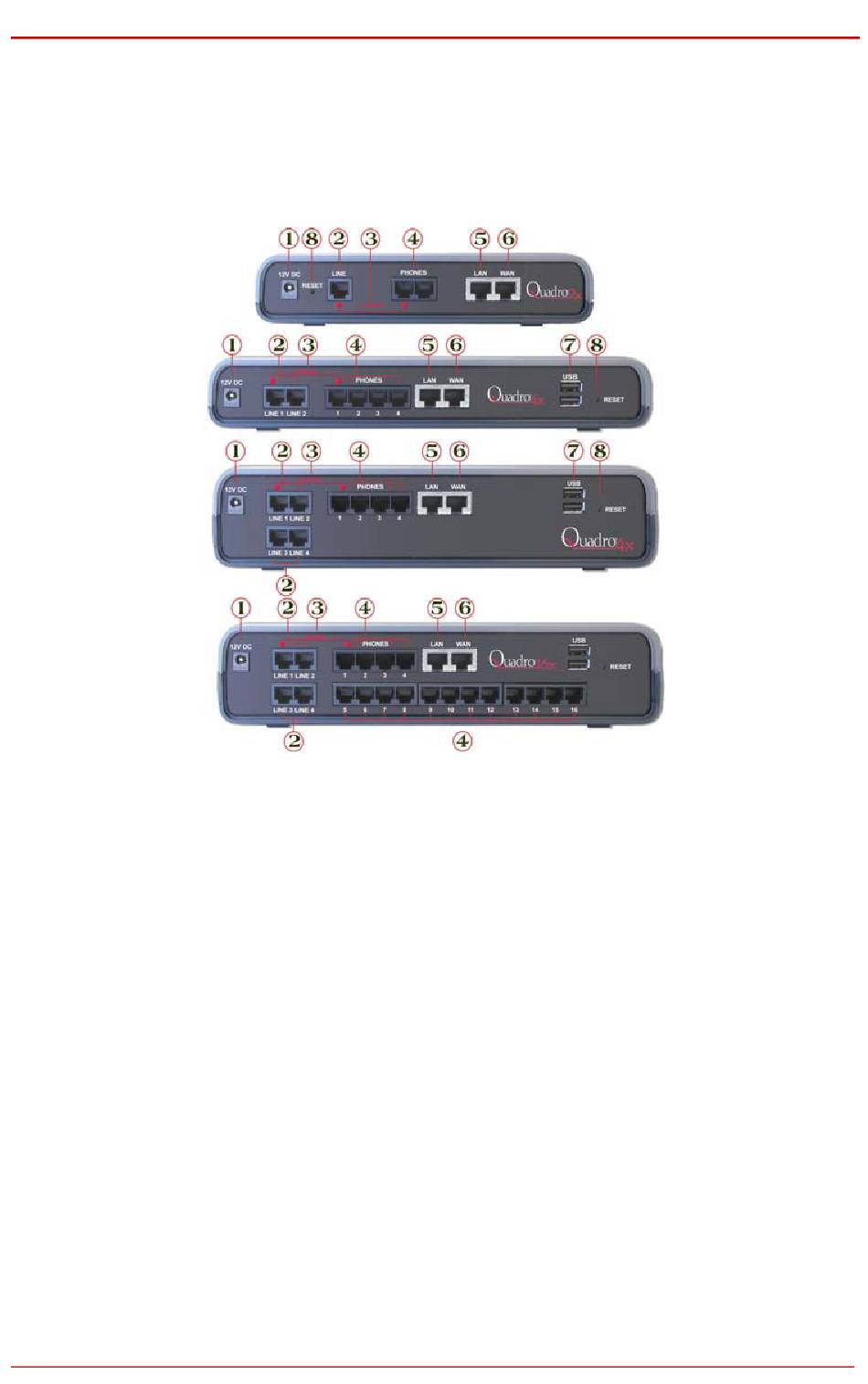

Fig. I-1: Quadro's Rear Panels (1)
