Summary of Contents for Arjohuntleigh Ninjo

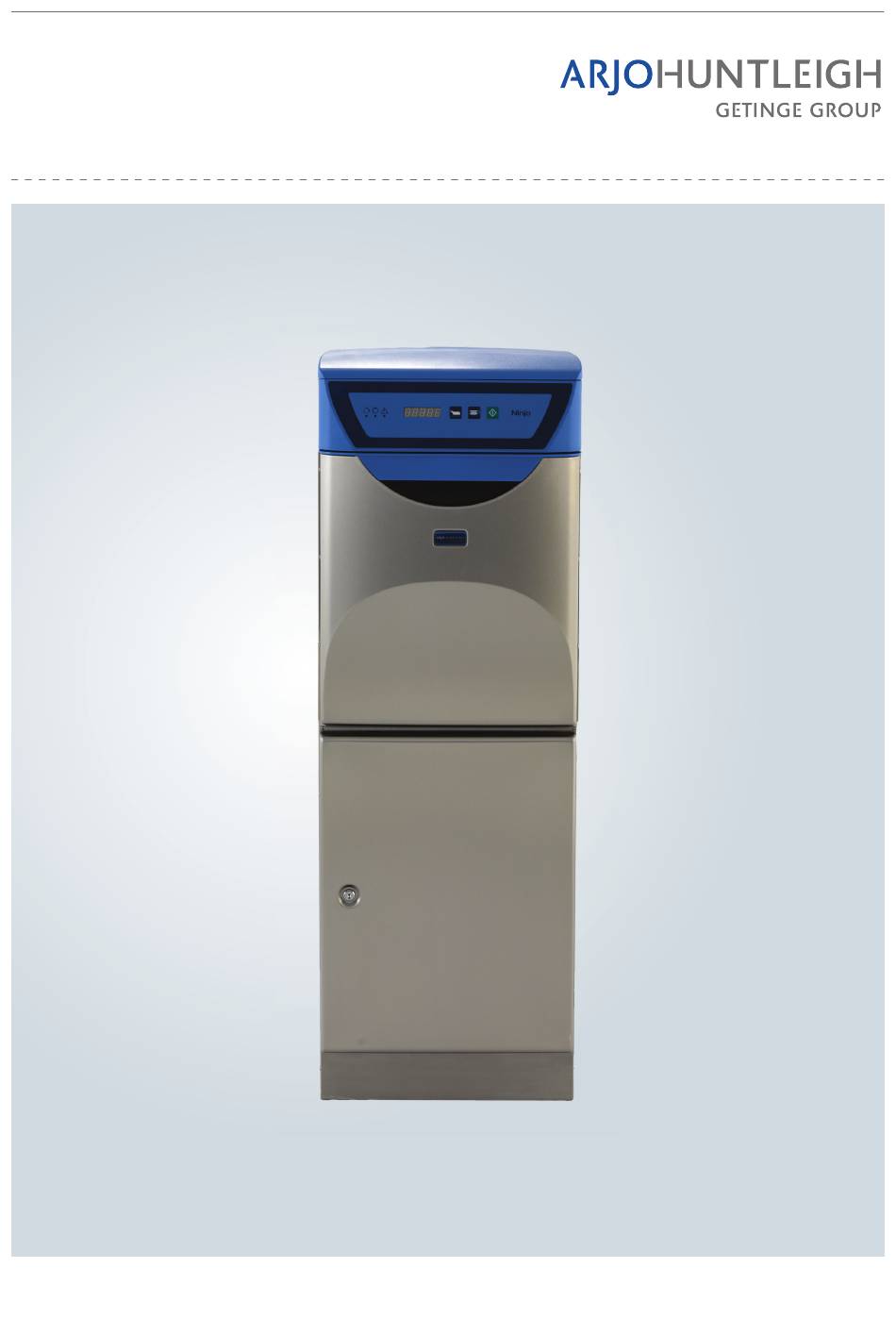

- Page 1 Ninjo Instructions for Use ...with people in mind 6001313502_1EN • 01/2019...
- Page 2 Mandatory to read the Instructions for Use. Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh 2017. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.
-
Page 3: Table Of Contents
Contents PREFACE ..........................5 1 SAFETY PRECAUTIONS ....................6 1.1 Important ......................6 1.2 Isolator switch ......................6 1.3 In an emergency ....................7 1.4 Product liability .....................7 1.5 Attention symbols ....................7 2 PRESENTATION ......................8 2.1 Area of application ....................8 2.2 Models .........................8 2.3 Control panel .......................9 2.3.1 Components ..................9 2.3.2 Functions ....................9 2.4 Display options ....................9... - Page 4 8 WATER QUALITY ......................22 8.1 Requirements ....................22 8.2 Main factors .......................22 8.3 Recommendation ....................22 8.4 Local standard ....................22 ..............23 9 ENVIRONMENTAL PRODUCT DECLARATION ............24 9.1 Comments ......................24 9.2 Distribution ......................24 9.3 Use ........................24 9.4 Waste disposal ....................24 9.5 Load pallets .......................25 10 HANDLING OF WORN PRODUCTS .................26...
-
Page 5: Preface
Operators and maintenance personnel must have completed training through The information in this manual describes the machine as dispatched from ArjoHuntleigh AB. There may be differences due Availabel models: FD1600 Free standing model with polymer chamber... -
Page 6: Safety Precautions
1 SAFETY PRECAUTIONS This machine has been designed with a number of built-in safety devices. To avoid injury, it is highly important not to bypass these safety devices. 1.1 Important • The machine is designed for connection to water only (and for steam if applicable). -
Page 7: Isolator Switch
This product complies with the European Medical Device Directive 93/42/EEC, the European Machinery Directive 2006/42/EC, and the Low Voltage Directive (LVD) 2006/95/EC. approval of ArjoHuntleigh AB’s product liability. 1.5 Attention symbols There are warnings, instructions, and advice in this manual that require extra attention. -
Page 8: Presentation
To meet the requirements of EN ISO 15883, the items must be placed in the proper holder, recommended by ArjoHuntleigh AB. The customer is responsible for ensuring that an Installation product is put into use. -
Page 9: Control Panel
2.3 Control panel 2.3.1 Components Figure 2. Control panel Yellow: Process Economy program running Normal program Green: Process Starting a program complete Red: Error indication Display 2.3.2 Functions Function aborted. Yellow indicator light: The machine is running a program. The display shows the current status*, for example the cleaning phase and temperature. -
Page 10: Display Options
2.4 Display options A service technician can set the information to be shown in the display. 2.4.1 Displayed while a program is running The display can be set to show one of the following alternatives while a program is running: •... -
Page 11: Operating Instructions
3 OPERATING INSTRUCTIONS 3.1 Program overview The machine's standard programs are described here. There may be other programs for the program buttons. A service technician can change the button functions. Program Economy Normal Goods Lightly soiled Normally soiled Process Cleaning Cleaning Disinfection Disinfection... -
Page 12: During Ongoing Program
3.2.2 During ongoing program WARNING! If the red indicator lights up an error has occurred. The process is cancelled and must be repeated. 3.2.3 After program completion WARNING! The goods may be hot at the end of the program. If the temperature of the goods is above 60°C, the display shows U7. -
Page 13: Examples Of Items And Program Selection
3.4 Examples of items and program selection Figure 3. Example of goods for economy program (A) and normal program (B) Figure 4. Example of goods for normal program (B) -
Page 14: Maintenance
The maintenance interval will have to be determined in each individual case. ArjoHuntleigh AB recommends that the stated maintenance operations be performed at intervals according to the service table. -
Page 15: Service Table
4.3.2 Service table Note! The service table is only shown for information purposes. WARNING! Maintenance may only be performed by authorized service technicians. WARNING! The machine is connected to the electricity supply and some components are live. The service table below shows recommended maintenance intervals. - Page 16 Measure Every Every other Time* year/ 7,500 year/15,000 (minutes) cycles cycles • chamber is tight. • Check the door and door spring. • Process tank Clean as required. • Check and clean the level sensor. • Check that the valves are working and that the •...
-
Page 17: Machines That Are Not In Use
4.4 Machines that are not in use A machine that is not being used should be drained. Contact a service technician. -
Page 18: Alarm
5 ALARM 5.1 Alarm indication WARNING! If the disinfection process is cancelled, the goods are not clean. The goods must be processed again. If the red lamp at lights up, the disinfection has been aborted. The display shows an error message, see "Troubleshooting". 5.2 Acknowledgement of error message WARNING! Only to be carried out by authorized staff. -
Page 19: Troubleshooting
6 TROUBLESHOOTING 6.1 List of codes The tables below describe the error messages that can be generated as well as possible measures. Code Description Measure Lime descaler low level Top up descaler agent. Process agent low level Top up process agent. Rinse-aid low level Top up rinse-aid Warning of high temperature for... -
Page 20: Detergent
WARNING! Follow the instructions for the container for additional instructions on using the detergent. The machine has been proven and tested with ArjoHuntleigh AB's detergents. We recommend that you use ArjoHuntleigh AB detergents. • Chemicals recommended in the manual does not mean that the manufacturer of the machine accepts liability for any impact the agent has on goods to be washed. -
Page 21: Positioning
7.3 Positioning The illustration below shows, for example, where to place the detergent for the free-standing model. Figure 6. Example of the placement of detergent 7.4 Switching WARNING! To avoid eye and skin damage, always use protective glasses and gloves. If contact occurs rinse with plenty of water. -
Page 22: Water Quality
“Guidelines for Drinking Water Quality” published by WHO. 8.4 Local standard Follow local standards if they are stricter than ArjoHuntleigh AB's recommendations. Especially when treated water is used for the Additional advice should also be obtained from the manufacturers... - Page 23 5.5 to 8 Conductivity <30 μs.cm-1 <40 mg/l Maximum hardness <50 mg/l Chlorine <10 mg/l Heavy metals <10 mg/l Phosphates <0.2 mg/l as P2O5 Silicates <0.2 mg/l as SiO2 Endotoxins <0.25 EU/ml Total number of <100 per 100 ml micro-organisms...
-
Page 24: Environmental Product Declaration
9 ENVIRONMENTAL PRODUCT DECLARATION Plastic Stainless steel FD1600 FD1605 UB FD1610 FD1615 UB Total weight kg / % 90 / 100 65 / 100 100/ 100 75 / 100 by weight Mechanical parts Stainless steel 41 / 45.5 21 / 32.3 60 / 60 35 / 46.6 Steel... -
Page 25: Waste Disposal
9.4 Waste disposal The machines consist mainly of stainless steel, plastics/rubber/glass and other recyclable metals. When the machine is scrapped the materials should be recycled. Wiring and printed circuit boards contain scrap. Plastics and rubber must be sorted separately. 9.5 Load pallets The pallet that the machine is delivered on is manufactured and labeled according to ISPM15. -
Page 26: Handling Of Worn Products
10 HANDLING OF WORN PRODUCTS This product and its accessories comply with the requirements in the WEEE directive (Waste Electrical & Electronic Equipment) 2012/19/EU. Worn-out products must be disposed of at recycling stations in accordance with local regulations. If required, contact your reseller for more information. - Page 27 AUSTRALIA FRANCE POLSKA Arjo Australia Pty Ltd Arjo SAS Arjo Polska Sp. z o.o. 78, Forsyth Street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL-62-052 KOMORNIKI (Pozna ) AU-6163 Western Australia FR-59436 RONCQ CEDEX Tel: +48 61 662 15 50 Tel: +61 89337 4111 Tél: +33 (0) 3 20 28 13 13...
- Page 28 Hans Michelsensgatan 10 211 20 Malmö, Sweden www.arjohuntleigh.com ArjoHuntleigh is a world-leading provider of integrated products and solutions that improve the lives of patients and residents with reduced mobility. We help healthcare facilities deliver wellness and effective everyday care, early mobilisation, safe patient handling, venous thromboembolism prevention, pressure injury prevention, hygiene routines, bariatric care and diagnostics.
