Page 1: Instructions For Use
Maxi Sky 440 Instructions for Use ...with people in mind 001.16000.33.EN Rev 14 • 10/2016... - Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh 2016. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.The content of this publication may not be copied either whole or in part without the consent of...
-
Page 3: Table Of Contents
Battery and Battery Charger Safety Practices..............10 Equipment Warning Labels ..................... 10 Homecare Environment Considerations................10 Product Description ......................... 11 Maxi Sky 440 Portable Lift and Charger Station ..............11 Hand Control........................12 Charger ..........................12 Indicators ........................... 12 Accessories ..........................13 Slings............................ - Page 4 Table of Contents Sling Inspection and Care ....................24 Annual Inspection ......................24 Maintenance Requirements .................... 24 Troubleshooting........................25 Labels on the Lift ........................26 Technical Specifications ......................27 Lift Dimensions ....................... 28 Electromagnetic Compatibility ....................29 Electromagnetic Compliance..................... 29 Electromagnetic Emissions.....................
-
Page 5: General Information
Tested according to standards by: Service and Support A service routine must be done on your Maxi Sky 440 by ArjoHuntleigh trained service staff. This will ensure the product remains safe and functional. See “Care and Maintenance” section. -
Page 6: Definitions Used In This Manual
Intended Use “Preventive Maintenance Schedule.” The expected life for other consumable products, The Maxi Sky 440 is designed for lifting patients such as batteries, fuses, lamps, slings, straps and in a homecare setting, at nursing homes and cords is dependent upon the care and usage of other assisted living centers. -
Page 7: Symbols Used
General Information Symbols Used General Key to symbols Symbols General Key to symbols Symbols Represents the maximum load the lifte is rated for safe Points out the date of operation. manufacture and the address of the manufacturer. Points out the degree of protection provided by Points out the products enclosure. -
Page 8: Safety Instructions
• Rail system limitations; • Descriptions of specific parts. WARNING: Before using the Maxi Sky 440 with a rail system other than KWIKtrak, make sure you have read and understood the addendum supplied with the adapted accessory. Safe Working Load The Maxi Sky 440 has been designed with a lifting capacity of 200 kg (440 lb). -
Page 9: Important Safety Directions
100%. • The ambient temperature range when storing • Do not short circuit the battery terminals. the Maxi Sky 440 remains between –25ºC and • Do not incinerate the battery. 70ºC (-13ºF to 158ºF). WARNING: This product contains small parts that might present a choking hazard for children if swallowed or inhaled. -
Page 10: Human And Environmental Safety Practices
Practices NOTE: Rigorous cleaning actions should be WARNING: Following the instructions is done when the Maxi Sky 440 is exposed to important for the safe use of the battery and an animal. Pet hair trapped inside the device to keep the user (resident/caregiver) from (through the strap opening) can reduce the harm. -
Page 11: Product Description

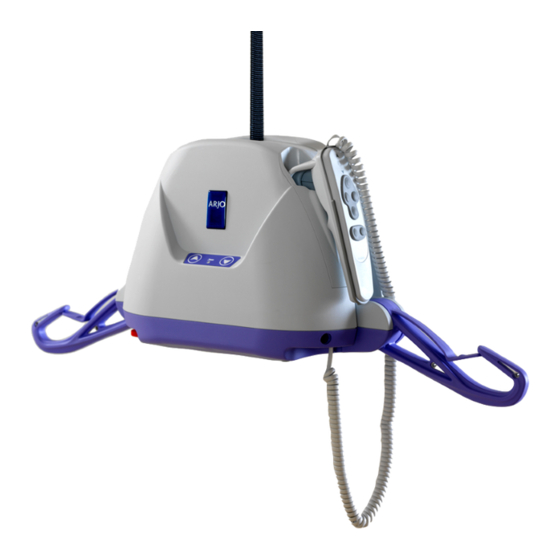

Product Description Product Description Maxi Sky 440 Portable Lift and Charger Station Legend 1) Emergency lowering tool 8) DC charger inlet 2) Pass through hook 9) UP button 3) Strap 10) Maintenance indicator light 4) Carabiner 11) DOWN button 5) Hand control holder... -
Page 12: Hand Control
Product Description Hand Control Indicators The Maxi Sky 440’s hand control unit is used to BATTERIES STATUS operate the portable lift. Each function is described in Fig. 4. The UP and DOWN buttons (Yellow) In process of charging Flashing raise or lower the lift. -
Page 13: Accessories
Carry Bag Strap Extension Swivel Adaptor Reacher 24'' & 36'' Fig. 6 Refer to your local ArjoHuntleigh agent for ordering. WARNING: All trolleys are not compatible with all rail systems. Please contact your local ArjoHuntleigh agent to get more information. -
Page 14: Slings
Slings Slings Compatible Slings Hammock sling Quick Fit sling Hammock 6 sling Walking sling Combi sling Hygienic sling Limb sling Repositioning sling Fig. 7 Refer to your local ArjoHuntleigh agent for ordering. -
Page 15: How To Use The Maxi Sky 440
Make sure to have on hand a sling that is of the correct model and of adequate size for transfer with the Maxi Sky 440. Before performing the transfer, it is important to evaluate the patient’s general condition. For example, an agitated patient will require a more specific type of sling. -
Page 16: Transferring The Patient
How to Use the Maxi Sky 440 Method 1 - Cross-through (Legs closed with crossing straps) WARNING: This method might not be suitable for patients with no upper body This method is recommended for most general control as they can slide down and almost transfer (see Fig. -
Page 17: Emergency Shut-Off
How to Use the Maxi Sky 440 12) When the Maxi Sky 440 is no longer required, plug the portable lift back to the charger. WARNING: Before lifting the patient: 1) Make sure that all straps are attached to WARNING: Constant attention to the patient the lift’s supports. -
Page 18: Emergency Brake
How to Use the Maxi Sky 440 Fig. 14 Emergency Brake WARNING: Never use a portable lift with the emergency brake deployed. Use other The emergency brake is an additional safety equipment to lower the patient. Forcing the feature that automatically prevents the patient lift to make it move might lead to patient fall. -
Page 19: Battery Information
Have the facility department keep one in stock. NOTE: The lift cannot use energy from the The batteries included in the Maxi Sky 440 charger to operate. If you try to activate any provide 10 to 30 transfers per battery charge. -
Page 20: Care And Maintenance
WARNING: Safety related maintenance and authorized service must be carried out by qualified personnel, fully trained in servicing procedures by ArjoHuntleigh, and equipped with correct tools and proper documentation, including Parts List and Service Manual. Failure to meet these requirements could result in injuries and/or unsafe equipment. -
Page 21: Inspections By An Authorized Service Technician
Care and Maintenance Inspections by an Authorized Service Technician Before Every 2 Every 4 Every Every 2 Action/check Initially every use months months year years Replace strap. Inspect the welding aspect on the frame to detect cracks. Inspect transmission. Inspect connecting joints for proper attachment. -
Page 22: Daily Checklist
Inspect the lift for any damage. If the lift casing does not look properly aligned, or there are Cleaning: any cracks or other damage on the lift, or there 1) To clean the Maxi Sky 440, spread cleaning are parts missing, . Contact your DO NOT USE IT fluid (water and disinfectant cleaner) on the ArjoHuntleigh agent to have the lift serviced. -
Page 23: Strap Inspection
Strap Inspection If you store or ship the Maxi Sky 440, ensure that the power is turned off (emergency button pushed If the strap is damaged or shows signs of wear or in) beforehand. -
Page 24: Sling Inspection And Care
ArjoHuntleigh agent for assistance. Sling Inspection and Care See the documentation that comes with the sling. Annual Inspection The Maxi Sky 440 must be inspected annually by a qualified technician. WARNING: Maxi Sky 440 accessories must... -
Page 25: Troubleshooting
Troubleshooting Troubleshooting WARNING: Do not attempt to open the Maxi Sky 440 portable lift cassette. Only a qualified technician is authorized to open it. Alterations made to the portable lift by someone other than a qualified technician may cause serious injury. -
Page 26: Labels On The Lift
Labels on the Lift Labels on the Lift 1) Product name 2) Serial number label 3) Charger information 4) Logo sticker Fig. 17... -
Page 27: Technical Specifications
WARNING: This equipment is not suitable in the presence of flammable anesthetic mixtures with air or oxygen, or with nitrous oxide. Using the Maxi Sky 440 in this environment might lead to an explosion. The lift might create some spark internally and ignite the gaz. -
Page 28: Lift Dimensions
Technical Specifications Lift Dimensions Fig. 18 WARNING: Refer to the addendum provided with the adapted trolley for rail systems other than KWIKtrak. -
Page 29: Electromagnetic Compatibility
Electromagnetic Emissions - For all Equipment and Systems The Maxi Sky 440 is intended for use in the electromagnetic environment indicated below. The customer or the user of the Maxi Sky 440 should assure that it is used in such an environment. Emissions test... -
Page 30: Electromagnetic Immunity
Electromagnetic Immunity - For all Equipment and Systems The Maxi Sky 440 is intended for use in electromagnetic environment specified below. The customer or the user of the Maxi Sky 440 should assure that it is used in such an environment. Electromagnetic... - Page 31 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Maxi Sky 440 is used exceeds the applicable RF compliance level above, the Maxi Sky 440 should be observed to verify normal operation.
- Page 32 Recommended separation distances between portable and mobile RF communications equipment and the Maxi Sky 440. The Maxi Sky 440 is intended for use in electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Maxi Sky 440 can help prevent electromagnetic interference by...
- Page 33 Free: +1 800 072 040 Fax: +33 (0) 3 20 28 13 14 Fax: + 61 89337 9077 E-mail: info.france@arjohuntleigh.com POLSKA ArjoHuntleigh Polska Sp. z o.o. BELGIQUE / BELGIË HONG KONG ul. Ks Piotra Wawrzyniaka 2 ArjoHuntleigh NV/SA ArjoHuntleigh (Hong Kong) Ltd...
- Page 34 Getinge Group is a leading global provider of products and systems that contribute to quality the three brands of ArjoHuntleigh, Getinge and Maquet Getinge provides solutions for Maquet specializes in solutions, therapies and products for surgical interventions, interventional ArjoHuntleigh focuses on patient handling and hygiene, disinfection, DVT prevention,...
