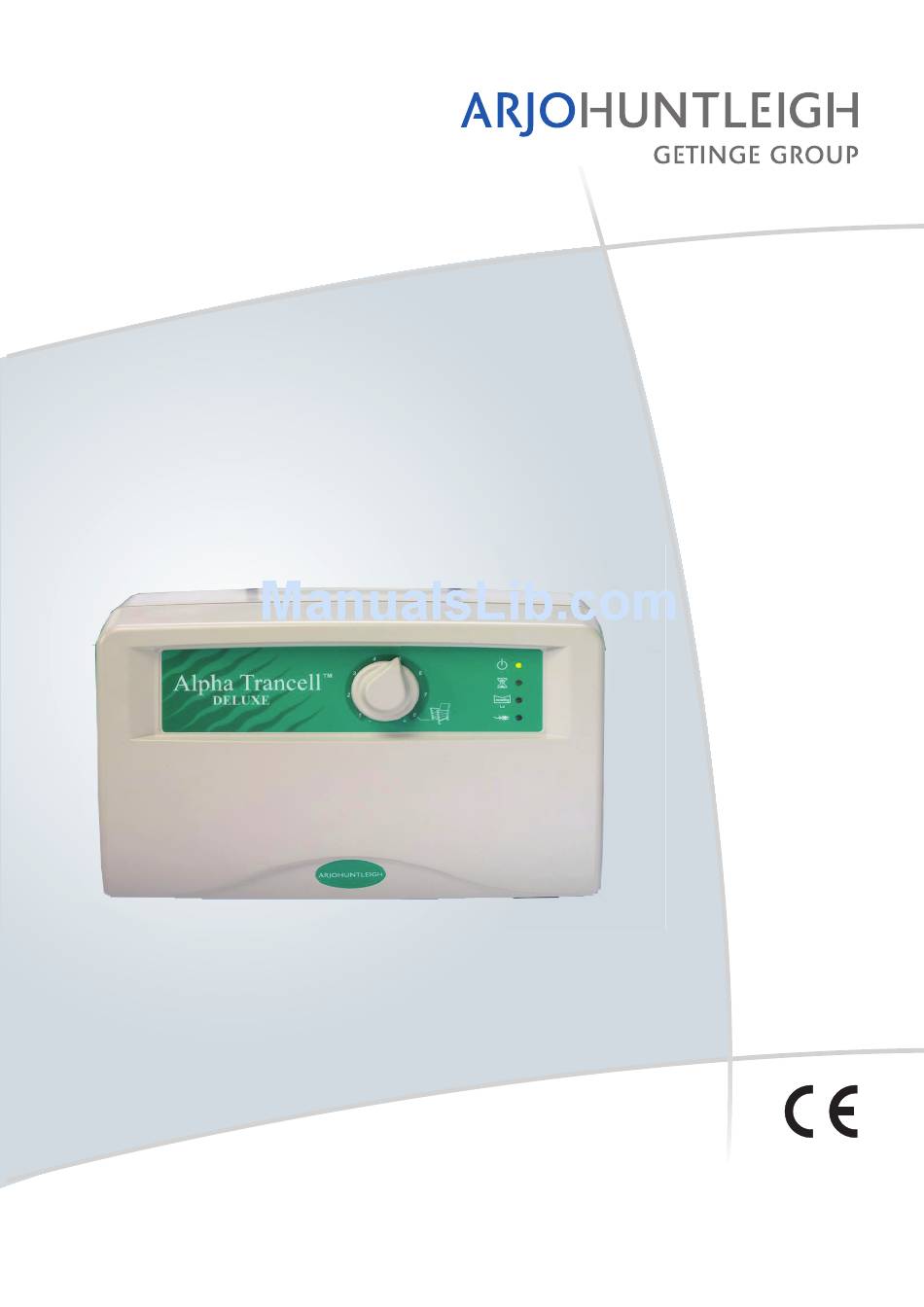

- Page 1 ALPHA TRANCELL DELUXE Instructions for Use ...with people in mind...
-
Page 3: Table Of Contents
Alpha Trancell Deluxe Systems ........ - Page 4 (ii)
-
Page 5: General Safety
• There is no Transport facility on the Alpha Trancell Deluxe seat cushion. • Only the pump and mattress combination as indicated by ArjoHuntleigh should be used. The correct function of the product cannot be guaranteed if incorrect pump and mattress combinations are used. - Page 6 Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either whole or in part without the consent of ArjoHuntleigh.
-
Page 7: Introduction
If you have any difficulties in setting-up or using the system, contact your local Alpha Trancell Deluxe ArjoHuntleigh sales office, listed at the end of this manual. Intended Use The intended use of this product is to prevent and/or manage pressure ulcers for patients up to 120 kg (264 lb). -
Page 8: Product Description
Product Description Pump Unit Power Indicator Pressure Control Knob Wait Indicator Low pressure Indicator Power Fail Indicator Suspension hooks on rear Tubeset connections Fuse Holder Run/Standby Switch Setting up instructions on rear Alpha PREVENT Overlay Air Feed Tubes Pump Connectors Tube Protector Clip Corner Straps... - Page 9 Trancell II Overlay Rapid deflate tag Cover Air Feed Tubes Fixing Strap Cells Securing Apron Alpha Trancell Deluxe Overlay Rapid Deflate Top Cover Zips Transport Facility Cells Pump Connectors Corner Straps...
- Page 10 Alpha Trancell Deluxe Mattress Replacement Rapid Deflate Top Cover Top Cover Zips Transport Facility Cells Pump Connectors Base Cover Foam Base Pad Straps Bottom Cover Zips Alpha Trancell Deluxe Seat Cushion Cover Straps Pump Connectors Cells...
-
Page 11: Clinical Applications
2. Clinical Applications Indications The Alpha Trancell Deluxe systems are indicated for the prevention and/or management of pressure ulcers, when combined with an individualised, comprehensive pressure ulcer protocol: for example, repositioning, nutritional support, skin care. Selection should be based upon a holistic assessment of the patient’s individual care needs. -
Page 12: Installation
2. Plug the pump power cable into wall socket. Leave the Run/Standby switch in the Standby position. Installing a Mattress If you have an Alpha Trancell Deluxe, Trancell II mattress overlay, it should be installed Overlay Alpha Prevent, as follows: 1. - Page 13 3. Secure the seat cushion to the chair by using the fixing straps as shown in the following illustrations. Cautions • Do not use the Alpha Trancell Deluxe seat cushion without a foam cushion beneath it. • Always use the Alpha Trancell Deluxe seat cushion with the protective top cover.
- Page 14 7. Position the protective cover over the seat cushion and ensure that the logo is Alpha Trancell Deluxe uppermost and at the front of the seat. Complete the installation of the system as follows: To complete the system installation 1.
-
Page 15: Controls And Indicators
4. Controls and Indicators Controls This is situated on the front panel and is adjusted by the Pressure Control carer to suit the weight of the patient. This is situated on the side panel of the pump and is used Run/Standby Switch to activate the unit and reset alarms. -
Page 16: Operation
If the operation of the pump changes during use, refer to “Troubleshooting Guide” on page 15 of this manual before calling a service engineer or contacting your local ArjoHuntleigh sales office Installing the System Before using the system make... -
Page 17: Rapid Deflate
Alpha PREVENT Trancell II Alpha If Patient Trancell Sitting in Deluxe Trancell II IMPORTANT • The Rapid Deflate facility is fitted to the Trancell II and Alpha Trancell Deluxe mattresses only. • In the event of a cardiac arrest, pull the Rapid Deflate tag firmly at the head end of the mattress and disconnect the tubeset connectors at the pump. -
Page 18: Stopping Therapy
• The Transport facility is fitted to the Alpha Trancell Deluxe mattress replacement and the mattress overlay only. • There is no Transport facility on the Alpha Trancell Deluxe seat cushion. The transport facility is located on the tubeset near the Transport Mode pump. -
Page 19: Decontamination
Healthcare Facility or the country of use. If you are uncertain, you should seek advice from your local Infection Control Specialist. system should be routinely decontaminated between Alpha Trancell Deluxe patients and at regular intervals while in use; as is good practice for all reusable medical devices. -
Page 20: Routine Maintenance
7. Routine Maintenance Alpha Trancell Deluxe Systems The equipment has been designed to be virtually Maintenance maintenance-free between service periods. will make available on request service Servicing ArjoHuntleigh manuals, component parts lists and other information necessary for trained personnel to repair... -
Page 21: Troubleshooting Guide
Check. See Pump not operating below. 5. Tubes not correctly fitted. Check 6. Transport facility set to 90 Check. degrees. (Alpha Trancell Deluxe only) Consistent Low Pressure 1. Rapid Deflate stopper not Check Alarm. inserted. 2. Tubes not correctly fitted. -
Page 22: Technical Specification
9. Technical Specification Pump Model: Alpha Trancell Deluxe Part Numbers: ALT03-P Supply Voltage: 120 V Supply Frequency: 60 Hz Power Input: 14 VA Size: 248 x 160 x 116 mm (9.8 x 6.3 x 4.6”) Weight: 2.7 kg (6lb) Case Material:... -
Page 23: Mattress Information
Length Width mm Height AB037 Alpha Prevent 1850 TRA04 Trancell II Mattress Overlay 2006 Polyurethane ATD002DAR Alpha Trancell Deluxe OL 2040 ATD001DAR Alpha Trancell Deluxe MR 2040 COVER SPECIFICATION Feature ® Standard Cover (Dartex) Removable Cover Moisture Vapour Permeable Air Permeable... -
Page 24: Cleaning Symbols
Do Not Use Phenol-based cleaning Wipe surface with damp cloth Solutions Use solution diluted to 1000 ppm of Do not iron Available Chlorine SEAT INFORMATION Alpha Trancell Deluxe Seat ATD003DAR Length: 470 mm Width: 455 mm Height: 50 mm ALT03... - Page 25 Guidance and manufacturer’s declaration - electromagnetic immunity The pump is intended for use in the electromagnetic environment specified below. The customer or the user of the pump should assure that it is used in such an environment. Immunity IEC 60601 Test Compliance Electromagnetic environment - guidance Test...
- Page 26 Recommended separation distances between portable and mobile RF communications equipment and the pump The pump is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the pump can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the pump as recommended below, according to the maximum output power of the communications equipment.
- Page 27 AUSTRALIA FRANCE POLSKA ArjoHuntleigh Pty Ltd ArjoHuntleigh SAS ArjoHuntleigh Polska Sp. z o.o. 78, Forsyth street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL-62-052 KOMORNIKI (Poznan) AU-6163 Western Australia FR-59436 RONCQ CEDEX Tel: +48 61 662 15 50 Tel: +61 89337 4111 Tél: +33 (0) 3 20 28 13 13...
- Page 28 We operate under the three brands of ArjoHuntleigh, GETINGE and MAQUET. ArjoHuntleigh focuses on patient mobility and wound management solutions. GETINGE provides solutions for infection control within healthcare and contamination prevention within life sciences.
