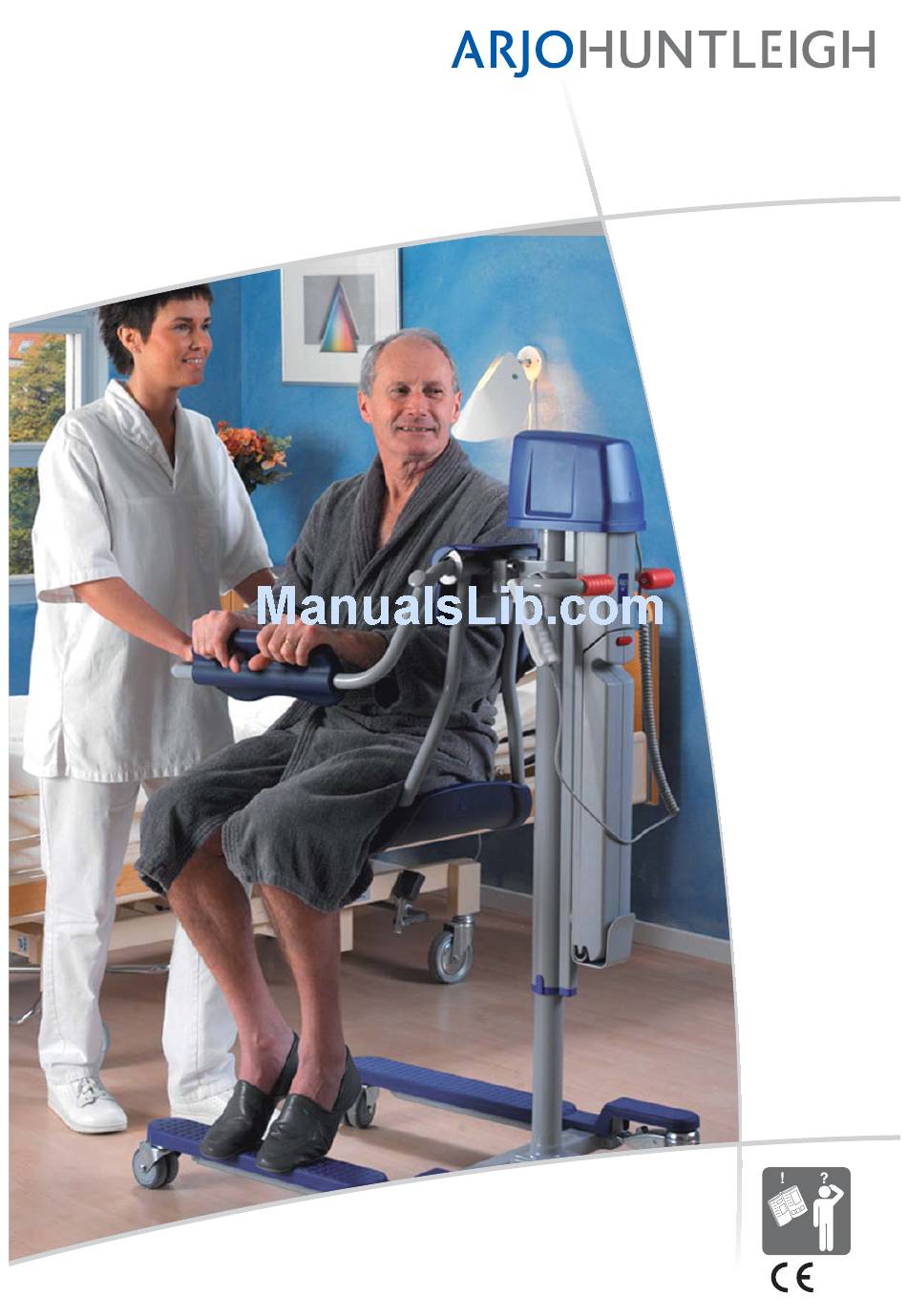

- Page 1 CALYPSO Instructions for Use 04.CD.03/7GB September 2009 0086...
- Page 2 Our policy is one of continuous development, and we therefore reserve the right to make technical alterations without notice. The content of this publication may not be copied either whole or in part without the consent of ArjoHuntleigh Hospital Equipment AB...
-
Page 3: Table Of Contents
Contents Foreword .....................4 Safety Instructions ................5 Warnings ....................6 Preparations..................7 Part designations ................9 Product description/function ............10 Preparations before use ..............10 Manual raising and lowering ............10 Electric raising and lowering ............10 Back rest ..................12 Seat .....................12 Castor brakes ................12 Emergency Stop .................14 Emergency High/Low ..............14 Accessory description ..............16 Battery charger ................16... -
Page 4: Foreword
Foreword Thank you for purchasing ArjoHuntleigh Definitions in this manual: equipment. Your Calypso lift and hygiene chair is part of a series WARNING of quality products designed especially for hospitals, nursing homes and other health care use. We are dedicated to serving your needs and providing... -
Page 5: Safety Instructions
Intended use This equipment is intended for lifting and transport- ing residents to and from a bathroom in a care facility and to assist with the bathing process. Calypso must WARNING be used by appropriately trained caregivers with ade- quate knowledge of the care environment, its com-... -
Page 6: Warnings
Warnings To avoid the possibility of injury • the Calypso is always moved in the right direc- always ensure that: tion.The lift has a lower stability and can tilt when • the equipment is used by appropriate trained moved in the wrong driving direction. Always staff. -
Page 7: Preparations
If any part is missing or damaged - do not use the product! Mounting of the enclosed spacer: The spacer that is mounted on Calypso when delivered, is adapted to the depth of Arjo- Huntleigh Bath Systems. For deeper baths only: To get a deeper immer-... -
Page 9: Part Designations
Part designations Two-part hygiene seat Seat insert Transport handles Footrest Back rest Knob for attachment of safety strap Manoeuvring handle Hand control (Electrical) Battery (Electrical) 10 Hand rest 11 Pillar 12 Castor brake 13 Lowering button (Hydraulic) 14 Hand pump for raising (Hydraulic) 15 Back rest/Hand rest left 16 Back rest/Hand rest right 17 Safety straps... -
Page 10: Product Description/Function
Product description/function Manual raising and lowering (1) • Calypso is raised by using the hand pump. Pump evenly, using the full range of movement. • Calypso is lowered by pressing the lowering button. Electric raising and lowering (2) Unhook the hand control from its holder. -
Page 12: Back Rest
Back rest (1) • The hand rest/back rest can be pushed backwards. • Only CDB60XX model. The back rest can be used on either side depending on which side the resident will be transferred from. It is detached by pushing at the rim straight out. -
Page 14: Emergency Stop
Emergency Stop (1) If, for any reason, Calypso does not respond to the control buttons, you can quickly stop lift movement by pressing the button on the battery and disconnect it (1) . Contact your local ArjoHuntleigh representative before re- using Calypso. -
Page 16: Accessory Description
Accessory description Battery charger (1) See instruction on page 26. Scale (2) (optional) See separate scale instructions. Bedpan and bedpan holder (3-4) (optional) A bedpan holder can be mounted under the seat. Assemble according to the illustrations: WARNING Make sure that male resident genitals do not get pinched between bedpan and chair. - Page 17 CDB70XX CDB60XX...
-
Page 18: Transferring The Resident
Put the hand rest in place in front of the resident (4). Fasten the chest strap. Attach the leg straps if necessary (4). Release the castor brakes and pull Calypso out from the bed while helping the resident with his legs (5). Lower Calypso to a comfortable height so the resident can put his/her feet on the foot rest. -
Page 20: From A Wheelchair
Put Calypso right beside the wheelchair. Lower the seat to the same level as the seat of the chair, so that the seat of Calypso is next to or slightly overlap- ping the seat of the wheelchair, depending on its con- struction. -
Page 22: Bathing The Resident
Calypso is being moved or the brakes are applied. Place Calypso in right angle close to the legs of the bath tub. Raise Calypso to clear the edge of the bath and move the resident in over the WARNING bath. -
Page 24: Showering The Resident
Position Calypso in front of the cabinet with res- ident’s back towards the cabinets front. Re-position the resident if needed to Raise Calypso and push it carefully as far as pos- ensure that the resident is sitting sible into the shower cabinet. -
Page 26: Battery And Battery Charger
The indicator lamp shows a green light when the battery is fully charged. NOTE If your Calypso is equipped with a scale; Do not leave anything on the seat that could disturb the zero range when connecting the charged battery. -
Page 28: Disinfection/Cleaning Instructions
(if applicable) and place them at the bottom of the ArjoHuntleigh Customer Service. tub. Move Calypso in over the bath tub and lower The following procedure should be carried out after every use and at the end of the day. -
Page 30: Trouble Shooting
- if not, remove the resident from the lift and call for authorised service The lift is making abnormal sounds during lifting or Remove the resident from the lift and call for author- transport ised service The lift beeps shortly once every minute when not Contact ArjoHuntleigh technical service personnel operated... -
Page 31: Care And Preventive Maintenance
Care and Preventive Maintenance Calypso is subject to wear and tear, and the following actions must be performed when specified to ensure that the product remains within its original manufacturing specification WARNING The points on this checklist are the minimum the manufacturer recommends. In some cases due to heavy use of the product and exposure to aggressive environ- ment, more frequent inspections should be carried out. -
Page 32: Every Day
Every day Clean/Disinfect. • Calypso has to be cleaned immediately after every use. ArjoHuntleigh cleaning agents and shampoos should be used in recommended concentrations labelled on the disinfectant bottle . See further disinfecting/cleaning instructions Every week Visually check all exposed parts. -
Page 34: Technical Specifications
46,2 kg (101 lbs) Weight CDB 70XX 50,2 kg (110 lbs) Transport, storage and operation (Applies to all Calypso models except the chargers) -25°C to +60°C (-13°F to +140°F) Transport -25°C to +30°C (-1°F to + 86°F) Storage Ambient temperature range +10°C to +40°C (+50°F to +104°F) Operation... - Page 35 Charger model NDA 1200-EU, NDA 2200-GB, NDA 4200-US, NDA 6200-AU 230V ±10%, 50-60Hz Voltage, Frequency 100-120V ±10%, 50-60Hz ±10% Charge voltage and current 28.6 V, 1.2 A, yellow indicator Standby charge voltage 27.6 V, green indicator Max power 230V - 0.5 A, 100-120 V - 0,8 A Weight 250 gram (0.55 pound) Dimensions...
-
Page 36: Overall Dimensions
Overall dimensions Calypso Classic/Pur Classic mm (inch) Stroke: maximum 595mm (23 3/8”) 552 (21 3/4”) 631 (24 7/8”) 616 (24 1/4”) 484 (19”) 479 (18 7/8”) Ø125 (4 7/8”) 459 (18 1/8”) 102 (4”) 620 (24 3/8”) 780 (30 3/4”) 641 (25 1/4”) - Page 37 Calypso Hydraulic mm (inch) 552 (21 3/4”) Stroke: maximum 500mm (19 5/8”) 282 (11 1/8”) 479 (18 7/8”) 130 (5 1/8”) 79 (3 1/8”) Ø 125 (4 7/8”) 780 (30 3/4”) 102 (4”) Ø 100 (3 7/8”) 641 (25 1/4”) 933 (36 3/4”)
-
Page 38: Labels On The Lift
Labels on the lift On all Calypso: Electrical data label Identification label The data label and the identification label are located on The identification label states the type of equipment the pillar. and serial number (see figure). Attention label Safe Working Load Read the operation manual before use. - Page 39 Running MODEL: CDB60XX-XX Calypso assembly 565 mm Safe Working Load 22 1/4" 136kg / 300 lbs number Year Month Type: 24V DC MAX 150 VA IP X4 F1 F10AL 250V Mode of operation: 0909XXXXX 1 min on / 9 min off...
-
Page 40: Labels On Battery And Battery Charger
100-120 V - 0,8 A Recyclable. 28.6 V 1.2 A- yellow Output data 27.6V thereafter - green ArjoHuntleigh battery intended for NDA0100 this charger Insulation Class II Read the operation manual before IP 2X Use in dry areas... - Page 41 Serial No. SE 1499 0001 CAUTION Made in Norway for : NDA 1200 EU Arjo Hospital Equipment AB AVOID SHORT CIRCUIT Eslöv Sweden DO NOT CHARGE IN A Yellow: 28.6V BATTERY CHARGER FOR: 1.2A SEALED CONTAINER ARJO BATTERY NDA 0100 Green: Ready KEEP SPARKS, FLAME AWAY Identification label...
-
Page 42: Accessories
Accessories Foot scale Bedpan and bedpan holder SEAL Leg straps Disinfectant / Cleaner ArjoHuntleigh DISINFECTANT/CLEANER... - Page 43 ArjoHuntleigh Hospital Equipment AB, PO Box 61, Verkstadsvägen 5, SE-241 21 Eslöv, Sweden...
- Page 44 AUSTRALIA FINLAND POLAND ArjoHuntleigh Pty Ltd ArjoHuntleigh OY ArjoHuntleigh Healthcare Polska Sp. z o.o. 78, Forsyth street Vanha Porvoontie 229 ul. Ks Wawrzyniaka 2 O’Connor FI-01380 VANTAA PL 62-052 KOMORNIKI (Poznan) AU-6163 Western Australia Tel: +358 9 4730 4320 Tel. +48 61 662 15 50...
