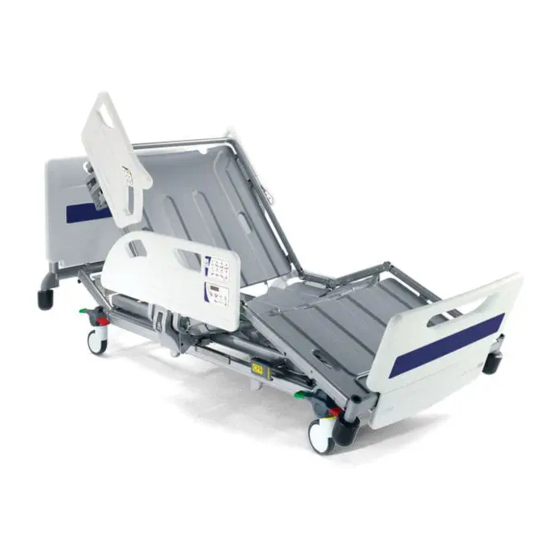

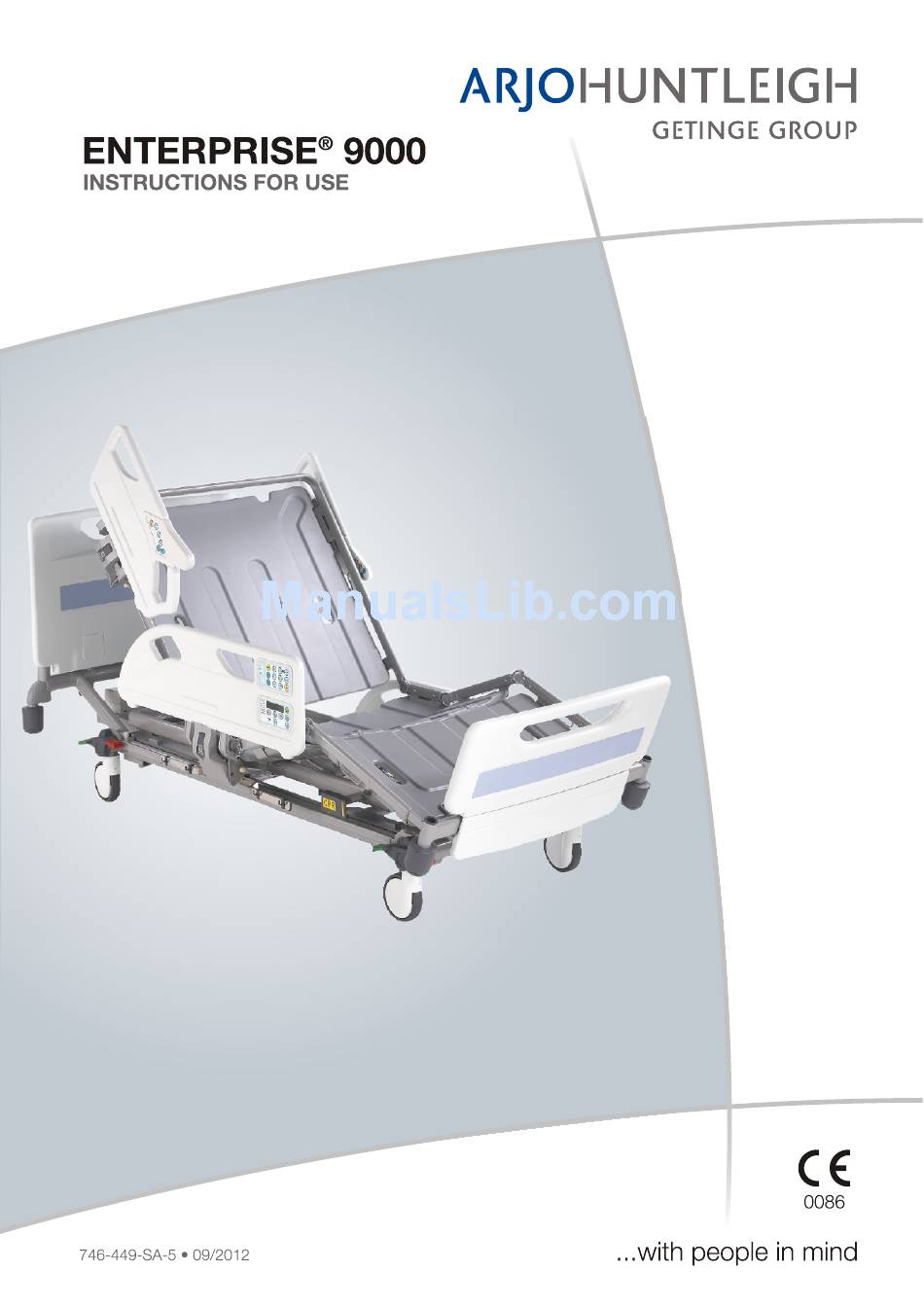

Arjohuntleigh enterprise 9000 Instructions For Use Manual
  1. Manuals
  2. Brands
  3. Arjohuntleigh Manuals
  4. Medical Equipment
  5. enterprise 9000
  6. Instructions for use manual

Arjohuntleigh enterprise 9000 Instructions For Use Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the enterprise 9000 and is the answer not in the manual?

Questions and answers

Geeth Amarasingha
April 25, 2025

How to recover Error code E 410

User image 680af2f308f18
-1

Subscribe to Our Youtube Channel

Related Manuals for Arjohuntleigh enterprise 9000

Summary of Contents for Arjohuntleigh enterprise 9000

  • Page 2: Table Of Contents

        Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh 2007. As our policy is one of continuous development, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either wholly or in part without the consent of ArjoHuntleigh.
  • Page 3 Unauthorised modifications or repairs to this product may affect its safety and will invalidate any warranty. ArjoHuntleigh accepts no liability for any incident, accident or reduction in performance that may occur as a result of such repairs or modifications.
  • Page 4 WARNING ELECTROMAGNETIC COMPATIBILITY (EMC) This product complies with the requirements of applicable EMC standards. However, medical electrical equipment requires special precautions regarding electromagnetic compatibility and should be installed and used in accordance with the EMC information in the product service manual. Medical electrical equipment can be affected by portable and mobile RF communications equipment, e.g.

  • Page 5: Introduction

    1. Introduction These instructions contain information for the installation, use and maintenance of the ArjoHuntleigh Enterprise® 9000 range of acute care hospital beds. These beds have multiple functions to provide the optimum nursing position for both patient and carer. Enterprise® 9000 range beds have the following features: ...
  • Page 6 The model number and serial number can be found on the specification label; this is located on the power supply bracket below the head end panel. Specification label 746-449-SA-5...
  • Page 7 Product overview 1. Head end panel 12. Castor 2. Head end safety side 13. Bedstripper 3. Nurse’s controls 14. CPR release lever 4. Backrest section 15. Weighing system controls 5. Attendant Control Panel (ACP) 16. Accessory rail 6. Patient’s controls 17.

  • Page 8: Clinical Applications

    The mattress platform can be positioned to assist with clinical procedures such as intubation; contact ArjoHuntleigh for further information. Contra- The total safe working indications load of the bed is 250kg.

  • Page 9: Installation

    3. Installation Weighing Position the bed on a flat, level surface and apply the system brakes (refer to Chapter 4). Remove the four transport locking bolts (A) and washers (B); there are two locking bolts at the head end of the bed and two at the foot end. Retain the bolts and washers in case the bed needs to be transported at a later date.
  • Page 10 Caution Before using the bed, make sure that the “Power In” rating shown on the specification label (see page 5) is compatible with the local electricity supply. Electrical Connect the electrical supply cable to a suitable outlet supply socket. The electrical supply cable is fitted with a plastic hook. When not in use or before moving the bed, clip the hook (C) onto the head end panel, coil up the cable and place it over the hook.
  • Page 11 Caution Do not allow the electrical supply cable to touch the bed frame as this may affect the accuracy of the weighing system. An equipotential terminal (D) is located at the head end of the bed, above the roller buffer on the patient’s right side. When other electrical equipment is within patient / user reach, the potential difference between this equipment can be equalised by interconnecting the equipotential...

  • Page 12: Operation

     Always use a mattress of the correct size and type. A Safety range of suitable pressure reducing and pressure relieving mattresses is available from ArjoHuntleigh.  To reduce the risk of injury due to falls, leave the bed at minimum height when the patient is unattended.
  • Page 13 Brakes and There are four linked brake levers, two at either end of the steering bed. Each lever has a red pedal and a green pedal.  Red pedal down - brakes are applied on all four castors.  Lever horizontal - all four castors can rotate and swivel. ...
  • Page 14  Specialist powered air / foam replacement mattresses will typically envelop the patient when loaded and can generally be deeper than a foam mattress without compromising safety. All ArjoHuntleigh specialist mattress replacements will maintain sufficient clearance between patients and safety side tops to preserve the function of the safety side. Other makes of specialist mattress replacement must be assessed individually prior to use to verify sufficient clearance is maintained.
  • Page 15 Safety sides - To lower the side: operation Hold either safety side handle (E). Pull the release lever (F) and lower the safety side. The safety side folds down below the mattress platform. To raise the side: Hold either safety side handle (E). Pull the safety side up and away from the bed until it locks in the raised position.
  • Page 16 Bedstripper The bedstripper is used for supporting clean linen when the bed sheets are being changed. It may be equipped with a folding frame to support a duvet. To prepare the bedstripper for use, pull it out from below the foot end panel (G). After use, push the bedstripper back under the foot end panel until it latches in the closed position.
  • Page 17 Extending the To extend the mattress platform: mattress If the bed is tilted, use the bed controls to level the platform mattress platform - refer to Chapter 5, Power Operation. Pull down the catches (H) on the underside of the mattress platform and rotate them a quarter turn to unlock the extension.
  • Page 18 Emergency Manual CPR release handles are situated either side of the CPR function bed, below the calf section. To lower the backrest in an emergency, pull the CPR release handle (J). Alternatively, press and hold the CPR button on the Attendant Control Panel;...
  • Page 19 End panels The end panels can be easily lifted off the bed for fast access to the patient.  One or both end panels may be held in place with spring catches. To remove this type of panel: 1. Foot end panel only: pull out the bedstripper to gain access to the catches (K).
  • Page 20 X-ray cassette The X-ray cassette tray allows thoracic X-ray photography tray  with the backrest at any angle and without the patient moving from the bed. WARNING Position the mattress platform at an ergonomic height to allow easy loading and removal of X-ray cassettes. Return the X-ray cassette tray to its closed position below the backrest before raising or lowering the backrest.
  • Page 21 Release the knob to hold the tray in the fully open position (P). Position the X-ray cassette (Q) on the tray with its bottom edge against the lip at the foot end of the tray. Positioning the X-ray cassette Pull the knob and slide the tray underneath the backrest. Release the knob to hold the tray in one of the five latching positions.
  • Page 22 Lifting pole Two lifting pole sockets are located at the head end of the mattress platform (R). They can also be used for accessory other approved accessories. sockets Two smaller accessory sockets are provided at the foot end of the bed (S). Lifting pole sockets Accessory sockets (head end)
  • Page 23 Angle The backrest hinges and thigh section hinges are indicators equipped with angle markings. These can be used to give an approximate indication of backrest or leg elevation. Backrest angle indicator  Bed section angles and tilt angle are also shown on the weighing system display –...

  • Page 24: Power Operation

    5. Power operation Patient’s The Patient’s controls are located on the inside panel of the controls head end safety sides. They operate three bed functions as shown below. Patient’s controls Patient’s controls (patient’s left side) (patient’s right side) Nurse’s The Nurse’s controls are located on the outside panel of the controls head end safety sides.
  • Page 25 Attendant Control Panel (ACP) Attendant Control Panels are located on the outside panel of the foot end safety sides. The ACP controls all bed functions as shown below. Attendant Control Panel (ACP) Mains on indicator. Lit green when the bed is connected to the electricity supply.
  • Page 26 Adjusting the mattress platform The control keys are illuminated from behind to assist operation in darkened rooms. Press the appropriate key to select the Function required:  Mattress platform height  Backrest angle  Leg sections elevation  Kneebreak angle ...
  • Page 27 Bed angle When operating the controls for backrest, thigh section, indication kneebreak or tilt, the weighing system display shows the approximate angle (in degrees) of the selected function. Angles are shown relative to the ground, so the displayed values of backrest, thigh or kneebreak angle change when the bed is tilted.
  • Page 28 Additional ACP features Function Under certain circumstances it may be necessary to lockout prevent operation of the bed controls, e.g. when traction equipment is being used. To selectively disable bed functions: Press the Function Lockout key on the Attendant Control Panel.
  • Page 29 Underbed light Press this key to turn the underbed light on or off. The indicator above the key lights amber when the underbed light is on. Fowler / Vascular mode In Fowler (chair) selection mode, the calf section is angled down and the legs are lowered below the mattress platform.
  • Page 30 If the anti-entrapment indicator is lit red when no obstruction is present, this may indicate a fault. Contact ArjoHuntleigh or an approved service agent.  The anti-entrapment system may be triggered if the beam is interrupted by bed clothes etc.
  • Page 31 Battery operation The backup battery is automatically switched on if the bed is disconnected from the electricity supply. The battery provides emergency operation of all powered functions for short periods of time, e.g. while the bed is being moved between wards. When the bed is operating from the backup battery, the control system indicates the battery status as follows.

  • Page 32: Patient Weighing And Egress Detection

    6. Patient weighing and egress detection Controls The controls for the weighing system and patient egress detection are located on the foot end safety side panel. Patient weighing and egress detection controls Enable Zero Select Weight Weigh Display Auto Compensation Enable Patient Egress (on/off/reset) Alarm Volume...
  • Page 33 Patient weighing system  Local regulations governing Non Automatic Weighing Instruments may require the weighing system to be periodically inspected and verified by an approved person. Overview The weighing system is based around four load cells installed in the bed frame. The electrical outputs from these load cells are integrated in a load converter and the result passed to the user interface.
  • Page 34  The zero point can only be set if the load on the bed is 25kg or less above the factory calibrated zero. If the user attempts to set the zero point more than once, the display will show error code E001. To clear the error, disconnect the bed from the electricity supply for ten seconds;...
  • Page 35 Unstable weight obtained within 10 seconds of pressing  reading the Weigh key  If the display shows an error code other than those given above, refer to the product service manual or contact an approved ArjoHuntleigh service agent. 746-449-SA-5...
  • Page 36 Patient egress detection Overview Patient egress detection uses data from the weighing system to determine if the patient has left the bed. The egress detection alarm is triggered when the measured weight falls by 50% or more for longer than two seconds; this helps to prevent false alarms, particularly if the patient is restless.

  • Page 37: Decontamination

    7. Decontamination WARNING Disconnect the bed from the electricity supply before carrying out decontamination procedures.  These instructions also apply to accessories but not to mattresses or safety side pads. Cleaning Wearing suitable protective clothing, clean all surfaces with a disposable cloth soaked in a neutral detergent and hand hot water.

  • Page 38: Care And Preventive Maintenance

    8. Care and preventive maintenance This product is subject to wear and tear during use. To ensure that it continues to perform within its original specification, preventive maintenance procedures should be carried out at the intervals shown. WARNING This list indicates the minimum level of preventive maintenance recommended by the manufacturer.
  • Page 39 If the result of any of these tests is unsatisfactory, contact an Arjo Huntleigh approved service agent. WARNING The procedures below must be carried out by suitably trained and qualified personnel. Failure to do so may result in injury or an unsafe product. Actions to be done by qualified personnel Daily Weekly...
  • Page 40 If this test is not completed successfully, connect the bed to the electricity supply for at least eight hours to recharge the battery then perform the test again. If the bed fails a second time, contact ArjoHuntleigh or an approved service agent. 746-449-SA-5...

  • Page 41: Accessories

    9. Accessories A full range of accessories, including mattresses, is available from ArjoHuntleigh. Details are available on request. Accessories currently available for the Enterprise 9000 range are shown in the table below. DESCRIPTION PRODUCT CODE Lifting pole with strap and handle...
  • Page 42 Extend the mattress platform when using air mattress systems (e.g. Breeze®) on beds with a short mattress platform (e.g. 9000K) Some accessories may not be available in all markets. ArjoHuntleigh reserves the right to alter accessory details and availability without notification. 746-449-SA-5...

  • Page 43: W Arranty And Service

    10. Warranty and service ArjoHuntleigh standard terms and conditions apply to all sales; a copy is available on request. These contain full details of warranty terms and do not limit the statutory rights of the consumer. For service, maintenance and any questions regarding this product, please contact your local ArjoHuntleigh office or authorised distributor.

  • Page 44: D Imensions And Technical Data

    11. Dimensions and technical data Dimensions All dimensions are subject to normal manufacturing tolerances 9000B / 9000D 9000K Overall length 228cm 217cm Extended 240cm 229cm In-bed length 203cm 192cm Extended 215cm 204cm Overall width 99cm 99cm With safety sides raised 104cm 104cm Mattress size...
  • Page 45 Electrical data Power input 5.7A max. at 120V a.c. 60Hz 3A max. at 230V a.c. 50/60Hz. Duty rating Intermittent 10% (2 min. / 18 min.) Safety Standards Classified by Underwriters (120V versions) Laboratories Inc. in accordance with IEC 60601-1 and IEC 60601-2-38 Safety Standards Complies with EN 60601-1 and EN 60601-2-38 (IEC 60601-1 and IEC...
  • Page 46 Symbols Safe working load 250kg Equipotential terminal Protective earth (ground) Alternating current (a.c.) Caution, refer to Instructions for use Type B applied part Date of manufacture / name of manufacturer Complies with European Medical Devices Directive 93/42/EEC Complies with European Non-Automatic Weighing Instruments Directive 90/384/EEC Waste Electrical and Electronic Equipment (WEEE) - do not dispose of this product in general household or...
  • Page 47 Environmental Protection Incorrect disposal of this equipment and its component parts, particularly gas springs, actuators, batteries and other electrical devices, may produce substances that are hazardous to the environment. To minimize these hazards, contact ArjoHuntleigh for information on correct disposal. 746-449-SA-5...
