Altera MAX II Micro Board
This chapter presents the features and design characteristics of the MAX II Micro board.
2.1 L ayout and Components
3 B

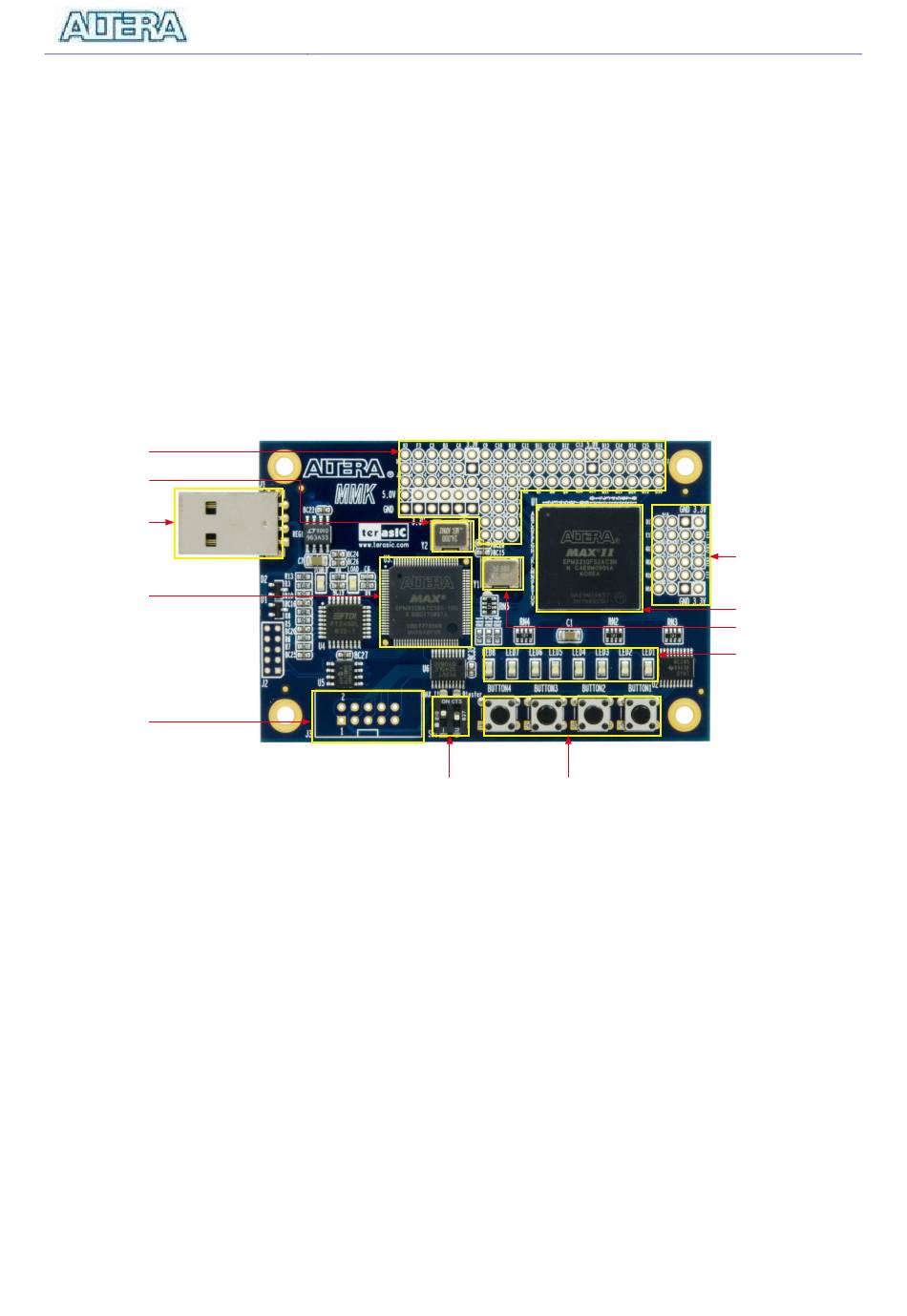

A photograph of the MAX II Micro board is shown in Figure 2.1. It depicts the layout of the board
and indicates the location of the connectors and key components.
Prototyping Area A
(PROTO_A)
24 MHz Oscillator
USB Blaster Port
Altera USB Blaster
Controller Chipset
USB Blaster Cable
10-pin Header
The following hardware is provided on the MAX II Micro board:
• Altera MAX
®
• USB Blaster (on board) for programming; MAX II Micro can be used as a USB Blaster, and
programming mode supported depends on the configuration device of Altera board
connected to MAX II Micro. Only JTAG programming mode is supported to configure
MAX II Micro.
• 4 pushbutton switches
• 1 DIP switch
• 2 red user LEDs
• 2 yellow user LEDs
• 2 green user LEDs
Chapter 2
Figure 2.1. The MAX II Micro board.
II EPM2210F324 FPGA device
USB Blaster / MAX II 4 Push-Button Switches
Power Mode Switch
4
MMK User Manual
Prototyping Area B
(PROTO_B)
Altera MAX II
EPM2210 FPG A Device
50 MHz Oscillator
8 User LEDs
