Communication - Servotronix stepIM Technical Training Manual

3

Communication

Exercise
1. Activate ServoStudio software.
2. If the ServoStudio has not yet been installed on the host computer,
download and install the software from this link:
http://www.servotronix.com/CDHD.html
3. From the ServoStudio navigation sidebar, click Preferences. Then select
the Advanced tab.
Make sure CANopen Device is set to Kvaser Leaf.

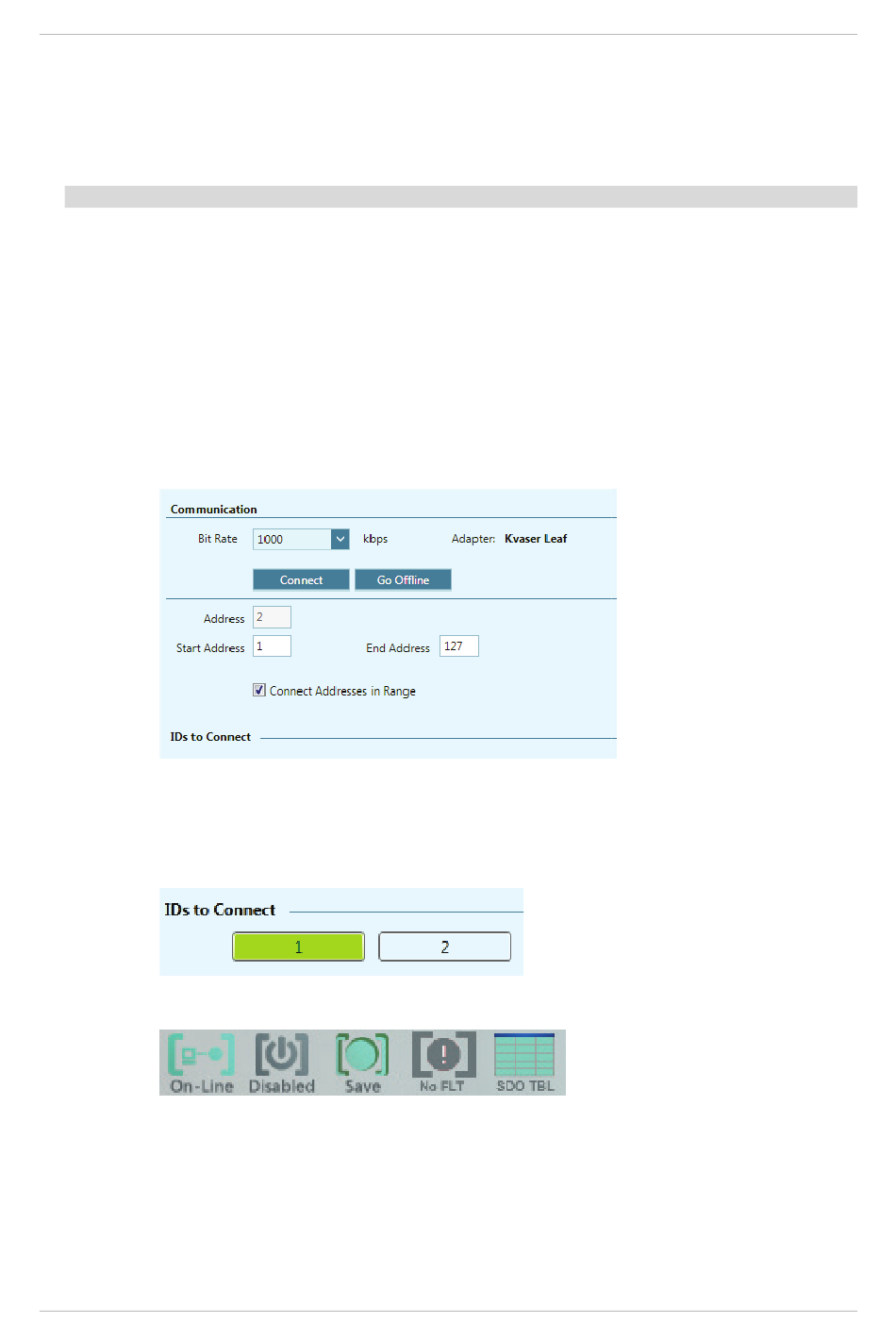

4. From the ServoStudio navigation sidebar, select Communication.
The Communication screen is displayed.
5. Select Connect Addresses in Range, and press Connect.
At the prompt, click OK.
Wait for the software to identify the connected drives:
6. You should now see the On-Line button in the menu bar.
