Chapter 3 — Playback Operation
Playback
Controls and Indicators
3. Archive — This progress bar indicates how much tape re-
cording space has been used and how much is available.
The bar only appears when archiving in the background
(see Archive Operation).
4. Image Database — This progress bar indicates how much
recording space in the image database has been used and
how much is available.
5. Record — This indicator is lit when the unit is recording
images. On the front panel, this indicator is labeled REC.
6. Play — This indicator is lit when the unit is playing back
images. Play changes to Pause when playback is paused.
When playing back images restored from an archive tape,
the unit displays Play (Archive) or Pause (Archive).
7. Playback Overlay — Displays the name of the displayed
camera, the image date and time and the alarm input or
type of alarm event (if any).

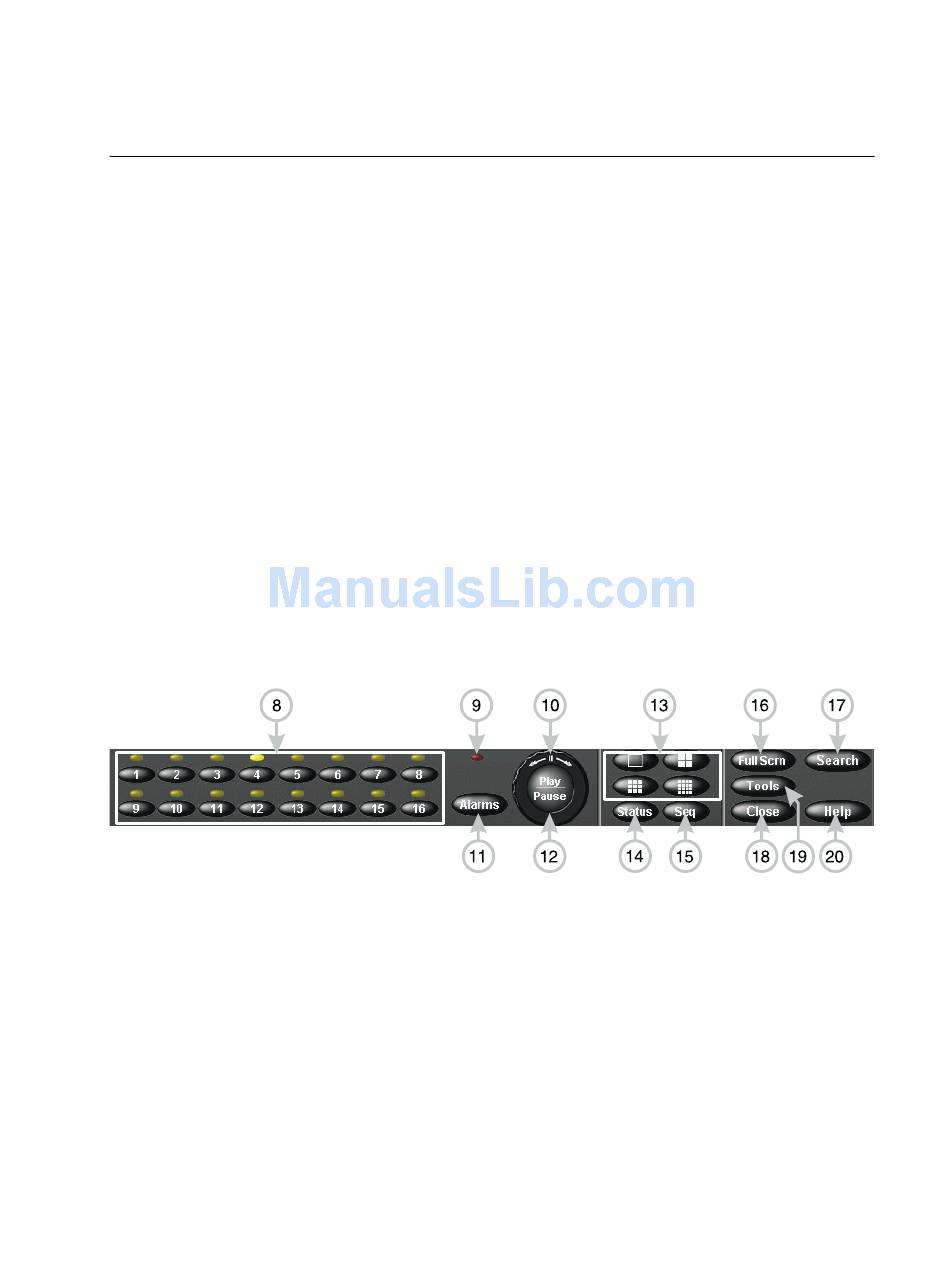

Use the mouse pointer and the following on-screen controls to
play back images:
8. 1–16 (Cameras) — Click to play back images for specific
cameras. The light indicates which camera is being played
back. The message No Video appears on the screen if no
images have been recorded for the selected camera.
9. Alarms Indicator — This light indicates that alarm events
have occurred, but have not been reviewed. It also blinks
if a notification screen appears.
33
