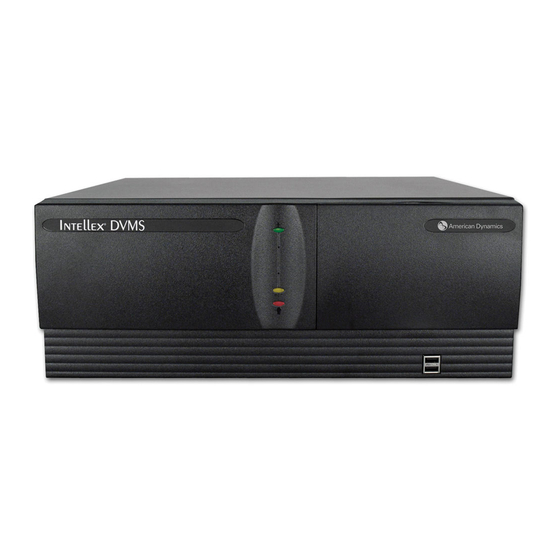

American Dynamics Intellex Intellex DVMS User Manual

Digital video management system
Hide thumbs Also See for Intellex Intellex DVMS:
Table of Contents

Advertisement

Quick Links

User's Guide
Intellex® Digital Video Management System
Version 3.2
Part Number 8200-0436-9900 A0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Intellex Intellex DVMS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for American Dynamics Intellex Intellex DVMS

Summary of Contents for American Dynamics Intellex Intellex DVMS

  • Page 1 User’s Guide Intellex® Digital Video Management System Version 3.2 Part Number 8200-0436-9900 A0...

  • Page 2: Customer Service

    Customer Service Thank you for using American Dynamics products. We support our products through an extensive worldwide network of dealers. The dealer through whom you originally purchased this product is your point of contact if you need service or support. Our dealers are empowered to provide the very best in customer service and support.
  • Page 3 Warnings WARNING: TO REDUCE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER PERSONNEL. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO NOT INSTALL THIS PRODUCT IN HAZARDOUS AREAS WHERE HIGHLY COMBUSTIBLE OR EXPLOSIVE PRODUCTS ARE STORED OR USED. The lightning flash/arrowhead symbol, within an equilateral triangle, alerts the user to the presence of a shock hazard within the product’s enclosure.
  • Page 4 Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables de la Classe A prescrites dans le Réglement (ICES-003) sur le brouillage radioélectrique édicté par le Ministère des Communications du Canada.

  • Page 5: Software License

    License Information READ THIS LICENSE AGREEMENT BEFORE OPENING THE DISK PACKAGE, INSTALLING THE SOFTWARE, OR USING YOUR SYSTEM. THIS LICENSE AGREEMENT DEFINES YOUR RIGHTS AND OBLIGATIONS. BY BREAKING THE SEAL ON THIS PACKAGE, INSTALLING THE SOFTWARE, OR USING YOUR SYSTEM, YOU AGREE TO ALL OF THE TERMS AND CONDITIONS OF THIS AGREEMENT.

  • Page 6: Important Information

    if Sensormatic or an authorized representative has been advised of the possibility of such damages. Further, Sensormatic does not warrant that the operation of the Software will be uninterrupted or error free. This limited warranty gives you specific legal rights. You may have other rights that vary from state to state. Some states do not allow the exclusion of incidental or consequential damages, or the limitation on how long an implied warranty lasts, so some of the above limitations may not apply to you.

  • Page 7: Table Of Contents

    The Intellex System Managing Digital Video ..........1 Basic features .
  • Page 8 Contents Archiving Video ........... . . 17 Archiving to Tape .

  • Page 9: The Intellex System

    Managing Digital Video The Intellex is an intelligent system that combines video multiplexing, recording, and viewing of up to 16 cameras, detecting alarms/events, and notification. It can also include audio and text recording and playback. The Intellex can simultaneously display live or playback video, with or without audio and text, host multiple remote users, archive data, and perform comprehensive video searching, all while recording multiple video, audio, and text streams.
  • Page 10 The Intellex System Intellex® Digital Video Management System...

  • Page 11: Basic Features

    Getting Started To configure security, see the Intellex Installation and Configuration Guide. The system administrator must grant privileges to access, set, or change features. Logging In 1 Using the mouse, enter the 1- to 8-character PIN (Personal Identification Number) code the system administrator assigned.

  • Page 12: Controls

    Basic Features Controls Controls play/pause, Play changes to Pause playback direction, and when you click Pause on Playback controls speed Click to display a specific camera. In multi- camera display, drag and drop a camera button to any image pane. Choose a playback option: 1 From Setup options, select Display.

  • Page 13: Changing The Look Of The Live Display

    Changing the Look of the Live Display Right-click an image. This menu appears. Switch to Full Screen / Switch to Menu Displays live images on the full screen and hides screen controls / Displays screen controls Generates an alarm manually for this camera.

  • Page 14: Utility Options

    Basic Features Utility Options From the main screen, click Utility. Restarts the recording after the image database is filled (linear mode). Generates an alarm event manually for one or more cameras. Erases a CD-RW to re-use it for exporting files. Shuts down the system.

  • Page 15: Checking Camera Status

    Checking Camera Status From the main screen, click Status. Cameras by name in numerical order * = the camera is in covert mode camera is not connected or there is no video to record the camera is currently unable to record Circular or linear Time between oldest and...

  • Page 16: Viewing Live Video

    Basic Features From the main screen, click Search. The Search Mode screen appears. Defines a search for a specific video segment Searches using the date and time, camera, or alarm criteria Searches using image filters Searches using text content associated with cameras Searches all available text streams...

  • Page 17: Stop Camera Sequencing

    2 On the control tool bar, click Seq. Display Mode Single 2×2 3×3 4×4 Note The example above illustrates basic mapping from cameras to panes. You can map cameras to different panes (example: camera 1 to pane 16), and map the same camera to multiple panes (example: camera 1 to all 16 panes).
  • Page 18 Basic Features Pan/Tilt control Zoom Iris Center buttons allow automatic control: auto iris, auto zoom, and auto focus. The center of the Pan/Tilt Control stops camera movement. Iris Zoom Focus Pan/Tilt Movement These camera handlers enable access to these dome configuration menus: •...

  • Page 19: Quick Camera Controls

    Quick Camera Controls Start a camera control session to open the quick camera controls. Controlling the Pan-Tilt Control via Mouse 1 Float the cursor over the center of the video pane. The Cursor Origin Mark 2 Click and drag the cursor to set the direction and speed, then release. •...

  • Page 20: Selecting A Pattern

    Basic Features Selecting a Pattern 1 Click to open the Primary Camera Control menu. 2 Click Pattern for the pattern menu: 3 Select a pattern number. 4 Click to run the pattern. 5 Click Exit to close the Pattern menu. 6 Click to close the Primary Camera Control menu.

  • Page 21: Defining A Preset

    Defining a Preset 1 Click to open the Primary Camera Control menu. 2 Position the camera for your preset. 3 Click to display the preset menu. 4 Select a preset number. 5 Click Define Preset 6 When the Replace Preset? message appears, click Yes to program the preset. The number of available presets is device-dependent.

  • Page 22: Managing Alarms

    Basic Features 9 Click Edit to name the clip. 10 Enter a name. Click Update. 11 (Optional) click Play (default) or Pause to play or pause the video clip. 12 Check the Select box of any additional clips to include in the export. 13 Click Export to export to CD or DVD.

  • Page 23: Reviewing Alarms

    Reviewing Alarms 1 From the control bar, click Alarms. The alarm review screen appears. = video segments are reviewed 2 Click Clear to clear all checked alarms, or Clear All to clear entire list of alarms. 3 Click Play to play back a video segment containing a recorded alarm. 4 Click Play pre-alarm video if available to play alarm segments starting at the pre-alarm time, if any.

  • Page 24: Slider Control

    Basic Features Slider Control Play, pause, or move through the video stream using the slider and Play/Pause button. VCR Control Fast Reverse • If you are fast forwarding, each click decreases the speed up to 5 times normal speed. • If you are fast reversing, each click increases the speed up to 5 times normal speed.

  • Page 25: Archiving Video

    Archiving Video Archive video to tape, to a network, or a combination.The new Network Archive functionality allows automatic archiving that you can store off-site. Note The Archive button is enabled only when a tape drive is connected to the Intellex unit. For the option of network archiving only, the Archive button is disabled.

  • Page 26: Restoring Images From Tape

    Basic Features Restoring Images from Tape 1 Click Restore images from tape to copy images from a backup tape to the system. Name of Intellex unit that archived these images Double-click to display cameras included in the segment. Double-click again to hide the cameras 2 Select a video segment to restore.

  • Page 27: Advanced Features

    To configure security, see the Intellex Installation and Configuration Guide. The system administrator must grant privileges to access, set, or change features. Searching for Video Segments Use criteria including Date/Time, Filters, and Text to search the image database and text streams. From the main screen, click Search.

  • Page 28: Searching By Camera

    Advanced Features Searching by Camera Click Cameras to search for segments by camera. Include segments from all cameras or a specific camera in the search. Searching by Alarms Click Alarms to search for segments based on alarm information. Includes segments regardless of alarm input.

  • Page 29: Searching Using Text Associated With Cameras

    7 To define the filter’s target area: • Move the cursor over the image area. • Draw the boundaries by clicking and moving the mouse to each corner of the target area and clicking again. • After enclosing the target area, click again to fill shape. 8 Set the sensitivity level.

  • Page 30: Adding, Editing, Or Deleting A Text Stream

    8 For the General Text handler, enter an end-of-line delimiter to display text lines from a receipt. • Click Default to reset the box definition to default 0D 0A. Click OK. • For the American Dynamics handler, select one or both options to record and display entries. Click OK.

  • Page 31: Generating Receipt Definitions

    2 Click one or more cameras. Generating Receipt Definitions 1 From the Text setup screen, select the Receipt Definitions tab. 2 Click Build Receipts to create and remove receipt definitions. Adding, Editing, Deleting, or Importing Receipt Definitions From the Receipt Definitions screen, click an option: •...

  • Page 32: Generating Text Alarms

    Advanced Features Generating Text Alarms 1 From the Text setup screen, select the Alarms tab. 2 Click Apply selected exceptions as a group to generate an alarm for a receipt after exporting receipt definition entries to a file. These conditions must be met: •...

  • Page 33: Motion Exception Vs. Motion Detection

    Motion exception searches for an event or activity by position, size, direction, and speed of a moving object. Its parameters filter live video or search recorded video to find an event or activity. After applying motion exception parameters, any object meeting your criteria in the target area triggers an alarm.

  • Page 34: Searching By Motion Exception

    Advanced Features Standard motion detection can generate many false alarms, and important alarms listed with them. Motion exception produces fewer, more detailed alarms than motion detection. To assess motion filter effectiveness for a single camera: 1 Loop the camera’s signal to an unused input (make sure to set the termination properly). 2 Use motion detection on one input and motion exception on the other.

  • Page 35: Adjusting Target Area Settings

    2 Click and drag to form the target area. Custom shapes must form an enclosed boundary. Active zones have scrolling borders. Click a target area to activate it. Right-click to deactivate it. Inactive zones have static borders. 3 (Optional) Configure additional target areas. To use the default settings for size, speed and direction: 1 Draw target area(s).

  • Page 36: Determining Minimum Object Size

    Advanced Features Determining Minimum Object Size Click Size to change the default size of an object. An object larger than the selected or default size triggers the alarm. Target area with a sizing object. Drag its handles to change the object’s size and aspect ratio.

  • Page 37: Specifying An Object's Minimum Speed

    Specifying an Object’s Minimum Speed Click Speed to change an object’s default speed (0 = no movement). Objects moving faster than the selected speed trigger the alarm. The default direction is every direction. An object moves through the draw zone and target area in the specified direction at the indicated speed.

  • Page 38: Viewing An Activity Log

    Advanced Features Factor Occlusions and obstructions Camera’s recording rate Moving objects in the camera view on startup Camera’s location Camera is too close to objects Excessive video noise Viewing an Activity Log 1 From the main screen, click Utility. The Utility Options screen appears. 2 Click Activity Log to view all activity a user performs on the Intellex after logging in.

  • Page 39: Exiting Intellex

    Login name of the user Whether action was local to Intellex or done through Network Client or other and time the action was performed remote software Exports the entire Exports the log to a file displayed log to a file Exiting Intellex Since Intellex uses the Windows operating system to configure the regional, mouse, time zone, network, printer, and language settings, you must exit to Windows.
  • Page 40 Advanced Features Intellex® Digital Video Management System...

  • Page 41: Index

    Advanced Search 21 Alarm Stage Generating Alarms 14 Alarms Clearing 15 managing 14 American Dynamics Handler 22 Apply selected exceptions as a group 24 Archive Manager 1 Archiving to Tape 17 Archiving Video 17 Archive button disabled 17 Archive button enabled 17...
  • Page 42 Index Main Screen Overview 3 Mode Display 5 Motion Detection 25 Motion Exception 25 Environmental Factors 29 Optional features 1 Overview, Intellex SDK 19 Pattern definition 11 Pattern and Preset Camera Controls 11 Personal Identification Number 3 Playing Back Video Clips 15 Playing Restored Images 18 Policy Manager 1 Preset...
