Chapter 4 — Advanced Operations 125

Database Partially Full

The Notify when _____% full option on the Record Mode
screen controls when the unit displays a message to the
operator (see Record Mode Setup in the Intellex Installation
Instructions).
When the percentage of unarchived images in the image data-
base reaches this setting, the unit flashes the Alarms indicator
on the front panel. It also energizes alarm output 16 if the Mes-
sage Alert option is selected (see Alarm Setup in the Intellex

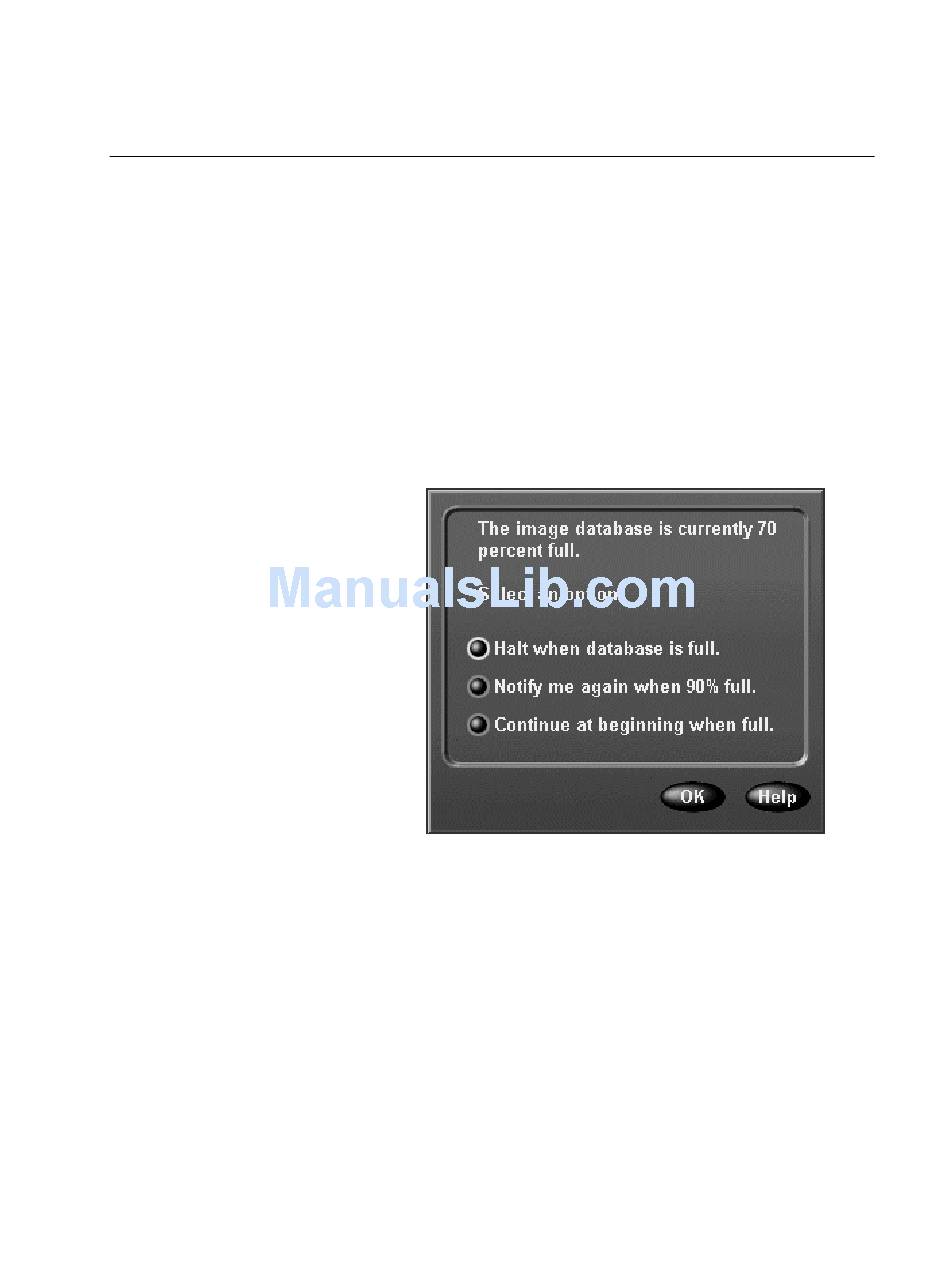

Installation Instructions). Then it displays the following screen
(with the appropriate percentage).
NOTE: This screen only appears when Linear is selected on
the Record Mode screen.
Select one of the following options and click OK:
Halt when database is full. — Select this option to halt image
recording when the image database is full.
You must click the Begin Record button on the Utility Options
screen to start recording again (see Utility Options).
Notify me again when 90% full. — Select this option to clear
the notification screen. The unit displays another notification
screen when the database becomes 90% full. This option is
disabled when the image database is at least 90% full (see
Database 90% Full).
