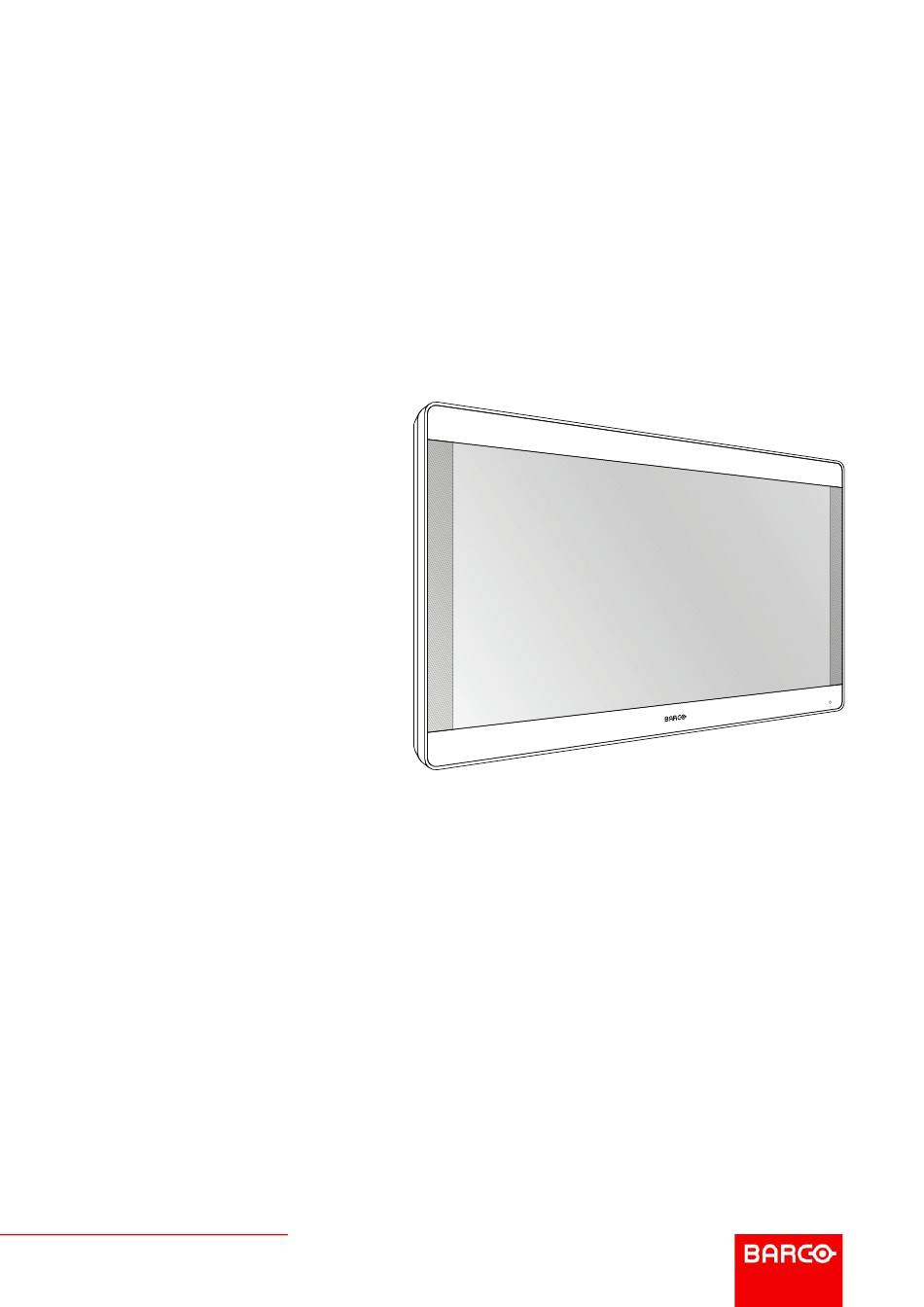

- Page 1 MDSC-8232 31” UHD 4K surgical display User Guide MDSC-8232 LED MDSC-8232 MNA ENABLING BRIGHT OUTCOMES...
- Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
-
Page 3: Table Of Contents
What's in the box ....................................6 About this user guide ..................................7 2 Parts, controls and connectors..............................9 Front view......................................10 Rear view......................................11 Connector view ....................................11 2.3.1 MDSC-8232 LED version ............................11 2.3.2 MDSC-8232 MNA version............................12 Connector pin assignments ..............................12 2.4.1 Input power connector..............................12 2.4.2 DVI connector (DVI-D) .............................13... - Page 4 Power saving.................................40 5.5.5 DVI output ..................................40 6 Important information..................................43 Safety information...................................44 Environmental information.................................47 Biological hazard and returns ..............................49 Regulatory compliance information ............................49 EMC notice ......................................50 Cleaning and disinfection ................................53 Explanation of symbols................................54 Legal disclaimer....................................57 Technical specifications................................57 K5902094 (451920611693) /02 MDSC-8232...
-
Page 5: Welcome
Welcome! K5902094 (451920611693) /02 MDSC-8232... -
Page 6: About The Product
• Advanced, full 10-bit image processing algorithms with 14-bit LUT • UHD 4K input on DisplayPort or Fiber Optic Nexxis (MDSC-8232 MNA only), FHD input on DVI and 3G- • Easily mountable onto a boom Innovative features, such as Failover Mode, are also available to give maximum flexibility when installing the display and ensures a backup signal is always available for safe surgery. -
Page 7: About This User Guide
1.3 About this user guide Overview This manual provides support to the user during the installation, set up and utilization of the MDSC-8232 display. Depending on the specific version that has been purchased, some of the features and options described in this document may not apply to the display in user’s hands. - Page 8 Welcome! K5902094 (451920611693) /02 MDSC-8232...
-
Page 9: Parts, Controls And Connectors
Parts, controls and connectors K5902094 (451920611693) /02 MDSC-8232... -
Page 10: Front View
Keyboard lock/unlock button (membrane switch at the bottom of the display) The keyboard lock/unlock button may be activated accidentally when placing the display on a flat surface with the bottom facing downwards. Persistent key pressures will automatically be ignored by the keyboard control SW however. K5902094 (451920611693) /02 MDSC-8232... -
Page 11: Rear View
VESA mount screw holes (100 x 100 mm, 200 x 100 mm) Cable routing channel Cable routing channel expansion clip Connector compartment cover 2.3 Connector view 2.3.1 MDSC-8232 LED version Overview Image 2-3 SDI in SDI out USB 2.0 micro-B interface USB 2.0 type A interface... -
Page 12: Mdsc-8232 Mna Version
Parts, controls and connectors 2.3.2 MDSC-8232 MNA version Overview Main Image 2-4 Headphone out Microphone in Audio line out Audio line in USB 2.0 type A interface (4 x) USB 2.0 micro-B interface (for service use only) (2) Secondary SFP+ 10Gb optical Ethernet interface... -
Page 13: Dvi Connector (Dvi-D)
(*) +5 VDC output selectable on either pin 14 or 16 via the OSD menu. (+5V ± 10% @ 500mA (max)) 2.4.3 USB type A connector Overview Image 2-7 +5 VDC Data - Data + 2.4.4 Micro-USB connector Overview Image 2-8 +5 VDC Data - Data + K5902094 (451920611693) /02 MDSC-8232... -
Page 14: Displayport Connector
ML_Lane 2 (n) ML_Lane 2 (p) ML_Lane 1 (n) ML_Lane 1 (p) ML_Lane 0 (n) ML_Lane 0 (p) CONFIG1 CONFIG2 AUX CH (p) AUX CH (n) Hot Plug Return DP_PWR (+3.3 VDC @ 500 mA max) K5902094 (451920611693) /02 MDSC-8232... -
Page 15: Display Installation
Display installation K5902094 (451920611693) /02 MDSC-8232... -
Page 16: Cover Removal
To connect your MDSC-8232 to Barco's Nexxis OR system, connect the 10Gb Ethernet interface to your Nexxis switch. More info about Nexxis OR and how to configure the MDSC-8232 in your network is available in the dedicated user guides. Please visit www.barco.com... -
Page 17: Mdsc-8232 Mna Version
Use any USB peripheral (keyboard, mouse, webcam, ...) by connecting it to the USB interface (a host PC connected to micro USB-port is required). Image 3-2 3.2.2 MDSC-8232 MNA version To connect the interfaces Connect one or more video source(s) to the corresponding video inputs of the display. -
Page 18: Power Supply Connection
The MDSC-8232 display protective earth connection is provided via a dedicate pin (see next steps). Protective earth Earth the MDSC-8232 by connecting the protective earth pin to a grounded outlet by means of a yellow/green AWG18 wire (maximum admitted cable length according to national regulation requirements). K5902094 (451920611693) /02... -
Page 19: Cable Routing
For displays to be mounted on a VESA arm or stand without internal cable routing provisions, first remove the expansion clip from the connector compartment cover, then route all cables through it while reinstalling the cover. K5902094 (451920611693) /02 MDSC-8232... -
Page 20: Vesa Mount Installation
Depending on the VESA plate thickness (T) and the thickness of possible washers (W), a different screw length (L) should be selected. Please respect the following rule to select an appropriate screw length: • = T + W + 15 mm • = T + W + 18 mm K5902094 (451920611693) /02 MDSC-8232... - Page 21 CAUTION: Use an arm that is in compliance with VESA requirements. CAUTION: The monitor VESA interface has been designed for a safety factor 6 (to support 6 times the monitor weight). In the medical system, use an arm with suitable safety factor (IEC60601–1). K5902094 (451920611693) /02 MDSC-8232...
- Page 22 Display installation K5902094 (451920611693) /02 MDSC-8232...
-
Page 23: Daily Operation
Daily operation K5902094 (451920611693) /02 MDSC-8232... -
Page 24: On/Off Switching
Afterwards, release the key again (within 2 seconds) to avoid a keyboard re-lock. To lock the keyboard The keyboard will automatically lock after 10 seconds of inactivity, except while navigating the OSD menu, during which it remains unlocked. K5902094 (451920611693) /02 MDSC-8232... -
Page 25: Power Status Led
(OSD Time-out). The OSD menu position can be adjusted in the OSD menu (OSD Hor. Pos. and OSD Vert. Pos.). 4.5 OSD menu navigation OSD menu structure explained Below is an example of the OSD menu structure: K5902094 (451920611693) /02 MDSC-8232... -
Page 26: Shortkey Functions
The concept of shortkey functions is to present a selection of commonly used functions immediately available without the need to navigate through the OSD menu. The different available shortkey functions are: • Main source selection • Brightness adjustment K5902094 (451920611693) /02 MDSC-8232... -
Page 27: Main Source Selection
OSD menu, but will make the OSD lock window appear. The OSD menu can only be accessed after pressing a sequence of keys. Image 4-6 K5902094 (451920611693) /02 MDSC-8232... - Page 28 Daily operation To lock/unlock the menu Unlock the keyboard (see “Keyboard locking/unlocking”, page 24) Press the key. When the OSD lock window appears, press the following key sequence to unlock the OSD menu: , , , K5902094 (451920611693) /02 MDSC-8232...
-
Page 29: Advanced Operation
Advanced operation K5902094 (451920611693) /02 MDSC-8232... -
Page 30: Picture Menu
The brightness level can also be adjusted through a shortkey function. Brightness level is adjusted by controlling the backlight illumination only. 5.1.3 Contrast To adjust the contrast level Bring up the OSD main menu. Navigate to the Picture menu. Enter the Contrast submenu. K5902094 (451920611693) /02 MDSC-8232... -
Page 31: Saturation
When ITU 709 is selected, the White Color point and the RGB color primaries are adjusted according to the target HDTV / sRGB color space defined in the ITU-709 recommendation. RGB primary calibration is performed within the physical limitation of the LCD panel used. K5902094 (451920611693) /02 MDSC-8232... -
Page 32: Gamma
This command allows to add or subtract an offset to the input video signal (available only on video formats). To adjust the black level Bring up the OSD main menu. Navigate to the Picture advanced menu. K5902094 (451920611693) /02 MDSC-8232... -
Page 33: Latency
Mirror (flips the image horizontally, making the left content appear on the right and vice versa) • Rotation (rotates the image 180°) When image rotation is selected, the latency will increase with 20 msec. Image mirroring does not cause any latency increase. K5902094 (451920611693) /02 MDSC-8232... -
Page 34: Screen Resolution
• DisplayPort • Nexxis (MDSC-8232 MNA version only) Available main source options may differ depending on display model. The main source can also be quickly selected through the Input selection key ( ), without the need to navigate through the OSD menu. -
Page 35: Displayport Mode
The failover input will be activated within about 7 seconds after the main input (DisplayPort or Nexxis) has been lost. K5902094 (451920611693) /02 MDSC-8232... -
Page 36: 2Nd Picture Mode
Video image as 2nd picture. To select the 2 picture source Bring up the OSD main menu. Navigate to the Display Format menu. Enter the 2 Picture Source submenu. Select one of the available 2 picture sources and confirm. K5902094 (451920611693) /02 MDSC-8232... -
Page 37: Configuration Menu
OSD menu. This shortkey function can be disabled however to avoid unwanted or accidental switching of the main input source. To enable/disable the source shortkey Bring up the OSD main menu. Navigate to the Configuration menu. K5902094 (451920611693) /02 MDSC-8232... -
Page 38: Osd Setting
To recall a profile means to restore the default factory settings (Factory and X Ray profiles) or recall the user defined profiles. The available profiles to recall from your display are: • Factory • X Ray • User 1 • User 2 • User 3 K5902094 (451920611693) /02 MDSC-8232... -
Page 39: Save Profile
Select one of the available options and confirm. 5.5.2 Power on DisplayPort About power on DisplayPort This setting allows you to select if the +3V3 DC supply is applied on the DisplayPort connector or not. The available options are: • Disabled K5902094 (451920611693) /02 MDSC-8232... -
Page 40: Osd Lock
For 4K images, the center part of the image will be down-scaled to FHD resolution. To enable/disable DVI output Bring up the OSD main menu. Navigate to the System menu. Enter the DVI output submenu. K5902094 (451920611693) /02 MDSC-8232... - Page 41 Advanced operation Enable/Disable DVI output as desired and confirm. K5902094 (451920611693) /02 MDSC-8232...
- Page 42 Advanced operation K5902094 (451920611693) /02 MDSC-8232...
-
Page 43: Important Information
Important information K5902094 (451920611693) /02 MDSC-8232... -
Page 44: Safety Information
(no applied part). • The equipment shall not be used with life support equipment. • The user should not touch the equipment, nor its signal input ports (SIP)/signal output ports (SOP) and the patient at the same time. K5902094 (451920611693) /02 MDSC-8232... - Page 45 Moisture may condense on the surface or inside of the unit, or create a mist residue inside the protection plate, this is not a malfunction of the product itself, although it may cause damage to the monitor. • If condensation happens, let the monitor stand unplugged until there is no condensation. K5902094 (451920611693) /02 MDSC-8232...
- Page 46 Sufficient expertise is required for installing this equipment, especially to determine the strength of the wall for withstanding the display's weight. Be sure to entrust the attachment of this equipment to the wall to licensed contractors of Barco and pay adequate attention to safety during the installation and usage. •...
-
Page 47: Environmental Information
Electronic Products ” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”. - Page 48 Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products” of Chinese Mainland.
-
Page 49: Biological Hazard And Returns
The manufacturing country of the product is indicated on the product label (“Made in …”). Importers contact information To find your local importer, contact one of Barco’s regional offices via the contact information provided on our website (www.barco.com). K5902094 (451920611693) /02... -
Page 50: Emc Notice
Electromagnetic emissions The MDSC-8232 is intended for use in the electromagnetic environment (IEC 60601-1-2 4 edition) specified below. The customer or the user of the MDSC-8232 should assure that it is used in such an environment. Electromagnetic environment – Compliance... - Page 51 Electromagnetic immunity The MDSC-8232 is intended for use in the electromagnetic environment (IEC 60601-1-2 4 edition) specified below. The customer or the user of the MDSC-8232 should assure that it is used in such an environment. IEC 60601-1-2 4 edition...
- Page 52 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the MDSC-8232 is used exceeds the applicable RF compliance level above, the MDSC-8232 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the MDSC-8232.
-
Page 53: Cleaning And Disinfection
Recommended separation distance The MDSC-8232 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer of the user of the MDSC-8232 can help prevent electromagnetic interference by... -
Page 54: Explanation Of Symbols
Indicates the device is approved according to the BSMI regulations. Indicates the device is approved according to the PSE regulations. Indicates the device is approved according to the RCM regulations. Indicates the device is approved according to the EAC regulations. K5902094 (451920611693) /02 MDSC-8232... - Page 55 Indicates the device serial number. Indicates the device part number or catalogue number. Indicates the Unique Device Identifier. Warning: dangerous voltage Caution Consult the Instructions For Use. Values for xx and yy can be found in the technical specifications paragraph. K5902094 (451920611693) /02 MDSC-8232...
- Page 56 Indicates that the box should not be cut with a knife, a cutter or any other sharp object. Indicates the temperature limits to which the device can be safely exposed when being stored. +60 °C -20 °C K5902094 (451920611693) /02 MDSC-8232...
-
Page 57: Legal Disclaimer
Barco software products are the property of Barco. They are distributed under copyright by Barco NV or Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized. - Page 58 Mounting standard VESA (100 x 100 mm, 200 x 100 mm) Recommended modalities Endoscopy, Laparoscopy Certifications • IEC 60601-1: 2012 Edition 3.1 (Medical electrical equipment – Part 1: General requirements for basic safety and essential performance) K5902094 (451920611693) /02 MDSC-8232...
- Page 59 Storage humidity 10 ÷ 90% (non-condensing) Operating altitude 3000 m max. Storage altitude 12000 m max. MDSC-8232 MNA Screen technology TFT AM LCD / IPS-PRO technology / LED backlight LCD panel active screen size 31.1” / 790 mm (diagonal) LCD panel active screen size (H...
- Page 60 A2:2010/(R)2012 - Med. El. Equip., Part 1: general req. for basic safety and essential performance. • CAN/CSA-C22.2 No. 60601-1: 14 Medical Electrical Equipment - Part 1: General Requirements for Basic Safety and Essential Performance (Harmonized with Ed. 3.1) K5902094 (451920611693) /02 MDSC-8232...
- Page 61 5 ÷ 35 °C (for performance); 0 ÷ 40 °C (for safety) Storage temperature -20 ÷ +60°C Operating humidity 10 ÷ 90% (non-condensing) Storage humidity 10 ÷ 90% (non-condensing) Operating altitude 3000 m max. Storage altitude 12000 m max. K5902094 (451920611693) /02 MDSC-8232...
- Page 62 Important information Dimensions 288.5 Image 6-1 K5902094 (451920611693) /02 MDSC-8232...
- Page 63 Important information K5902094 (451920611693) /02 MDSC-8232...
- Page 64 Barco NV President Kennedypark 35 8500 Kortrijk Belgium K5902094 (451920611693) /02 | 2019-03-09 Barco NV | Beneluxpark 21, 8500 Kortrijk, Belgium Registered office: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
