Summary of Contents for Barco MDSC-2324 Series
-

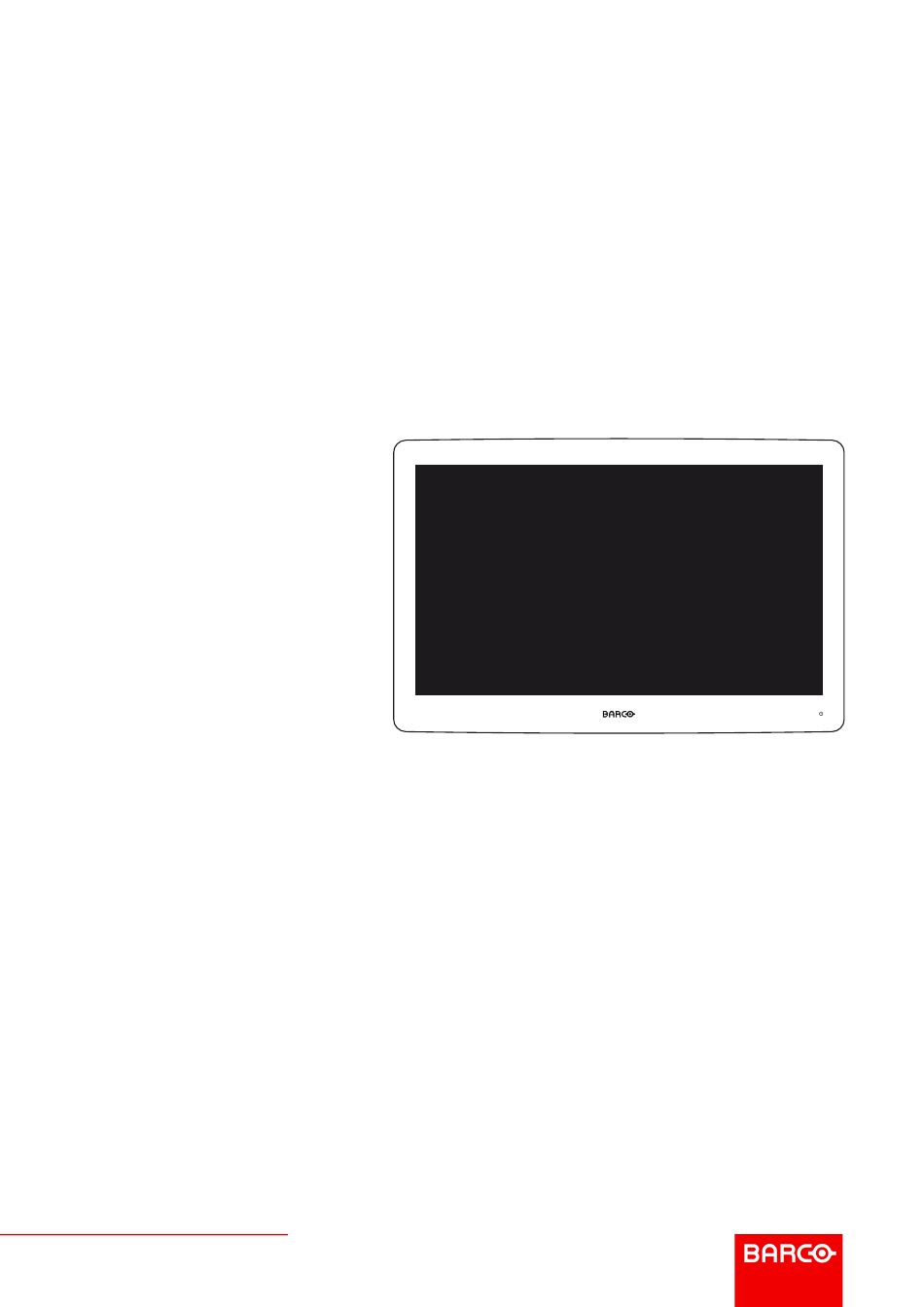

Page 1: User Guide
MDSC-2324 User Guide MDSC-2324 LED MDSC-2324 DDI MDSC-2324 MNA ENABLING BRIGHT OUTCOMES... - Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
-
Page 3: Table Of Contents
Table of contents 1 Welcome! ..........................................7 About the product....................................8 What's in the box....................................8 About this user guide ..................................9 2 Product overview ......................................11 Front view......................................12 Rear view.......................................13 Connector view ....................................13 2.3.1 MDSC-2324 LED version............................13 2.3.2 MDSC-2324 DDI version............................14 2.3.3 MDSC-2324 MNA version............................14 Connector pin assignments ................................15 2.4.1 Input power connector..............................15... - Page 4 On/Off switching ....................................33 Power led status ....................................33 OSD menu activation..................................33 OSD menu navigation ..................................34 Shortkey functions....................................34 4.7.1 Main source selection..............................35 4.7.2 Multi-image configuration............................35 4.7.3 Zoom factor selection ..............................36 4.7.4 Brightness adjustment ..............................36 Extended keyboard functions..............................36 4.8.1 Main source selection..............................37 4.8.2 Second source selection............................37 4.8.3 Multi-image configuration............................38...
- Page 5 System menu ......................................53 5.5.1 Power on DVI 1 ................................54 5.5.2 Power on DVI 2 ................................54 5.5.3 DVI Output ..................................54 5.5.4 DVI Output ..................................55 5.5.5 Keyboard lock ..................................57 5.5.6 Keyboard backlight ...............................57 5.5.7 Power Saving ...................................57 6 Important information....................................59 Safety information.....................................60 Environmental information................................62 Biological hazard and returns ..............................64 Regulatory compliance information ............................64...
- Page 6 K5903252 (451920612633) /02 MDSC-2324...
-
Page 7: Welcome
Welcome! K5903252 (451920612633) /02 MDSC-2324... -
Page 8: About The Product

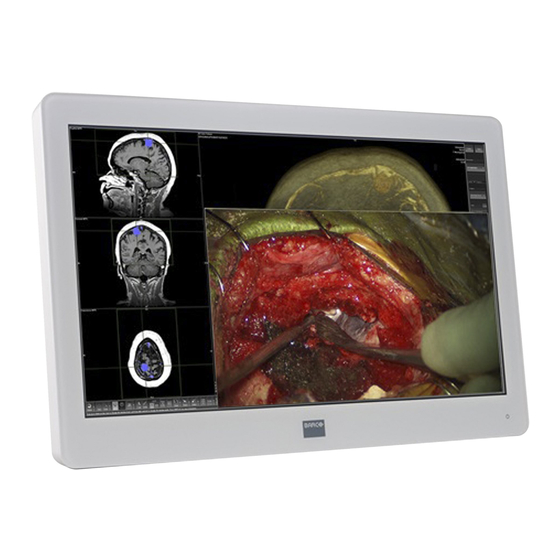

Welcome! 1.1 About the product Overview Barco's MDSC-2324 is a 24-inch surgical display. Purpose-built for the operating room, the MDSC-2324 offers an easy-clean design, smart mechanics and the most detailed images in the operating room today. Ease of mind Perfect hand-eye coordination: The display’s high brightness, high contrast and full HD resolution provide surgeons with excellent depth perception and the most accurate images. -
Page 9: About This User Guide
Welcome! 1.3 About this user guide Overview This manual provides support to the user during the installation, set up and utilization of the MDSC-2324 display. Depending on the specific version that has been purchased, some of the features and options described in this document may not apply to the display in user’s hands. - Page 10 Welcome! K5903252 (451920612633) /02 MDSC-2324...
-
Page 11: Product Overview
Product overview K5903252 (451920612633) /02 MDSC-2324... -
Page 12: Front View
Product overview 2.1 Front view Overview Image 2-1 Input Selection key Multi-image selection key / Down key Image zoom key / Up key OSD Menu key / Enter key Brightness decrease / Left key Brightness increase / Right key Stand-by key A 7-key capacitive keypad is located on the front of the display. -
Page 13: Rear View
Product overview 2.2 Rear view Overview Image 2-2 VESA mount screw holes Cable routing channel Cable routing channel expansion clip Connector compartment cover Connector compartment cover fixation screw 2.3 Connector view 2.3.1 MDSC-2324 LED version Overview 15 16 Image 2-3 SDI-1 out SDI-1 Input power connector... -
Page 14: Mdsc-2324 Ddi Version
Product overview R/Pr G/Y – SOG S-Video Service 2.3.2 MDSC-2324 DDI version Overview 18 19 Image 2-4 DVI-2 (DVI-D: digital only) SDI-2 out SDI-2 SDI-1 out SDI-1 Input power connector Potential Equalization pin (POAG) RS232 Sync CVBS CVBS out S-Video out DVI out DVI-1 (DVI-I: digital &... -
Page 15: Connector Pin Assignments
DisplayPort (VESA std 1.1a) R/Pr G/Y – SOG S-Video Service (*) Nexxis OR functionality: for more detailed information on Barco's Nexxis integrated OR solution please refer to the dedicated user guides. Please visit my.barco.com to obtain these user guides. 2.4 Connector pin assignments 2.4.1 Input power connector... -
Page 16: Dvi-1 Connector (Dvi-I)
Product overview 2.4.2 DVI-1 connector (DVI-I) Overview Image 2-7 D2_Rx- (T.M.D.S.) D2_Rx+ (T.M.D.S.) GND (data 2 shield) Not connected Not connected SCL (for DDC) SDA (for DDC) Analog vertical sync D1_Rx- (T.M.D.S.) D1_Rx+ (T.M.D.S.) GND (data 1 shield) Not connected Not connected +5V input (DDC supply) (*) GND (cable sense) -
Page 17: Dvi Out Connector (Dvi-D)
Product overview D2_Rx+ (T.M.D.S.) GND (data 2 shield) Not connected Not connected SCL (for DDC) SDA (for DDC) Not connected D1_Rx- (T.M.D.S.) D1_Rx+ (T.M.D.S.) GND (data 1 shield) Not connected Not connected +5V input (DDC supply) (*) GND (cable sense) Hot plug detect (*) D0_Rx- (T.M.D.S.) D0_Rx+ (T.M.D.S.) -
Page 18: Usb Type A Connector
Product overview 2.4.6 USB type A connector Overview Image 2-10 +5 VDC Data - Data + 2.4.7 Mini USB connector Overview Image 2-11 +5 VDC Data - Data + Not connected 2.4.8 DisplayPort connector Overview (sink side pin-out) 19 17 15 13 11 9 20 18 16 14 12 10 8 Image 2-12 ML_Lane 3 (n) -
Page 19: S-Video And S-Video-Out Connector
Product overview DP_PWR (+3.3 VDC @ 500 mA max) 2.4.9 S-Video and S-Video-out connector Overview Image 2-13 Ground (Y) Ground (C) Luminance (Y) Chroma (C) SG: Shielded Ground K5903252 (451920612633) /02 MDSC-2324... - Page 20 Product overview K5903252 (451920612633) /02 MDSC-2324...
-
Page 21: Display Installation
Display installation K5903252 (451920612633) /02 MDSC-2324... -
Page 22: Vesa Mount Installation
Display installation 3.1 VESA mount installation Overview The display supports mounting arm & stands according to the VESA 100 mm standard. CAUTION: Use an arm that is approved by VESA. CAUTION: Use an arm that can support a weight of least 10 kg (22,05 lbs). The monitor VESA interface has been designed for a safety factor 6 (to support 6 times the monitor weight). -
Page 23: Video Input Connection
Display installation 3.3 Video input connection About video input connections The MDSC-2324 can have multiple different video inputs connected (depending on the display version). Switching between the different inputs can be easily done by pressing the direct access key for this. See the dedicated section for more info. -
Page 24: Mdsc-2324 Mna Version
Display installation • SDI 2: 2 • R/G/B/S: 8/9/10/4 • R/G/B (SOG): 8/9/10 • Y/Pb/Pr: 9/10/8 • CVBS: 5 • S-Video: 11 (*) PC analog (VGA) input source can be connected to the DVI-I input connector using a DVI-I to VGA adapter. The use of an adapter cable of at least 0.15 m long will allow an easy placement inside the cable cover. -
Page 25: Video Output Connection
Display installation Image 3-5 3.4 Video output connection About video output connections Beside the video input connections, the MDSC-2324 also has video output capabilities allowing you to loop- through certain video inputs connected with the MDSC-2324 to another display, projector, video recorder, ... This chapter describes how to make use of the video output connections available for each version of the MDSC-2324. -
Page 26: Mdsc-2324 Ddi Version
Display installation 3.4.2 MDSC-2324 DDI version To connect the video outputs Connect one or more of the available video sink(s) to the corresponding video outputs using the appropriate video cable(s). • SDI 1: 2 • SDI 2: 1 • CVBS: 3 •... -
Page 27: Nexxis Or
Image 3-8 3.5 Nexxis OR Overview Connecting your MDSC-2324 to Barco's Nexxis OR system allows you to distribute video, graphics, audio and computer data over the IP network, in raw uncompressed format, inside the operating room and even between surgical suites. -
Page 28: Cable Routing
Display installation Protective earth Earth the MDSC-2324 by connecting the protective earth pin to a grounded outlet by means of a yellow/green AWG18 wire (maximum admitted cable length according to national regulation requirements). Image 3-10 CAUTION: The display must be earthed. Potential equalization When potential equalization between the display and other devices is required then connect the potential equalization pin (POAG: DIN42801) to the potential equalization terminal of the equipment. - Page 29 Display installation Image 3-13 WARNING: When the display is assembled in the medical system, take care of the fixation of all cables, to avoid unwanted detachment. K5903252 (451920612633) /02 MDSC-2324...
- Page 30 Display installation K5903252 (451920612633) /02 MDSC-2324...
-
Page 31: Daily Operation
Daily operation K5903252 (451920612633) /02 MDSC-2324... -
Page 32: Keyboard Activation/Deactivation
Daily operation 4.1 Keyboard activation/deactivation To activate the keyboard: In order to avoid unwanted or accidental activation of the OSD keyboard, a lock/unlock mechanism has been implemented. This means that, before the OSD keyboard can be used to change any of the setting of the display, it needs to be unlocked. -
Page 33: On/Off Switching
Daily operation 4.3 On/Off switching To switch on your display: Activate the power supply through the switch located on the external power supply. While your display is off, press and hold the stand-by key for approximately 3 seconds (or until the keyboard backlight stops blinking). -
Page 34: Osd Menu Navigation
Daily operation 4.6 OSD menu navigation OSD menu structure explained Below is an example of the OSD menu structure: Picture Profile Factory Brightness Contrast Saturation Color temperature 6500K Gamma Native Sharpness DVI 1280x800@60Hz Image 4-1 Menu Sub-menu Status bar Legend (shows the functionality associated to each keyboard key) Selector/Slider Item... -
Page 35: Main Source Selection
Daily operation The different available shortkey functions are: • Main source selection • Multi-image configuration • Zoom factor selection • Brightness adjustment Unlike the extended keyboard functions (described in next chapter), the shortkey functionality is immediately available without the need to first enable this in the OSD menu. When the extended keyboard functionality is enabled, all the shortkey functions described below (except for the brightness adjustment), will no longer be available and will be replaced by the corresponding extended keyboard functions described in the next chapter. -
Page 36: Zoom Factor Selection
Daily operation 4.7.3 Zoom factor selection To quickly select the zoom factor Use the Image zoom key ( ) to select one of the available zoom factors. When the extended keyboard functionality is enabled, the shortkey functions will no longer be available and will be replaced by the corresponding extended keyboard functions described in the next chapter. -
Page 37: Main Source Selection
Daily operation Overview of extended keyboard Image 4-5 Main source selection Second source selection Multi-image configuration Color temperature selection Image size selection Zoom factor selection 4.8.1 Main source selection To quickly select the main source While no OSD Menu is on the screen, press the Input selection key ( ) to bring up the main source quick selection menu. -
Page 38: Multi-Image Configuration
Daily operation R G B S-Video Y Pb Pr CVBS Nexxis Main source Image 4-7 4.8.3 Multi-image configuration To quickly select the multi-image configuration While no OSD Menu is on the screen, press the PiP selection key ( ) to bring up the multi-image configuration quick selection menu. -
Page 39: Common Functions: Image Size Selection
Daily operation 4.8.5 Common Functions: Image size selection To quickly select the image size While no OSD Menu is on the screen, press the Image zoom key ( ) to bring up the common functions quick selection menu. Toggle the available image size settings by pressing the key corresponding to the desired option. The current selection is marked in red. - Page 40 Daily operation After pressing the fourth key, if the sequence is correct, the main OSD menu is activated. To unlock the keyboard permanently the specific OSD function is required. Keyboard lock Sequence: 5 - 6 - 6 - 3 Image 4-12 K5903252 (451920612633) /02 MDSC-2324...
-
Page 41: Advanced Operation
Advanced operation K5903252 (451920612633) /02 MDSC-2324... -
Page 42: Osd Picture Menu
Advanced operation 5.1 OSD picture menu Overview • Profile • Brightness • Contrast • Saturation • Color temperature • Gamma • Sharpness 5.1.1 Profile About profiles To select a profile means to load a set of predefined video parameters like Brightness, Contrast, Saturation, Input selection (Primary &... -
Page 43: Contrast
Advanced operation 5.1.3 Contrast To adjust the contrast level Bring up the OSD main menu. Navigate to the Picture menu. Enter the Contrast submenu. The command bar Contrast is highlighted. Set the contrast level as desired and confirm. 5.1.4 Saturation To adjust the saturation level Bring up the OSD main menu. -
Page 44: Gamma
Advanced operation Note: If you selected the User color temperature preset, a new menu will be displayed allowing you to manually adjust the gain and offset of red, green and blue. 5.1.6 Gamma About gamma presets The available gamma presets for your display are: •... -
Page 45: Smart Video
Advanced operation Enter the Black Level submenu. The command bar Black Level is highlighted. Set the black level as desired and confirm. 5.2.2 Smart Video About Smart Video This function allows to reduce the video latency in the monitor if its frame rate is in the range of 50 - 60 Hz. To achieve a minimum latency select one of the surgical modes. -
Page 46: Phase
Advanced operation To activate auto adjustment Bring up the OSD main menu. Navigate to the Picture advanced menu. Enter the Auto Adjustment submenu. The automatic picture adjustment is activated: the phase and clock per line parameters are automatically adjusted. 5.2.5 Phase This menu item is only available when VGA input is connected. -
Page 47: Main Source (Primary Source)
Advanced operation • Picture Source • Picture Position • Picture Swap 5.3.1 Main Source (Primary Source) About main sources The available main sources for your display are: • Auto Search • Composite • S-Video • Component • PC Analog • DVI 1 •... -
Page 48: Zoom
Advanced operation 5.3.3 Zoom About zoom The available zoom factors for your display are: • None • • • • • The zoom factor can also be selected through a shortkey function or via the extended keyboard functionality. To select a zoom factor Bring up the OSD main menu. -
Page 49: Nd Picture Source
Advanced operation • S.b.S. Fill: Both images scaled to fill half of the screen, with image crop if necessary The 2 picture mode (multi-image configuration) can also be selected via the extended keyboard functionality. To select the 2 picture mode Bring up the OSD main menu. -
Page 50: Configuration Menu
Advanced operation • Top Left • Bottom Right • Bottom Left To select the 2 picture position Bring up the OSD main menu. Navigate to the Display Format menu. Enter the 2 Picture Position submenu. Select one of the available 2 picture positions and confirm. -
Page 51: Language
Advanced operation 5.4.2 Language About languages The available languages for your display OSD menu are: • English • Français • Deutsch • Español • Italiano To select the language Bring up the OSD main menu. Navigate to the Configuration menu. Enter the Language submenu. -
Page 52: Osd Setting
Advanced operation The different available extended keyboard functions are: • Main source selection • Second source selection • Multi-image configuration • Color temperature selection • Image size selection • Zoom factor selection To enable/disable the extended keyboard Bring up the OSD main menu. Navigate to the Configuration menu. -
Page 53: Recall Profile
Advanced operation Select one of the available OSD time-out values and confirm. 5.4.6 Recall Profile About recalling profiles To recall a profile means to restore the default factory settings (Factory and X Ray profiles) or recall the user defined profiles. The available profiles to recall from your display are: •... -
Page 54: Power On Dvi 1
Advanced operation 5.5.1 Power on DVI 1 About power on DVI 1 This setting allows you to select the pin of DVI port 1 connector on which the +5V DC supply is applied. The available options are: • Disabled • +5V on Pin 14 •... -
Page 55: Dvi Output
Advanced operation DVI Output option Main picture 2nd picture “DVI 1” “DVI 2” “None” DVI 2 SDI 1 SDI 2 Other SDI 1 DVI 1 DVI 2 SDI 1 SDI 2 Other SDI 2 DVI 1 DVI 2 SDI 1 SDI 2 Other Other... - Page 56 Advanced operation MDSC-2324 LED version DVI Output option Main picture 2nd picture “DVI” “None” Other Other Other Other MDSC-2324 DDI version DVI Output option Main picture 2nd picture “DVI 1” “DVI 2” “None” DVI 1 DVI 1 DVI 2 SDI 1 SDI 2 Other DVI 2...
-
Page 57: Keyboard Lock
Advanced operation DVI Output option Main picture 2nd picture “DVI” “Nexxis” “None” Nexxis Other To select the DVI output Bring up the OSD main menu. Navigate to the System menu. Enter the DVI output submenu. Select one of the available options and confirm. 5.5.5 Keyboard lock About keyboard locking This setting allows you to disable the keyboard functionality and avoid unwanted access to the OSD functions. - Page 58 Advanced operation Navigate to the System menu. Enter the Power Saving submenu. Enable/Disable power saving as desired and confirm. K5903252 (451920612633) /02 MDSC-2324...
-
Page 59: Important Information
Important information K5903252 (451920612633) /02 MDSC-2324... -
Page 60: Safety Information
Important information 6.1 Safety information General recommendations Read the safety and operating instructions before operating the device. Retain safety and operating instructions for future reference. Adhere to all warnings on the device and in the operating instructions manual. Follow all instructions for operation and use. Electrical Shock or Fire Hazard To prevent electric shock or fire hazard, do not remove cover. - Page 61 Sufficient expertise is required for installing this equipment, especially to determine the strength of the wall for withstanding the display's weight. Be sure to entrust the attachment of this equipment to the wall to licensed contractors of Barco and pay adequate attention to safety during the installation and usage. K5903252 (451920612633) /02...
-
Page 62: Environmental Information
Important information • Barco is not liable for any damage or injury caused by mishandling or improper installation. Malfunctions Disconnect the equipment’s power cord from the AC inlet and refer servicing to qualified service technicians under the following conditions: •... - Page 63 Electronic Products ” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
-
Page 64: Biological Hazard And Returns
The manufacturing country of the product is indicated on the product label (“Made in …”). Importers contact information To find your local importer, contact one of Barco’s regional offices via the contact information provided on our website (www.barco.com). K5903252 (451920612633) /02... -
Page 65: Emc Notice
Important information FCC Class B (valid for MDSC-2324 LED and MDSC-2324 DDI version) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 66 Important information Electromagnetic environment – Compliance Emissions test Guidance supplies buildings used for domestic purposes. RF emissions Class A The MDSC-2324 MNA version is suitable for use in all CISPR 11 establishments, including domestic Harmonic emissions Not applicable: power consumption establishments and those directly less than 75W IEC 61000-3-2...
- Page 67 Important information IEC 60601-1-2 4 edition Electromagnetic (2014) Immunity test Compliance level environment – guidance Test levels Power frequency (50/60 30 A/m 30 A/m Power frequency Hz) magnetic field magnetic fields should be at levels characteristic of a IEC 61000-4-8 typical location in a typical commercial or hospital environment.
-
Page 68: Cleaning And Disinfection
Important information These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. Recommended separation distance The MDSC-2324 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. - Page 69 Important information Indicates the device meets the requirements of the applicable EC directives. Indicates compliance with Part 15 of the FCC rules (Class A or Class B) Indicates the device is approved according to the UL Recognition regulations MEDICAL – GENERAL MEDICAL EQUIPMENT AS TO ELECTRICAL SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH ANSI/AAMI AS60601-1:2005/(R)2012, CSA CAN/CSA- E346057...
- Page 70 Important information Indicates the legal manufacturer Indicates the manufacturing date Indicates the temperature limitations for the device to safely operate within specs. Indicates the device serial number Indicates the device part number or catalogue number Warning: dangerous voltage Caution Consult the operating instructions Indicates this device must not be thrown in the trash but must be recycled, according to the European WEEE (Waste Electrical and Electronic Equipment) directive Indicates Direct Current (DC)
-
Page 71: Legal Disclaimer
Barco software products are the property of Barco. They are distributed under copyright by Barco NV or Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized. -
Page 72: Technical Specifications
Important information 6.9 Technical specifications Overview Screen technology TFT AM LCD Active screen size (diagonal) 611 mm (24.1") Active screen size (H x V) 518 x 324 mm (20.4 x 12.7") Aspect ratio (H:V) 16:10 Resolution W-UXGA (1920 x 1200) Pixel pitch 0.270 mm Color imaging... - Page 73 Video cable (DVI Dual Link) Mains cables (European (CEBEC/KEMA), USA (UL/CSA), Chinese (Z3487500 "Chinese” power cord L=1500) External power supply Optional accessories Barco stand (K9302097A) Power extension cable 10m (K3495066) Power extension cable 30m (K3495068) Operating temperature 10-35°C for performance / 0-40°C for safety Storage temperature -20 ÷...
- Page 74 Important information Hor. Fr. Vert. Fr. Hor. Vert. Item Name Pixel x Line Format adapter (kHz) (Hz) Total Total to DVI-I 1080i30 1920 x 1080 1080i 33,75 1080p29 1920 x 1080 1080p 33,72 29,97 1080p30 1920 x 1080 1080p 33,75 1080p50 1920 x 1080 1080p...
- Page 75 Important information Hor. Fr. Vert. Fr. Ite- Hor. Vert. RGBS / Name Pixel x Line Format (kHz) (Hz) Total Total YPbPr 576i 720 x 576 PAL I 15,625 576p 720 x 576 576p 31,25 720p50 1280 x 720 720p 37,5 720p59 1280 x 720 720p...
-
Page 76: Open Source License Information
A list of the Open Source Software components used is available in the applicable EULA, through the “My Barco” section of the Barco website or through other (online) means. Copyright on each Open Source Software component belongs to the respective initial copyright holder, each... -
Page 77: K5903252 (451920612633) /02 Mdsc
Barco whatsoever. You further acknowledge that any such additions, changes or modifications may impair the ability of Barco – at Barco’s sole discretion - to continue to provide service, warranties, software updates, fixes, maintenance, access or such similar abilities, without any recourse or claim towards Barco whatsoever. - Page 78 Barco NV President Kennedypark 35 8500 Kortrijk Belgium K5903252 (451920612633) /02 | 2019-03-20 Barco NV | Beneluxpark 21, 8500 Kortrijk, Belgium Registered office: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
