Page 1: User Guide

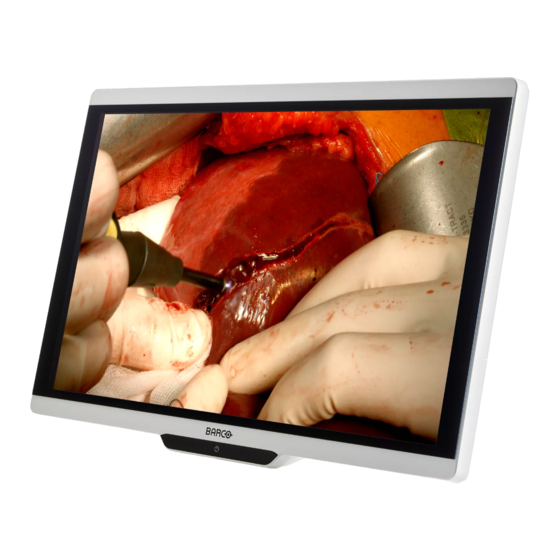

MDSC-8427 User Guide MDSC-8427 LED MDSC-8427 12G ENABLING BRIGHT OUTCOMES... - Page 2 Registered office: FIMI S.r.l. Via Vittor Pisani 6, 20124 Milano, Italy www.barco.com/en/support www.barco.com Factory: FIMI S.r.l. Via Saul Banfi 1, 21047 Saronno, Italy...
-
Page 3: Table Of Contents
DC out connector ................................10 2 Display installation ....................................... 11 Cover removal ....................................12 Interface connection..................................12 2.2.1 MDSC-8427 LED version............................12 2.2.2 MDSC-8427 12G version ............................13 Power supply connection ................................14 Cable routing .......................................15 VESA mount installation ................................15 3 Daily operation.........................................17 On/off switching ....................................18 Front keyboard locking/unlocking............................18 Power status LED ....................................19... - Page 4 DVI output ..................................36 4.5.6 Operating hours ................................36 5 Important information....................................37 Safety information.....................................38 Environmental information................................40 Biological hazard and returns ..............................42 Regulatory compliance information ............................42 EMC notice ......................................43 Cleaning and disinfection ................................45 Explanation of symbols..................................46 Legal disclaimer....................................48 Technical specifications.................................49 R5910599 /00 MDSC-8427...
-
Page 5: Welcome
(BLOS), the surgical display also ensures a long lifetime and low power consumption. Ease of installation The MDSC-8427 comes with a smart cable management system that hides the cables for a clutter-free set-up. Equipped with VESA 100 interface to allow easy mounting on surgical booms and spring arms. Available in different models, this surgical display also features a host of connectivity options and remote control. -
Page 6: What's In The Box
1.2 About this user guide Overview This manual provides support to the user during the installation, set up and utilization of the MDSC-8427 display. Depending on the specific version that has been purchased, some of the features and options described in this document may not apply to the display in user’s hands. - Page 7 Welcome! Connections – MDSC-8427 LED version 9 10 Image 1-2 SDI in SDI out +5 VDC – 2 A power out USB 2.0 type A interface USB 2.0 type B interface Main (Right) DisplayPort in DVI-D in DVI-D out Potential Equalization pin (POAG)
-
Page 8: Connector Pin Assignments
D0_Rx+ (T.M.D.S.) GND (data 0 shield) Not connected Not connected GND (clock shield) CK_Rx+ (T.M.D.S.) CK_Rx- (T.M.D.S.) (*) +5 VDC output selectable on either pin 14 or 16 via the OSD menu. (+5V ± 10% @ 500mA (max)) R5910599 /00 MDSC-8427... -
Page 9: Usb Type A Connector
ML_Lane 3 (p) ML_Lane 2 (n) ML_Lane 2 (p) ML_Lane 1 (n) ML_Lane 1 (p) ML_Lane 0 (n) ML_Lane 0 (p) CONFIG1 CONFIG2 AUX CH (p) AUX CH (n) Hot Plug Return DP_PWR (+3.3 VDC @ 500 mA max) R5910599 /00 MDSC-8427... -
Page 10: Hdmi Connector
T.M.D.S. Data1+ T.M.D.S. Data1 Shield T.M.D.S. Data1- T.M.D.S. Data0+ T.M.D.S. Data0 Shield T.M.D.S. Data0- T.M.D.S. Clock+ T.M.D.S. Clock Shield T.M.D.S. Clock- Not connected DDC_SCL DDC_SDA DDC/CEC GND +5VDC POWER 1.4.7 DC out connector Overview Image 1-10 +5 VDC R5910599 /00 MDSC-8427... -
Page 11: Display Installation
Display installation R5910599 /00 MDSC-8427... -
Page 12: Cover Removal
“Picture and Picture input”, page 30 and “Picture in Picture input”, page 31 for more information. Beside the video input connections, the MDSC-8427 also has video output capabilities allowing you to loop- through or duplicate all video inputs connected with the MDSC-8427 to another display, projector, video recorder, ... -
Page 13: Mdsc-8427 12G Version
A subset of the commands of the remote control protocol is also available on a new DDC protocol on DVI and DisplayPort1 auxiliary channel. 2.2.2 MDSC-8427 12G version To connect the interfaces Connect one or more video source(s) to the corresponding video inputs of the display. For a list of supported video inputs, see “Technical specifications”, page 49 . -
Page 14: Power Supply Connection
Image 2-4 Protective earth Earth the MDSC-8427 by connecting the protective earth pin to a grounded outlet by means of a yellow/green AWG18 wire (maximum admitted cable length according to national regulation requirements). R5910599 /00... -
Page 15: Cable Routing
CAUTION: When the display is assembled in the medical system, take care of the fixation of all cables, to avoid unwanted detachment. 2.5 VESA mount installation To install the display on a VESA mounting solution The display can be attached to a VESA 100 mm arm or stand. R5910599 /00 MDSC-8427... - Page 16 CAUTION: Use an arm that is in compliance with VESA requirements. CAUTION: The monitor VESA interface has been designed for a safety factor 6 (to support 6 times the monitor weight). In the medical system, use an arm with suitable safety factor (IEC60601–1). R5910599 /00 MDSC-8427...
-
Page 17: Daily Operation
Daily operation R5910599 /00 MDSC-8427... -
Page 18: On/Off Switching
(within 2 seconds, to avoid a keyboard re- lock) and the front keyboard will be unlocked. Also the front menu will automatically appear. With the rear keyboard: Press any key on the rear keyboard and the front keyboard will be unlocked. R5910599 /00 MDSC-8427... -
Page 19: Power Status Led
About the front menu The MDSC-8427 has a front menu which is used to activate the OSD main menu but which also supports 3 user key functions. These user keys allow to immediately activate a commonly used function without having to access and browse the OSD menus. - Page 20 If the OSD lock window appears then this means that the front menu and OSD menu is locked for access. Please refer to “Control lock”, page 22 for more information and instructions to unlock the menus. To navigate and use the front menu With the front keyboard: R5910599 /00 MDSC-8427...
-
Page 21: Osd Menu
As a result, the OSD main menu comes up. If no further actions are taken within the following 30 seconds, the OSD menu will disappear again. The time-out of the OSD menu automatic close function can be adjusted or disabled in the OSD menu (OSD Time-out). R5910599 /00 MDSC-8427... -
Page 22: Control Lock
Image 3-5 To unlock the menu Unlock the front keyboard (see “Front keyboard locking/unlocking”, page 18). When the OSD lock window appears, press the following key sequence to unlock the menu: left - right - right - up R5910599 /00 MDSC-8427... -
Page 23: Advanced Operation
Advanced operation Not all features described in the chapter “Advanced operation” are available. The features not available in specific software versions are shown on OSD menu in light-grey. R5910599 /00 MDSC-8427... -
Page 24: Picture Menu
Bring up the OSD main menu. Navigate to the Picture menu. Enter the Contrast submenu. The command bar Contrast is highlighted. Set the contrast level as desired and confirm. 4.1.4 Saturation To adjust the saturation level Bring up the OSD main menu. R5910599 /00 MDSC-8427... -
Page 25: Color Temperature
LCD panel used. To select a color space preset Bring up the OSD main menu. Navigate to the Picture menu. Enter the Color Space submenu. Select one of the available color space presets and confirm. R5910599 /00 MDSC-8427... -
Page 26: Gamma
To adjust the black level Bring up the OSD main menu. Navigate to the Picture advanced menu. Enter the Black Level submenu. The command bar Black Level is highlighted. Set the black level as desired and confirm. R5910599 /00 MDSC-8427... -
Page 27: Input Range
In both Aspect and Native, the image may be displayed with black bars on top/bottom or left/right. To select the image size Bring up the OSD main menu. Navigate to the Picture Advanced menu. Enter the Image Size submenu. Select one of the available image sizes and confirm. R5910599 /00 MDSC-8427... -
Page 28: Image Flip
Navigate to the Picture Advanced menu. Enter the Image Flip submenu. Select one of the available options and confirm. 4.3 Input select menu 4.3.1 Main source About main sources The available main sources for your display are: MDSC-8427 LED: • • • DisplayPort • HDMI-1 •... -
Page 29: Displayport Mode
• 2-sample interleave (2SI) • Auto 4K SDI mode is available on the MDSC-8427 12G version only. To select the 4K SDI mode Bring up the OSD main menu. Navigate to the Input Select menu. Enter the 4K SDI mode submenu. -
Page 30: Auto Search
This function allows the display to show a second input source on the left side of the display. The Primary input (main source) is still displayed on the right half of the screen. The possible Picture and Picture combinations between the Primary input (main source) and the Secondary input (PaP image) is displayed in the following table. R5910599 /00 MDSC-8427... -
Page 31: Picture In Picture Input
Transfer Function applied to the Primary input Source. To select Picture in Picture input Bring up the OSD main menu. Navigate to the Input Select menu. Enter the PiP Input submenu. Select one of the available PiP inputs (or NONE) and confirm. R5910599 /00 MDSC-8427... -
Page 32: Picture In Picture Mode
4.4.1 Information About information The available information items for your display are: • Model (commercial type identification) • SW package (display firmware identification) • Main board release (hardware and firmware identification) • Keyboard release (hardware and firmware identification) R5910599 /00 MDSC-8427... -
Page 33: Language
To recall a profile means to restore the default factory settings (Factory and X Ray profiles) or recall the user defined profiles. The available profiles to recall from your display are: • Factory • X Ray • User 1 R5910599 /00 MDSC-8427... -
Page 34: Save Profile
About front menu user keys The MDSC-8427 has a front menu (see “Front menu ”, page 19) which supports 3 user key functions. These user keys allow to immediately activate a commonly used function without having to access and browse the OSD menus. -
Page 35: System Menu
When the selected input(s) is (are) missing (main, 2nd and failover), this setting allows the display to switch off the backlight and enter a low power mode. As soon as the selected input(s) is (are) present again, the display R5910599 /00 MDSC-8427... -
Page 36: Dvi Output
This information shows the operation hours of your display. To consult operating hours Bring up the OSD main menu. Navigate to the System menu. The operation hours of your display are shown at the bottom of the menu. R5910599 /00 MDSC-8427... -
Page 37: Important Information
Important information R5910599 /00 MDSC-8427... -
Page 38: Safety Information
To avoid the risk of electric shock, this equipment must only be connected to a supply mains with protective earth. • The equipment should be installed near an easily accessible outlet. • The equipment is intended for continuous operation. R5910599 /00 MDSC-8427... - Page 39 Disconnect the equipment’s power cord from the AC inlet and refer servicing to qualified service technicians under the following conditions: • If the power cord or plug is damaged or frayed. • If liquid has been spilled into the equipment. • If the equipment has been exposed to rain or water. R5910599 /00 MDSC-8427...
-
Page 40: Environmental Information
For more information about recycling of this product, please contact your local city office or your municipal waste disposal service. For details, please visit the Barco website at: http://www.barco.com/AboutBarco/weee Turkey RoHS compliance Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur. - Page 41 Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products” of Chinese Mainland.
-
Page 42: Biological Hazard And Returns
The manufacturing country of the product is indicated on the product label (“Made in …”). Importers contact information To find your local importer, contact one of Barco’s regional offices via the contact information provided on our website (www.barco.com). FCC class B This device complies with Part 15 of the FCC Rules. -
Page 43: Emc Notice
8427, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result. Electromagnetic emissions The MDSC-8427 is intended for use in the electromagnetic environment specified below. The customer or the user of the MDSC-8427 should assure that it is used in such an environment. Electromagnetic environment –... - Page 44 Consult the dealer or an experienced technician for help. Electromagnetic immunity The MDSC-8427 is intended for use in the electromagnetic environment specified below. The customer or the user of the MDSC-8427 should assure that it is used in such an environment.
-
Page 45: Cleaning And Disinfection
• Wipe off water drop immediately. Possible cleaning solutions • Isopropyl alcohol 100% • Ethanol 70% • 0.5% Chlorehexidine in 70% Ethanol • Cidex • Haemol-sol, 1% in water • 250 ppm Chlorine solution • Bacillol AF R5910599 /00 MDSC-8427... -
Page 46: Explanation Of Symbols
Indicates the device is approved according to the RCM regulations Indicates the device is approved according to the EAC regulations Caution: Federal law (United Stated of America) restricts this device to sale by or on the order of a licensed healthcare practitioner. R5910599 /00 MDSC-8427... - Page 47 Indicates this device must not be thrown in the trash but must be recycled, according to the European WEEE (Waste Electrical and Electronic Equipment) directive Indicates Direct Current (DC) Indicates Alternating Current (AC) Stand-by Values for xx and yy can be found in the technical specifications paragraph. R5910599 /00 MDSC-8427...
-
Page 48: Legal Disclaimer
Barco software products are the property of Barco. They are distributed under copyright by Barco NV or Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized. -
Page 49: Technical Specifications
This document is copyrighted. All rights are reserved. Neither this document, nor any part of it, may be reproduced or copied in any form or by any means - graphical, electronic, or mechanical including photocopying, taping or information storage and retrieval systems - without written permission of Barco. © 2019 Barco NV all rights reserved. - Page 50 EN 60601-1: 2006 + A1:2013 (Medical Electrical Equipment – Part 1: General Requirements for Safety) • Electromagnetic Compatibility: EMC Medical EMC Standards: IEC60601-1-2, EN55011 /CISPR 11, FCC CFR47 part 15 & 18/Class B • Approvals/Marking: CE, c-UL-us, DEMKO R5910599 /00 MDSC-8427...
- Page 51 1x DP 1.2 MST up to 3840 x 2160 @ 50/60 Hz • 2x HDMI 2.0 up to 3840 x 2160 @ 50/60 Hz (*) (*) DP 1.2 SST to HDMI 2.0 adapter available from Barco • 4K SDI: 4x 3G-SDI quad link up to 1920 x 1080 @ 50/60 Hz or, alternatively...
- Page 52 IEC60601-1-2, EN55011 /CISPR 11, FCC CFR47 part 15 & 18/Class B • Approvals/Marking: CE, c-UL-us, DEMKO • Green compliance: ROHS-3, REACH, WEEE Protection level IP21 (IP45 front side only) with a tilt of ± 10° Warranty 3 years R5910599 /00 MDSC-8427...
- Page 53 DP 1.1 720x487i@59.94Hz (NTSC) 720x480p@59.94Hz 720x480p@60.00Hz 720x576i@50.00Hz (PAL I) 720x576p@50.00Hz 800x600p@56.25Hz 800x600p@60.317Hz 800x600p@72.19Hz 800x600p@75.00Hz 1024x768p@60.004Hz 1024x768p@70.069Hz 1024x768p@75.029Hz 1024x768p@85.00Hz 1152x864p@75.00Hz 1280x720p@29.97Hz 1280x720p@30.00Hz 1280x720p@50.00Hz 1280x720p@59.94Hz 1280x720p@60.00Hz 1280x1024p@60.013Hz 1280x1024p@75.025Hz 1280x1024p@85.00Hz 1400x1050p@60.00Hz 1600x1200p@60.00Hz 1680x1050p@59.95Hz 1920X1080i@50Hz 1920X1080i@59.94Hz 1920X1080i@60Hz 1920x1080p@25Hz 1920x1080p@29.97Hz 1920x1080p@30.00Hz 1920x1080p@50.00Hz 1920x1080p@59.94Hz R5910599 /00 MDSC-8427...
- Page 54 DP 1.1 1920x1080p@60.00Hz 1920x1200p@60.00Hz 2048x1536p@60.00Hz 2560x1440p@60.00Hz 2560x1600p@60.00Hz Timings UHD / 4K Quad-SDI 12G-SDI Format HDMI DP 1.1 DP 1.2 MST 3840x2160@25.00Hz 3840x2160@30.00Hz 3840x2160@50.00Hz 3840x2160@60.00Hz Accepted formats: Square-division & 2-sample Interleave Dimensions 74.5 278.5 M4 - 4x Image 5-1 R5910599 /00 MDSC-8427...
- Page 55 Important information R5910599 /00 MDSC-8427...
- Page 56 FIMI S.r.l. Vittor Pisani 6 20124 Milano Italy R5910599 /00 | 2019-02-19 Registered office: FIMI S.r.l. | Via Vittor Pisani 6, 20124 Milano, Italy Factory: FIMI S.r.l. | Via Saul Banfi 1, 21047 Saronno, Italy www.barco.com...
