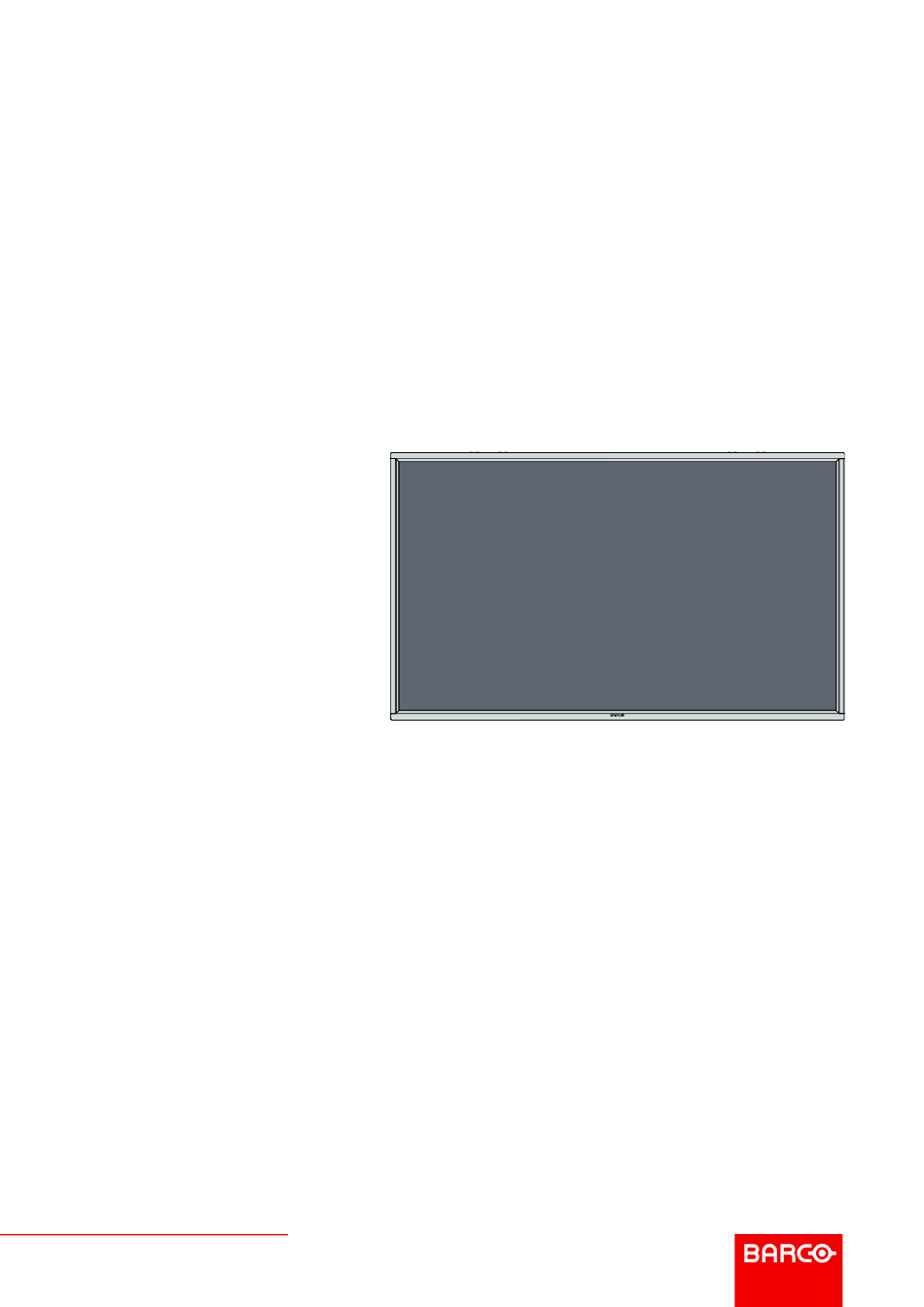

- Page 1 MDSC-8358 MNA User Guide MDSC-8358 MNAH MDSC-8358 MNAF MDSC-8358 MNAG MDSC-8358 MNA ENABLING BRIGHT OUTCOMES...
- Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
-
Page 3: Table Of Contents
Table of contents 1 Welcome! ..........................................5 About the product....................................6 What's in the box....................................6 About this user guide ..................................7 2 Parts, controls and connectors................................9 Front view......................................10 Rear view....................................... 11 Connector view ....................................11 Connector pin assignments ................................12 2.4.1 DVI–D single link / dual link connector.......................12 2.4.2 RS232 connector ................................13 3 Display installation .......................................15... - Page 4 5.8.2 OSD menu lock................................31 Setup menu......................................31 6 Important information....................................33 Safety information.....................................34 Environmental information................................37 Biological hazard and returns ..............................38 Regulatory compliance information ............................39 Cleaning and disinfection ................................39 Explanation of symbols..................................40 Legal disclaimer....................................42 Technical specifications.................................43 Open source license information .............................46 7 Appendix A .........................................49 RS-232 protocol....................................50 K5902141 (451920612593) /02 MDSC-8358 MNA...
-
Page 5: Welcome
Welcome! K5902141 (451920612593) /02 MDSC-8358 MNA... -
Page 6: About The Product
1.1 About the product Overview The Barco Medical Grade MDSC-8358 MNA series are color high resolution liquid crystal displays especially designed for medical imaging applications. The MDSC-8358 MNA is a 58” Color Flat Panel Display, intended to replace typical multi-monitor arrays in medical applications, whenever a large display is needed in addition to high resolution, while offering the same good rendering in greyscale medical imaging thanks to the DICOM conformance. -
Page 7: About This User Guide
Welcome! 1.3 About this user guide Overview This manual provides support to the user during the installation, set up and utilization of the MDSC-8358 MNA display. Depending on the specific version that has been purchased, some of the features and options described in this document may not apply to the display in user’s hands. - Page 8 Welcome! K5902141 (451920612593) /02 MDSC-8358 MNA...
-
Page 9: Parts, Controls And Connectors
Parts, controls and connectors K5902141 (451920612593) /02 MDSC-8358 MNA... -
Page 10: Front View
Parts, controls and connectors 2.1 Front view Overview Image 2-1 Power On/Off Enter key Down key Up key Esc key A 5-key keypad is located on the bottom of the display. K5902141 (451920612593) /02 MDSC-8358 MNA... -
Page 11: Rear View
Parts, controls and connectors 2.2 Rear view Overview Image 2-2 VESA mount screw holes Connector location 2.3 Connector view Connectors 6 18 6 17 7 12 13 14 15 6 18 16 17 9 10 11 Image 2-3 Additional protective earth pin Input power connector RS-232 connector Switch (between RS-232 &... -
Page 12: Connector Pin Assignments
Push button (*) DisplayPort connector DVI splitter output connector DVI splitter input connector (*) Nexxis OR functionality: for more detailed information on Barco's Nexxis integrated OR solution please refer to the dedicated user guides. Please visit my.barco.com to obtain these user guides. -
Page 13: Rs232 Connector
Parts, controls and connectors D0_Rx- (T.M.D.S.) D0_Rx+ (T.M.D.S.) GND (data 0 shield) D5_RX- (T.M.D.S.) D5_RX+ (T.M.D.S.) GND (clock shield) CK_Rx+ (T.M.D.S.) CK_Rx- (T.M.D.S.) 2.4.2 RS232 connector Overview Image 2-5 Function Not connected Rx (driven by host) Tx (driven by display) Not connected Ground Not connected... - Page 14 Parts, controls and connectors K5902141 (451920612593) /02 MDSC-8358 MNA...
-
Page 15: Display Installation
Display installation K5902141 (451920612593) /02 MDSC-8358 MNA... -
Page 16: Hoist Bracket Installation
Display installation 3.1 Hoist bracket installation WARNING: Two brackets are provided in the accessory kit to be used for service personal only. WARNING: The hoist brackets are intended to be used during the monitor's installation phase only. To mount and use the hoist bracket to the display Mount the brackets to the display using the screws provided in the accessory kit. - Page 17 Display installation After transportation, you can remove the brackets and the 8 mounting holes can be closed, either with 8 plastic caps (version without the protection glass) or using the same screws adding the respective o-ring (version with the protection glass). K5902141 (451920612593) /02 MDSC-8358 MNA...
-
Page 18: Vesa Mount Installation
Display installation 3.2 VESA mount installation Overview The display supports mounting arm & stands according to the VESA 400 mm standard. CAUTION: Use an arm that is in compliance with VESA requirements. CAUTION: The monitor VESA interface has been designed for a safety factor 6 (to support 6 times the monitor weight). -
Page 19: Video Input Connection
Display installation Image 3-1 3.3 Video input connection WARNING: When the display is assembled in the medical system, take care of the anchorage of all cables, to avoid unwanted detachment. To connect the video inputs Connect the available display(s) to the corresponding video input(s) using the appropriate video cable(s). Image 3-2 K5902141 (451920612593) /02 MDSC-8358 MNA... -
Page 20: Video Output Connection
IP network, in raw uncompressed format, inside the operating room and even between surgical suites. To connect your MDSC-8358 MNA to Barco's Nexxis OR system, connect the 10Gb Ethernet interface to your Nexxis switch. More info about Nexxis OR and how to configure the MDSC-8358 MNA in your network is available in the dedicated user guides. - Page 21 Display installation Image 3-4 For additional grounding, earth the display by connecting the protective earth pin to a grounded outlet by means of a wire with a minimum AWG18 size (according to national requirements regarding the maximum admitted cable length). Use the included M4 screw to attach the wire to the protective earth pin. K5902141 (451920612593) /02 MDSC-8358 MNA...
- Page 22 Display installation K5902141 (451920612593) /02 MDSC-8358 MNA...
-
Page 23: Daily Operation
Daily operation K5902141 (451920612593) /02 MDSC-8358 MNA... -
Page 24: On/Off Switching
Daily operation 4.1 On/Off switching About power management: The display has 2 keys: • Main power switch (to switch of all power to the display). • Push button to enter/exit the Power Down Mode. The display can go in three different statuses: •... -
Page 25: Osd Menu Activation
Daily operation 4.4 OSD menu activation To activate the OSD menu If not already done so, switch on the display. Touch the Enter key. As a result, the OSD main menu comes up. If no further actions are taken within the following 30 seconds, the OSD menu will disappear again. - Page 26 Daily operation If the inserted password is not correct, the following message appears on the screen. WRONG PASSWORD! The default password is 1-3-3-4. K5902141 (451920612593) /02 MDSC-8358 MNA...
-
Page 27: Advanced Operation
Advanced operation K5902141 (451920612593) /02 MDSC-8358 MNA... -
Page 28: Product Info
Advanced operation 5.1 Product info About product info The available information items for your display are: • HWREL: Hardware release • FWREL: Firmware release • S/N: Serial number To view the product info Bring up the OSD main menu. Navigate to the Product info menu. Enter the Product info submenu. -
Page 29: Transfer Function
Advanced operation 5.4 Transfer function About transfer function There are different transfer function possibilities: • Native: the transfer function is transparent (no correction is applied). • DICOM (Factory): The output curve follows the DICOM transfer function and is automatically adapted to the current brightness. -
Page 30: Input Channel Menu
Advanced operation • Failover input 5.7.1 Input channel menu About input channel menu Possibility to select the following inputs: • OPTICAL • DISPLAYPORT • OPTICAL FAILOVER • DISPLAYPORT FAILOVER • DVI 1 • DVI 2 • DVI 3 • DVI 4 •... -
Page 31: Osd Setting Menu
Advanced operation Select one of the available failover inputs and confirm. 5.8 OSD setting menu 5.8.1 Time-out OSD About time-out OSD When the OSD menu is displayed and no key is pressed, it will disappear after the time set in this menu. It is possible to choose among the following values: 10”, 20”, 30”, 45”, 60”, 90”... - Page 32 Advanced operation • USER: User settings To select the setup: Bring up the OSD main menu. Navigate to the Setup menu. Enter the Setup submenu. Select one of the available profiles and confirm. K5902141 (451920612593) /02 MDSC-8358 MNA...
-
Page 33: Important Information
Important information K5902141 (451920612593) /02 MDSC-8358 MNA... -
Page 34: Safety Information
Important information 6.1 Safety information General recommendations Read the safety and operating instructions before operating the device. Retain safety and operating instructions for future reference. Adhere to all warnings on the device and in the operating instructions manual. Follow all instructions for operation and use. Electrical Shock or Fire Hazard To prevent electric shock or fire hazard, do not remove cover. - Page 35 Important information Power cords: • Utilize a UL-listed detachable power cord, 3-wire, type SJ or equivalent, 18 AWG min., rated 250 V min., provided with a hospital-grade type plug 5-15P configuration for 120V application, or 6-15P for 240V application. • Do not overload wall outlets and extension cords as this may result in fire or electric shock.
- Page 36 Sufficient expertise is required for installing this equipment, especially to determine the strength of the wall for withstanding the display's weight. Be sure to entrust the attachment of this equipment to the wall to licensed contractors of Barco and pay adequate attention to safety during the installation and usage. •...
-
Page 37: Environmental Information
Electronic Products ” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”. -
Page 38: Biological Hazard And Returns
Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products” of Chinese Mainland. -
Page 39: Regulatory Compliance Information
The manufacturing country of the product is indicated on the product label (“Made in …”). Importers contact information To find your local importer, contact one of Barco’s regional offices via the contact information provided on our website (www.barco.com). FCC Class A This equipment has been tested and found to comply with the limits of a class A digital device, pursuant to Part 15 of the FCC rules. -
Page 40: Explanation Of Symbols
Important information 6.6 Explanation of symbols Symbols on the device On the device or power supply, you may find the following symbols (nonrestrictive list): Indicates the device meets the requirements of the applicable EC directives. Indicates compliance with Part 15 of the FCC rules (Class A or Class B) Indicates the device is approved according to the UL Recognition regulations MEDICAL –... - Page 41 Important information Indicates the DisplayPort connectors on the device Indicates the legal manufacturer Indicates the manufacturing date Indicates the temperature limitations for the device to safely operate within specs. Indicates the device serial number Indicates the device part number or catalogue number Warning: dangerous voltage Caution Consult the operating instructions...
-
Page 42: Legal Disclaimer
Barco software products are the property of Barco. They are distributed under copyright by Barco NV or Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized. -
Page 43: Technical Specifications
Important information 6.8 Technical specifications MDSC-8358 MNA Screen technology a-si TFT active matrix Active screen size (diagonal) 1473 mm (58.0") Active screen size (H x V) 1270.08 x 721.44 mm (50 x 28.4") Aspect ratio (H:V) 16:9 Resolution 8MP (3840 x 2160) Pixel pitch 0.33075 mm (H) x 0.334 mm (V) Color imaging... - Page 44 Important information Recommended modalities Endoscopy, Laparoscopy, PACS, PM, US, CT, MR Certifications CE: MDD 93/42/EEC; A1:2007/47/EC class I medical device; 2014/30/EU (EMC); 2011/65/EU (RoHS) IEC 60601-1-2 (2014) EN 60601-1-2 (2015) IEC 60950-1:2005 +A1:2009 +A2:2013 (Second Edition) IEC 60601-1:2005 +CORR. 1:2006 +CORR.2:2007 +A1:2012 (Edition 3.1) EN 60601-1:2006 +A1:2013 +A12:2014 ANSI/AAMI ES60601-1: A1:2012 +C1:2009/(R)2012 +A2:2010/(R)2012 CAN/CSA-C22.2 NO.
- Page 45 Important information Dimensions 1318.5 459.25 459.25 Image 6-1 K5902141 (451920612593) /02 MDSC-8358 MNA...
-
Page 46: Open Source License Information
A list of the Open Source Software components used is available in the applicable EULA, through the “My Barco” section of the Barco website or through other (online) means. Copyright on each Open Source Software component belongs to the respective initial copyright holder, each additional contributor and/or their respective assignee(s), as may be identified in the respective Open Source Software documentation, source code, README file, or otherwise. - Page 47 Barco whatsoever. You further acknowledge that any such additions, changes or modifications may impair the ability of Barco – at Barco’s sole discretion - to continue to provide service, warranties, software updates, fixes, maintenance, access or such similar abilities, without any recourse or claim towards Barco whatsoever.
- Page 48 Important information K5902141 (451920612593) /02 MDSC-8358 MNA...
- Page 49 Appendix A K5902141 (451920612593) /02 MDSC-8358 MNA...
-
Page 50: Rs-232 Protocol
Appendix A 7.1 RS-232 protocol About RS-232 protocol The communication protocol of the monitor is based upon user oriented commands and factory oriented commands. The following description is related to the user oriented commands and is based on the MDSC- 8358 MNA monitors user commands. - Page 51 Appendix A (character) Current Transfer Function 0 (zero) NATIVE DICOM GAMMA 1 GAMMA 2 the character O in the command sequence is the letter “o” in uppercase. 2b) Set Transfer Function: PC > monitor: <ESC> O (character) monitor > PC: <ACK> where (character) has the following meaning: (character) Current Transfer Function...
- Page 52 Appendix A 4c) Keylock code: PC > monitor: <ESC> v???? monitor > PC: <ACK> where “?” is a number between 1 and 4 which codifies the key according to the following table: “?” character ▼ ▲ ☼– ☼+ 5) FPGA Release: PC >...
- Page 53 Appendix A K5902141 (451920612593) /02 MDSC-8358 MNA...
- Page 54 Barco NV President Kennedypark 35 8500 Kortrijk Belgium K5902141 (451920612593) /02 | 2019-05-10 Barco NV | Beneluxpark 21, 8500 Kortrijk, Belgium Registered office: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
