Page 1 BreezeACCESS II Version 4.3 Revision 3.0 June 2003 System Manual Cat. No. 213397 Revision 3.0...
Page 3: Statement Of Conditions
Statement of Conditions The information contained in this manual is subject to change without notice. Alvarion shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or equipment supplied with it.
Page 4: Limitation Of Liability
INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING OR OTHER HAZARD. Limitation Of Liability. (a) ALVARION SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY THIRD PARTY, FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS OR FOR ANY...
Page 5: Safety Considerations
Important Notice R&TTE Compliance Statement This equipment complies with the appropriate essential requirements of Article 3 of the R&TTE Directive 1999/5/EC. Safety Considerations For the following safety considerations, “Instrument” means the BreezeACCESS units’ components and their cables. Caution To avoid electrical shock, do not perform any servicing unless you are qualified to do so. BS-GU Lithium Battery Caution: Danger of battery explosion if incorrectly replaced or disposed of.
Page 6: Important Notice
Any changes or modifications of equipment not expressly approved by Alvarion Ltd. could void the user’s authority to operate the equipment. Some of the equipment provided by Alvarion and specified in this manual, is manufactured and warranted by third parties.
Page 7: Table Of Contents
BreezeMANAGE ... 2-13 BreezeCONFIG ... 2-14 Specifications ... 3-1 System Specifications ... 3-2 BreezeACCESS II Radio Regulatory Standards ... 3-3 Data Communication ... 3-3 Voice/Fax (Subscriber Units with voice support) ... 3-4 Telephony (Subscriber Units with voice support) ... 3-4 IF Indoor –...
Page 8 SU-I/I-D ... 3-11 AU-I/I-D ... 3-12 SU-R Subscriber Units ... 3-13 System Manual Book 2: Installation IF-Based Equipment ... 1-1 Modular Base Station Equipment ... 1-2 Standalone AU-A/E-NI Access Unit ... 1-3 Other Items Required for Installation ... 1-3 Guidelines for Selection of Equipment Locations ... 1-5 AU-RA and AU-RE ...
Page 9 Table of Contents Location of the Antenna(s) ... 2-3 Antenna Diversity ... 2-4 Antenna Polarization ... 2-4 Antenna Seal ... 2-4 Lightning Protection ... 2-4 Installing SU-R Indoor Units ... 2-5 Wall Mounting the Unit ... 2-5 Connecting the Omni Antennas ... 2-6 Connecting a Detached Antenna ...
Page 10 System Manual Book 3: Commissioning Setting Basic Parameters ... 1-1 Accessing the Monitor Program ... 1-2 Accessing the Monitor Program using the RS 232 MON Connector ... 1-2 Accessing the Monitor Program using Telnet ... 1-3 Operating the Monitor Program ... 1-4 Configuring Basic Parameters in Access and Subscriber Units ...
Page 11 Table of Contents BS-PS DC Power Supply Module LEDs ... 4-5 BS-PS-AC AC Power Supply Module LEDs ... 4-5 BS-AU LEDs ... 4-6 BS-GU LEDs ... 4-6 SU-R LEDs ... 4-7 SU-I/SU-I-D LEDs ... 4-7 AU-I/AU-I-D LEDs ... 4-8 System Manual Book 4: Operations and Administration Accessing the Monitor Program ...
Page 12 Network Management Parameters (AU, SU and GU) ... 2-53 Bridge Parameters (AU, SU and GU) ... 2-56 Performance Parameters (AU and SU) ... 2-69 Service Parameters (AU and SU) ... 2-73 RADIUS Parameters Menu (Subscriber Units only) ... 2-77 Security Parameters (AU and SU) ... 2-81 Voice Parameters (Subscriber Units with Voice Support Only) ...
Page 13 Table of Contents IP Parameters ... C-36 System Information Parameters ... C-36 Alarms Parameters ... C-38 brzPhoneMIB (applicable to SU with voice only) ... C-39 Dialing Parameters ... C-39 Voice Parameters ... C-42 Telephony Signals ... C-43 General Info MIB ... C-44 Supported Traps ...
Page 14 BreezeACCESS 4.3 System Manual viii...
Page 15: System Manual Book 1: System Description
BreezeACCESS II Version 4.3 Revision 3.0 System Manual Book 1: System Description...
Page 17 Management Systems ...2-12 BreezeMANAGE ...2-13 BreezeCONFIG ...2-14 Specifications ...3-1 System Specifications ...3-2 BreezeACCESS II Radio Regulatory Standards ...3-3 Data Communication ...3-3 Voice/Fax (Subscriber Units with voice support) ...3-4 Telephony (Subscriber Units with voice support) ...3-4 IF Indoor – Outdoor Communication ...3-4 (SU-A/E, AU-A/E-NI, AU-A/E-BS) ...3-4...
Page 18 BreezeACCESS Version 4.3 System Description SU-R Subscriber Units ... 3-13...
Page 19: Introduction
Chapter 1 Introduction About This Chapter This chapter introduces the BreezeACCESS system, its components and its functions.
Page 20: Introducing Breezeaccess
The system also supports Layer 2 traffic prioritization according to IEEE 802.1p and ToS based Layer 3 traffic prioritization according to RFC791. BreezeACCESS II operates in the 2.4 GHzTime Division Duplex (TDD) mode. It employs wireless packet data switching technology, utilizing Frequency Hopping Spread Spectrum (FH-SS) radios.
Page 21 About This Chapter This chapter describes BreezeACCESS system components. It includes the following sections: Subscriber Units (Customer Premises Equipment)‚ page describes BreezeACCESS equipment installed at the customer’s premises. Base Station Equipment‚ page in BreezeACCESS Base Stations. Networking Equipment‚ page Base Station units are connected to one another and to other equipment in a network environment.
Page 22: Subscriber Units (Customer Premises Equipment)

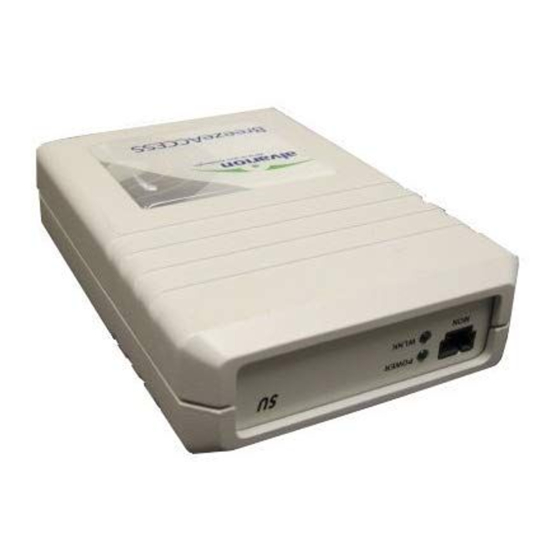

Subscriber Units (Customer Premises Equipment) The BreezeACCESS Subscriber Unit (SU) installed at the customer premises provides data only or data and telephone connections. The data connection is a standard IEEE 802.3 Ethernet 10BaseT (RJ 45) interface while the voice connection (in units that support voice) is a standard RJ 11 Plain Old Telephone (POTS) interface.
Page 23 System Components Figure 2-1: BreezeACCESS SU-A/E Outdoor and Indoor Units BreezeACCESS II SU-A/E units are available with several different levels of output power at the antenna port: 26 dBm (HP) 15 dBm (GP) 7 dBm (MP) 4 dBm (LP) The following products are available: Data-only Units: SU-X-1D-2.4-YP...
Page 24: Su-I/I-D Miniature Indoor Units
X=A: The outdoor radio unit includes an integral high gain flat antenna X=E: The outdoor radio unit has a connector for an external antenna. Y=H: HP model. The maximum output power at the antenna port is 26 Y=G: GP model. The maximum output power at the antenna port is 15 Y=M: MP model.
Page 25 System Components The following types of units are available: Data-only Units: SU-X-1D-2.4 SU-X-BD-2.4 Data and Voice Units: SU-X-1D1V-2.4 SU-X-BD1V- X=I: The unit is supplied with two integral 2 dBi omni antennas X=I-D: The unit is supplied with two connectors for detached antenna(s) The unit supports one Ethernet device The unit provides bridge functionality and can support up to a full LAN...
Page 26: Su-R High-Power Indoor Units
SU-R High-Power Indoor Units The SU-R line includes small-footprint, high-power units that are designed for indoor desktop or wall-mount installations. SU-R units are available with three different antenna configurations: Two clip-on omni antennas. A wall mountable antenna. An outdoor high-gain antenna. Figure 2-3: BreezeACCESS SU-R Unit The following types of units are available: Data-only Units:...
Page 27: Modular Base Station Equipment
System Components Standalone “Micro-Cell” Access Unit AU-I/I-D miniature indoor units Modular Base Station Equipment The Base Station equipment is based on the BS-SH 3U chassis, which is suitable for installation in 19” racks. The chassis contains one or two power supply modules, up to six active Access Unit Network Interface (BS-AU) modules and an optional BS-GU GPS and Alarms module.
Page 28 Figure 2-4: BreezeACCESS Base Station Module and Outdoor Units BreezeACCESS II AU-A/E-BS units are available with several different levels of maximum output power at the antenna port: 26dBm (HP) 15dBm (GP) 7dBm (MP) 2dBm (LP) GU-A-BS GPS and Alarms System...
Page 29 System Components Figure 2-5: BreezeACCESS GU-A-BS System Components The BreezeACCESS BS-GU module is designed to be inserted into the BS-SH 19” base station chassis to provide hopping synchronization signals to the BS-AU Access Unit modules. The card uses timing signals derived from signals received from the GU-RA GPS antenna.
Page 30: Au-A/E-Ni Standalone "Micro-Cell" Access Unit
2-10 Daisy-chained BS-GU modules use the synchronization signals generated by the first module in the chain (the Master module. The BS-GU module also supports the management of alarm inputs and outputs. The module receives Alarms In indications from other BreezeACCESS modules in the base station shelf (internal alarms) and external alarms from other devices via the AL IN connector.
Page 31: Au-I/I-D Miniature Indoor Units
System Components AU-I/I-D Miniature Indoor Units The AU-I/I-D line includes miniature units that are designed for indoor desktop or wall-mount installations and comprise a single unit that is powered from the mains (100-250 VAC). The AU-I products include two integral 2 dBi omni antennas. The AU-I-D products have two RF connectors for detached diversity antennas.
Page 32: Networking Equipment
2-12 Networking Equipment The base station equipment is connected to the backbone through standard data communication and telecommunication equipment. For improved security, the 10BaseT ports of the AU modules are connected directly to a multi-port router. This router is connected by any means of point-to-point link to the backbone.
Page 33: Breezemanage
System Components BreezeMANAGE Alvarion’s SNMP-based BreezeMANAGE network management application provides a powerful tool for configuring, controlling, monitoring and effectively managing BreezeACCESS networks from a single, central network management station. BreezeMANAGE, together with the powerful tools available through its use under leading network management platforms, provides numerous benefits to operators of BreezeACCESS networks.
Page 34: Breezeconfig
Simultaneously changing the configuration of multiple units Viewing traffic statistics and performance data Monitoring traps Performing firmware upgrade to a single or multiple units NOTES: The BreezeCONFIG utility can be downloaded from the Alvarion Web site: www.alvarion.com. Manual Revision: 3.0 BreezeACCESS Version 4.3 System Description...
Page 35: Specifications
About This Chapter This chapter lists the technical specifications of BreezeACCESS and includes the following sections: System Specifications‚ page specifications of the BreezeACCESS system. Physical Specifications‚ page specifications for different types of BreezeACCESS units. Chapter 3 Specifications 3-2, outlines the technical 3-7, lists the physical and electical...
Page 36: System Specifications
System Specifications Radio and Modem Parameter Frequency 2.400-2.500 GHz (according to country standard) Operation Mode Time Division Duplex Radio Access Method FH-CDMA Standard Compliance FCC Part 15.247, ETS 300 328 Channel Bandwidth 1 MHz Central Frequency 1 MHz Resolution Antenna SU-RA AU-RA SU-RE, AU-RE...
Page 37: Breezeaccess Ii Radio Regulatory Standards
Specifications BreezeACCESS II Radio Regulatory Standards The systems support different “country standards” for compliance with the applicable local radio regulations. The country standards are configured at the factory. The country standards determine the following: a: Hopping frequency band and hopping sequences b: Support of synchronization among Access Units (AU-A/E-BS units).
Page 38: Voice/Fax (Subscriber Units With Voice Support)
Voice/Fax (Subscriber Units with voice support) Parameter Standard Compliance ITU-T H.323 Ver. 2 VoIP standard G.711 (A-Law and µ-Law) - 64 Kbps (transparent) Compression G.723.1 - 6.3 Kbps G.729 - 8 Kbps (G.729, G.729 with Annex A and/or Annex B) Silence Compression G.723.1 - Voice Activity Detection (VAD), G.729 - Annex B Echo Cancellation...
Page 39: Configuration And Management
Specifications Configuration and Management Parameter Management Options a. Via the MON port, using terminal emulation with the built-in monitor program b. Telnet, using the monitor program c. TFTP, using the Configuration upload/download utility d. SNMP Remote Management Access From Wired LAN, Wireless Link Management Access a.
Page 40: Environmental
Environmental Parameter Operating Outdoor Units Temperature Indoor equipment Operating Humidity Outdoor Units Indoor equipment Standards Compliance, General Type FCC part 15.247, EN 300 826 Safety UL 1950, EN 60950 Environmental ETS 300 019 part 2-3 class 3.2E for indoor units ETS 300 019 part 2-4 class 4.1E for outdoor units Radio FCC part 15.247, ETSI ETS 300 328...
Page 41: Physical Specifications
Specifications Physical Specifications SU-A/E Subscriber Unit Connectors Unit Connector SU-NI TNC jack, 50 ohm, lightning protected 10BaseT Ethernet (RJ 45) with 2 embedded LEDs. Cable connection to a PC: SU-A/E-1D/1D1V – straight TEL (units with RJ 11 jack (POTS) voice support) DC-12 V DC phone jack for the SU-PS power supply RS 232, 3-pin low profile jack...
Page 42: Au-A/E-Ni Stand-Alone Access Unit
AU-A/E-NI Stand-Alone Access Unit Connectors Unit Connector AU-NI TNC jack, 50 ohm, lightning protected 10BaseT Ethernet (RJ 45) with 2 embedded LEDs Cable connection to a PC: crossed DC-12 V DC phone jack for the AU-PS power supply RS 232, 3-pin low profile jack AU-RE TNC jack, 50 ohm, lightning protected N-Type jack, 50 ohm, lightning protected...
Page 43: Modular Base Station Equipment
Specifications Modular Base Station Equipment Connectors Unit Connector AU-A/E-BS AU-BS AU-RE AU-RA BS-PS -48V BS-PS-AC AC IN BS-GU SYNC IN SYNC OUT AL IN AL OUT GU-RA Description TNC jack, 50 ohm, lightning protected 10BaseT Ethernet (RJ 45) with 2 embedded LEDs Cable connection to a PC: crossed RS 232, 3-pin low profile jack TNC jack, 50 ohm, lightning protected...
Page 44: Dimensions & Weight
3-10 Modular Base Station Equipment - Electrical Unit General 200 W for a fully equipped chassis (1 PS, 6 AU, 1 GU) BS-PS DC power input: -48 V, 5.2 A max. DC power output: 12 V; 5 V BS-PS-AC AC power input: 85-256 VAC, 47-65 Hz, DC power output: 12 V;...
Page 45: Breezeaccess 4.3 System Manual
Specifications SU-I/I-D Connectors Connector Antenna (SU-I-D) 2 x SMA jacks, 50 ohm 10Base-T Ethernet (RJ-45) with 2 embedded LEDs. Cable connection to a PC: SU-I/I-D -1D/1D1V – straight TEL (units with voice RJ 11 jack (POTS) support) DC IN 5V Standard DC phone jack to external power supply RS 232, 3-pin low profile jack Electrical...
Page 46: Au-I/I-D
3-12 AU-I/I-D Connectors Connector Antenna (AU-I-D) 2 x SMA jacks, 50 ohm 10Base-T (RJ-45) with 2 embedded LEDs. Cable connection to a PC: crossed DC IN 5V Standard DC phone jack to external power supply RS 232, 3-pin low profile jack Electrical Unit AU-I/I-D...
Page 47: Su-R Subscriber Units
Specifications SU-R Subscriber Units Connectors Connector Antenna 2 proprietary jacks, 50 ohm (with special SMA adapters if needed) 10BaseT Ethernet (RJ 45) with 2 embedded LEDs Cable connection to a PC: straight RJ 11 jack (POTS) (units with voice support) DC IN Standard DC phone jack to external power supply RS 232, 3-pin low profile jack...
Page 48 BreezeACCESS Version 4.3 System Description 3-14 Manual Revision: 3.0...
Page 49: System Manual Book 2: Installation
BreezeACCESS II Version 4.3 Revision 3.0 System Manual Book 2: Installation...
Page 51 IF-Based Equipment ...1-1 Modular Base Station Equipment ...1-2 Standalone AU-A/E-NI Access Unit ...1-3 Other Items Required for Installation ...1-3 Guidelines for Selection of Equipment Locations ...1-5 AU-RA and AU-RE ...1-5 SU-RA and SU-RE ...1-5 IF Cable ...1-6 Indoor Equipment ...1-6 Installing the Outdoor Unit ...1-7 The Outdoor Unit Bottom Panel ...1-7 Pole Mounting the Outdoor Unit ...1-9...
Page 52 Antenna Seal ... 2-4 Lightning Protection ... 2-4 Installing SU-R Indoor Units ... 2-5 Wall Mounting the Unit ... 2-5 Connecting the Omni Antennas ... 2-6 Connecting a Detached Antenna ... 2-6 Connecting the Unit to the Power Supply and to the CPE . 2-6 Indoor SU-I and AU-I Units ...
Page 53: If-Based Equipment
About This Chapter This chapter describes the basic installation of BreezeACCESS IF-based equipment, including SU-A/E subscriber units, modular base station equipment and stand-alone AU-A/E-NI access units. It includes the following sections: Packing Lists‚ page 1-2, lists the equipment that is packed with each BreezeACCESS IF-based unit.
Page 54: Packing Lists
Packing Lists SU-A/E Subscriber Unit SU-NI Indoor unit Outdoor unit: SU-RA with integral antenna –Or– SU-RE with a connector to an external antenna (not included) SU-PS power supply with a mains power cord Pole mounting kit for the outdoor unit Wall mounting kit for the SU-NI unit Modular Base Station Equipment BS-SH Base Station Chassis...
Page 55: Standalone Au-A/E-Ni Access Unit
Monitor cable Documentation CD Other Items Required for Installation IF cable* (available from Alvarion in different lengths) Grounding cable with an appropriate termination Antenna* and RF cable* according to specific installation conditions for units with external separate antennas Ethernet cable to connect the equipment to the Ethernet outlet (see Table 1-1‚...
Page 56 A portable PC equipped with an Ethernet card and with Telnet software, and an Ethernet cable (see Table 1-1‚ page 1-4) Items marked with an asterisk (*) are available as options from Alvarion. NOTE: The BS-GU does not have an external Monitor port and it should be configured via the Ethernet port using Telnet.
Page 57: Guidelines For Selection Of Equipment Locations
Failure to do so may void the BreezeACCESS product warranty and may expose the end user or the service provider to legal and financial liabilities. Alvarion and its resellers or distributors are not liable for injury, damage or violation of regulations associated with the installation of outdoor units or antennas.
Page 58: If Cable
IF Cable The outdoor unit is connected to the indoor unit by means of an IF cable carrying signaling, control signals and power. The IF frequency is 440 MHz. The maximum allowed attenuation of the IF cable connecting the outdoor unit to the indoor unit is 15 dB at 440 MHz, and the maximum allowed DC resistance (the sum of the DC resistance of the inner and outer conductors) is 1.5 ohm.
Page 59: Installing The Outdoor Unit
IF Based Equipment Installing the Outdoor Unit NOTE: Outdoor units must be installed by a professional installer only. The Outdoor Unit Bottom Panel The SU-RA and AU-RA outdoor units include the radio and an integral high-gain flat antenna located on the front of the unit. The SU-RE and AU-RE outdoor radio units have an RF connector for connection to an external antenna.
Page 60 Table 1-4: SU-RA/RE Bar Display Description Yellow LED Power 8 Green LEDs Received signal strength indication Red LED High RF signal level Figure 1-2: AU-RA/RE Bottom Panel Table 1-5: AU-RA/RE LEDs Description Ethernet activity 12V IN Power ALARM Alarm indication Manual Revision: 3.0 BreezeACCESS Version 4.3 Installation Description...
Page 61: Pole Mounting The Outdoor Unit
IF Based Equipment Pole Mounting the Outdoor Unit The outdoor unit can be secured to the pole using one of the following options: Special brackets and open-ended bolts (supplied with each unit). There are two pairs of threaded holes on the back of the unit, allowing use of the special brackets with various pole widths.
Page 62: Breezeaccess Version 4.3 Installation
BreezeACCESS Version 4.3 Installation 1-10 Figure 1-3: Grooves/Threaded Holes Figure 1-4: 3" Pole Mounting Installation Using the Special Brackets NOTE: When inserting the open-ended bolts, make sure to insert them with the grooves pointing outwards; these grooves are intended to allow fastening of the bolts with a screwdriver.
Page 63 IF Based Equipment The integral antenna of the AU-RA is relatively long. The top of the antenna should also be secured to the pole, as shown in Figure 1-5:. Figure 1-5:: Pole Mounting the AU-RA Figure 1-6:: Pole Mounting the AU-RA (Top View) NOTE: The top of the AU-RA antenna must be secured to the pole only in order to keep it from moving due to strong winds or other adverse conditions.
Page 64: Connecting The Antenna Cable (Su-Re And Au-Re)
1-12 Connecting the Antenna Cable (SU-RE and AU-RE) Connect an RF cable between the ANT connector (located on the top panel of the unit) and the antenna. Connecting the Ground and IF Cables The ground terminal (marked ) and the IF cable connector (marked IF) are located on the bottom panel of the unit.
Page 65: Installing The Su-Ni And Au-Ni Indoor Unit
IF Based Equipment Installing the SU-NI and AU-NI Indoor Unit Figure 1-7: SU-NI with Voice Support Rear Panel NOTE: The rear panel pictured above in Figure 1-7 is a SU-NI with voice support; AU-NI units and SU-NI units that belong to Subscriber Units without voice support are identical, except that they have no TEL port.
Page 66: Installing The Su-Ni/Au-Ni Unit
1-14 The SU-NI/AU-NI provides the following interfaces: An Ethernet connector (marked ETH) for connecting the unit to the network. See type of Ethernet cable. An IF connector for connecting the unit to an outdoor unit. A DC-12V connector for the power supply. A MON connector for connecting an ASCII terminal with terminal emulation software for configuration and maintenance purposes.
Page 67: Installing Modular Base Station Equipment
IF Based Equipment Installing Modular Base Station Equipment BS-SH Slot Assignments The base station chassis has ten slots. Figure 1-9: BS-SH Chassis Slot Assignments The two wide slots on both sides of the shelf accommodate the BS-PS or BS-PS-AC power supply modules. The shelf is designed to support power supply redundancy through the use of two power supply modules.
Page 68: The Bs-Ps
1-16 The BS-PS The BS-PS provides power to all the modules installed in the BS-SH chassis. The BS-PS front panel is shown in Figure 1-10‚ page 1-16. Figure 1-10: BS-PS Front Panel The BS-PS provides a power input connector (marked -48V) for connecting the -48VDC power source to the module.
Page 69: The Bs-Ps-Ac
IF Based Equipment The BS-PS-AC The BS-PS-AC is an AC to DC converter that provides power to all the modules installed in the BS-SH chassis. The BS-PS-AC front panel is shown in Figure 1-11‚ page 1-17. Figure 1-11: BS-PS-AC Front Panel The BS-PS-AC provides a power input connector (marked AC IN) for connecting the AC power cable to the mains.
Page 70: The Bs-Au
1-18 WARNING: If two power supply modules are used in the same chassis for redundancy, both power supplies must be of the same type. Do not use a mix of AC and DC power supply modules in the same chassis. The BS-AU Figure 1-12: BS-AU Front Panel Name...
Page 71: Bs-Sh Chassis And Modules Installation Procedure
IF Based Equipment The BS-AU provides the following interfaces: An Ethernet connector (marked ETH) for connecting the BS-AU to the network. A straight Ethernet cable should be used to connect the module to a hub, router or switch. An IF connector for connecting the BS-AU to an outdoor unit (AU-RE or AU-RA).
Page 72 1-20 power source and the black wire to the -48 VDC contact of the power source. Connect the red wire to the + (Return) contact. Connect the shield to the ground. 6. If a BS-PS-AC AC power supply is used, connect the AC power cable to the AC jack (marked AC IN) located on the front panel of the BS-PS-AC power supply.
Page 73: Installing The Gu-A-Bs Gps And Alarms System
IF Based Equipment 1-21 Installing the GU-A-BS GPS and Alarms System BS-GU Front Panel Figure 1-13: BS-GU Front Panel BreezeACCESS Version 4.3 System Manual...
Page 74 1-22 Table 1-10: BS-GU Connectors Connector Name SYNC IN Receives signals from the GPS antenna unit. If more than one collocated BS-GU module is daisy-chained, this connector is used by a “Slave” module to receive signals from the “Master” module’s SYNC OUT connector. SYNC OUT Transfers the signals received on the SYNC IN port.
Page 75: Installing The Gu-Ra Gps Antenna
IF Based Equipment Installing the GU-RA GPS Antenna 1. Screw the GPS antenna firmly to the special 1” threaded pole. 2. Use the mounting kit supplied with the unit (or any other suitable means) to secure the GPS antenna pole to an existing pole (e.g. any pole used for mounting base station antennas or the outdoor units of the BreezeACCESS Access Units).
Page 76: Installing The Bs-Gu Module
Failure to do so may void the BreezeACCESS product warranty and may expose the end user or the service provider to legal and financial liabilities. Alvarion and its resellers or distributors are not liable for injury, damage or violation of regulations associated with the installation of outdoor units or antennas.
Page 77 About This Chapter This chapter explains how to install BreezeACCESS SU-R units and includes the following sections: Packing Lists‚ page 2-2, lists the equipment that is packed with each BreezeACCESS SU-R unit. Installation Guidelines‚ page instructions for installing BreezeACCESS SU-R units. Installing SU-R Indoor Units‚...
Page 78: Packing Lists
(monitor cable is supplied with Access Units) –Or– A portable PC equipped with an Ethernet card and with Telnet software, and an Ethernet cable (see Items marked with an asterisk (*) are available as options from Alvarion. Manual Revision: 3.0 BreezeACCESS Version 4.3 Installation 2-3) Table 2-1‚...
Page 79: Installation Guidelines
Indoor SU-R Units Table 2-1: Required Type of Ethernet Cable Unit Type SU-R Subscriber Unit Installation Guidelines This section describes the installation guidelines and the various considerations that must be taken into account when planning the installation. Location of the Unit The unit can be placed on a desktop or a shelf, or can be attached to a wall.
Page 80: Antenna Diversity
In applications where no multipath propagation is expected, a single antenna is sufficient to ensure good performance levels. However, in cases where multipath propagation exists, Alvarion recommends that two antennas be used. This takes advantage of space diversity capabilities. By using two antennas per unit, the system can select the best antenna on a per-packet basis (every several milliseconds).
Page 81: Installing Su-R Indoor Units
Indoor SU-R Units Lightning protection entails connecting an antenna discharge unit (also called an arrestor) to each cable as close as possible to the point where it enters the building. It also entails proper grounding of the arrestors and of the antenna mast (if the antenna is connected to one). The lightning arrestor should be installed and grounded at the point where the cable enters the building.
Page 82: Connecting The Omni Antennas
Connecting the Omni Antennas 1. Connect the omni antennas to antenna ports 1 and/or 2 on the sides of the unit. Push each antenna connection carefully into a port with the antenna facing downward and carefully turn the antenna upward to firmly lock it. 2.
Page 83 Indoor SU-R Units 1. Plug the output jack of the power transformer into the DC input jack (marked DC IN) located on the bottom panel of the unit. 2. Connect the supplied universal power transformer to a power outlet -110/ 220VAC.
Page 84 BreezeACCESS Version 4.3 Installation Manual Revision: 3.0...
Page 85 SU-I and AU-I Units About This Chapter This chapter explains how to install BreezeACCESS SU-I and AU-I units and includes the following sections: Packing Lists‚ page 3-2, lists the equipment that is packed with each BreezeACCESS SU-I and AU-I units. Installation Guidelines‚...
Page 86: Packing Lists
Packing Lists SU-I/I-D Subscriber Unit Subscriber Unit: SU-I with 2 integral omni antennas –Or– SU-I-D with connectors to external antenna(s) Power Supply 5 VDC universal power adaptor (Data only units) –Or– Desktop universal power transformer with an AC power cable (Data + Voice units) Mounting bracket for wall or ceiling installation A torque key for the antenna connectors (SU-I-D units)
Page 87 A portable PC equipped with an Ethernet card, Telnet software and an Ethernet cable (see Table 3-1‚ page 3-3) Items marked with an asterisk (*) are available as options from Alvarion. Table 3-1: Required Type of Ethernet Cable Unit Type...
Page 88: Installation Guidelines
In applications where no multipath propagation is expected, a single antenna is sufficient to ensure good performance levels. However, in cases where multipath propagation exists, Alvarion recommends that two antennas be used. This takes advantage of space diversity Manual Revision: 3.0...
Page 89: Antenna Polarization
The installer must install the lightning protector in a way that maximizes lightning protection. AL 1 Lightning Arrestor - Part No. 872905 5 ft (1.5m), “N” Male to “N” Female is available from Alvarion. BreezeACCESS Version 4.3 System Manual...
Page 90 Failure to do so may void the BreezeACCESS Product Warranty and may expose the end user to legal and financial liabilities. Alvarion and its resellers or distributors are not liable for injury, damage or violation of government regulations associated with the installation of detached antennas.
Page 91: Installing Su-I/I-D And Au-I/I-D Units
Indoor SU-R Units Installing SU-I/I-D and AU-I/I-D Units Connectors and LEDs The unit provides the following interfaces: An Ethernet connector (marked ETH) for connecting the unit to the network. See Table 3-1‚ page 3-3 for information on the required type of Ethernet cable. A TEL connector (Subscriber Units with voice support only) for connecting a regular telephone.
Page 92 Name Description POWER Power supply WIRELESS LINK Wireless Link Activity ETHERNET Ethernet activity SIGNAL Quality of received QUALITY RF signal Manual Revision: 3.0 Figure 3-3: SU-I Front Panel Table 3-2: SU-I LEDs Functionality On – After successful power up Off – Power off Blinking –...
Page 93: Wall Mounting The Unit
Indoor SU-R Units Figure 3-4:: AU-I Front Panel Name Description POWER Power supply WIRELESS LINK Wireless Link Activity LOAD Number of active subscriber units Wall Mounting the Unit Use the supplied brackets for wall mounting to install the unit on a wall or a ceiling.
Page 94 3-10 1. Turn the unit so the rear panel is facing you. 2. Unscrew the two screws located at the antennas end of the unit (the top screws). 3. Align the Unit Mounting Slots (see Figure 3-6) with the slots you have just unscrewed.
Page 95: Connecting The Unit To The Power Supply And To The Cpe
Indoor SU-R Units Connecting Antenna(s) to the Units For installation convenience, a torque key is included with all BreezeACCESS SU-ID and AU-ID units. WARNING: The use of improper tools for tightening antenna connection cables to BreezeACCESS units may result in damage to the cable connectors. Use the included torque key to tighten the cable(s) to the connector(s) on the side of the unit.
Page 96 3-12 1. Plug the output jack of the power transformer into the DC input jack (marked DC IN 5V) located on the side of the unit. 2. Connect the power transformer to a power outlet - 110/ 220VAC. 3. Use an Ethernet 10BaseT cable to connect a PC or a hub to the Ethernet port located on the rear panel of the unit.
Page 97 BreezeACCESS II Version 4.3 Revision 3.0 System Manual Book 3: Commissioning...
Page 99 Setting Basic Parameters ...1-1 Accessing the Monitor Program ...1-2 Accessing the Monitor Program using the RS 232 MON Connector ...1-2 Accessing the Monitor Program using Telnet ...1-3 Operating the Monitor Program ...1-4 Configuring Basic Parameters in Access and Subscriber Units ...1-5 Configuring Parameters in GU-A-BS Units ...1-6 Introduction ...1-6 Optimizing the Wireless Link ...2-1...
Page 100 BreezeACCESS Version 4.3 Commissioning AU-RA/RE Outdoor Units LEDs ... 4-4 SU-NI and AU-NI Indoor Units LEDs ... 4-5 BS-PS DC Power Supply Module LEDs ... 4-5 BS-PS-AC AC Power Supply Module LEDs ... 4-5 BS-AU LEDs ... 4-6 BS-GU LEDs ... 4-6 SU-R LEDs ...
Page 101: Basic Parameters
Basic Parameters About This Chapter This chapter explains how to configure the basic parameters of the BreezeACCESS system and includes the following section: Accessing the Monitor Program‚ page accessyour BreezeACCESS units for configuration. Configuring Basic Parameters in Access and Subscriber Units‚ page 1-5, outlines the basic configuration process for BreezeACCESS AU and SUs.
Page 102: Accessing The Monitor Program
Accessing the Monitor Program Accessing the Monitor Program using the RS 232 MON Connector 1. Use the monitor cable to connect the MON connector of the unit to the COM port of your ASCII ANSI terminal or PC. The COM port connector on the monitor cable is a 9-pin D-type plug.
Page 103: Accessing The Monitor Program Using Telnet
Setting Basic Parameters BreezeACCESS/AU-BS Official Release Version – 4.0.40 Release Date: Thu Dec 20 20:21:36 2001 Main Menu ===================== 1 – Info Screens 2 – Unit Control 3 – Basic Configuration 4 – Site Survey 5 – Advanced Configuration X – Exit >>>...
Page 104: Operating The Monitor Program
Table 1-2: Required Type of Ethernet Cable Unit Type All SU-R Units and Subscriber Units that support a single Ethernet device (SU-1D, SU-1D1V) Subscriber Units (excluding SU-R Units) that support multiple Ethernet devices (SU-BD, SU-BD1V) Access Units GPS module 2. The Select Access Level menu appears. Select the access level according to your authorized access rights.
Page 105: Configuring Basic Parameters In Access And Subscriber Units
Setting Basic Parameters Configuring Basic Parameters in Access and Subscriber Units The Basic Configuration menu in the Monitor program includes all the parameters necessary for the initial operation of BreezeACCESS Subscriber and Access Units. In many installations, most of these parameters should not be changed from their default values.
Page 106: Configuring Parameters In Gu-A-Bs Units
Table 1-3: Subscriber and Access Units Basic Parameters Parameter Receive Attenuation Control (IF-based SU) Scanning Mode (SU) ESSID Operator ESSID Option (AU) Operator ESSID (AU) Best AU Support (SU) Preferred AU MAC Address (SU) VLAN Link Type VLAN ID – Management Authentication Algorithm Default Key ID (SU) WEP Key 1-4...
Page 107 Setting Basic Parameters Refer to Book 4: Operation and Administration for detailed information on the applicable parameters. In many installations, most of these parameters should not be changed from their default values. The following list includes the basic parameters and their default values: Table 1-5: GU-A-BS Units Basic Parameters Parameter IP Address...
Page 108 BreezeACCESS Version 4.3 Commissioning Manual Revision: 3.0...
Page 109 the Wireless Link About This Chapter This chapter explains how to optimize the performance of the wireless link of BreezeACCESS Subscriber Units and includes the following sections: Configuring the Maximum Data Rate (Subscriber Units)‚ page 2-2, explains how to read the RSSI measurement and to configure the optimum value for the Maximum Data Rate parameter.
Page 110: Configuring The Maximum Data Rate (Subscriber Units)
Configuring the Maximum Data Rate (Subscriber Units) The BreezeACCESS units transmit at data rates of 3 Mbps, 2 Mbps and 1Mbps. If the quality of the link is not sufficient, it is recommended to decrease the value of the Maximum Data Rate. Note that the higher the data rate, the higher the error rate.
Page 111: Aligning The Antenna Of The Su-A/E Subscriber Unit
Optimizing the Wireless Link Aligning the Antenna of the SU-A/E Subscriber Unit NOTE: Antenna alignment using the RSSI bar display is possible only after the Access Unit you wish to associate with is operational and the basic parameters in the Subscriber Unit were properly configured.
Page 112: Configuring The Transmit Power Of The Au-Re
Configuring the Transmit Power of the AU-RE The transmitted output power of the AU should be adjusted in the following cases: If there is a need to cover a relatively small area and to minimize the interference with the operation of neighboring cells. According to the FCC rules 15.247 (3), when operating the equipment in a multi-point system, the RF output power must be adjusted according to the gain of the antenna to limit the EIRP to a...
Page 113: Positioning The Su-I Or Su-R Subscriber Unit
Optimizing the Wireless Link Positioning the SU-I or SU-R Subscriber Unit with Omni Antennas for Optimal Operation To identify the best location for the unit you can either use the signal quality LED indicators on the front panel of the unit or view the Received Signal Strength Indication (RSSI) on the monitor.
Page 114: Aligning The External Antenna Of Su-R And Su-I-D Units
Aligning the External Antenna of SU-R and SU-I-D Units For Subscriber Units with directional antenna(s), you can either use the signal quality LED indicators on the front panel of the unit or view the Received Signal Strength Indication (RSSI) on the monitor. In most installations, alignment using the LEDs is sufficient.
Page 115: Bs-Gu Connectors
Chapter 3 BS-GU Connectors About This Chapter This chapter explains how to connect external devices to the AL IN and AL OUT connectors of the BS-GU module. It also includes a description of the cable connecting the BS-GU to the GPS antenna and of the SYNC IN/SYNC OUT connectors’...
Page 116: Connecting External Devices To The Bs-Gu Al In
Connecting External Devices to the BS-GU AL IN and/or AL OUT Connectors Open-ended cables are available from the company for connecting to the module external alarm inputs through the AL IN connector and/or activating external devices through the AL OUT connector. See the tables that follow for descriptions of the connectors’...
Page 117: Alarms Out Cable
Connecting External Alarm Devices Alarms Out Cable Table 3-2: Alarms Out Cable 9-pin Micro D-Type AL OUT Connector NOTE: The other side of the cable is supplied open-ended. The cable shield is connected to the body of the connector. GPS Cable Cable Type: EIA RS-422 3X2X25AWG +1X2X24 AWG FTP Shielded cable.
Page 118 NOTE: *Descriptions are with respect to the BS-GU SYNC IN connector side. Figure 3-1 shows a 9-pin Micro D-Type Connector (cable side), and Figure 3-2 shows a 12-pin round connector. Figure 3-1: 9-pin Micro D-Type Connector (cable side) Figure 3-2: 12-pin Round Connector Manual Revision: 3.0 BreezeACCESS Version 4.3 Commissioning 9-pin Micro D-Type connector...
Page 119: Sync Cable
Connecting External Alarm Devices SYNC Cable Cable Type: EIA RS-422 3X2X25AWG +1X2X24 AWG FTP Shielded cable. 9-pin Micro D-Type SYNC OUT Connector GPS TX+/SYNC D+ GPS TX-/SYNC D- 1PPS+/SYNC S+ 1PPS-/SYNC S- DC GPS Slave 3,4,7 Not connected NOTE: * Descriptions are with respect to the SYNC OUT connector side. The SYNC cables shield is connected to the body of the micro D-Type connectors.
Page 120 BreezeACCESS Version 4.3 Commissioning Manual Revision: 3.0...
Page 121 Proper Operation About This Chapter This chapter explains how to confirm that the BreezeACCESS system is functioning properly and includes the following sections: Verifying Connectivity ‚ page 4-2 your BreezeACCESS and the equipment connected to them are operating properly. LED Indicators ‚ page 4-4 units and their meanings.
Page 122: Verifying Connectivity
Verifying Connectivity Verifying the Ethernet Connection Once you have connected the unit to an Ethernet outlet, verify that the Ethernet Integrity indicator (the yellow LED embedded in the Ethernet connector) is on, indicating that the unit is connected to an Ethernet segment.
Page 123: Verifying Proper Operation Of The Gu-A-Bs Gps Unit
Verifying Proper Operation Verifying Proper Operation of the GU-A-BS GPS Unit NOTE: It may take up to 10 minutes from the time the GU-RA GPS antenna is powered up until it is fully synchronized with the GPS satellite system. When the unit is operating properly, the PWR and OK green LEDS should be on, indicating that the BS-GU module is supplying power to the GU-RA GPS antenna and that the GPS antenna is functioning properly.
Page 124: Led Indicators
LED Indicators To verify correct operation of the units, view the status of the relevant LED indicators: SU-RA/RE Outdoor Units LEDs Table 4-1: SU-RA/RE Outdoor Units LEDs Name Description ALARM Alarm indication WLNK Wireless link activity Ethernet activity AU-RA/RE Outdoor Units LEDs Table 4-2: AU-RA/RE Outdoor Units LEDs Name Description...
Page 125: Su-Ni And Au-Ni Indoor Units Leds
Verifying Proper Operation SU-NI and AU-NI Indoor Units LEDs Table 4-3: SU-NI and AU-NI Indoor Units LEDs Name Description Power supply On – After successful power up, indicating that 12 VDC is supplied to the outdoor unit. Off – Power off or DC/DC converter failure (12 VDC not supplied to the outdoor unit) WLNK Wireless link...
Page 126: Bs-Au Leds
BS-AU LEDs Name Description Power supply 12 VDC WLNK Wireless link activity ALRM Alarm MASTER Master unit BS-GU LEDs LED Name PWR (green) On – Power supply functioning properly. Off – Power supply not functioning properly. OK (green) On – Proper signals are being received from the GPS antenna. Off –...
Page 127: Su-R Leds
Verifying Proper Operation SU-R LEDs Name Description Power supply SIGNAL Quality of QUALITY received RF signal SU-I/SU-I-D LEDs Name Description POWER Power supply WIRELESS Wireless Link LINK Activity ETHERNET Ethernet activity SIGNAL Quality of QUALITY received RF signal Table 4-8: SU-R LEDs Functionality On –...
Page 128: Au-I/Au-I-D Leds
AU-I/AU-I-D LEDs Table 4-10: AU-I/AU-I-D LEDs Name Description POWER Power supply WIRELESS Wireless Link LINK Activity LOAD Number of active subscriber units Manual Revision: 3.0 BreezeACCESS Version 4.3 Commissioning Functionality On – After successful power up Off – Power off Blinking –...
Page 129 BreezeACCESS II Version 4.3 Revision 3.0 System Manual Book 4: Operations and Administration...
Page 131 Accessing the Monitor Program ...1-1 Accessing the Monitor Program using the RS 232 MON Connector ...1-2 Accessing the Monitor Program using Telnet ...1-3 Operating the Monitor Program ...1-4 Menus and Parameters ...2-1 Main Menu ...2-2 Info Screens Menu ...2-3 Show Unit Status ...2-3 Show Basic Parameters ...2-5 Show Advanced Parameters ...2-5 Show All Parameters ...2-5...
Page 132 BreezeACCESS Version 4.3 Operations and Administration Service Parameters (AU and SU) ... 2-73 RADIUS Parameters Menu (Subscriber Units only) ... 2-77 Security Parameters (AU and SU) ... 2-81 Voice Parameters (Subscriber Units with Voice Support Only) ... 2-83 Dialing Parameters (Subscriber Units with Voice Support Only) ...
Page 133: Accessing The Monitor Program
Chapter 1 Accessing the Monitor Program About This Chapter This chapter explains how to access the monitor program. It also describes how to use the monitor program to set up, configure, and manage BreezeACCESS Broadband Wireless Access system units. This includes the Subscriber Units (SUs), Access Units (AUs) and GPS and Alarms modules (GUs).
Page 134 The GU-BS GPS and Alarms module does not have an external MON port. It does have an internal MON port that can be used in laboratory conditions (consult Alvarion technical support for further details). It is recommended to use Telnet to access the monitor program of the GU-BS.
Page 135: Accessing The Monitor Program Using Telnet
Accessing the Monitor Program Accessing the Monitor Program using Telnet 1. Connect a PC to the Ethernet port of the unit. See the table below to determine the type of cable. Configure the PC’s IP parameters to enable connectivity with the unit (the default IP Address is 10.0.0.1). Run the Telnet application.
Page 136: Operating The Monitor Program
Screens option is displayed. Users with this access level cannot access the Unit Control, Basic Configuration, Site Survey and Advanced Configuration menus. For users with Installer access rights, the first four menu items (Info Screens, Unit Control, Basic Configuration and Site Survey) are displayed.
Page 137: Menus And Parameters
About This Chapter This chapter describes the BreezeACCESS configuration menus and parameters. It includes the following sections: Main Menu‚ page 2-2. Info Screens Menu‚ page Unit Control Menu‚ page 2-6. Basic Configuration Menu‚ page 2-13. Site Survey Menu‚ page 2-15. Advanced Configuration Menu‚...
Page 138: Main Menu
Main Menu From the Main Menu you can access the following menus, depending on your access level: Info Screens – Provides read-only display of current parameter values. Available at all access levels. Unit Control – Enables access to general operations such as resetting the unit, loading the default parameters, changing passwords and switching between software versions.
Page 139: Info Screens Menu
Menus and Parameters Info Screens Menu BreezeACCESS/AU-BS Official Release Version – 4.0.40 Release Date: Thu Dec 20 21:05:08 2001 Info Screens ==================== 1 – Show Unit Status 2 – Show Basic Parameters 3 – Show Advanced Parameters S – Show All Parameters >>>...
Page 140 Console Speed – Displays the speed defined in the unit for the connected terminal, used for running the terminal emulation program. Number of Associations Since Last Reset – For SUs - displays the total number of associations with any AU since the last reset, including duplicate associations with the same AU.
Page 141: Show Basic Parameters
Menus and Parameters The following parameter appears for GPS Modules only: Unit Status – Indicates the status of the GPS antenna. Either one of the following messages may be displayed: UTC is available; date..; time..: This message indicates that the GPS antenna has synchronized with the satellite system and that the BS-GU is functioning properly.
Page 142: Unit Control Menu
Set Complete Factory Defaults – Available only with Administrator access rights. Resets the unit to the set of Alvarion’s standard default values. These are the default values as defined in this manual for each of the parameters. After the next reset all parameters will revert to their Factory Defaults value, except for the parameters that are marked in the “Complete”...
Page 143 Menus and Parameters Table 2-1: Parameters not changed after Set Complete/Partial Factory Defaults Parameter Unit Control Parameters Passwords Event Log Policy Auto Configuration Option IP Parameters IP Address Subnet Mask Default Gateway Address DHCP Option Access to DHCP Air Interface Parameters ESSID Operator ESSID Option Operator ESSID...
Page 144 (Continued) Parameter VLAN Priority – Voice VLAN Priority Threshold VLAN Priority Tag Security Parameters Authentication Algorithm Default Key ID WEP Key 1 to 4 Network Management Parameters Access To Network Management Network Management Filtering Network Management IP Addresses Send SNMP Traps Per Trap Control (all Send Trap Parameters) SNMP Traps IP destination SNMP Traps Community...
Page 145 Menus and Parameters Set Complete Operator Defaults – Available only with Administrator access rights. Set the unit to its’ Operator Defaults configuration. After the next reset, all parameters will revert to their Operator Defaults values, except for the parameters that are marked in the “Complete” column of Table 2-1‚...
Page 146 2-10 Change Password – Changes the password(s). A user with Installer access rights can change the passwords for Read Only and Installer levels. A user with Administrator access rights can change the passwords of all levels. Valid values: A string of up to 8 printable ASCII characters. Table 1-1‚...
Page 147 Menus and Parameters for storing it. Events are classified according to their severity level: Trace (lowest severity), Message, Warning, Error or Fatal (highest severity). The severity at which events are saved in the Event Log is configurable. Events from the configured severity and higher are saved and may be displayed upon request.
Page 148 2-12 The address of the TFTP server and the proper name of the configuration file must be configured in the DHCP server: The Server Address should be specified in the ‘sname’ field of the DHCP header. The code for this option is 66, and the minimum length is 1.
Page 149: Basic Configuration Menu
Menus and Parameters Basic Configuration Menu The Basic Configuration menu includes all the parameters that are necessary for the initial installation and operation of the unit. Once the unit is properly installed and operational, other parameters can be configured either locally using the monitor program or remotely using Telnet, SNMP management or TFTP for loading to the unit a pre-prepared configuration file.
Page 150: Vlan Parameters
2-14 VLAN Parameters VLAN ID – Management (AU and SU without voice support) (see page 2-57) VLAN ID – Voice & Management (SU with voice support) (see page 2-58) VLAN Link Type Security Parameters Authentication Algorithm Default Key ID WEP Key # 1 WEP Key # 2 WEP Key # 3 WEP Key # 4...
Page 151: Ethernet Counters
Menus and Parameters Site Survey Menu The Site Survey menu provides various tests and counters for verifying the quality of the wireless link and the proper operation of the unit. These tests can be used to help determine where to position the units for optimal coverage, to align antennas and to assist in troubleshooting.
Page 152 2-16 Wireless Link Counters The unit transmits data frames received from the Ethernet port, as well as self-generated control and wireless management frames, to the wireless media. After transmission of a unicast frame, the unit waits for an acknowledgement (ACK) message from the receiving unit. Some control and wireless management frames as well as broadcast and multicast frames that are sent to more than one unit are not acknowledged.
Page 153 Menus and Parameters If the ACSE Option is enabled, then in addition to the total count, there are also separate counters for total number of data frames and voice (RTP) frames. The voice frames count includes fax frames. This is true also for Subscriber Units that do not support voice in cells where the ACSE Option in the AU is enabled.
Page 154: Voice Statistics (Su With Voice Support Only)
2-18 Bad fragments received – Displays the number of frames received from the wireless media with errors (CRC errors). Duplicate frames discarded – Displays the number of frames discarded due to receiving multiple copies. If an acknowledge message was not received by the originating unit, the same data frame can be properly received twice (or more).
Page 155: Ping Test (Au, Su And Gu)
Menus and Parameters The number of the information row, assigned automatically and sequentially by the program. Freq The hopping frequency, according to the hopping sequence. The accumulated number of frames received at the specified frequency since last reset. The accumulated number of frames transmitted successfully at the specified frequency since last reset.
Page 156: Continuous Link Quality Display (Available In Su Only)
2-20 Start Sending – Starts transmission of ping frames. Stop Sending – Stops the transmission of ping frames. The test will end automatically once the number of pings that were sent has reached the value specified in the No. of Pings parameter (described above).
Page 157 The MAC address of the AU (appears twice as it is learned from both the Ethernet and the wireless ports) Alvarion’s Multicast address (01:20:D6:00:00:01, also twice). The system handles this address as a Broadcast address. The Ethernet Broadcast address (FF-FF-FF-FF-FF-FF)
Page 158 2-22 The SW version of the SU. Table 2-2: Association Process (Active Scanning) Message SU Scanning* Probe Request (including ESSID) - Scanning Probe Response (only if correct ESSID in Probe Request) SU Synchronized Authentication Request Challenge Text Challenge Text Encrypted Authentication Successful SU Authenticated Association Request...
Page 159: Per-Rate Counters (Au And Su)
Menus and Parameters Per-rate Counters (AU and SU) Resets or displays the per-rate counters. The per-rate counters display the number of frames (excluding retransmissions) transmitted since the last reset at each of the rates (1 Mbps, 2 Mbps, 3 Mbps) and the total number of frames that were retransmitted at each of the rates.
Page 160: Au Alarms (If-Based Au Only)
2-24 AU Alarms (IF-based AU Only) The AU Alarms feature enables to identify and alert upon the detection of a potential problem in the outdoor unit of the AU, or another problem that causes significant degradation in the performance of the wireless link.
Page 161: Power Tests
Menus and Parameters In addition, the Average Rate is also calculated for each of the above traffic statistics rates, using the formula Ra(t)=[Rc*1 +Ra(t-1)*5]/6, where: Rc - Current Rate Ra(t) - The new value of the Average Rate for the applicable rate. Ra(t-1) - the previous Average Rate of the applicable rate.
Page 162 2-26 Based on the RSSI information responses from the SUs, the AU performs a calculation of the SU Rx Power Average Delta, defined as the average difference for all SUs between the last RSSI at the SU and the previous (one before last) RSSI. The average is calculated only for SUs that responded to both of the last two polling message.
Page 163 Menus and Parameters Association Tests If the AU was reset 3 times because no SU became associated with it, a No Associations critical alarm will be generated, provided that previously the AU was associated with at least Minimum Number Of SUs.
Page 164 2-28 All Associations Lost Alarm Severity: Major On Conditions: No response from any SU to the last 3 polling messages, and prior to that the average number of responding SUs was not lower than the Minimum Number Of SUs. Off Conditions: Possible Problem: Unlocked synthesizer, very low Tx power or another major HW problem.
Page 165 Menus and Parameters High Retransmissions Rate Alarm Severity: Minor, Major On Conditions: Minor Severity Alarm: Major Severity Alarm: The Retransmissions Current Rate is higher than the Retransmissions Major Alarm Threshold. Off Conditions: Possible Problem: a. The Retransmissions Current Rate exceeds the Retransmissions Minor Alarm Threshold, and is higher than the Retransmissions Average Rate by at least Retransmissions Minor Alarm Minimum Delta,...
Page 166 2-30 High Dropped Frames Rate Alarm Minor, Major Severity: On Conditions: Minor Severity Alarm: Major Severity Alarm: The Dropped Frames Current Rate is higher than the Dropped Frames Major Alarm Threshold. Off Conditions: Possible Problem: Manual Revision: 3.0 BreezeACCESS Version 4.3 Operations and Administration a.
Page 167 Menus and Parameters High CRC Error Rate Alarm Severity: Minor, Major On Conditions: Minor Severity Alarm: Major Severity Alarm: The CRC Error Current Rate is higher than the CRC Error Major Alarm Threshold. Off Conditions: Possible Problem: a. The CRC Error Current Rate exceeds the CRC Error Minor Alarm Threshold, and is higher than the CRC Error Average Rate by at least CRC Error Minor Alarm Minimum Delta,...
Page 168 2-32 High Duplicate Frames Rate Alarm Severity: Minor, Major On Conditions: Minor Severity Alarm: Major Severity Alarm: The Duplicate Frames Current Rate is higher than the Duplicate Frames Major Alarm Threshold. Off Conditions: Possible Problem: Manual Revision: 3.0 BreezeACCESS Version 4.3 Operations and Administration a.
Page 169 Menus and Parameters The AU Alarms Menu The AU Alarms menu enables to configure relevant parameters and to view current statistics. The AU Alarms menu is available only with Administrator access rights, except for Show All AU Alarms Parameters and Data that is also available with Installer access rights. AU Alarms Option - Enables to enable or disable the AU Alarms feature.
Page 170 2-34 The default parameters for these alarms is as follows: Retransmission Minor Alarm Minimum Delta Retransmission Minor Alarm Threshold Retransmission Major Alarm Threshold Dropped Frames Minor Alarm Minimum Delta Dropped Frames Minor Alarm Threshold Dropped Frames Major Alarm Threshold CRC Error Minor Alarm Minimum Delta CRC Error Minor Alarm Threshold CRC Error Major Alarm Threshold Duplicate Frames Minor Alarm Minimum Delta...
Page 171 Menus and Parameters Default value: 15 (dBm). Show AU Rx Power Test Parameters and Data - Displays the value of the AU Rx Power Decrease Threshold and the current AU Rx Power Average Delta. Responding SUs - a sub menu that includes the following options: Minimum Average Number Of SUs - Enables to define the minimum average number of SUs required for association tests.
Page 172: Advanced Configuration Menu
2-36 Advanced Configuration Menu The Advanced Configuration menu provides access to all the parameters, including the parameters that are available through the Basic Configuration menu. The Advanced Configuration menu provides access to the following menus: IP Parameters (AU, SU and GU) Air Interface Parameters (AU and SU) Network Management Parameters (AU, SU and GU) Bridge Parameters (AU and SU)
Page 173: Air Interface Parameters (Au And Su)
Menus and Parameters DHCP Client DHCP Options – Displays the current status of the DHCP (Dynamic Host Configuration Protocol) support, and allows selecting a new operation mode. The available options are: Disable – Use manual procedure for configuring the IP parameters.
Page 174 BreezeACCESS Version 4.3 Operations and Administration 2-38 parameter is only set in the AU. All the SUs learn it from the AU during the association process. The valid values depend on the applicable hopping standard (see Table ý3-2 on page 31). The default value is 1.
Page 175 Menus and Parameters Table 2-3: Country Standards Supported by BreezeACCESS II Country Frequency Standard Range [MHz] Australia 2402 to 2461 Canada 2452 to 2481 Europe ETSI 2402 to 2480 France 2448 to 2482 Israel 2421 to 2455 Korea 2430 to 2452...
Page 176 2-40 NOTE: Synchronization is not allowed by the radio regulations in certain countries. In units using such standards, the Hopping Sync option is not supported. See Table 2-3‚ page 2-39 for information on synchronization support in the standards of various countries.
Page 177 Menus and Parameters Best AU Selection Parameters In BreezeACCESS systems with software version 3.0 and below an SU can associate with any AU it can communicate with, provided they both use the same ESSID. An SU that can communicate with more than one AU using the same ESSID becomes associated with the first AU it “finds”, not necessarily the best choice in terms of quality of communication or other factors such as number of SUs serviced by...
Page 178 2-42 neighboring AUs. A higher number may result in a better decision at the cost of an increased scanning time during which the SU is not operational. Valid values: 1 - 255. Default value: 20. The scanning time can be calculated based on the following formula: Scanning Time (seconds) = N * C * 0.019 N = Number of scanning attempts...
Page 179 Menus and Parameters page 2-48). An AU whose associations load status is full cannot be selected as the Best AU, even if its’ computed mark is the highest. ESSID – The ESSID of the AU In addition to the neighboring AU data table, the following information is displayed: Best AU Support Preferred AU MAC Address...
Page 180 2-44 received at an optimal level, or as high as possible if the optimal range cannot be reached because of specific link conditions. Each time that the SU tries to associate with the AU (following either a reset or loss of synchronization), it will initiate transmissions using the Current Transmit Power Control, which is the last value that was previously used by the ATPC mechanism.
Page 181 Menus and Parameters Table 2-4 Cable attenuation Transmit power Outdoor power Control (dBm) 24+/- 2 24+/- 2 24+/- 2 23+/- 3 23+/- 3 23+/- 3 23+/- 3 23+/- 3 22+/- 4 22+/- 4 22+/- 4 21+/- 4 21+/- 4 20+/- 5 19+/- 5 18+/- 5 Power Level - Applicable to all SU-R units and to SU-I/AU-I units.
Page 182 2-46 Minimum RSSI Level: Enables you to define the lowest level at which you want each SU to be received at the AU (the lower limit of the optimal reception level range). Available values: -100 to 0dBm. Default value: -74 dBm Maximum RSSI Level: Enables you to define the highest level at which you want each SU to be received at the AU (the higher limit of the optimal reception level range).
Page 183 Menus and Parameters ATPC Parameters in IF Based SU ATPC Option: To enable or disable the Automatic Transmit Power Control (ATPC) algorithm. The parameter takes effect immediately. However, when changed from Enable to Disable, the transmit power level shall remain at the last level determined by the ATPC algorithm before it was disabled.
Page 184 2-48 symmetrical and that this value is a good indication to the level at which the SU is received by the AU. If the measured RSSI is less than a certain threshold, it is recommended to decrease the Maximum Data Rate of the SU in accordance with Table 2-5 (including a 3 dB safety margin).
Page 185 Menus and Parameters Default value: 512. NOTE: There is no aging time for SUs. An SU will be removed from the list of associated SUs only upon occurrence of any of the following: (1) The AU received from another AU a SNAP frame with the SU MAC address indicating that the SU has become associated with the other AU, or (2) The AU has decided that the SU aged out following its failure to acknowledge a certain number of consecutive frames transmitted to it.
Page 186 2-50 can be conducted by the SUs associated with this AU. If the number of active voice sessions reaches this number, any additional SU trying to initiate a voice session shall not get a dial tone. As this value increases, voice quality may deteriorate as more users share the same bandwidth for voice sessions.
Page 187 Menus and Parameters sessions generated by external equipment and routed via the Ethernet port of the Subscriber Unit. ACSE Option – Applicable only for an AU that provides services to Subscriber Units with voice capabilities. To enable/disable the ACSE Voice Scheduler protocol. The AU controls the operation of all the SUs it serves according to the configured ACSE Option.
Page 188 2-52 The default value is 30. Show ACSE Parameters – Displays the current settings of all ACSE parameters. The display in the SU includes the ACSE Option, which is only configurable in the AU. It also includes the ACSE Dwell Time, which is set to 60 milliseconds. Scanning Mode (SU only) –...
Page 189: Network Management Parameters (Au, Su And Gu)
Menus and Parameters SU-I: 60 (RSSI units) Send Roaming SNAP (SU- only, except to SU-BD and SU-BD1V) - This feature is applicable only to mobile units that can roam among AUs. The feature enables fast distribution of the new location for all clients that are behind the SU.
Page 190 2-54 managed by stations whose IP addresses match one of the entries in the Set Network Management IP Addresses (see next parameter) that are connected to the unit via the defined port(s). Available options are: Disable – No IP address based filtering Activate Management IP Filter On Ethernet Port –...
Page 191 Menus and Parameters SNMP Traps – This submenu enables configuring SNMP Traps sending parameters. It includes the following options: Traps Control - Enables/disables transmission of SNMP traps; Send SNMP Traps – Enables/disables sending of SNMP traps. Available options are: Enable Traps Sending - enables sending of SNMP Traps. The Traps that will be sent can be defined by the Per Trap Control menu.
Page 192: Bridge Parameters (Au, Su And Gu)
2-56 Trap Send AU Alarms Traps SNMP Traps IP Destination – Displays the current values of 3 IP addresses that are defined as the trap destinations. Allows entering a new address for each of the 3 entries. The default of all three SNMP Traps IP Destinations is 0.0.0.0.
Page 193 Menus and Parameters The VLAN Support option allows viewing and setting of the following parameters: VLAN ID-Data (SU unit only) – Applicable for Access links only. Sets the VLAN ID for data frames, identifying the VLAN to which the unit belongs. Valid values: 1 to 4094.
Page 194 2-58 • Management frames generated by the unit will not be tagged. The following table summarizes the functionality of the internal management port in accordance with the value of the VLAN ID – Management parameter. The table is valid for all link types. Table 2-7: Management Port Functionality –...
Page 195 Menus and Parameters • Management frames generated by the unit will not be tagged. • If the Voice Priority Tag Option is enabled, a VLAN Priority Tag is inserted in all voice frames (RTP packets) generated by the unit before transmission to the Wireless or Ethernet port.
Page 196 2-60 Action Accept from Ethernet Untagged frames Accept from Wireless Tagged frames, matching VID-D Tag Insert VID-D, PID-D (to wireless) Tag Remove Yes (to Ethernet) Legend: VID-D: VLAN ID-Data PID-D: VLAN Priority-Data Trunk Link – Transfers only tagged frames, because all devices connected to it are VLAN-aware: Only tagged data frames received on Ethernet or wireless link ports are forwarded.
Page 197 Menus and Parameters Table 2-10: VLAN Data Port Functionality Summary – Trunk Link Action Accept from Ethernet Tagged frames. If Forwarding is enabled, only frames with VLAN ID values which are included in the Forwarding list are forwarded. Accept from Wireless Tagged frames.
Page 198 2-62 VLAN Forwarding Support – Enables or disables the VLAN Forwarding feature. Available selections are Disable and Enable. The default selection is Disable. Add Forwarding VLAN ID – Adds a VLAN ID to the VLAN Forwarding List. One VLAN ID can be entered each time. The maximum number of VLAN IDs in the VLAN Forwarding List is 20.
Page 199 Menus and Parameters Show VLAN ID Relaying List – Displays the values of the VLAN IDs that are included in the VLAN Relaying List. NOTE: If the VLAN ID Relaying List is empty and the VLAN Relaying Support is enabled, then all wireless link relayed data frames will be discarded. If the VLAN ID Relaying List and Forwarding List Support are both enabled, all the VLAN IDs configured in the Relaying List must also be configured in the Forwarding List.
Page 200 2-64 Valid values are 0-7. The default value is 0. NOTE: Packets Received from the Ethernet port with a ToS Precedence value higher than the ToS Precedence Threshold defined will be routed to the Mid queue. VLAN Priority – Management (AU, SU and GU)– Displays and sets the value of the VLAN Priority field for management frames in units with a VLAN ID- Management (or VLAN ID –...
Page 201 Menus and Parameters The default value is 4. Show VLAN Parameters – Displays the current values of the VLAN Support parameters. ToS Priority Parameters (AU and SU) ToS Priority – To set voice priority parameters to support end-to-end IPv4 Type of Service (ToS) Layer 3 prioritization according to RFC 791.
Page 202 2-66 Filter Options – Defines the Ethernet broadcast filtering functionality of the unit. The following options are available: Disable: No Ethernet broadcast filtering From Ethernet Only: Filter broadcast messages received from the Ethernet port From WLAN Only: Filter broadcast messages received from the wireless link port Both From Ethernet &...
Page 203 Menus and Parameters Disable– ARP Broadcast messages are filtered or transmitted according to the general filtering criteria set by the Filter Options parameter. Enable– ARP Broadcast messages are transmitted regardless of the selected value of the Filter Options parameter. The default selection is Enable. Other Bridging Parameters LAN to Wireless Link Bridging Mode (AU only) –...
Page 204 2-68 Ports Control (SU only) - To enable/disable the Ethernet and/or Voice port. The Ports Control submenu includes the following options: Ethernet Port Control - To enable/disable non-management traffic to/from the Ethernet port. All current data sessions will be terminated. The unit may still be managed via the Ethernet port even when it is disabled for data traffic.
Page 205: Performance Parameters (Au And Su)
Menus and Parameters Performance Parameters (AU and The Performance Parameters menu includes the following parameters: RTS Threshold – Defines the minimal frame size to require RTS/CTS (Request To Send/Clear To Send) handshake. Frames with a size below the RTS Threshold value are transmitted directly to the wireless link without being preceded with RTS frames.
Page 206 BreezeACCESS Version 4.3 Operations and Administration 2-70 Minimum Contention Window – The BreezeACCESS system uses a special mechanism based on detecting the presence of a carrier signal (Carrier Sense Multiple Access-CSMA) and analyzing the information contained in the transmissions of the AU to estimate the activity of other SUs served by the same AU.
Page 207 Menus and Parameters attempt) is based on counting transmissions, retransmissions and successful windows. A window is defined as N consecutive transmission or retransmission attempts, defined by the Multi-Rate Decision Window Size parameter. A successful window is a window in which the number of failed transmissions is not higher than a defined threshold.
Page 208 BreezeACCESS Version 4.3 Operations and Administration 2-72 Dwell Time (AU only) – The time spent on a radio channel before hopping to the next channel according to the operational hopping sequence. The allowed selections are 32, 64 and 128 Kilo-microseconds. The default value is 128 Kilo-microseconds.
Page 209: Service Parameters (Au And Su)
Menus and Parameters Level, it shall be considered as interference and it becomes the updated Current Noise Floor. Carrier to Interference Difference Level is the minimal difference between the Current Noise Floor and the level of a signal that will be defined as a “good”...
Page 210 2-74 User Defined Addresses Only (only IP messages from/to IP addresses included in the User Filter Addresses list pass). PPPoE Protocol Only (only PPPoE frames pass - Ethernet type 0x8863 and 0x8864). The default selection is Disable. Set User Filter Address – Displays the current User Filter IP addresses.
Page 211 Menus and Parameters that may influence the performance of the wireless link. In some situations the minimum rate (CIR) cannot be provided. This may occur as a result of high demand and poor wireless link conditions and/or high demand in cells with over subscription (total CIR higher than 1600Kbps).
Page 212 2-76 CIR: AU to SU (SU only) – Sets the Committed Information Rate of the down-link from the AU to the SU. The CIR value cannot be higher than the corresponding MIR value. Valid values are from 0 to 2200Kbps. The default value is 64Kbps.
Page 213: Radius Parameters Menu (Subscriber Units Only)
Menus and Parameters high number of subscribers are in locations that do not enable proper communication with the AU at the highest data rate. Valid values: 0 – 70 (%). Default value: 70 (%). Mir Only option (AU only) – Enables or disables the option of forcing the MIR/CIR algorithm to use MIR values only.
Page 214 2-78 the client and RADIUS server, using a method based on the RSA Message Digest Algorithm MD5. The Access-Request is submitted to the RADIUS server via the network. If no response is returned within a length of time, the request is re-sent a number of times.
Page 215 Menus and Parameters Valid values: A string of up to 20 printable ASCII characters, case sensitive. Default value: RadiusSecret1234. Authentication Parameters Menu The implementation is based on RFC 2865. The mechanism allows an SU to synchronize and associate to its AU, then request authentication from the RADIUS server.
Page 216 2-80 Server Accounting IP Address is configured to an address other than 0.0.0.0., the SU enables the RADIUS accounting client. The default is Disable. RADIUS Server Accounting IP Address –To define the IP address of the RADIUS server to be used for accounting. The default address is 0.0.0.0 (none).
Page 217: Security Parameters (Au And Su)
Menus and Parameters Table 2-13: Ethernet Vendor Specific Record Structure Field Format Traffic Type 1 hexadecimal digit VLAN ID 3 hexadecimal digits Layer 3 4 hexadecimal digits Protocol Remote IP xxx.xxx.xxx.xxx (decimal Address format) IP Type Of 2 hexadecimal digits Service VLAN Priority 1 hexadecimal digits...
Page 218 2-82 Shared Key: Authentication enabled. The authentication messages are encrypted. An SU configured to use Shared Key can be authenticated only by an AU configured to use Shared Key, provided they both use the same WEP Key. Both the WEP Key number and the WEP Key should be identical at both sides of the link.
Page 219: Voice Parameters (Subscriber Units With Voice Support Only)
Menus and Parameters NOTE: It is recommended to change the WEP Keys periodically, to enhance system security. Voice Parameters (Subscriber Units with Voice Support Only) The parameters in the Voice Parameters menu include the following options: Volume – Sets the gain of the voice signal to the earphone. Available range is 0 dB to -20 dB in 1 dB steps.
Page 220: Dialing Parameters (Subscriber Units With Voice Support Only)
2-84 The allowed range differs among codecs, in accordance with the different packet sizes (30 ms for G723.1, 10 ms for G729 and 5 ms for G711). The valid values and default values are: G723 Frames Per Packet – Valid range 1-8, Default value is 2 G729 Frames Per Packet –...
Page 221 Menus and Parameters into the IP address and to register its own phone number and IP address with the Gatekeeper. The default selection is Disable. GateKeeper/GateWay IP Address – Specifies the IP address of the Gateway/Gatekeeper. If the Gatekeeper Option parameter (see above) is set to Enable, an IP address must be specified.
Page 222 2-86 assumed to be the destination IP address. 12- and 3-digit numbers are allowed. 3- digit numbers are used to dial to stations in the same subnet, and 12- digit number are used to dial to any IP address. If a 3-digit number is dialed the Setup message is sent to the corresponding IP address in the local subnet.
Page 223 Menus and Parameters NOTE: This information element is encoded according to Figure 4-11/Q.931 and Table 4-6/Q.931. The SU support only H323 Speech traffic and a change of the default value is not recommended. A change will be needed only as result of special PSTN switch requirements.
Page 224 2-88 Default value: 0. Registration TTL – Defines the registration Time To Live. Registration is the process by which an endpoint informs the Gatekeeper of its Transport Addresses and alias addresses. Registration must occur before any calls are attempted and may occur periodically as necessary (for example, at endpoint power-up).
Page 225 Menus and Parameters Fax Relay – Defines the use of T.38 protocol for relaying fax messages. T.38 is a protocol dedicated to fax. When the Fax Relay Option is enabled, fax signals are demodulated at the voice/fax gateway and sent over the IP network as IP fax packets (IFP) using UDP.
Page 226 2-90 1200-baud tone modulation in accordance with Bellcore 202 standard. The Caller ID parameter is supported only by units using a Voice card HW revision D and higher. The following options are available: Disable ETSI DT-AS: CID signaling in accordance with ETSI ETS 300 659 -1, using Dual Tone Alerting Signal to indicated to the called terminal that CID data transmission is to be expected.
Page 227: Telephony Signals (Subscriber Units With Voice Support Only)
Menus and Parameters Upon enabling overlap sending, the settings of other dialing parameters are overridden as follows: IP Dialing Option, Dialing Prefix Option and Stop Dialing Indicator are disabled even if the applicable parameter is set to Enable. Automatic Prefix is not used and Stop Dialing Timeout has no effect.
Page 228 2-92 Error Tone – Defines the tone transmitted to the earphone to indicate that the system cannot currently support the call (e.g. if for any reason the call was disconnected because of a problem in the wireless link or incompatible capabilities) or if the user did not hang up after exceeding the specified duration of the Dial, Ring Back, Busy or Congestion Tones.
Page 229 Menus and Parameters Cadence Off – The silence time (on) in the ringing-silence sequence of the Ringer. Valid values are 100 – 10,000 milliseconds. Duration - The maximum duration of activating the ringer. Ringing will cease upon detecting off-hook condition. Valid values are 0 –...
Page 230 2-94 Table 2-15: Parameters of Call Progress Tones and Ringer - USA Frequency 1 Tone Freq Level (Hz) (dB) Dial Tone Ring Back Busy Congestion Error High Level Error Ring Frequency Table 2-16: Parameters of Call Progress Tones and Ringer - Sweden Frequency 1 Tone Freq...
Page 231 Menus and Parameters Table 2-18: Parameters of Call Progress Tones and Ringer – United Kingdom Frequency 1 Tone Freq Level (Hz) (dB) Dial Tone Ring Back Busy Congestion Error High Level Error Ring Frequency Table 2-19: Parameters of Call Progress Tones and Ringer - Belgium Frequency 1 Tone Freq...
Page 232 2-96 Min. Flash Country Detect (ms) Germany Sweden France United Kingdom Belgium Chile Manual Revision: 3.0 BreezeACCESS Version 4.3 Operations and Administration Table 2-21: Timeouts Max Flash Disconnect Detect (ms) (ms) 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000...
Page 233: Hopping Parameters (Gu)
Menus and Parameters Hopping Parameters (GU) The Hopping Parameters Menu allows configuration of the hopping mechanism. The GPS modules deliver signals to the Access Units that insure that their hopping patterns are fully synchronized. This includes synchronizing the time each unit starts a new hop and ensuring that units start the hopping sequence simultaneously.
Page 234 2-98 antenna to generate the synchronization signals for the AUs. When two or more BS-GU modules are daisy-chained, the signals from the GPS antenna are transferred to all "slave" BS-GU modules via the SYNC OUT - SYNC IN cable, and all BS-GUs use these signals to generate synchronization signals for their AUs.
Page 235: Alarm Parameters (Gu)
Menus and Parameters Automatic Recovery Mode - Enables to control an automatic recovery process: Automatic Recovery Option - To enable or disable automatic initiation of antenna recovery process. If a GPS antenna is not used, the Automatic Recovery Option should be disabled.
Page 236 2-100 Show Alarm Parameters. Alarms In Names The Alarms In Names menu allows names for each of the four external alarm indications that can be connected to the AL IN connector to be defined. These names can reflect the specific environment in which the module is being used (e.g.
Page 237 Menus and Parameters Alarms Out Control The Alarms Out Control menu allows the functionality of the Alarms Out control mechanism to be defined. Its main purpose is to support “manual” activation/deactivation of each of the Alarms Out either locally or remotely using Telnet or SNMP. For each of the three Alarms Out, the following control options are available: 0 –...
Page 238 BreezeACCESS Version 4.3 Operations and Administration 2-102 Name: Name according to the name defined in the Alarms In Names Menu. Definition: NONE, Alarm In # or ANY, according to the configuration in the Automatic Alarms Out Definition Menu. Control: OFF, ON or AUTO, according to the configuration in the Alarms Out Control Menu.
Page 239 BreezeACCESS II Version 4.3 Revision 3.0 System Manual: Appendices...
Page 241 Appendix A: Configuration Download/Upload This appendix describes the method of configuring a large number of BreezeACCESS units at once.
Page 242 The Configuration Download/Upload feature in BreezeACCESS units simplifies the task of remotely configuring a large number of units using TFTP protocol. By downloading the configuration file to a PC it is possible to view all the parameters configured at the unit, as it is a plain text ASCII file. It is necessary to edit the file by a using simple editor and to remove certain parameters or change their values prior to uploading the configuration to another unit.
Page 243: Software Version
General Firmware upgrades to the unit's FLASH memory are performed by a simple loading procedure using a TFTP application. Before performing an upgrade procedure, be sure you have the correct files and latest instructions. NOTE: Shutting down power to the unit before completion of the loading procedure may cause the unit to be inoperable.
Page 244 To verify the connection, ping the unit’s IP address. Verify that ping replies are being received. The procedure to be used depends on the unit’s FLASH memory type. Identify the FLASH memory type by using the monitor program, connecting the PC to the unit either directly or via Telnet. From the Main Menu, select 1 –...
Page 245 Appendix B NOTE: If you are upgrading a Subscriber Unit which is not associated with an AU, the unit will reset every five minutes (approximately) and the following message will be displayed: FTL: file src\wpscan.c line 262 Too large number of scanning attempts The unit will reset and it will take more than a minute before you can re-establish the connection to it.
Page 246 From the Flash Memory Control menu select 2 - Use Current Version After Reset. The Use Current Version After Reset menu opens. Select 1 – Set As Default Now and press ENTER. This will actually cause the names of the two versions to switch. The previous Shadow version will now be called Current and vise versa.
Page 247 Appendix B NOTE: If you are upgrading a Subscriber Unit which is not associated with an AU, the unit will reset every five minute (approximately) and the following message will be displayed: FTL: file src\wpscan.c line 262 Too large number of scanning attempts The unit will reset and it will take more than a minute before you can re-establish the connection to it.
Page 248 From the Flash Memory Control menu select 2 - Use Current Version After Reset. The Use Current Version After Reset menu opens. Select 1 – Set As Default Now and press ENTER. This will actually cause the names of the two versions to switch. The previous Shadow version will now be called Current and vise versa.
Page 249: Supported Mibs
Appendix C: Supported MIBs and Traps BreezeACCESS agents support the following MIBs: MIB-II (RFC1213) BRIDGE-MIB (RFC1286) BreezeCOM brzAccessMib BreezeCOM brzPhoneMib BreezeCOM brznetmib...
Page 250 BreezeACCESS System Object Identifiers Path: breezecom {(iso(1) org(3) dod(6) internet(1) private(4) enterprises(1) breezecom(710)} breezecomNewOID {breezecom 10} breezecomBreezeACCESSproducts {breezecomNewOID 2} breezecomBreezeACCESS_ACCESS {breezecomBreezeACCESSproducts 1} breezecomBreezeACCESS_General {breezecomBreezeACCESSproducts 2} Object breezecomSU_AE_1D breezecomBreezeACCESS_ACCESS 1 (710.10.2.1.1) breezecomSU_AE_8D breezecomBreezeACCESS_ACCESS 2 (710.10.2.1.2) breezecomSU_AE_BD breezecomBreezeACCESS_ACCESS 3 (710.10.2.1.3) breezecomSU_AE_1D1V breezecomBreezeACCESS_ACCESS 4 (710.10.2.1.4) breezecomSU_AE_8D1V breezecomBreezeACCESS_ACCESS 5...
Page 251 Appendix C Object breezecomAU_I breezecomBreezeACCESS_ACCESS 21 (710.10.2.1.21) breezecomSU_BS breezecomBreezeACCESS_ACCESS 22 (710.10.2.1.22) breezecomAU_BS_WA breezecomBreezeACCESS_ACCESS 23 (710.10.2.1.23) breezecomGU_BS breezecomBreezeACCESS_GENERAL 1 (710.10.2.2.1) brzAccessMIB Path: breezecom {(iso(1) org(3) dod(6) internet(1) private(4) enterprises(1) breezecom(710)} breezecomPrvRev {breezecom 3} brzAccessMib {breezecomPrvRev 3} Note: * is used instead of the brzacc prefix Service Parameters MIB Parameter (Location in Parenthesis)
Page 252 MIB Parameter (Location in Parenthesis) *RunTimeMirCirOption Applicable to SU only. Indicates the actual status 710.3.3.1.9 of the MIR/CIR option, which may be different (*ServiceParameters 9) from the setting of this parameter in the SU since it is controlled by the AU. *MirOnlyOption Applicable only to AU when CIR/MIR option is 710.3.3.1.10...
Page 253: User Filtering Parameters
Appendix C RADIUS Authentication Parameters MIB Parameter (Location in Parenthesis) *RadiusAuthParameters 710.3.3. 21 (brzAccessMib 21) *RadiusAuthOption 710.3.3. 21.1 (*RadiusAuthParameters 1) * RadiusServerAuthIpAddress 710.3.3. 21.2 (*RadiusAuthParameters 2) *RadiusServerAuthPort 710.3.3. 21.3 (*RadiusAuthParameters 3) *RadiusAuthenticationStatus 710.3.3. 21.3 (*RadiusAuthParameters 3) User Filtering Parameters MIB Parameter (Location in Parenthesis) *UserFilterParams...
Page 254 MIB Parameter (Location in Parenthesis) *DeleteOneUserFilter Applicable to SU only. Deletes a single selected entry 710.3.3.2.3 from the IP Filter Table. (*UserFilterParams 3) *DeleteAllUserFilters Applicable to SU only. Deletes all entries from the IP 710.3.3.2.4 Filter Table. (*UserFilterParams 4) Manual Revision: 3.0 BreezeACCESS Version 4.3 System Manual Description Integer...
Page 255: Network Management Parameters
Appendix C Network Management Parameters MIB Parameter (Location in Parenthesis) *NwMngParameters Network Management parameters. 710.3.3. 4 (brzAccessMib 4) *AccessToNwMng Applicable to AU and SU. The port to be 710.3.3. 4.1 used for remote management. (*NwMngParameters 1) wlanOnly: Management E from Wireless port only.
Page 256 MIB Parameter (Location in Parenthesis) *DeleteAllTrapAddrs Applicable to AU, SU and GU. Deletes all 710.3.3.4.9 entries from the Management Trap Table. (*NwMngParameters 9) *PerTrapControl Applicable to AU, SU and GU. Per Trap 710.3.3.4.10 Control parameters. (*NwMngParameters 10) Applicable to AU only. Enables\Disables *SendSUAssociatedAUTrap the sending of 710.3.3.4.10.1...
Page 257: Bridge Parameters
Appendix C Bridge Parameters MIB Parameter (Location in Parenthesis) *BridgeParameters 710.3.3. 5 (brzAccessMib.5) *EthBroadcastFiltering 710.3.3. 5.1 (*BridgeParameters 1) *VLANSupport 710.3.3. 5.2 (*BridgeParameters 2) *VlanID 710.3.3. 5.2.1 (*VLANSupport 1) *EthernetLinkType 710.3.3. 5.2.2 (*VLANSupport 2) *ManagementVID 710.3.3. 5.2.5 (*VLANSupport 5) *VoicePriorityTag 710.3.3. 5.2.6 (*VLANSupport 6) *VLANForwarding 710.3.3.
Page 258 C-10 MIB Parameter (Location in Parenthesis) *VlanRelayingEntry 710.3.3. 5.2.8.2.1 (*VlanRelayingTable 1) *VlanRelayingIdx 710.3.3. 5.2.8.2.1.1 (*VlanRelayingEntry) 1 *VlanIdRelaying 710.3.3. 5.2.8.2.1.2 (*VlanRelayingEntry 2) *VLANTrafficPriority 710.3.3. 5.2.9 (*VLANSupport 9) *VlanDataPriority 710.3.3. 5.2.9.1 (*VLANTrafficPriority 1) *VlanVoicePriority 710.3.3. 5.2.9.2 (*VLANTrafficPriority 2) *VlanManagementPriority 710.3.3. 5.2.9.3 (*VLANTrafficPriority 3) *PriorityQueueThreshold 710.3.3.
Page 259 Appendix C MIB Parameter (Location in Parenthesis) *PortsControl 710.3.3. 5.9 (*BridgeParameters 9) *EthernetPortControl 710.3.3. 5.9.1 (*PortsControl 1) *VoicePortControl 710.3.3. 5.9.2 (*PortsControl 2) Air Interface Parameters MIB Parameter (Location in Parenthesis) *AirInterface 710.3.3. 6 (brzAccessMib 6) *ESSID Applicable to SU and AU. The 710.3.3.
Page 260 Applicable to BS-AU only. 710.3.3. 6.7 Inter-AU hopping sync functionality (*AirInterface 7) of the unit. In the BreezeACCESS II family, synchronization among AUs is not available with the following Country Standards: US FCC, Australia, Canada. In the BreezeACCESS V family,...
Page 261 Appendix C MIB Parameter (Location in Parenthesis) *HoppingBands Applicable to SU and AU only. 710.3.3. 6.9 In BreezeACCESS II units set in the (*AirInterface 9) factory to “Country Standard Protected” this is read-only, showing the Country Standard set in the factory.
Page 262 (37) BreezeACCESS 5.7 frg5_7GHzISMUsFCC(74) frg5_7GHzInternational(75) frg5_7GHzFlexibleHopping(37) Integer max1Mbps (1) max2Mbps (2) max3Mbps (3) na (255) Integer BreezeACCESS II, XL and MMDS: 0-15 BreezeACCESS V: 0-7 na (255) Integer low0dB (0) med10dB (1) high25dB (2) na (255) Integer 0-50 na (255)
Page 263 MIB Parameter (Location in Parenthesis) *AddSubBand Applicable to SU and AU only. 710.3.3. 6.15.1 In BreezeACCESS II, V and MMDS (*FlexSubBandDef 1) families it adds sub-bands (f1-f2) or discrete frequencies to the list of sub-bands/frequencies to be used for generating the basic Hopping Sequence after the next reset.
Page 264 C-16 MIB Parameter (Location in Parenthesis) *ChannelSpacing Applicable to SU and AU in 710.3.3. 6.15.5 BreezeACCESS XL family only. (*FlexSubBandDef 5) Applicable only in Flexible Hopping Definition mode. Defines the minimum distances between two frequencies. (Not available in some products that only support a 2MHz Channel Spacing) *AddFlexHopChannels Applicable to SU and AU in...
Page 265 Appendix C MIB Parameter (Location in Parenthesis) *ScrambledSeqTableIdx Applicable to SU and AU only. Read- 710.3.3. 6.15. 9.5.1.1 only. A Scrambled Sequence Table (**ScrambledSeqEntry 1) entry index. *ScrambledSeqFreqIdx Applicable to SU and AU only. Read- 710.3.3. 6.15. 9.5.1.2 only. A Frequency Index in the (**ScrambledSeqEntry 2) Scrambled Sequence Table.
Page 266 C-18 MIB Parameter (Location in Parenthesis) *OperatorESSID Applicable to AU only. A secondary 710.3.3. 6.21 ESSID to support upgrade of (*AirInterface 21) existing installations. All AUs in the region should be configured to the same Operator ESSID to allow a new SU to associate with any AU.
Page 267 Appendix C MIB Parameter (Location in Parenthesis) *TransmitLevel Applicable only to SU-I and AU-I 710.3.3. 6.24 units with HW version D and higher. (*AirInterface 24) Sets the level in dBm of the transmitted power at the antenna port. * brzaccAtpc ATPC Parameters 710.3.3.
Page 268 0-15 na (255) Integer 0-100 Integer 0-100 Integer disable (0) enable (1) na (255) Integer 0-512 Integer SU-A/E in BreezeACCESS II, XL and MMDS: 0-15, SU-A/E in BreezeACCESS V: 0-7 SU-R-3.5ab:0-2 Integer na (255) Integer na (255) Integer na (255)
Page 269 Appendix C MIB Parameter (Location in Parenthesis) *SPFreqs Site Proprietary frequencies 710.3.3. 6.31.2 parameters. (* SiteProprietary 2) *SPFreqsTable A table of frequencies in the Site 710.3.3. 6.31.2.1 Proprietary hopping sets. Not (*SPFreqs 1) accessible. sPFreqsEntry An entry in the table of frequencies 710.3.3.
Page 270 C-22 MIB Parameter (Location in Parenthesis) *ScanningMode Applicable to SU only. Not applicable 710.3.3.6.35 if *ACSEOption is enabled. Sets the (*AirInterface 35) scanning mode. *SendRoamingSNAP Applicable to all SUs, except to SU- 710.3.3.6.37 BD and SU-BD1V. Disables/enables (*AirInterface 37) the Send Roaming SNAP feature. *AUTransmissionRateContro Applicable to SU only.
Page 271 Appendix C MIB Parameter (Location in Parenthesis) *CarrierSenseLevel Applicable to SU and AU. Threshold level 710.3.3. 7.7 for decision on existence of a carrier (*PerformanceParams 7) signal, indicating a transmission from another unit. *DwellTime Applicable to AU and GU. 710.3.3. 7.9 The time spent on each radio channel (*PerformanceParams 9) (hop).
Page 272: Site Survey Parameters
C-24 Site Survey Parameters MIB Parameter (Location in Parenthesis) *SiteSurvey 710.3.3. 8 (brzAccessMib 8) PerHopStatisticsTable 710.3.3. 8.1 (*SiteSurvey 1) hopSeqEntry 710.3.3. 8.1.1 (perHopStatisticsTable 1) wPperHopStatisticsTable 710.3.3. 8.1.1.1 (hopSeqEntry 1) hopTracerRx 710.3.3. 8.1.1.2 (hopSeqEntry 2) hopTracerTx 710.3.3. 8.1.1.3 (hopSeqEntry 3) hopTracerRetries 710.3.3.
Page 273 Appendix C MIB Parameter (Location in Parenthesis) *TotalRxFramesFromWireless 710.3.3. 8.2.3.2 (*WlanCounters 2) *TotalRetransmittedFragments 710.3.3. 8.2.3.3 (*WlanCounters 3) *WlanFramesDropped 710.3.3. 8.2.3.4 (*WlanCounters 4) *TransmittedFramesToWirelessDat 710.3.3. 8.2.3.5 (*WlanCounters 5) *TransmittedFramesToWirelessVoi 710.3.3. 8.2.3.6 (*WlanCounters 6) *TransmittedFramesToWirelessBea 710.3.3. 8.2.3.7 (*WlanCounters 7) *TotalSubmittedFrames 710.3.3. 8.2.3.8 (*WlanCounters 8) *SubmittedFramesHigh 710.3.3.
Page 274 C-26 MIB Parameter (Location in Parenthesis) *SubmittedFramesLow 710.3.3. 8.2.3.11 (*WlanCounters 11) *SubmittedFramesVoice 710.3.3. 8.2.3.12 (*WlanCounters 12) *FramesDroppedData 710.3.3. 8.2.3.13 (*WlanCounters 13) *FramesDroppedVoice 710.3.3. 8.2.3.14 (*WlanCounters 14) *TotalRetransmittedFrames 710.3.3. 8.2.3.15 (*WlanCounters 15) *RetransmittedFramesData 710.3.3. 8.2.3.16 (*WlanCounters 16) *RetransmittedFramesVoice 710.3.3. 8.2.3.17 (*WlanCounters 17) *TotalTxErrors 710.3.3.
Page 275 Appendix C MIB Parameter (Location in Parenthesis) *TotalTxErrorsAckTOut 710.3.3. 8.2.3.23 (*WlanCounters 23) *TotalTxErrorsFail 710.3.3. 8.2.3.24 (*WlanCounters 24) *TotalTxErrorsAckCrc 710.3.3. 8.2.3.25 (*WlanCounters 25) *TotalTxErrorsRtsc 710.3.3. 8.2.3.26 (*WlanCounters 26) *TotalTxErrorsEod 710.3.3. 8.2.3.27 (*WlanCounters 27) *TotalReceivedDataFrames 710.3.3. 8.2.3.28 (*WlanCounters 28) *ReceivedDataFramesHigh 710.3.3. 8.2.3.29 (*WlanCounters 29) *ReceivedDataFramesLow 710.3.3.
Page 276 C-28 MIB Parameter (Location in Parenthesis) *VoiceTrafficTxFrames 710.3.3. 8.2.4.1 (*VoiceCounters 1) *VoiceTrafficRxFrames 710.3.3. 8.2.4.2 (*VoiceCounters 2) *VoiceTrafficTxBytes 710.3.3. 8.2.4.3 (*VoiceCounters 3) *VoiceTrafficRxBytes 710.3.3. 8.2.4.4 (*VoiceCounters 4) *VoiceTrafficResetCounters 710.3.3. 8.2.4.5 (*VoiceCounters 5) *PerRateCounters 710.3.3. 8.2.5 (*TrafficStatistics 5) *ResetPerRateCounters 710.3.3. 8.2.5.1 (*PerRateCounters 1) *PerRateCountersSU 710.3.3.
Page 277 Appendix C MIB Parameter (Location in Parenthesis) *PerHopStatistics 710.3.3. 8.4 (*SiteSurvey 4) *ResetPerHopStatistics 710.3.3. 8.4.1 (*PerHopStatistics 1) *MacAddressDatabase 710.3.3. 8.5 (*SiteSurvey 5) *AdbResetAllCounters 710.3.3. 8.5.1 (*MacAddressDatabase 1) *AdbTable 710.3.3. 8.5.2 (*MacAddressDatabase 2) *AdbEntry 710.3.3. 8.5.2.1 (*AdbTable 1) *AdbIndex 710.3.3. 8.5.2.1.1 (*AdbEntry 1) *AdbMacAddress 710.3.3.
Page 278 C-30 MIB Parameter (Location in Parenthesis) *AdbRTx1M 710.3.3. 8.5.2.1.10 (*AdbEntry 10) *AdbRTx2M 710.3.3. 8.5.2.1.11 (*AdbEntry 11) *AdbRTx3M 710.3.3. 8.5.2.1.12 (*AdbEntry 12) *AdbTxDroppedFrames 710.3.3. 8.5.2.1.13 (*AdbEntry 13) *AdbRxFramesTotal 710.3.3. 8.5.2.1.14 (*AdbEntry 14) *AdbCirTx 710.3.3. 8.5.2.1.16 (*AdbEntry 16) *AdbMirTx 710.3.3. 8.5.2.1.17 (*AdbEntry 17) *AdbCirRx 710.3.3.
Page 279 Appendix C MIB Parameter (Location in Parenthesis) AtpcTransmittedMessages 710.3.3. 8.6.2 (*AtpcCounters 2) AtpcReceivedMessages 710.3.3. 8.6.3 (*AtpcCounters 3) *AUAlarms 710.3.3. 8.7 (*SiteSurvey 7) *AUAlarmsOption 710.3.3. 8.7.1 (*AUAlarms 1) *AUAlarmsLearningPeriod 710.3.3. 8.7.2 (*AUAlarms 2) *AUAlarmsTestCycle 710.3.3. 8.7.3 (*AUAlarms 3) *AUAlarmsTrafficStatistics 710.3.3. 8.7.4 (*AUAlarms 4) *TrafficStatisticsTable 710.3.3.
Page 280 C-32 MIB Parameter (Location in Parenthesis) *MinorAlarmThreshold 710.3.3. 8.7.4.1.1.5 (*TrafficStatisticsEntry 5) *MajorAlarmThreshold 710.3.3. 8.7.4.1.1.6 (*TrafficStatisticsEntry 6) *AURxPowerTest 710.3.3. 8.7.5 (*AUAlarms 5) *AURxPowerAverageDelta 710.3.3. 8.7.5.1 (*AURxPowerTest 1) *AURxPowerDecreaseThreshold 710.3.3. 8.7.5.2 (*AURxPowerTest 2) *SURxPowerTest 710.3.3. 8.7.6 (*AUAlarms 6 *SURxPowerAverageDelta 710.3.3. 8.7.6.1 (*SURxPowerTest 1) *SURxPowerDecreaseThreshold 710.3.3.
Page 281 AU Alarms feature. Setting any value other than 'clearAllalarms' has no effect Values/Range DisplayString (SIZE(15)) (2.4 (BreezeACCESS II), MMDS, 2.6a, 2.6b, 3.3a, 3.5a, 3.5a1, 3.5b, 3.5ab, 3.5e, 3.6b, 3.8, 5.2, 5.7(SD), 3.5Aw, 3.5Bw, 3.5Cw) BreezeACCESS Version 4.3 System Manual C-33...
Page 282: Unit Control Parameters
C-34 Unit Control Parameters MIB Parameter (Location in Parenthesis) *UnitControl 710.3.3. 10 (brzAccessMib 10) *ResetUnit 710.3.3. 10.1 (*UnitControl 1) *SetDefaults 710.3.3. 10.2 (*UnitControl 2) *UnitName 710.3.3. 10.3 (*UnitControl 3) *FlashMemoryControl 710.3.3. 10.4 (*UnitControl 4) *ConsoleSpeed 710.3.3. 10.5 (*UnitControl 5) *MonitorLogoutTimer 710.3.3.
Page 283 Appendix C MIB Parameter (Location in Parenthesis) *EraseEventLog 710.3.3. 10.10.3 (*EventLog 3) *SaveCurrentConfigurationAs OperatorDefaults 710.3.3. 10.12 (*UnitControl 12) *ExitMonitorOrTelnet 710.3.3. 10.13 (*UnitControl 13) *AutoConfig 710.3.3. 10.14 (*UnitControl 14) *AutoConfigOption 710.3.3. 10.14.1 (*AutoConfig 1) *RequestAutoConfig 710.3.3. 10.14.2 (*AutoConfig 2) *AutoConfigReceived 710.3.3. 10.14.3 (*AutoConfig 3) *SNMPReadESSID 710.3.3.
Page 284: System Information Parameters
C-36 IP Parameters MIB Parameter (Location in Parenthesis) *IpParams 710.3.3. 11 (brzAccessMib 11) *UnitIpAddress Applicable to all products. IP address of the unit. 710.3.3. 11.1 (*IpParams 1) *SubNetMask Applicable to all products. Subnet mask of the unit. 710.3.3. 11.2 (*IpParams 2) *DefaultGWAddress Applicable to all products.
Page 285 Appendix C MIB Parameter (Location in Parenthesis) *UnitType 710.3.3. 13.7 (*SysInfo 7) *AssociatedAU 710.3.3. 13.8 (*SysInfo 8) *NumOfAssociationsSinceLastReset 710.3.3. 13.9 (*SysInfo 9) *FlashType 710.3.3. 13.10 (*SysInfo 10) *FlashSize 710.3.3. 13.11 (*SysInfo 11) *SwVersionAfterReset 710.3.3. 13.12 (*SysInfo 12) *MaxPowerOutput 710.3.3. 13.13 (*SysInfo 13) *FrequencyDuplex 710.3.3.
Page 286: Alarms Parameters
C-38 Alarms Parameters MIB Parameter (Location in Parenthesis) *Alarms Alarms parameters 710.3.3. 20 (brzAccessMib 20) *GpsAlarms Applicable to GU only. GPS Alarms parameters. 710.3.3. 20.1 (*Alarms 1) *AlarmInTable Applicable to GU only. Names and status of Alarms-In. Not 710.3.3. 20.1.1 accessible.
Page 287 Appendix C brzPhoneMIB (applicable to SU with voice only) breezecom {(iso(1) org(3) dod(6) internet(1) private(4) enterprises(1) breezecom(710)} breezecomPrvRev {breezecom 3} brzPhoneMib {breezecomPrvRev 4 } Note: * is used instead of the phon prefix Dialing Parameters MIB Parameter (Location in Parenthesis) *DialingParams 710.3.4.1 (brzPhonMib 1)
Page 288 C-40 MIB Parameter (Location in Parenthesis) *InformTransferCap 710.3.4.1.14 (*DialingParams 14) *DTMFRelay 710.3.4.1.15 (*DialingParams 15) *DialingPrfxOption 710.3.4.1.16 ( (*DialingParams 16) *InterRegionalPrfx 710.3.4.1.17 (*DialingParams 17) *InterNationalPrfx 710.3.4.1.18 (*DialingParams 18) *RegistrationTTL 710.3.4.1.19 (*DialingParams 19) *EndpointType 710.3.4.1.20 (*DialingParams 20) *FaxRelay 710.3.4.1.21 (*DialingParams 21) *FaxRelayRedundancy 710.3.4.1.22 (*DialingParams 22) *BatteryPolarity...
Page 289 Appendix C MIB Parameter (Location in Parenthesis) *AlternateGkOption 710.3.4.1.24 (*DialingParams 24) *AlternateGkIPAddress 710.3.4.1.25 (*DialingParams 25) *CallerID 710.3.4.1.26 (*DialingParams 26) *StopDialingIndicator 710.3.4.1.27 (*DialingParams 28) *StopDialingTimeOut 710.3.4.1.28 (*DialingParams 28) *OverlapSending 710.3.4.1.29 (*DialingParams 29) Description Setting the Alternate Gatekeeper Integer feature. disable (0) EnableManualDiscovery: the enableManualDiscovery (1) Alternate Gatekeeper IP address is...
Page 290: Voice Parameters
C-42 Voice Parameters MIB Parameter (Location in Parenthesis) *VoiceParams 710.3.4.2 (brzPhonMib 2) *VoiceVolume Gain of signal to earphone. 710.3.4.2.1 (*VoiceParams 1) *EchoCancellation Enables or disables the echo cancellation 710.3.4.2.3 feature. (*VoiceParams 3) *VoiceCodec The relative priority of voice codecs. 710.3.4.2.4 (*VoiceParams 4) *VoiceActivityDetection Enables or disables the voice activity...
Page 291 Appendix C Telephony Signals MIB Parameter (Location in Parenthesis) *TelephonySignals 710.3.4.3 (brzPhonMib 3) *TelephonyCountryStandard 710.3.4.3.1 (*TelephonySignals 1) *TonesTable 710.3.4.3.2 (*TelephonySignals 2) *TonesEntry 710.3.4.3.2.1 (**TonesTable 1) *TonesIdx 710.3.4.3.2.1.1 (*TonesEntry 1) *ToneName 710.3.4.3.2.1.2 (*TonesEntry 2) *Freq1 710.3.4.3.2.1.3 (*TonesEntry 3) *Freq2 710.3.4.3.2.1.4 (*TonesEntry 4) *Level1 710.3.4.3.2.1.5 (*TonesEntry 5)
Page 292: Supported Traps
*GenInfo 710.3.4.9 General Info MIB (breezecomPrvRev 9) brzHoppingStandardProtected Applicable to AU and SU in BreezeACCESS II family. Read-only. Indicates if the Hopping Standard (Band) can be changed (if protected or not). Supported Traps Note: * is used instead of the brzacc prefix...
Page 293 Appendix C MIB Parameter (Location in Parenthesis) *TrapToggle An On/Off toggle status, indicating a change in status from 710.3.3.14.5 off to on or vice versa. (*Traps 5) *LastAUMacAddress Applicable to SU only. 710.3.3.14.6 The MAC address of the last AU with which the SU was (*Traps 6) associated.
Page 294 C-46 Traps Trap (Number) *SUassociatedAUTRAP(2) *AUdisassociatedTRAP(3) *AUagingTRAP (4) *SUassociatedTRAP (6) *SUWirelessQualityTRAP(7) *AUWirelessQualityTRAP(20) *PowerUpFromReset (101) *AULossOfSyncTRAP (21) *MonitorStatusTRAP (102) *ParameterChangedTRAP(103) *GpsAlarmInTRAP (104) *GpsAlarmOutTRAP (105) *GpsUTCstatusTRAP (106) Manual Revision: 3.0 BreezeACCESS Version 4.3 System Manual Description An AU trap indicating a new association *TrapSUMacAddr with an SU.
Page 295 Appendix C Trap (Number) *NoAssociationsOnTRAP (201) *NoAssociationsOffTRAP (202) *AllAssociationsLostOnTRAP (203) *AllAssociationsLostOffTRAP (204) *AUTxPowerLevelDecreaseOnTRAP(205) *AUTxPowerLevelDecreaseOffTRAP (206) *AURxSignalStrengthDecreaseOnTRAP(207) *AURxSignalStrengthDecreaseOffTRAP (208) Description An IF-based AU alarm. *TrapAUAlarmsSeverity Alarm was set on: The AU was reset 3 consecutive times as a result of no association with any SU, and before that the AU was associated with at least...
Page 296 C-48 Trap (Number) *HighRetransmissionsRateOnTRAP (209) *HighRetransmissionsRateOffTRAP (210) *HighDroppedFramesRateOnTRAP (211) *HighDroppedFramesRateOffTRAP (212) Manual Revision: 3.0 BreezeACCESS Version 4.3 System Manual Description Alarm was set on: *TrapAUAlarmsSeverity Minor Severity Alarm: *TrapTrafficStatisticsCurrentRate a. The Retransmissions *TrapTrafficStatisticsAverageRate Current Rate exceeds the Retransmissions Minor Alarm Threshold, and is higher than the Retransmissions Average Rate by at least...
Page 297 Appendix C Trap (Number) *HighCRCErrorRateOnTRAP (213) *HighCRCErrorRateOffTRAP (214) *HighDuplicateFramesRateOnTRAP (215) *HighDuplicateFramesRateOffTRAP (216) Description Alarm was set on: *TrapAUAlarmsSeverity Minor Severity Alarm: *TrapTrafficStatisticsCurrentRate a. The CRC Error Current *TrapTrafficStatisticsAverageRate Rate exceeds the CRC Error Minor Alarm Threshold, and is higher than the CRC Error Average Rate by at least CRC Error Minor Alarm Minimum Delta.
Page 298 BreezeACCESS Version 4.3 System Manual C-50 Manual Revision: 3.0...
Page 299: Conversion Table
SU-A/E, AU-A/E RSSI -100 Appendix D: RSSI to dBm Conversion Table RSSI...
Page 300 SU-R and SU-I RSSI -100 Manual Revision: 3.0 BreezeACCESS Version 4.3 System Manual RSSI...
Page 301: Parameters List
Unit Control Parameters Parameter Unit Change Unit Name Change Read- only Password Change Installer Password Change Administrator Password Console Speed Log Out Timer Event Log Policy All Auto Configuration Option SNMP Read AU, SU EESSID Appendix E: Parameters List Range Up to 32 printable ASCII Empty String characters...
Page 302 Site Survey Parameters Parameter Unit RSSI Display AU, SU Option AU Alarms IF-based AU Option Learning Period IF-based AU Test Cycle IF-based AU Retransmissions IF-based AU Minor Alarm Minimum Delta Retransmissions IF-based AU Minor Alarm Threshold Retransmissions IF-based AU Major Alarm Threshold Dropped Frames IF-based AU...
Page 303 Appendix E Parameter Unit Duplicate IF-based AU Frames Minor Alarm Minimum Delta Duplicate IF-based AU Frames Minor Alarm Threshold Duplicate IF-based AU Frames Major alarm Threshold SU Rx Power IF-based AU Decrease Threshold AU Rx Power IF-based AU Decrease Threshold Minimum IF-based AU Number Of SUs...
Page 304: Air Interface Parameters
Air Interface Parameters Parameter Unit ESSID AU, SU Operator ESSID Option Operator ESSID Hopping Sequence Hopping Set AU, SU Hopping Sync Best AU Support Number of Scanning Attempts Preferred AU MAC Address Transmit Power AU-A/E, Control SU-A/E (IF based units) Power Level SU-R, SU-I/ AU-I...
Page 305 Appendix E Parameter Unit Receive SU-A/E (IF Attenuation Control based units) Maximum Data AU, SU Rate AU Transmission Rate Control Acknowledge AU, SU Delay Limit Maximum Number of Associations Call Aging Time Maximum Voice Sessions ACSE Option AU and GU Disable, ACSE Maximum Voice Sessions ACSE Number Of...
Page 306 Parameter Unit ATPC Maximum Last Level Time After Synchronization Loss Scanning Mode MAC Address Black List Send Roaming All SUs, SNAP except SU-BD, SU-BD1V Wireless Trap AU, SU Threshold Manual Revision: 3.0 BreezeACCESS Version 4.3 System Manual Range Default 0-3600 120 (seconds) (seconds) Active, Passive Active...
Page 307 Appendix E Network Management Parameters Parameter Unit Access To AU, SU Network Management Network Management Filtering Set Network Management IP Address Send SNMP Traps SNPM Traps IP Destination SNMP Traps Community Send SU Associated AU Trap Send AU Disassociated Trap Send AU Aging Trap Send AU...
Page 308 Parameter Unit Send SU Wireless Quality Trap Send Parameter AU, SU Changed Trap Send GPS Alarm In Trap Send GPS Alarm Out Trap Send GPS UTC Status Trap Send Power Up From Reset Trap Send Monitor Status Trap Send Cold \ Warm Start Trap Send AU Loss Of BS-AU...
Page 309 Appendix E Bridge Parameters Parameter Unit VLAN ID-Data VLAN ID – AU, GU, Management SU without voice VLAN ID – Voice SU with & Management voice VLAN Link Type AU, SU Voice Priority Tag SU with Option voice VLAN Forwarding AU, SU Support VLAN Forwarding...
Page 310 E-10 Parameter Unit PPPoE Broadcast Override Filter Parameter Unit ARP Broadcast Override Filter LAN to WLAN Bridging Mode Bridge Aging Time AU, SU Broadcast Relaying Unicast Relaying Ethernet Port Control Voice Port Control SU with voice Manual Revision: 3.0 BreezeACCESS Version 4.3 System Manual Range Default Disable, Enable...
Page 311: Performance Parameters
Appendix E Performance Parameters Parameter Unit RTS Threshold AU, SU Number of AU, SU Retransmissions Number of AU, SU Retransmissions to Decrease Rate Number of AU, SU Dwells to Retransmit Minimum AU, SU Contention Window Carrier Sense AU, SU Level Maximum Multicast Rate Multi-Rate...
Page 312: Service Parameters
E-12 Service Parameters Parameter Unit User Filtering Option Set User Filter Address Set User Filter Mask Set User Filter Range MIR/CIR Option AU, SU MIR: AU to SU MIR: SU to AU CIR: AU to SU CIR: SU to AU Maximum Burst AU, SU Duration...
Page 313: Radius Parameters
Appendix E RADIUS Parameters Parameter Unit User Name User Password Shared Secret Authentication Option RADIUS Server Authentication IP Address RADIUS Server Authentication Port Accounting Option RADIUS Server Accounting IP Address RADIUS Server Accounting Port Accounting Interval Security Parameters Parameter Unit Authentication AU, SU Algorithm...
Page 314 E-14 Voice Parameters Parameter Unit Volume SU with voice Echo SU with Cancellation voice Voice Codec SU with voice G723 Frames Per SU with Packet voice G729 Frames Per SU with Packet voice G711 u-Law SU with Frames Per voice Packet G729 Frames Per SU with...
Page 315: Dialing Parameters
Appendix E Dialing Parameters Parameter Unit Pulse Dialing SU with voice Gatekeeper SU with Option voice Gatekeeper / SU with Gateway IP voice Address Alternate SU with Gatekeeper voice Option Alternate SU with Gatekeeper IP voice Address Telephone SU with Number voice H323 Terminal...
Page 316 E-16 Parameter Unit International SU with Prefix voice Registration TTL SU with voice DTMF Relay SU with voice Parameter Unit Endpoint Type SU with voice Fax Relay Option SU with voice Fax Relay SU with redundancy voice Batter Polarity SU with voice (Voice card rev.
Page 317 Appendix E Telephony Signals Parameter Unit Telephony SU with Country Standard voice Frequency 1 SU with voice Frequency 1 SU with voice Level 1 SU with voice Level 2 SU with voice Range Proprietary, Germany, Sweden, France, United Kingdom, Belgium, USA, Chile 0 –...
Page 318: Inter-Digit Timeout
E-18 Parameter Unit Cadence On SU with voice Parameter Unit Cadence Off SU with voice Duration SU with voice Min. Flash Detect SU with Timeout voice Max. Flash SU with Detect Timeout voice Disconnect SU with Timeout voice Inter-Digit SU with Timeout voice Called Party...
Page 319: Alarm Parameters
Appendix E Hopping Parameters Parameter Unit Number of Hopping Frequencies Automatic Recovery Option Automatic Recovery Interval ACSE Option AU and Dwell Time AU and Alarm Parameters Parameter Unit Alarm In Names Alarm Out Names GU Automatic Alarm Out Definition Alarm Out Control GU Range 2-151 Disable, Enable...
Page 320 BreezeACCESS Version 4.3 System Manual E-20 Manual Revision: 3.0...
Page 321 Hopping Standard: Australia Each hopping sequence is comprised of 60 channels in the frequency band from 2402 MHz to 2461 MHz (channels 2 to 80). Basic Hopping Sequence: Hopping Set=1, Hopping Sequence = 1 Index Channel Appendix F: Hopping Sequences Index Channel Index...
Page 322 Actual Frequency: (2400+Channel) MHz Calculating the operational hopping sequence: IF [P (1, 1)+(S-1)x3+(H-1)]>61, than P else P (H, S) = P (1, 1)+(S-1)x3+(H-1) Where: S=Hopping Set. Range: 1-3 H=hopping Sequence. Range: 1-20 i =Index. Range: 1-60 (H, S) = Channel with index i in operational sequence with Hopping Set S and Hopping sequence H.
Page 323 Appendix F Hopping Standards: Canada, Mexico Each hopping sequence is comprised of 30 channels in the frequency band from 2452 MHz to 2481 MHz (channels 2 to 80). Basic Hopping Sequence: Hopping Set=1, Hopping Sequence = 1 Index Channel Actual Frequency: (2400+Channel)MHz Calculating the operational hopping sequence: IF [P (1, 1)+(S-1)x3+(H-1)]>81, than P...
Page 324 Hopping Standards: Europe ETSI, US FCC, International Each hopping sequence is comprised of 79 channels in the frequency band from 2402 MHz to 2480 MHz (channels 2 to 80). Basic Hopping Sequence: Hopping Set=1, Hopping Sequence = 1 Index Channel Actual Frequency: (2400+Channel)MHz Manual Revision: 3.0 BreezeACCESS Version 4.3 System Manual...
Page 325 Appendix F Calculating the operational hopping sequence: IF [P (1, 1)+(S-1)x3+(H-1)]>80, than P else P (H, S) = P (1, 1)+(S-1)x3+(H-1) Where: S=Hopping Set. Range: 1-3 H=hopping Sequence. Range: 1-26 i =Index. Range: 1-79 (H, S) = Channel with index i in operational sequence with Hopping Set S and Hopping sequence H.
Page 326 Hopping Standards: France Each hopping sequence is comprised of 35 channels in the frequency band from 2448 MHz to 2482 MHz (channels 28 to 82). Basic Hopping Sequence: Hopping Set=1, Hopping Sequence = 1 Index Channel Actual Frequency: (2400+Channel)MHz Calculating the operational hopping sequence: IF [P (1, 1)+(S-1)x3+(H-1)]>82, than P else P...
Page 327 Appendix F Hopping Standards: Israel Each hopping sequence is comprised of 35 channels in the frequency band from 2421 MHz to 2455 MHz (channels 21 to 55). Basic Hopping Sequence: Hopping Set=1, Hopping Sequence = 1 Index Channel Actual Frequency: (2400+Channel)MHz Calculating the operational hopping sequence: IF [P (1, 1)+(S-1)x3+(H-1)]>55, than P...
Page 328 Hopping Standards: Japan Each hopping sequence is comprised of 23 channels in the frequency band from 2473 MHz to 2495 MHz (channels 73 to 95). Calculating the operational hopping sequence: Step Size D is defined as D(H, S) = 6 + (S-1) x 3 + (H-1) Where: S=Hopping Set.
Page 329 Appendix F (1, 3) = [(17-1) x 12] (1, 3) = [(18-1) x 12] (1, 3) = [(19-1) x 12] (1, 3) = [(20-1) x 12] (1, 3) = [(21-1) x 12] (1, 3) = [(22-1) x 12] (1, 3) = [(23-1) x 12] Hopping sequence channels for Hopping Sequence 3 in Hopping Set 1: 73, 85, 74, 86, 75, 87, 76, 88, 77, 89, 78, 90, 79, 91, 80, 92, 81, 93, 82, 94, 83, 95, 84.
Page 330 F-10 Hopping Standards: Korea Each hopping sequence is comprised of 23 channels in the frequency band from 2430 MHz to 2452 MHz (channels 30 to 52) Calculating the operational hopping sequence: Step Size D is defined as D(H, S) = 6 + (S-1) x 3 + (H-1) Where: S=Hopping Set.
Page 331 Appendix F (1, 3) = [(17-1) x 12] (1, 3) = [(18-1) x 12] (1, 3) = [(19-1) x 12] (1, 3) = [(20-1) x 12] (1, 3) = [(21-1) x 12] (1, 3) = [(22-1) x 12] (1, 3) = [(23-1) x 12] Hopping sequence channels for Hopping Sequence 3 in Hopping Set 1: 30, 42, 31, 43, 32, 44, 33, 45, 34, 46, 35, 47, 36, 48, 37, 49, 38, 50, 39, 51, 40, 52, 41.
Page 332 F-12 Hopping Standards: Spain Each hopping sequence is comprised of 27 channels in the frequency band from 2447 MHz to 2473 MHz (channels 47 to 73). Basic Hopping Sequence: Hopping Set=1, Hopping Sequence = 1 Index Actual Frequency: (2400+Channel)MHz Calculating the operational hopping sequence: IF [P (1, 1)+(S-1)x3+(H-1)]>73, than P else P...
Page 333 Index Access Link Parameter Access to DHCP Parameter Access to Network Management Parameter Access Units AU-A/E-NI Accounting Interval Accounting Option Accounting Parameters Menu Acknowledge Delay Limit Parameter ACSE Number Of Retransmissions For Data Parameter ACSE Number Of Retransmissions For Voice Parameter ACSE Option ACSE Option Parameter ACSE Parameters Parameter...
Page 334 AU Rx Power Decrease Threshold Parameter AU Transmission Rate Control (SU only) AU-A/E-BS Packing List AU-A/E-NI Packing List AU-I/I-D Installation Packing List AU-NI Installation Authentication Algorithm Parameter Authentication Option Authentication Parameters Menu Automatic Alarms Out Definition Menu Automatic Prefix Parameter Automatic Recovery Interval Automatic Recovery Option Bad fragments received Parameter...
Page 335 Index Packing List Busy Tone Parameter Cadence Off Cadence Off Parameter Cadence On Cadence On Parameter Call Aging Time Parameter Called Party Release Timeout Parameter Carrier Sense Level Parameter Carrier to Interference Difference Level Change Password Parameter Change Unit Name Parameter CIR - AU to SU Parameter CIR - SU to AU Parameter Commissioning...
Page 336 Defaults Settings Parameter Delete a Network Management IP Address Parameter Delete a User Filtering Entry Parameter Delete All Network Management IP Addresses Parameter Delete All User Filtering Entries Parameter Destination IP Address Parameter DHCP Broadcast Override Filter Parameter DHCP Client Parameter DHCP Options Parameter Dial Tone Parameter Dialing Parameters...
Page 337 Index Filter Options Parameter Flash Memory Control Parameter Flash Type Parameter Flash Versions Parameter Frames dropped (too many retries) Parameter Frequency 1 Parameter Frequency 2 Parameter G711A-law Frames Per Packet Parameter G711u-law Frames Per Packet Parameter G723 Frames Per Packet Parameter G729 Frames Per Packet Parameter Gatekeeper Option Parameter GateKeeper/GateWay IP Address Parameter...
Page 338 Info Screens Menu Information Transfer Capability Parameter Installation AU-I/I-D Connecting the Antenna Cable GU-A-BS GPS and Alarms System Indoor Units Modular Base Station Equipment Outdoor Units Pole Mounting Outdoor Units SU-I/I-D SU-NI and AU-NI SU-R SU-R Guidelines Installation Guidelines SU-I/I-D Inter-Digit Timeout Parameter Interference Avoidance Parameters Internally discarded MIR/CIR Parameter...
Page 339 Index MAC Address Database Main Menu Management Systems BreezeCONFIG BreezeMANAGE Max. Flash Detect Timeout Parameter Maximum ACSE Voice Sessions Parameter Maximum Burst Duration Parameter Maximum Data Rate Configuring Maximum Data Rate Parameter Maximum Delay Parameter Maximum Multicast Rate Parameter Maximum Number of Associations Parameter Maximum RSSI Level Maximum Voice Sessions Parameter Menus...
Page 340 Minimum Contention Window Parameter Minimum Number Of SUs Minimum RSSI Level MIR - AU to SU Parameter MIR - SU to AU Parameter MIR and CIR Parameters MIR/CIR Option Parameter Multi-Rate Decision Window Size Parameter Multi-Rate Support Parameter Network Management Filtering Parameter Network Management Parameters Network Management Parameters Menu Networking Equipment...
Page 341 Index SU-R Per Hop Statistics Per Trap Control Performance Parameters Performance Parameters Menu Per-Rate Counters Physical Specifications Ping Frame Length Parameter Ping Frame Timeout Parameter Ping Test Ports Control Parameter Power Level Parameter PPPoE Broadcast Override Filter Parameter Precautions Preferred AU MAC Address Parameter Pulse Dialing Parameter RADIUS Parameters RADIUS Parameters Menu...
Page 342 1-10 Send AU Wireless Quality Trap Send GPS Alarm In Trap Send GPS Alarm Out Trap Send Monitor Status Trap Send Parameter Changed Trap Send Power Up From Reset Trap Send Roaming SNAP Send SNMP Traps Parameter Send SU Associated AU Trap Send SU Associated Trap Send UTC Status Trap Service Parameters...
Page 343 Index Radio and Modem Standards Compliance, General SU-A/E SU-I/I-D SU-R Telephony Voice/Fax Start Sending Parameter Statistics Per Hop Traffic Voice Stop Sending Parameter SU Rx Power Decrease Threshold Parameter SU-A/E Aligning Antenna Packing List Subnet Mask Parameter Subscriber Units SU-A/E SU-R SU-I Positioning Antennas...
Page 344 1-12 Ping Test Cycle Parameter Timeouts Parameter ToS Precedence Threshold Parameter ToS Priority Parameter ToS Priority Parameters Total received data frames Parameter Total received frames from wireless Parameter Total received frames via Ethernet Parameter Total retransmitted frames Parameter Total submitted frames (bridge) Parameter Total transmitted frames to wireless Parameter Total Tx errors Parameter Traffic Statistics...
Page 345 Index User Name User Password VLAN VLAN Forwarding Parameter VLAN Forwarding Support Parameter VLAN ID-Data Parameter VLAN ID-Management Parameter VLAN ID-Voice & Management Parameter VLAN Link Type Parameter VLAN Parameters VLAN Priority - Data Parameter VLAN Priority - Management Parameter VLAN Priority - Voice Parameter VLAN Priority Threshold Parameter VLAN Relaying Parameter...
Page 346 BreezeACCESS Version 4.3 Index 1-14 Manual Revision: 3.0...

Alvarion BreezeACCESS II System Manual

Table of Contents

System Manual Book 1: System Description

Introduction

Specifications

System Manual Book 2: Installation

Table of Contents

IF-Based Equipment

Installing SU-R Indoor Units

Packing Lists

Installation Guidelines

Installing SU-I/I-D and AU-I/I-D Units

Table of Contents

Operations and Administration

Quick Links

Chapters

Need help?

Questions and answers

Related Manuals for Alvarion BreezeACCESS II

Summary of Contents for Alvarion BreezeACCESS II
