CyberData 011414 Installation Quick Reference page 2

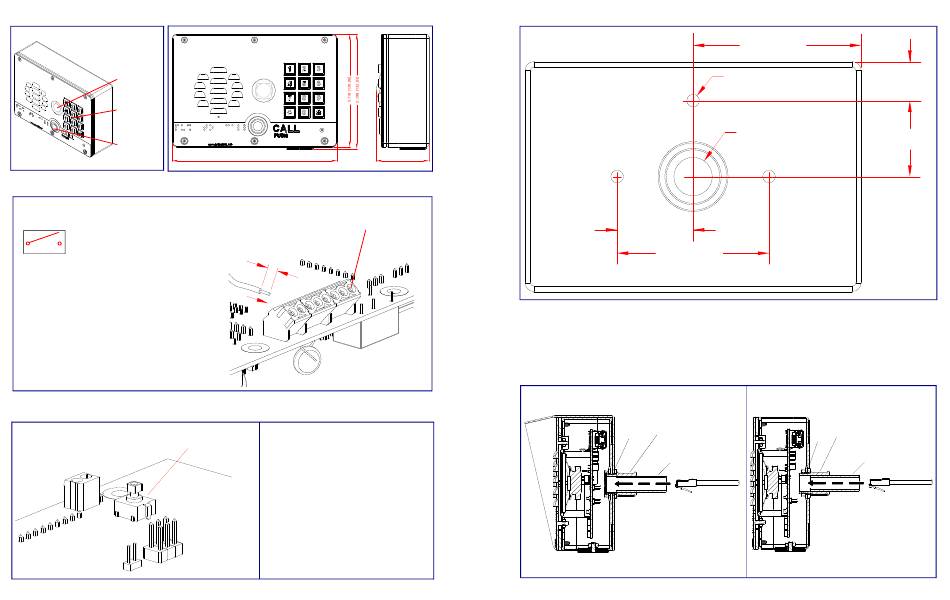

Features Dimensions (Front and Side View)
Camera
Keypad
Call Button
Terminal Block Connections
Alternate Power Input:
1 = +8 to +12VDC @ 1000mA Regulated Power Supply*
2 = Power Ground*
3 4
Relay Contact:
(1 A at 30 VDC for continuous loads)
3 = Relay Common
4 = Relay Normally Open Contact
5 = Sense Input
6 = Sense Ground
7 = Remote Switch "A"
8 = Remote Switch "B"
*Contacts 1 and 2 on the terminal block are only for
powering the device from a non-PoE 12VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
device and void the product warranty.
RTFM Button
RTFM Button (SW1)
© 2017, CyberData Corporation, ALL RIGHTS RESERVED
7.480 [190.00]
Dimensions are in Inches [Millimeter]
Terminal block can accept up to 16 AWG wire.
Tool required for terminal block screw:
Size #00 Phillip Drive Screwdriver
Wire(s) in
Tin Wire to 0.25 inch [6mm]
When the device is operational and linked to a network,
you can use the Reset Test Function Management
(RTFM) button (SW1 [see picture]) to announce the
device's IP address or restore the device to the factory
default settings.
To announce the device's current IP address:
• Press and release the RTFM button within a five
second window.
Note The device will use DHCP to obtain the new IP
address (DHCP-assigned address or default to
10.10.10.10 if a DHCP server is not present).
To restore the device to factory default settings:
• Press and hold the RTFM button for longer than five
seconds until you hear the device announce that it is
restoring the factory default settings.
931336A
Dimensions (Rear View and Mounting Holes)
2.386 [60.59]
Conduit Mounting Restrictions (Rear Entry)
With Shroud
Quick Reference Quick Reference
3.740 [95.00]
ø0.280 [ø7.11]
(3 Places)
ø0.854 [ø21.69]
1.690
[42.93]
3.380 [85.85]
Dimensions are in Inches [Millimeter]
Without Shroud
1/2" Conduit
Add
Spacer Connector
Here (Not Provided)
1/2" Conduit
(Not Provided)
Network
Cable
(Not Provided)
931336A © 2017, CyberData Corporation, ALL RIGHTS RESERVED
0.869 [22.07]
1.690 [42.93]
1/2" Conduit
Add
Connector
Spacer
Here (Not Provided)
1/2" Conduit
(Not Provided)
Network
Cable
(Not Provided)
