GB

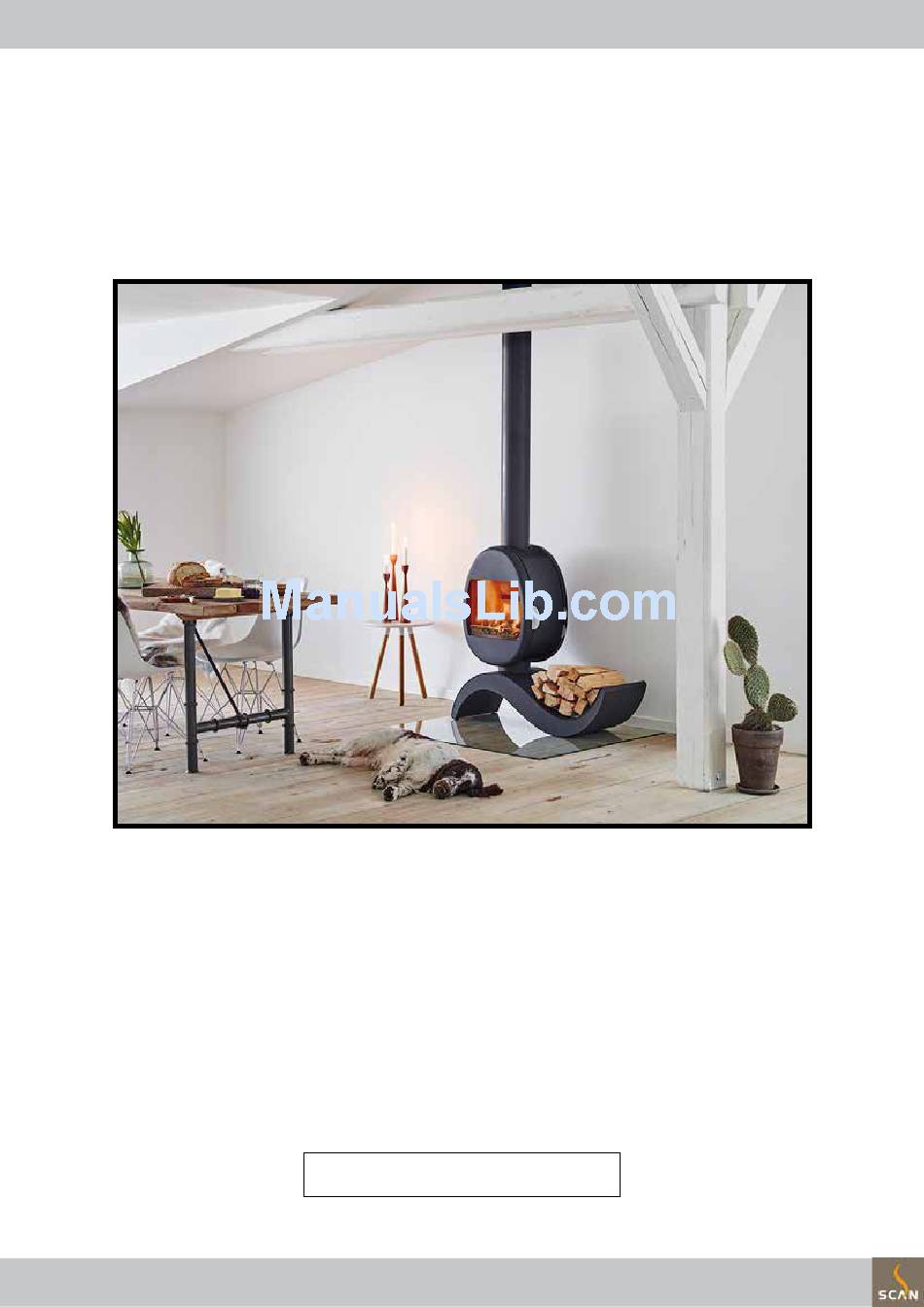

A S S E M B LY- A N D I N S T R U C T I O N S M A N U A L

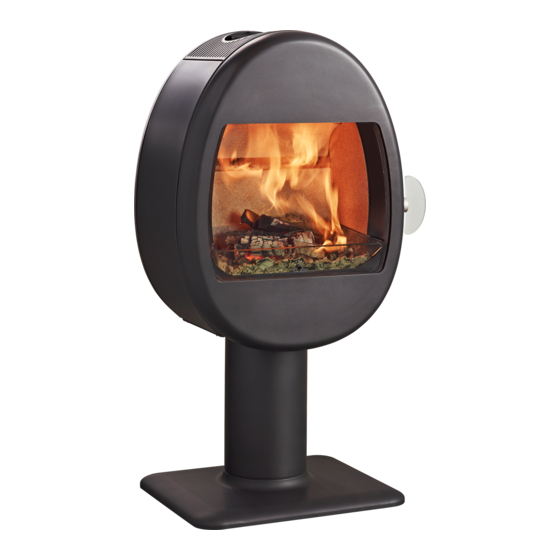

Scan 66 series
Congratulations on your new Scan wood-burning stove
You have purchased a product by one of Europe's leading manufacturer's of wood-burning stoves, and we are sure that you will have years of plea-
sure with your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.
Please read this Assembly- and instructions manual before you start to assemble your stove.
Product registration number
Please indicate the product registration number at any enquiry
S C A N A / S - D K- 5 4 9 2 V I S S E N B J E R G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 66 series and is the answer not in the manual?

Questions and answers

Related Manuals for SCAN 66 series

Summary of Contents for SCAN 66 series

  • Page 1 A S S E M B LY- A N D I N S T R U C T I O N S M A N U A L Scan 66 series Congratulations on your new Scan wood-burning stove You have purchased a product by one of Europe’s leading manufacturer’s of wood-burning stoves, and we are sure that you will have years of plea- sure with your purchase.

  • Page 2: Table Of Contents

    C O N T E N T S Table of contents Technical data ......................3 Installation Safety Technical data and dimensions Dimension sketch Type plate Product registration number Assembly .........................10 Additional accessories Loose parts Remove packaging Mounting of the base/wall fitting Mounting of the burn chamber Positioning your wood-burning stove Distance to furniture...

  • Page 3: Technical Data

    Any changes made to the product by the dealer, installer or user could result in the product and safety functions not functioning as intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case if parts that are necessary for the operation and safety of the stove are dismantled or removed.

  • Page 4: Technical Data And Dimensions

    Surface treatment: ................Senotherm before refuelling. Max. wood length: ..................33 cm The Scan 66 - series was build in compliance with the homologized product type specified in the Assembly- and Instructions Manual Weight Scan 66 series: ............... ca. 90-100 kg provided with the product.

  • Page 5: Dimension Sketch

    T E C H N I C A L D ATA Dimension sketch Scan 66-1 Wall Front 171**** 166**** Front Målskitse Scan 66-1 væghængt Scan 66 90066001 NAVN: EMNE: TG.NR: 07-08-2014 MATERIALE: VÆGT: DATO: SIGN: Centre rear outlet DIMENSION: AREAL: Krog Iversen &...

  • Page 6: Dimension Sketch

    T E C H N I C A L D ATA Dimension sketch Scan 66-2 Pedestal Front Scan 66 Målskitse Scan 66-2 Pedistal 90066002 NAVN: EMNE: TG.NR: 06-08-2014 Centre rear outlet DATO: SIGN: MATERIALE: VÆGT: DIMENSION: AREAL: Krog Iversen & Co A/S Height to the beginning of the connecting DK-5492 Vissenbjerg©...

  • Page 7: Dimension Sketch

    T E C H N I C A L D ATA Dimension sketch Scan 66-4 Plinth Front Scan 66 Målskitse Scan 66-4 Plint 90066004 NAVN: EMNE: TG.NR: 19-08-2014 Centre rear outlet DATO: SIGN: MATERIALE: VÆGT: DIMENSION: AREAL: Krog Iversen & Co A/S Height to the beginning of the connecting DK-5492 Vissenbjerg©...

  • Page 8: Dimension Sketch

    T E C H N I C A L D ATA Dimension sketch Scan 66-5 S- Curve 168,5 1037 Scan 66 Målskitse S curve 90066126 NAVN: EMNE: TG.NR: 02-03-2016 MATERIALE: VÆGT: DATO: SIGN: Krog Iversen & Co DIMENSION: AREAL: DK-5492 C:\Working Folder\Designs\Scan 66\90066126.idw...

  • Page 9: Type Plate

    T E C H N I C A L D ATA Type plates Product registration number All Scan wood-burning stoves are fitted with a type plate, that speci- All wood-burning stoves are provided with a product registration fies the approval standards and the distance to flammable materials.

  • Page 10: Assembly

    • Repair lacquer for colored stoves Disposal of packaging Your Scan stove may come supplied with the following packaging: Wood packaging: The wood packaging can be reused and after final use can be incine- rated as a CO2 neutral product or sent for recycling.

  • Page 11: Mounting Of The Base/Wall Fitting

    Follow assembly- and instructions manual. Use only recommended fuels. Montage- und Bedienungsanleitung beachten. Verwenden Sie nur empfohlene Brennstoffe. 1000 Scan A/S DK 5492 Vissenbjerg 08-2014 Please note! The stove must remain in the packaging during top outlet. the mounting of the wall fitting at...
  • Page 12 Mount bushing, screw and nut. 90066009 TG.NR: NAVN: EMNE: 19-05-2014 MATERIALE: VÆGT: DATO: SIGN: DIMENSION: AREAL: Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066009.iam æ STI: afmont. af bagplade NAVN: EMNE: TG.NR: 90066040 DATO: 01-09-2014 MATERIALE: VÆGT: SIGN: DIMENSION: AREAL: Krog Iversen &...
  • Page 13 07-07-2014 SIGN: DIMENSION: AREAL: Krog Iversen & Co A/S vægbeslag Scan 66 NAVN: EMNE: TG.NR: 90066044 DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066045.idw STI: 28-08-2014 MATERIALE: VÆGT: DATO: SIGN: DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066044.idw Mount the four screws loosely in the rear plate again, now STI: Mount the two adjustment screws.
  • Page 14 MATERIALE: VÆGT: DATO: SIGN: DIMENSION: AREAL: Scan A/S Adjust from the bottom. DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\10066900 - Manual.iam STI: A ( 0,40 : 1 ) Scan 66 Justering af vægbeslag NAVN: EMNE: TG.NR: 90066075 B ( 0,40 : 1 ) MATERIALE: VÆGT:...
  • Page 15 A S S E M B LY External combustion air from the bottom. Scan 66 - 2 (see page 26) Pedestal Use the delivered division plate. First cut out the hole, mount the division plate, then the pedestal. Fasten the screws.
  • Page 16 A S S E M B LY Scan 66 - 4 Plinth D ( 0,3 : 1 ) Fasten the four screws after mounting the base. Scan 66 Montage af prismesokkel NAVN: EMNE: TG.NR: 90066066 12-09-2014 MATERIALE: VÆGT: DATO: SIGN: M3 NR.:...
  • Page 17 A S S E M B LY Scan 66 -5 Loosen the four screws (ca. 4-5 mm) so that it is possible to hook the base on the stove. S-Curve Mount the S-shaped base on the stove before removing the packing.
  • Page 18 A S S E M B LY 1 Scan 66-stove body 6 Skamol plates 2 pins for baffle plates 1 connecting piece for external combustion air 1 log guard made of glass Opening of the door. Push the handle to the rear in order to open the door.
  • Page 19 A S S E M B LY 11 19 Mount the rear plate Slide the plate behind the grate Rear plate mounted Left side plate Fit the side plate in at the top Slide the plate in place Right side plate mounted Left side plate mounted Mount the right side plate in the same way as the left plate...
  • Page 20 A S S E M B LY Let the plate glide back on the Upper baffle Mount the upper baffle (the upper edge carvings must turn backwards) Push the plate a bit backwards so Lower baffle Push the plate upwards so that it that it rests on the rail in the back rests on the front plate Mount the pins in the side plates...

  • Page 21: Positioning Your Wood-Burning Stove

    DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066009.idw STI: Scan 66-5 S-Curve is approved for wood storage on condition that the following is respected: The wood must be placed min. 100 mm from the stove and is not to be stapled higher than to the lower edge of the handle.

  • Page 22: Distance To Flammable Materials, Shown With Insulated Flue Pipe

    A S S E M B LY Distance to flammable materials, shown with un-insulated flue pipe Scan 66 series 45° Corner installation Parallel rear wall installation Distance to flammable materials, shown with insulated flue pipe The distances presuppose the use of an insulated flue pipe with min. 30 insulation all the way to the stove.

  • Page 23: Distance To Firewall

    DATO: 28-05-2014 MATERIALE: VÆGT: SIGN: DIMENSION: AREAL: Krog Iversen & Co A/S Firewall DK-5492 Vissenbjerg© DIMENSION: AREAL: C:\Working Folder\Designs\Scan 66\90066016.idw Scan A/S STI: DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066014.iam STI: opstilling til brandmur lige Scan 66 90066015 NAVN: EMNE: TG.NR: DATO:...

  • Page 24: Height Adjustment Of Stove

    Load bearing underlay All of the products in our portfolio are classified as light-duty firepla- The Scan 66 has four adjustment screws under the stove. Use the ces; in most cases, there is no need to reinforce the floor, so that you adjustment screws to get the stove to stand straight and level.

  • Page 25: Existing Chimney And Pre-Fabricated Element Chimney

    6" chimney can be used. Connection with 90° elbow pipe If you intend to use an elbow pipe with the Scan 66 we recommend the use of a curved elbow pipe to improve the draft. If you are connecting your stove using a sharp elbow bend, the clea- nout door should be in the vertical section, such that the horizontal part can be cleaned through it.
  • Page 26 TG.NR: DATO: 09-05-2014 SIGN: MATERIALE: VÆGT: DIMENSION: AREAL: Scan A/S 90066055 TG.NR: DK-5492 Vissenbjerg© STI: C:\Working Folder\Designs\Scan 66\10066900 - Manual.iam 8-10-2014 SIGN: Iversen & Co A/S 492 Vissenbjerg© u bagplade udklip varmeskjold NAVN: Scan 66 EMNE: TG.NR: 90066106 07-10-2014 MATERIALE: VÆGT:...

  • Page 27: Fresh Air Intake

    Clean Air Act requirements” You can use any type of untreated well seasoned wood as fuel. The Scan 66 has been recommended as suitable for use in smoke con- trol areas when burning wood.
  • Page 28 The appliance must not be operated with air controls, appliance dampers or door left open except as directed in the instructions. Scan 66 Friskluft s sokkel 90066138 NAVN: EMNE: TG.NR: 28-06-2016 DATO: SIGN: MATERIALE: VÆGT: M3 NR.: DIM.: AREAL: Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066138.idw STI:...

  • Page 29: Instruction For Use

    I N S T R U C T I O N S F O R H E AT I N G CB-technique (Clean Burning) Baffle plates The wood-burning stove is equipped with CB technology. In order to The baffle plates are located in the upper part of the combustion ensure an optimal combustion of released gases under the incinera- chamber.

  • Page 30: Instructions For Heating

    Lighting We recommend the use of fire starters, or similar products, which are available from your Scan dealer. Using fire starters helps to light the wood quicker, and keeps the burning process clean. Never use liquid lighting fuels! "Top down"...

  • Page 31: Handling Fuel

    I N S T R U C T I O N S F O R H E AT I N G F Y R I N G S I N S T R U K T I O N 19 31 Using your stove in the spring or autumn Handling fuels In the transition period (spring/autumn), where there is less need...

  • Page 32: Maintenance

    Clean your wood-burning stove by dusting with a dry, lint-free cloth. If the topcoat is damaged, you can purchase a repair spray from your authorised Scan dealer. As slight differences in colour are possible, spray a larger area to achieve a natural transition for best results.
  • Page 33 NAVN: EMNE: TG.NR: 06-08-2014 MATERIALE: VÆGT: DATO: SIGN: DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066023.idw STI: Glas udtagning Scan 66 NAVN: EMNE: TG.NR DATO: 03-06-2014 MATERIALE: VÆGT: Pull out the ash drawer and empty it.
  • Page 34 Scan 66 TG.NR: 10066900- m NAVN: EMNE: 09-05-2014 DATO: SIGN: MATERIALE: VÆGT: DIMENSION: AREAL: Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\10066900 - Manual.iam STI: vægbeslag Scan 66 10066900- m NAVN: EMNE: TG.NR: DATO: 09-05-2014 MATERIALE: VÆGT: SIGN: DIMENSION: AREAL: Scan A/S DK-5492 Vissenbjerg©...

  • Page 35: Troubleshooting

    Scan dealer with a warranty claim. • Check if the smoke gas pipe/chimney are blocked The warranty covers all parts which in the opinion of Scan A/S require • Is the chimney the right height for its surroundings? repair or replacement due to manufacturing or construction error •...
  • Page 36 Version: Scan A/S - DK-5492 Vissenbjerg GB 90066500 29.06.2016...
