Annex E1. Chamber optical sensor setup

Enter the testing mode of the machine.
ATTENTION! SOME COMPONENTS IN THE COMPARTMENT ARE
UNDER HIGH VOLTAGE! BE CAREFUL WHILE OPERATING INSIDE!

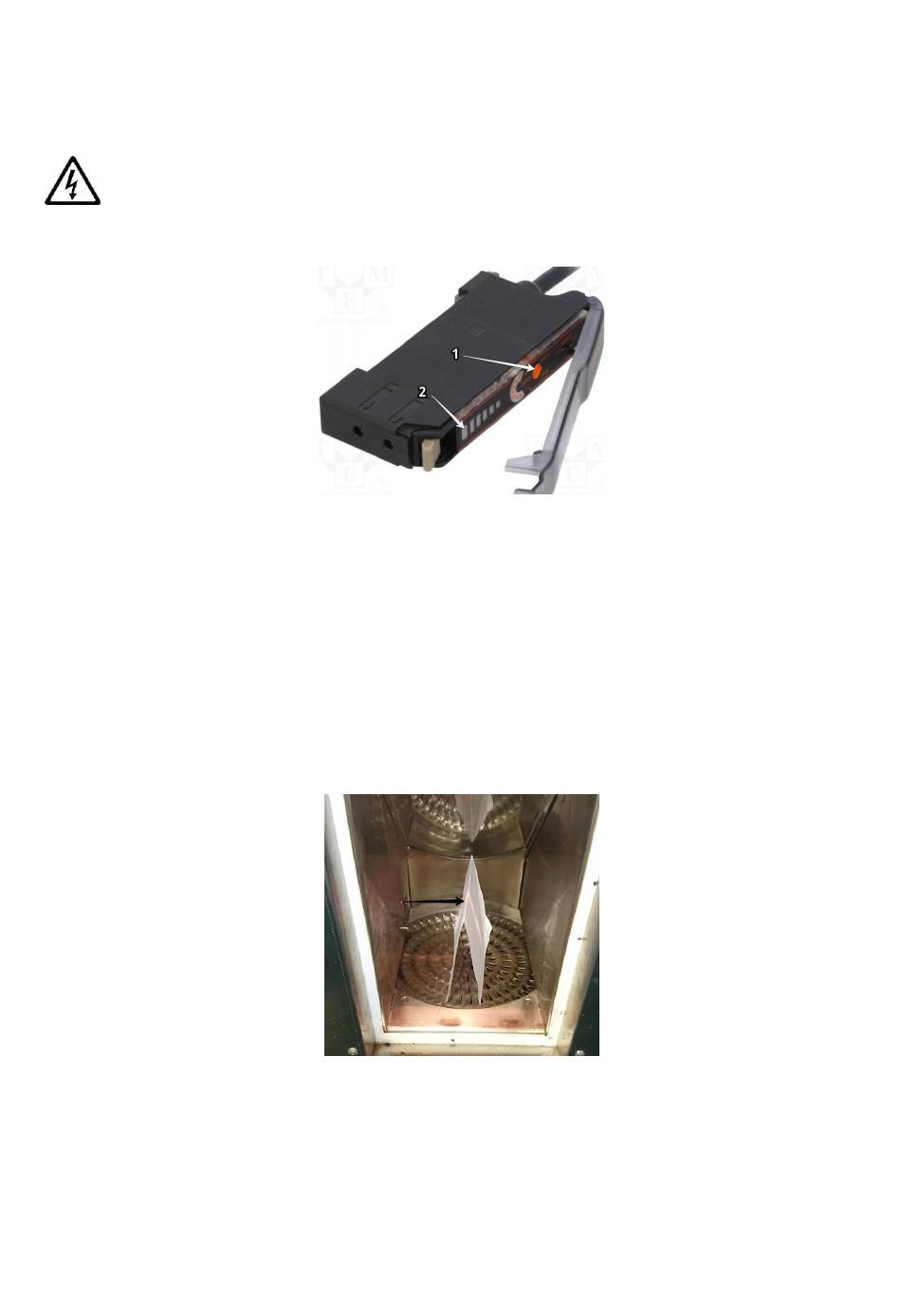

Open electric compartment, find the optical amplifier, see Fig.1
Fig. 1 Optical amplifier: 1 – Operation distance adjusting screw; 2 – Operation indicator
Open the chamber and make sure that the sensor head is clean, use a dry soft
cloth if necessary.
Put a piece of paper or any suitable item inside the chamber, in order to block
sensor's sightline in the middle of the chamber, see Fig.2.
Use the adjustment screw on the amplifier to set the operating distance
accordingly. Use the operation indicator on the amplifier to see the moment of
tripping, see Fig.1.
Fig. 2 Paper screen
