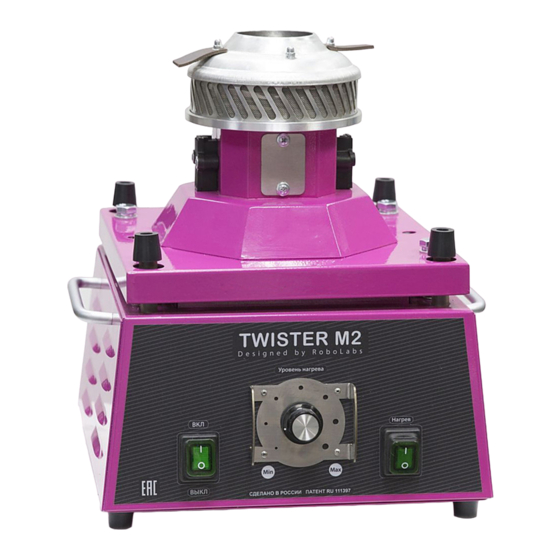

- Page 1 OPERATING MANUAL COTTON CANDY MACHINES TWISTER-M2 (ACB-02E) 230 V TWISTER-M2 (ACB-02U) 120 V MONSTER (ACB-07) 230 V CAUTION: READ THE INSTRUCTIONS BEFORE USING THE MACHINE! PDF version of this manual is available on www.robolabs.pro...
-
Page 2: Table Of Contents
tm1612, 2658, 2659 Jan-20 Table of contents Safety requirements ................... 3 1. Overview ......................4 1.1. Purpose ....................4 1.2. Technical specifications ................4 1.3. Delivery set ..................... 4 1.4. Power requirements ................4 1.5. Ambient conditions .................. 5 1.6. Machine design and operation principle ..........5 1.7. -
Page 3: Safety Requirements
tm1612, 2658, 2659 Jan-20 Safety requirements READ THE ENTIRE MANUAL BEFORE OPERATING! ONLY ALLOW TRAINED PERSONNEL TO OPERATE THE ROBO JETFLOSS! 1. DO NOT TURN ON until transport fastening nuts are fully RAISED. 2. DO NOT OVERFILL spinning head with flossugar. 3. -
Page 4: Overview
1.4. Power requirements Twister-M2 (ACB-02E) and Monster (ACB-07) Input current does not exceed 6.5 A (Twister-M2) and 9 A (Monster). The machine is equipped with 3 m 16 A Schuko plug power cord. The machine uses standard 230 V power supply. Voltage tolerance of +/-10% of nominal voltage is... -
Page 5: Ambient Conditions
IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT, OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID HAZARD! Twister-M2 (ACB-02U) Input current does not exceed 16 A. The machine is equipped with 6 ft power cord with NEMA 5-20 standard plug. - Page 6 tm1612, 2658, 2659 Jan-20 Plastic floss pan (12) is not shown. An electric motor drives the spinning head at a high rate of speed (see datasheet). The Spinning Head has the fol lowing main parts: Sidewall with heating element (5) and Cover (6) with Tabs (4). Machine has the following controls located on the front panel: Motor switch that turns on the electric motor which rotates the spinning head;...
-
Page 7: Safety Components
tm1612, 2658, 2659 Jan-20 1.7. Safety components Four nuts secure the spring-loaded chassis during transportation in order to prevent damage to the motor. They are located on the threaded support studs at each corner of the deck. Rubber legs and a spring suspension support the chassis in order to minimize vibration and allow the spinning floss head to balance itself at high speed. -
Page 8: Operation
tm1612, 2658, 2659 Jan-20 After this, put the mesh screen (14) into the pan (12) and fix it with clips (15) as shown above. 2.3. Operation Before turning on the machine, first add flossugar to the spinning head, approximately ¾ full. The minimum recommendation is 1/3 full at all times. Manually rotate the head in order to distribute the sugar evenly. - Page 9 tm1612, 2658, 2659 Jan-20 Winding cotton candy is easy! Anyone can master this operation. Follow instructions below: Step 2. Pull out the stick out of the pan, spinning the Step 1. Get a stick and put it into the pan and start to stick with hands at the same time, pulling the floss out of collect the cotton floss onto the stick.
- Page 10 tm1612, 2658, 2659 Jan-20 so it is very important to avoid overheating the element in the first place. Shutting down When shutting down for periods of less than 24 hours, you may leave any remaining flossugar in the spinning head. Turn off power to the heating element switch (12) and capture the remaining cotton candy as the head cools down.
-
Page 11: Technical Maintenance
tm1612, 2658, 2659 Jan-20 3. Technical maintenance 3.1. General instructions THIS PART OF OPERATION MANUAL IS INTENDED ONLY FOR TRAINED PERSONNEL EXPERIENCED WITH ELECTRICAL EQUIPMENT! DO NOT CLEAN THE SPINNING HEAD OR COMPONENTS WITH SHARP OR METAL PARTS. HOT WATER, A SPONGE OR SOFT BRISTLE BRUSH IS ALL THAT IS REQUIRED OR PERMITTED! DISCONNECT THE POWER SUPPLY BEFORE CLEANING OR PERFORMING TECHNICAL MAINTENANCE! The purpose of technical maintenance is to extend the working life of the... - Page 12 tm1612, 2658, 2659 Jan-20 To disassemble the spinning head: 1. Remove all sugar from the head, turning upside-down if necessary. 2. Detach floss head cover (6) by removing four flat-head screws (16). 3. If the cover is ‘glued’ to the sidewall, gently tap with the screwdriver handle in order to loosen the parts.
- Page 13 tm1612, 2658, 2659 Jan-20 DO NOT IMMERSE HEATING ELEMENT TERMINAL LEADS IN WATER AS THIS MAY CAUSE FAILURE! ABRASIVE OR MECHANICAL CLEANING OF HEATING ELEMENT AND SIDEWALL IS PROHIBITED! Re-assembly of the spinning head is done in the reverse order. Once completed, turn on the motor and power to the heating coil for approximately 30 seconds in order to spin off any remaining moisture.
-
Page 14: Troubleshooting
tm1612, 2658, 2659 Jan-20 maintenance must be performed before it is placed back into service. 3.3. Troubleshooting DISCONNECT THE POWER SUPPLY BEFORE DIAGNOSTICS AND REPAIR. EMI FILTER MUST BE DISCHARGED BY CLOSING ALL THE PINS IN THE PLUG! FAILURE POSSIBLE CAUSE REMEDY Machine doesn’t turn on when No power at the Use a tester to check the voltage on all phases. -
Page 15: Transportation And Storage
tm1612, 2658, 2659 Jan-20 4. Transportation and storage The equipment may be transported by any kind of covered vehicle, in accordance with local regulations. Ambient temperature during the transportation and storage must be between - 25°C and +55°C (-13° F and +131° F). 5. -
Page 16: Warranty Obligations
Due to constant improvement of the equipment, technical specifications are subject to change without prior notice! 7. Manufacturer details NPO Tvertorgmash LLC 11 Industrial Street, Tver, 170000 Russia Technical support: Email: support@robolabs.pro Phone: +7 495 956 4000... -
Page 17: Annex A. Twister M2 (Acb-02E) Electric Components List
tm1612, 2658, 2659 Jan-20 Annex A. Twister M2 (ACB-02E) electric components list SIGN PART SPECIFICATIONS ARTICLE# Running capacitor 16 uF, 400 V 1287 Filter capacitor 4 uF, 400 V 16694 Heater 1200W 230 V 3734 EMI filter Delta 30DKCS5 30 A, 250 V 13706 Fuse 10 A, 400 V... -
Page 18: Annex B. Twister M2 (Acb-02U) Electric Components List
tm1612, 2658, 2659 Jan-20 Annex B. Twister M2 (ACB-02U) electric components list SIGN PART SPECIFICATIONS ARTICLE# Capacitor 20 uF, 400 V 115558 Capacitor 16 uF, 400 V 1287 Heating coil 1GIK2AT30001, IRCA 1600 W, 120 V 2975 Fuse Bussmann C10G10 10 A, 500 V 16827 AC motor АИР56А2У2... -
Page 19: Annex C. Monster (Acb-07) Electric Components List
tm1612, 2658, 2659 Jan-20 Annex Monster (ACB-07) electric components list SIGN PART SPECIFICATIONS ARTICLE# Running capacitor 16 uF, 400 V 1287 Heater 1800 W, 230 V 3740 Fuse H520 (ZH214) 10 A, 400 V 2536 AC motor АИР56А2У2 IM3031 180 W, 2700 rpm 4245 Voltmeter SE-80 300 V...
