3. Panel Description

3.1 Front Panel

ON
OFF
1 2

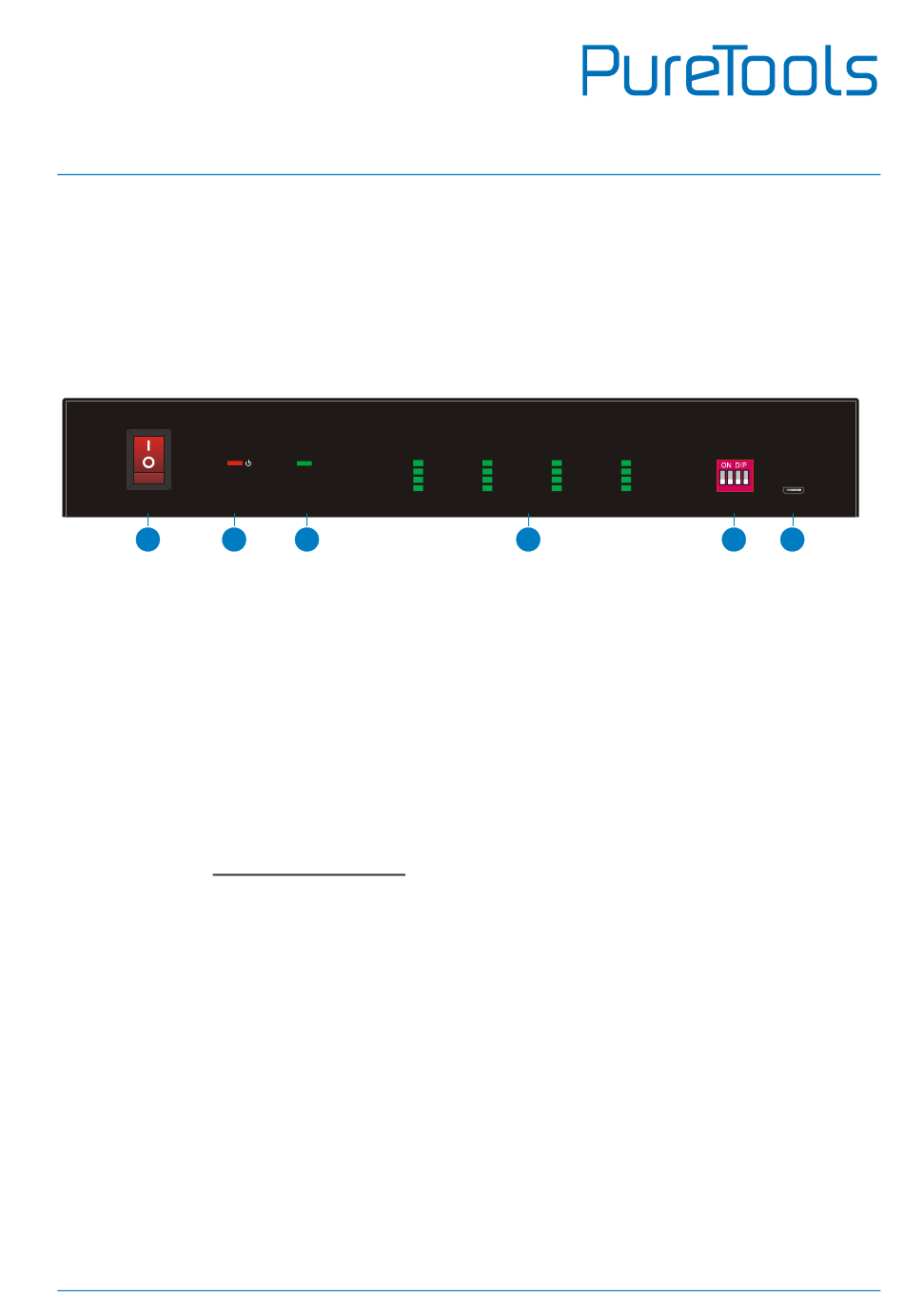

① POWER SWITCH: Power on/off the splitter.
② POWER LED: Illuminates red when the device is powered on.
③ INPUT LED: Illuminates green when there is HDMI input.
④ OUTPUT LEDs (1~16): Illuminates green when there is HDMI output on the
corresponding channel.
⑤ EDID: 4-pin DIP switch for EDID setting and HDCP mode selection. Please refer to
DIP Switch Operation
the chapter
⑥ FW: Micro-USB port for firmware upgrade.
