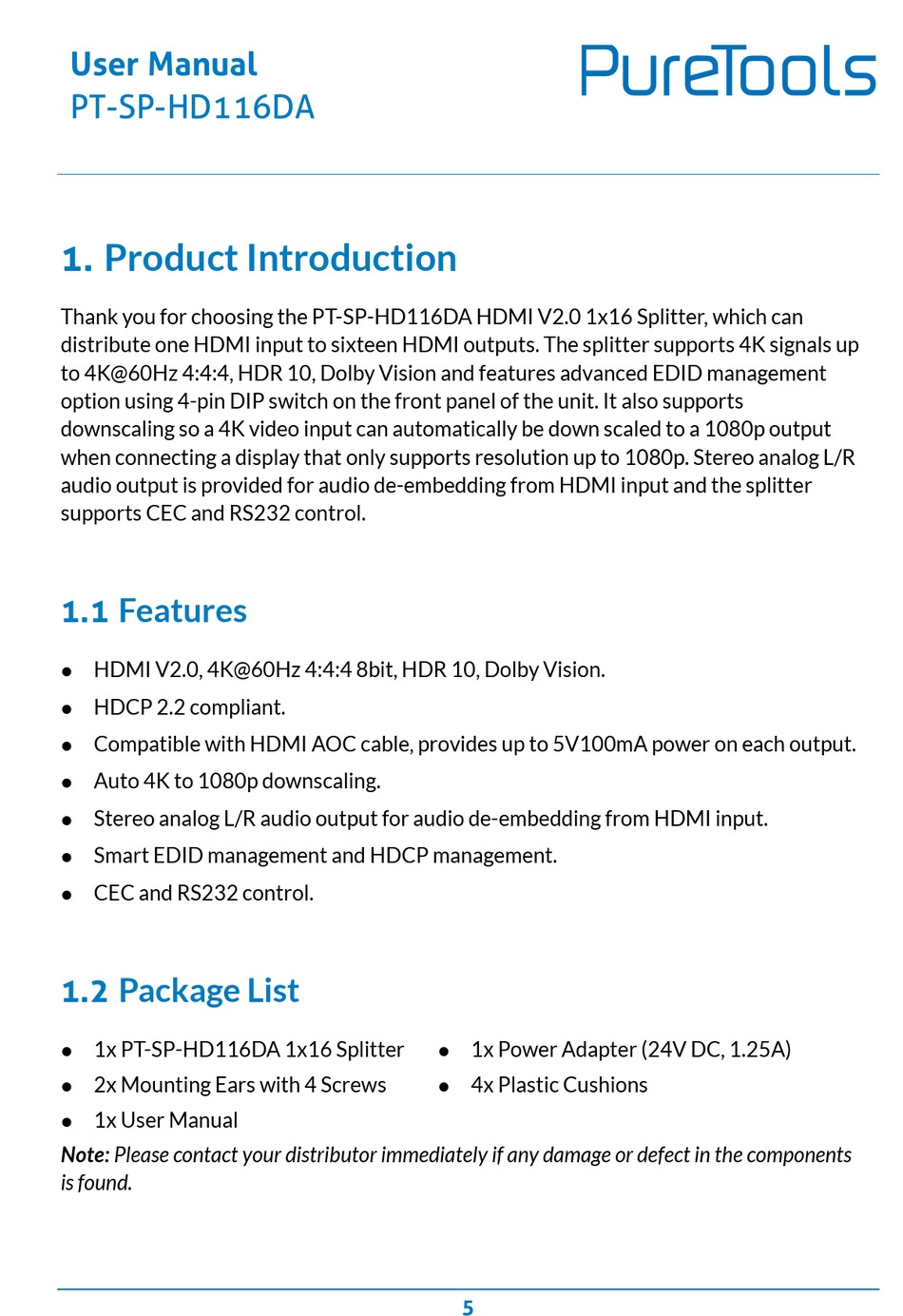

1. Product Introduction

Thank you for choosing the PT-SP-HD116DA HDMI V2.0 1x16 Splitter, which can
distribute one HDMI input to sixteen HDMI outputs. The splitter supports 4K signals up
to 4K@60Hz 4:4:4, HDR 10, Dolby Vision and features advanced EDID management
option using 4-pin DIP switch on the front panel of the unit. It also supports
downscaling so a 4K video input can automatically be down scaled to a 1080p output
when connecting a display that only supports resolution up to 1080p. Stereo analog L/R
audio output is provided for audio de-embedding from HDMI input and the splitter
supports CEC and RS232 control.

1.1 Features

HDMI V2.0, 4K@60Hz 4:4:4 8bit, HDR 10, Dolby Vision.

HDCP 2.2 compliant.

Compatible with HDMI AOC cable, provides up to 5V100mA power on each output.

Auto 4K to 1080p downscaling.

Stereo analog L/R audio output for audio de-embedding from HDMI input.

Smart EDID management and HDCP management.

CEC and RS232 control.


1.2 Package List

1x PT-SP-HD116DA 1x16 Splitter

2x Mounting Ears with 4 Screws

1x User Manual

Note: Please contact your distributor immediately if any damage or defect in the components
is found.
1x Power Adapter (24V DC, 1.25A)

4x Plastic Cushions

