User Manual
PT-SP-HD116DA

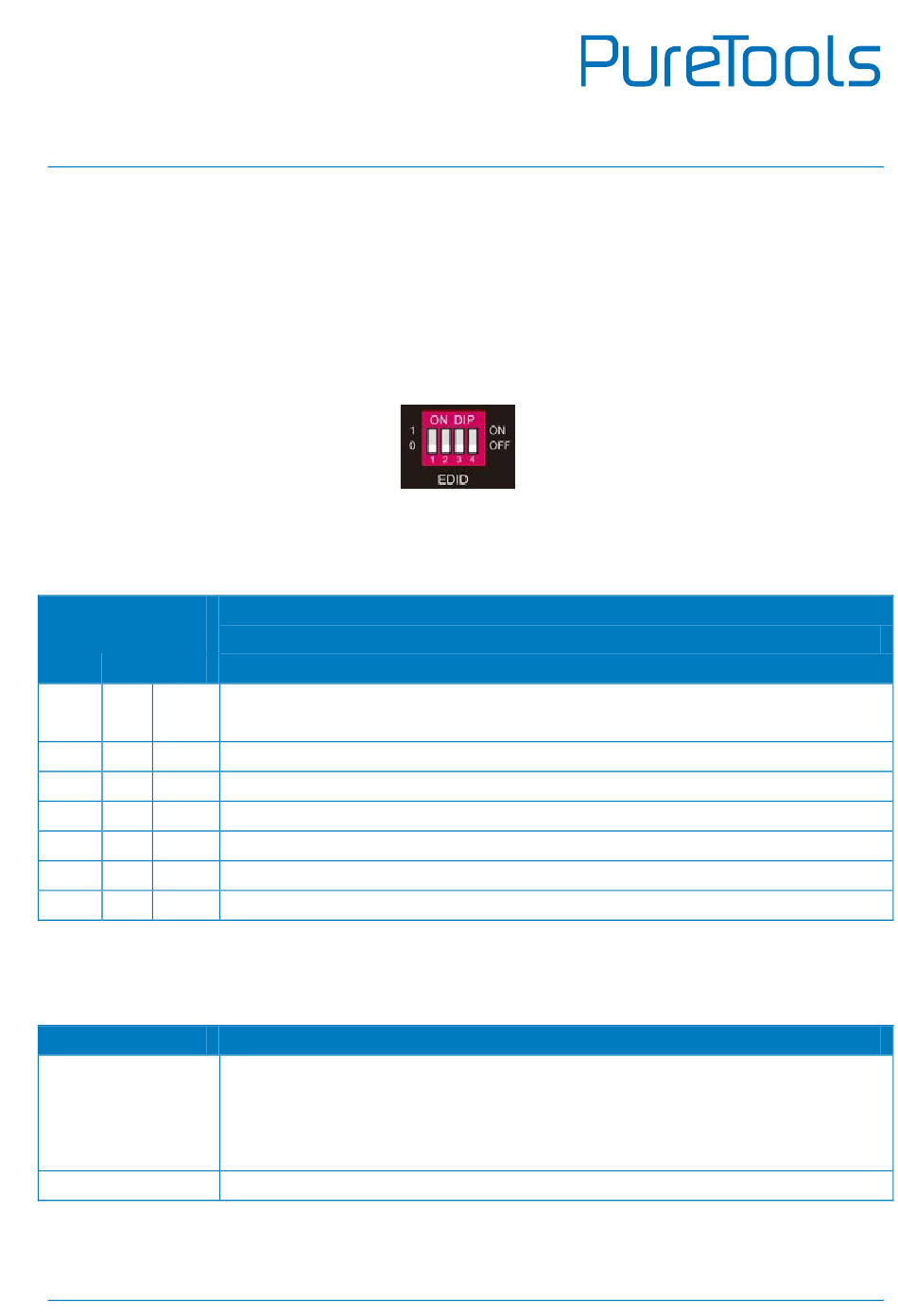

5. DIP Switch Operation

The 4-pin DIP switch on the front panel of the unit is used for EDID management and
HDCP management. It represents "0" when in the lower (OFF) position, and it
represents "1" while putting the switch in the upper (ON) position.
Switch 1~3 are used for EDID setting. The switch status and its corresponding setting
are shown at the below chart.
Switch Status
(PIN 1~3)
1
2
3
0
0
0
0
0
1
0
1
0
0
1
1
1
0
0
1
0
1
1
1
0
Switch 4 is used for HDCP setting. The switch status and its corresponding setting are
shown at the below chart.
Switch 4 Status
OFF (0)
ON (1)
Note: The factory default switch status is "0000", and it needs to be set to "1111" when
enable RS232 control to set EDID and HDCP.
Obtains EDID from the first detected display starting at HDMI
OUT1>OUT2>.........>OUT16.
1920x1080@60Hz 8bit Stereo
1920x1080@60Hz 8bit High Definition Audio
3840x2160@30Hz 8bit Stereo Audio
3840x2160@30Hz Deep Color High Definition Audio
3840x2160@60Hz Deep Color Stereo
3840x2160@60Hz Deep Color HDR LPCM 6CH
Automatically follows the HDCP version of display device.
When display device has no HDCP, if source device have no HDCP content, the
video output has no HDCP content; if source device has HDCP content, there are
no video output.
Automatically follows the HDCP version of source device.
EDID Value
HDCP
11
