Recommended Rack Configurations

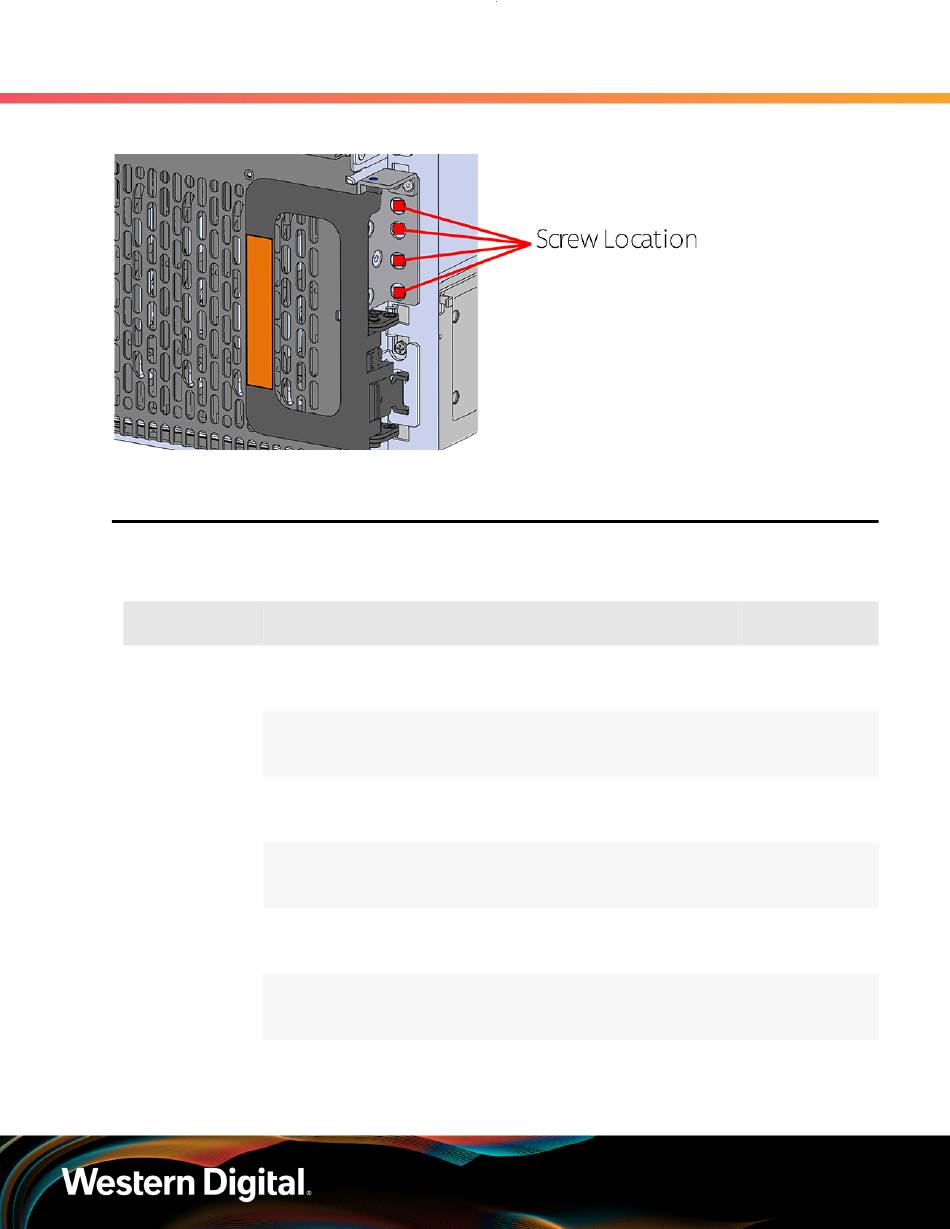

Figure 2: Shipping Bracket Screw Locations
1.3 CMA Standard Recommended Racks
The following is a list of racks that are recommended for the Ultrastar Data102 using CMA Standard.
Table 2: Recommended Racks
Vendor
EMCOR/CRENLO
AFCO/Legrand
Rack
Part Number
Units
AS-160099-03 42
DC-42U2448-G 42
WEDIT602 52
WEDIT603 48
WEDIT604 45
WEDIT605 42

1.3 CMA Standard Recommended Racks

Dimensions
H: 2060mm x W: 600mm x D:
1200mm/
H: 81.1in. x W: 23.6in. x D: 47.2in.
H: 2057mm x W: 600mm x D:
1270mm/
H: 80.98in. x W: 23.6in. x D: 50in.
H: 2989.2mm x W: 609.6mm x D:
1317.6mm/
H: 98in. x W: 24in. x D: 51.9in.
H: 2311.4mm x W: 609.6mm x D:
1317.6mm/
H: 91in. x W: 24in. x D: 51.9in.
H: 2178.1mm x W: 609.6mm x D:
1317.6mm/
H: 85.75in. x W: 24in. x D: 51.8in.
H:2044.7mm x W: 609.6mm x D:
1317.6mm/
H: 80.5in. x W: 24in. x D: 51.8in.
1. Overview
Notes
N/A
N/A
N/A
N/A
N/A
N/A
4
