Computer SMART III FAST

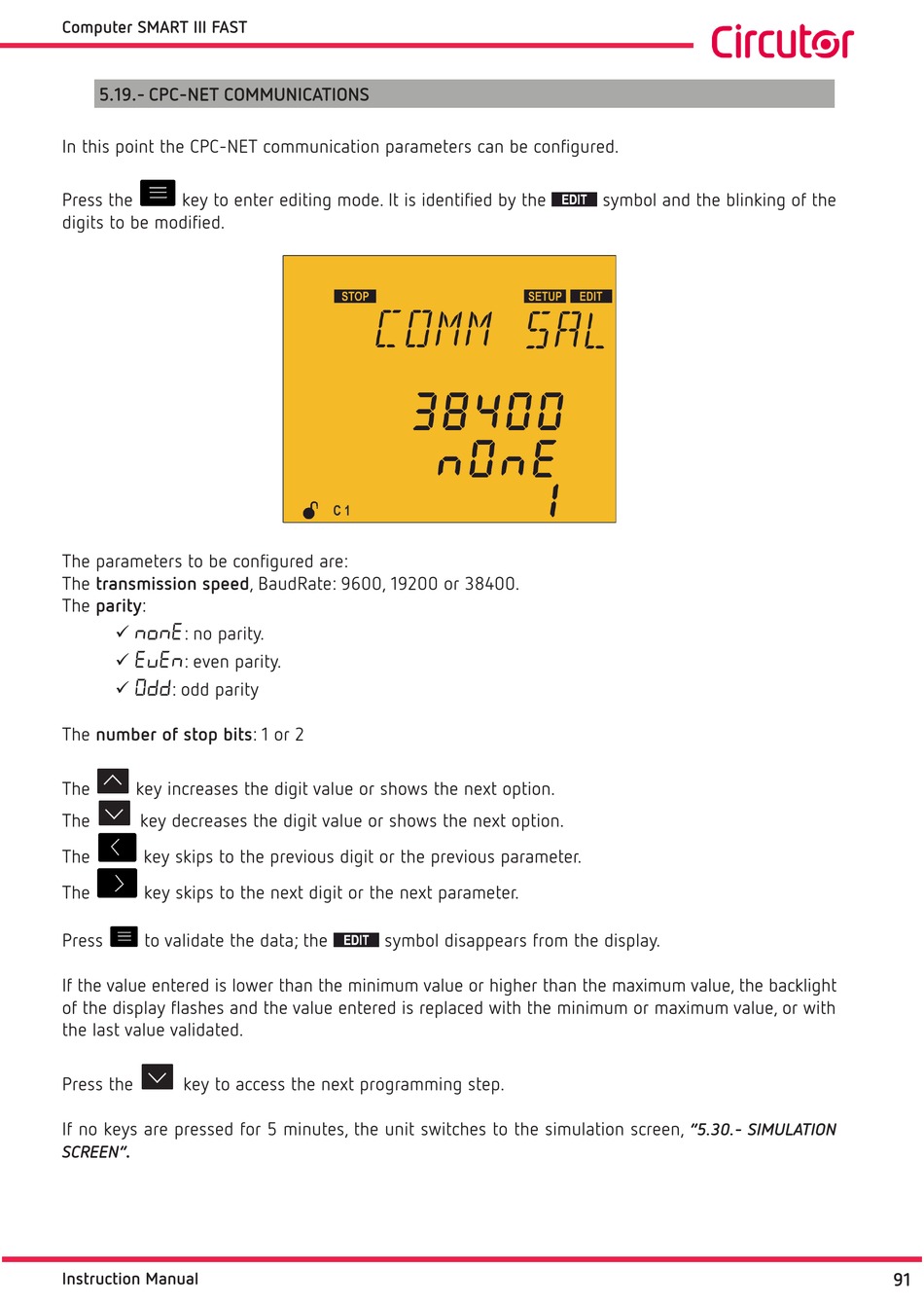

5�19�- CPC-NET COMMUNICATIONS
In this point the CPC-NET communication parameters can be configured.
Press the key to enter editing mode. It is identified by the
digits to be modified.
The parameters to be configured are:
The transmission speed, BaudRate: 9600, 19200 or 38400.
The parity:
none
: no parity.

Even
: even parity.

Odd
: odd parity

The number of stop bits: 1 or 2
The key increases the digit value or shows the next option.
The key decreases the digit value or shows the next option.
The key skips to the previous digit or the previous parameter.
The key skips to the next digit or the next parameter.
Press to validate the data; the
If the value entered is lower than the minimum value or higher than the maximum value, the backlight
of the display flashes and the value entered is replaced with the minimum or maximum value, or with
the last value validated.
Press the key to access the next programming step.
If no keys are pressed for 5 minutes, the unit switches to the simulation screen,
.
SCREEN"
Instruction Manual
symbol disappears from the display.
symbol and the blinking of the
"5.30.- SIMULATION
91
