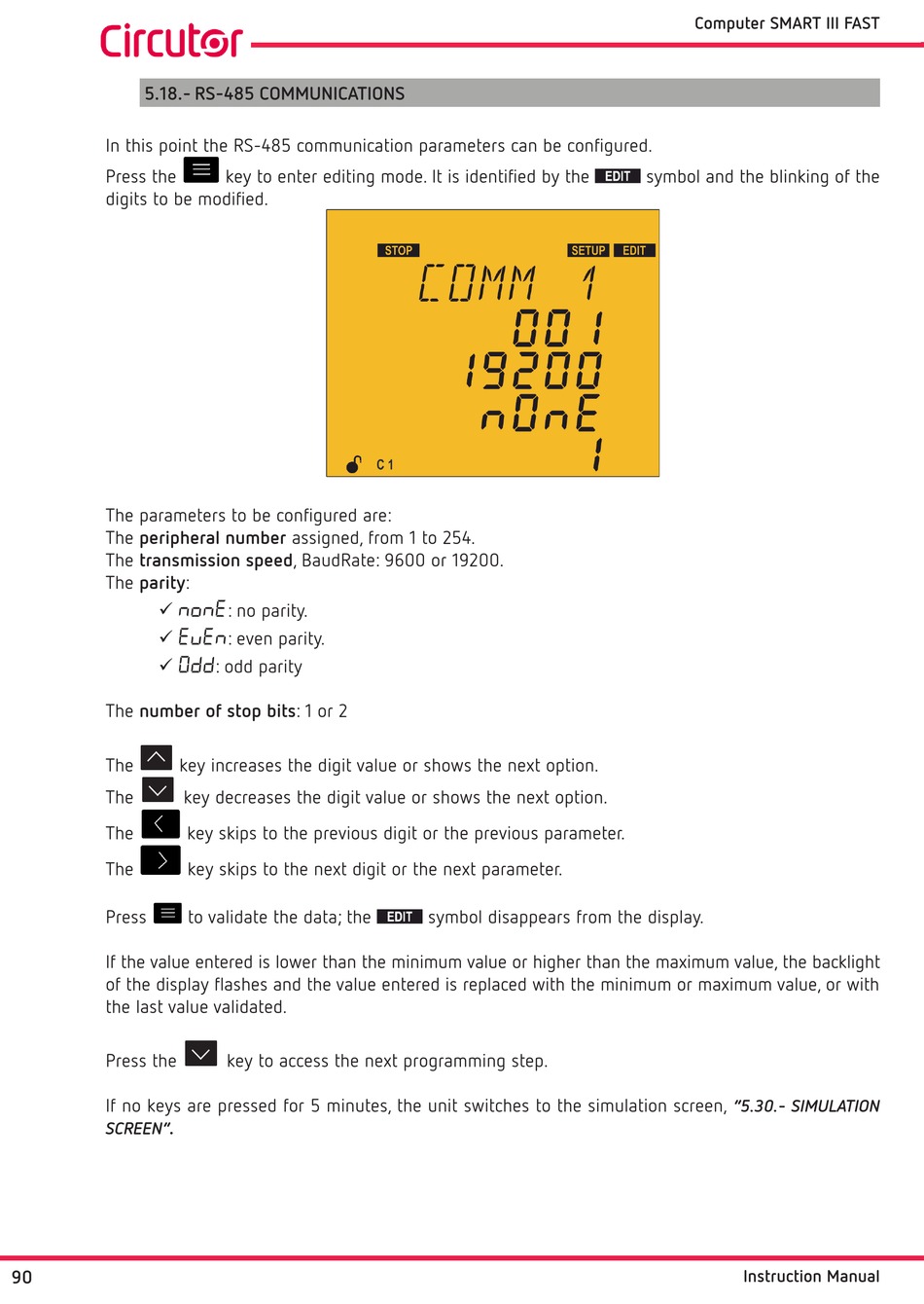

5�18�- RS-485 COMMUNICATIONS
In this point the RS-485 communication parameters can be configured.
Press the
digits to be modified.
The parameters to be configured are:
The peripheral number assigned, from 1 to 254.
The transmission speed, BaudRate: 9600 or 19200.
The parity:
none

Even

Odd

The number of stop bits: 1 or 2
The key increases the digit value or shows the next option.
The key decreases the digit value or shows the next option.
The
The
Press
If the value entered is lower than the minimum value or higher than the maximum value, the backlight
of the display flashes and the value entered is replaced with the minimum or maximum value, or with
the last value validated.
Press the
If no keys are pressed for 5 minutes, the unit switches to the simulation screen,
.
SCREEN"
90
key to enter editing mode. It is identified by the
: no parity.
: even parity.
: odd parity
key skips to the previous digit or the previous parameter.
key skips to the next digit or the next parameter.
to validate the data; the
key to access the next programming step.
symbol disappears from the display.
