4�4�3� ANALOGUE BAR
This bar is displayed on the measurement screens, and can show:
 the current of each phase as a percentage.
 the current THD of each phase.
 the power connected to the capacitor bank.
The parameter to be displayed is selected in the setup menu. (
The display screen also shows the results of the TEST and the load % of the capacitors.
4�4�4� OTHER SYMBOLS ON THE DISPLAY
The display also shows the following:
icon lights up. The cause of the alarm can be seen on the active alarms screen. (
STATES"
selected. (
tected. These icons indicate whether or not this option is locked.
30
Alarm: When the unit detects an alarm, the backlight of the display flashes and the alarm
)
Target cosine: The icons indicate which one of the 4 possible target cosines has been
"5.3.- TARGET COS φ"
Editing locked / unlocked: The editing of the programming parameters is password pro-

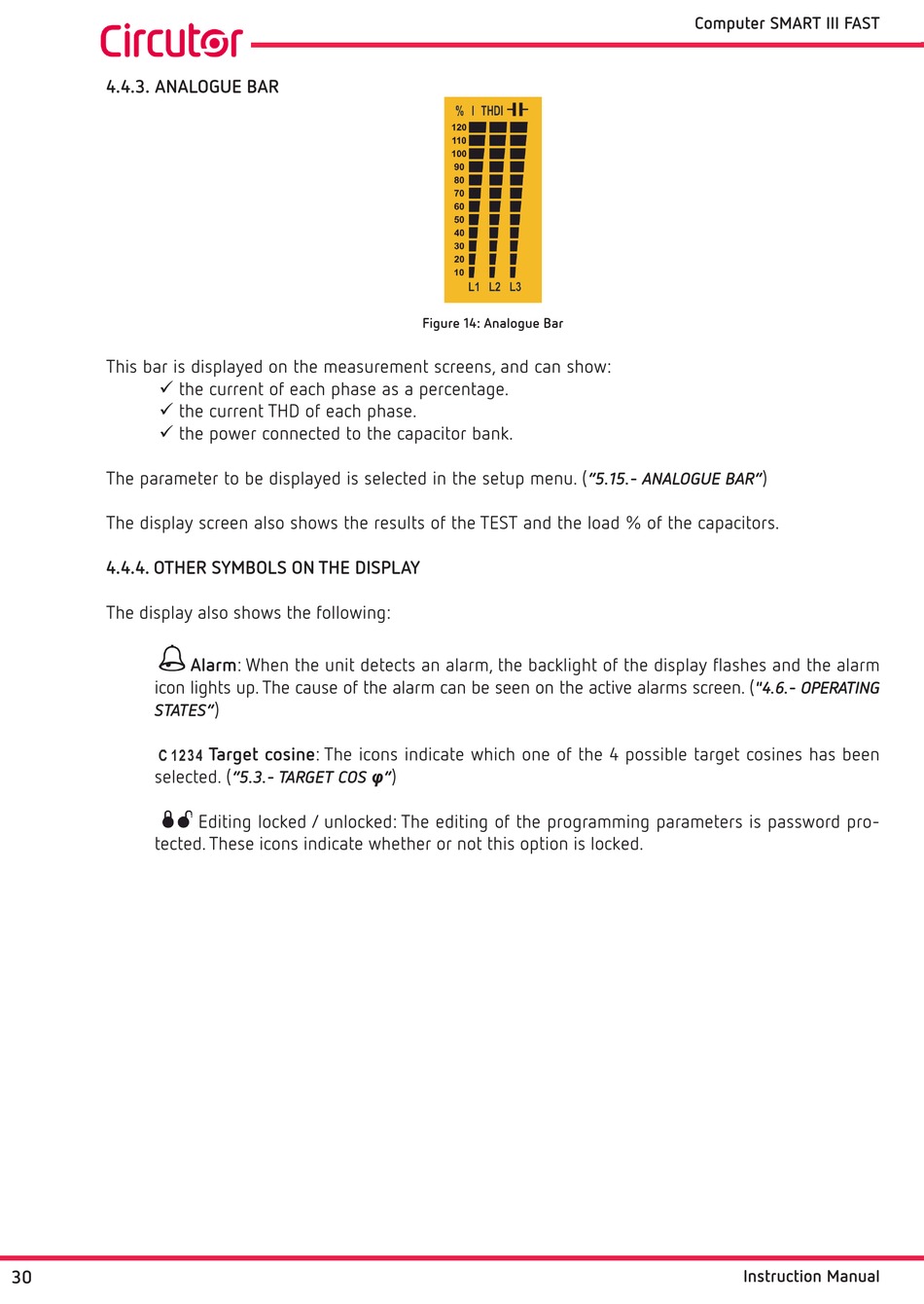

Figure 14: Analogue Bar
)
