LED Displays

LED LED
Off
Constant green
LED State
Flashing orange
Flashing green
Constant green
Flashing
orange-green
Constant red
LED Power
Off
Constant green
Constant red
LED Data
(Link / Act)
Link LED (left):
Constant orange
Constant green
Off
Act LED (right):
Green
Off
LED I/O
surfaceCONTROL 3D 35xx
Meaning
LED not active
LED active
Meaning
Initialization of sensor hardware
Initialization of communications interface
Sensor is ready for operation
Error during initialization of sensor hardware
Communication with sensor possible
Error during initialization
No communication with sensor possible
Meaning
No operating voltage or operating voltage
too low
Operating voltage applied
Error, operating voltage too high
Meaning
Gigabit Ethernet connection established
100 Mbit Ethernet connection established
10 Mbit Ethernet connection established
Active data transmission
No data transmission
Meaning
reserved

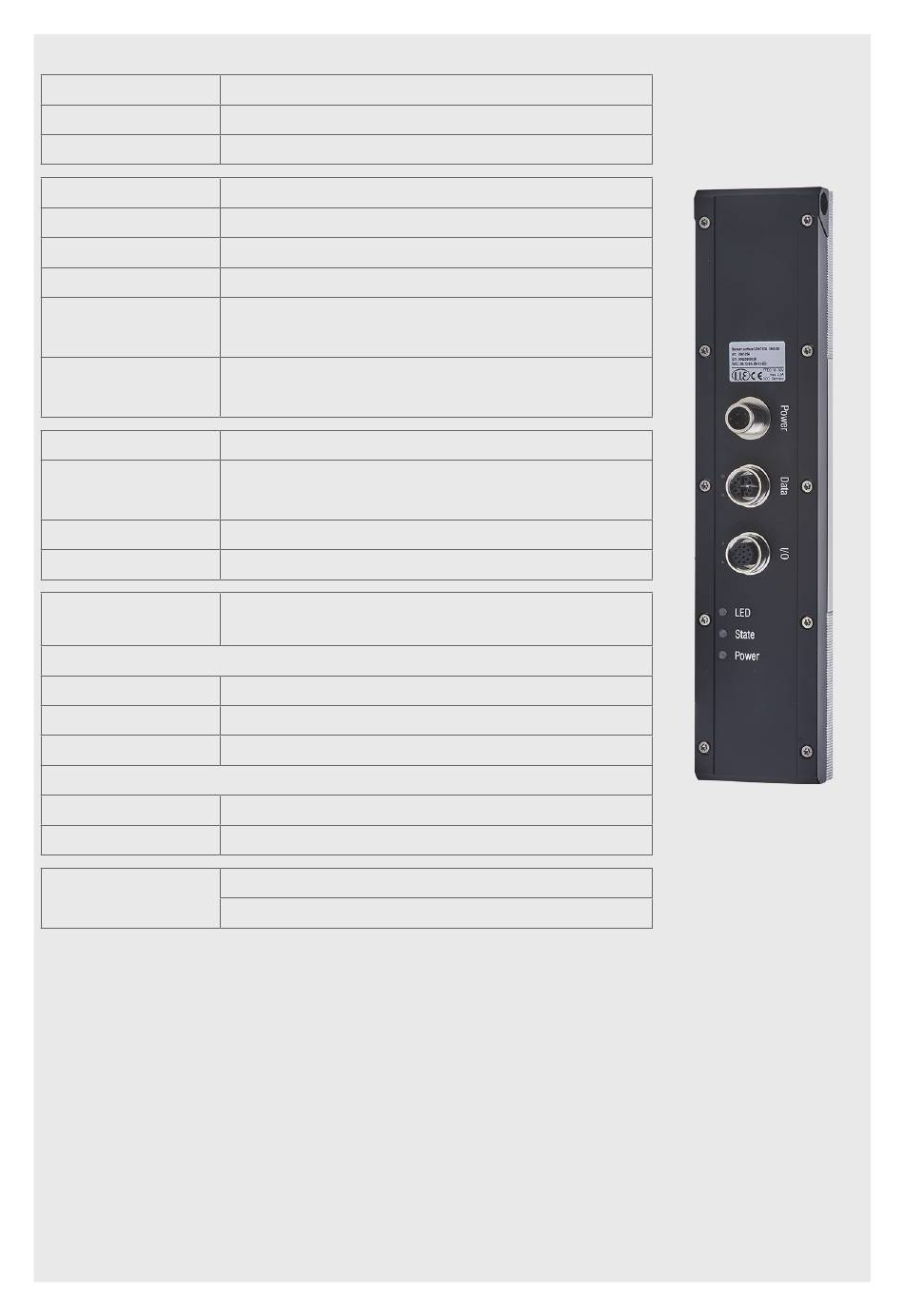

Fig. 9 LED displays
