8.2 Slope digging from zero level

Set the slope value as described in chapter 8.1.
Set the starting level to zero (Press "0.0" for 3 seconds or "Main menu" → "Starting level").
Move the bucket to the starting point of the slope. Zero the measurement value by pressing the
"0.0". Reading "0.00" appears on the screen (Figure 45).

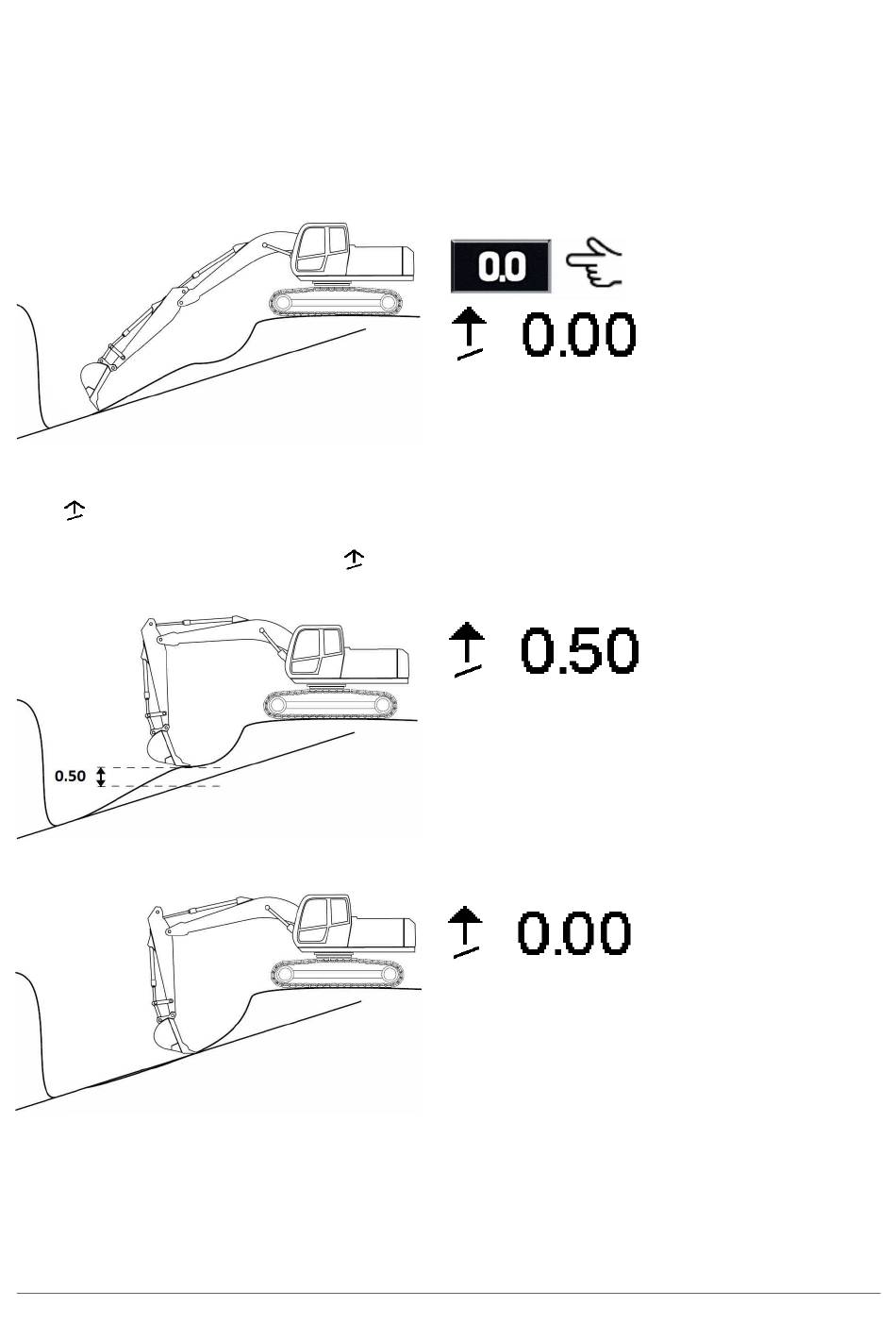

Figure 45. Zeroing the reading
The "
" value shows the height difference between the bucket and the target surface. The
reading is positive above the surface (Figure 46) and negative below the surface. The target
surface has been reached when the "
" reading is "0.00" (Figure 47).
Figure 46. The reading is positive when the bucket is above the surface
Figure 47. The reading is "0.00" on the target grade
Xsite EASY | User manual | Page 40 of 52
