3.2.1 Screen views

There are 4 preset screen views and 2 optional screen views that can be edited by pressing the
"Menu" button and selecting "Screen views". First select either "Custom1" or "Custom2", then
choose the layout type. There are 6 different layout types with up to four different components
being shown at the same time. The components can be set from "Custom1" and "Custom2" →
"Components". There are a total of 14 different components from which to choose (Table 3).
Optional screen views can be switched off by selecting the blank "_" value for the first component
of the layout.

3.2.2 Status bar

Below the measurement data is the status bar, which can show the name of the active bucket,
measurement point or laser status (Figure 9). What is shown in the status bar can be set in "Main
menu" → "Screen views" → "Status bar". Press the "OK" button to switch the selected option
(Laser, Measurement point or Bucket name) ON or OFF. If more than one option is switched ON,
the selected options will alternate on the status bar.

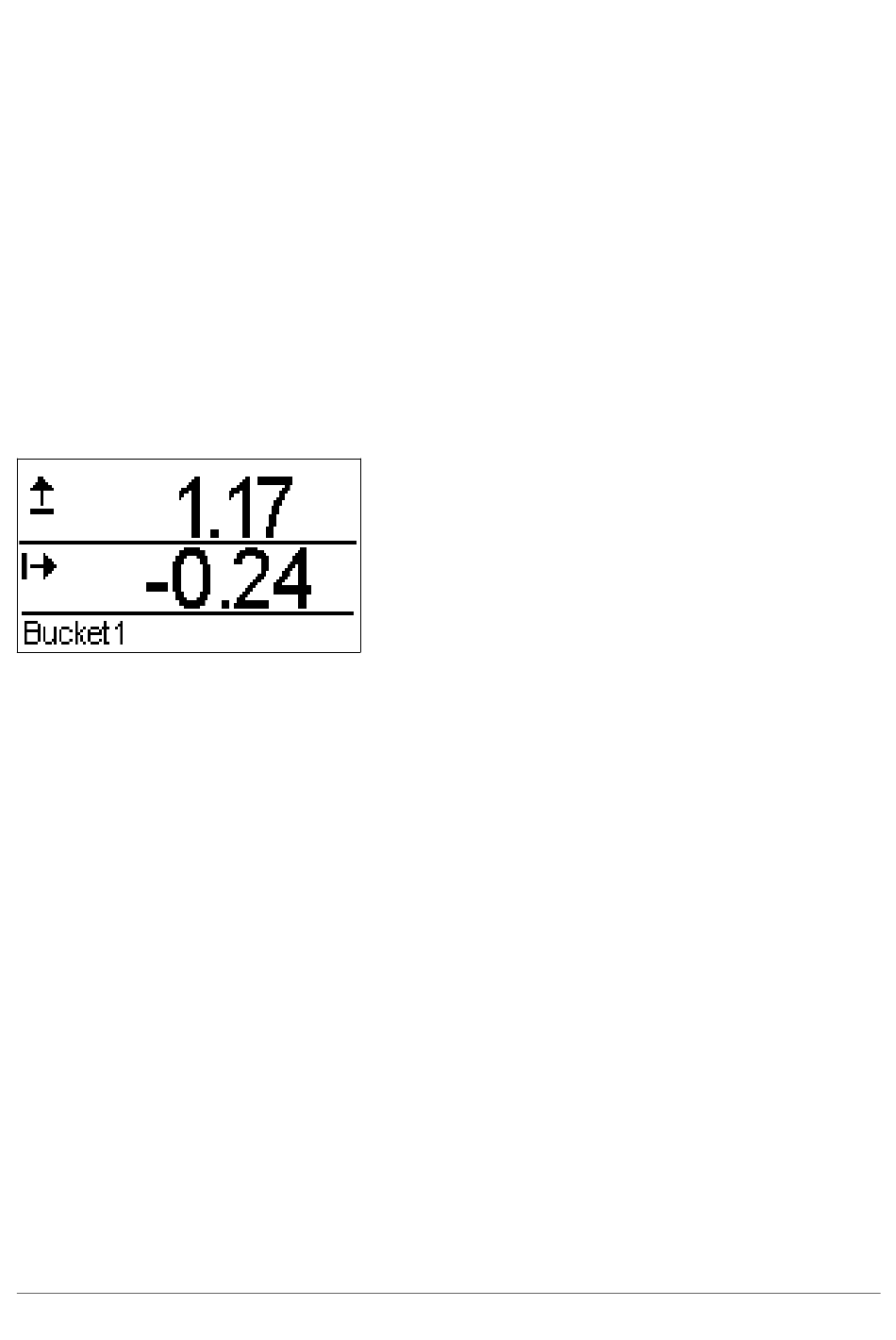

Figure 9. Status bar showing the active bucket
