Measure depth normally (Figure 29).

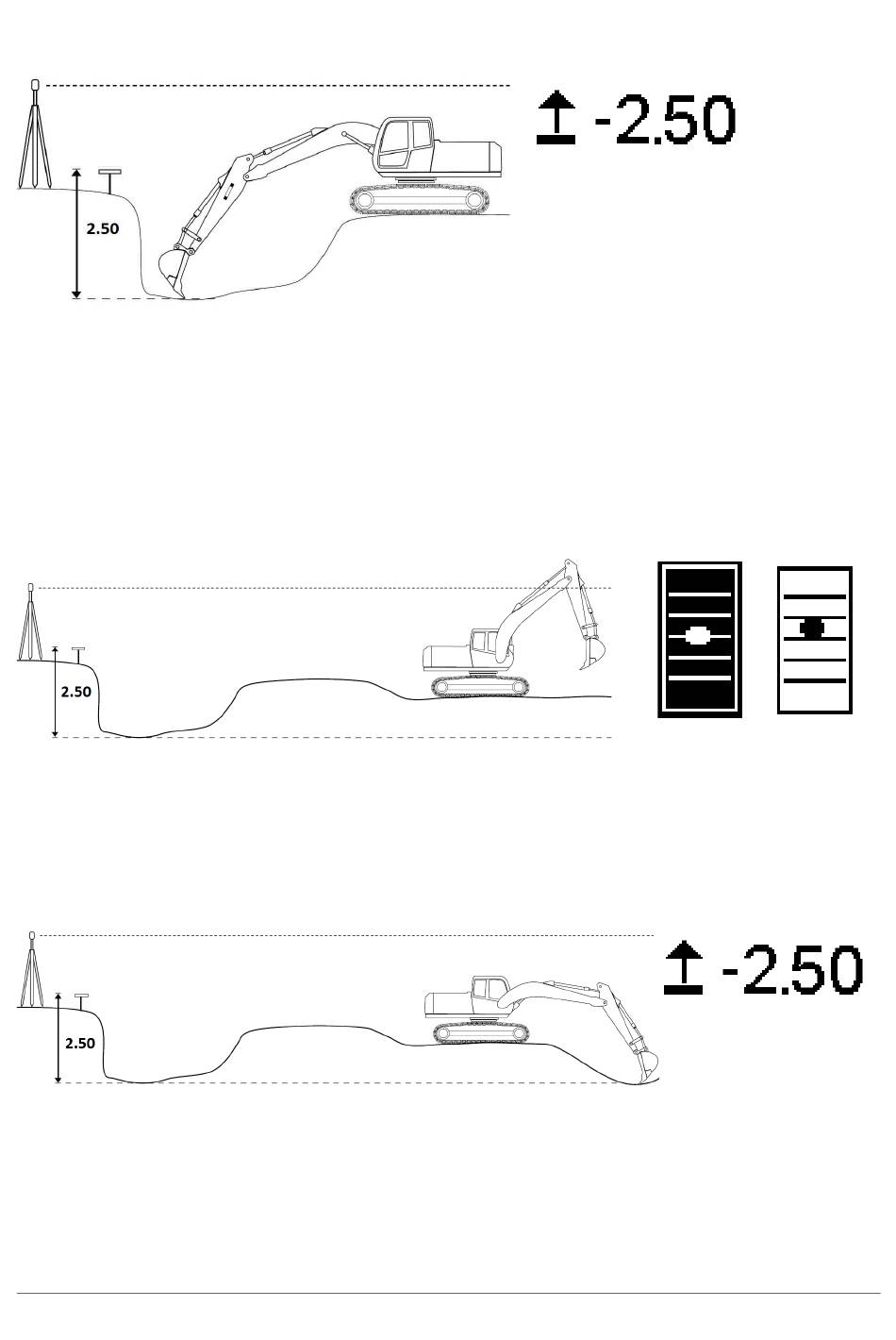

Figure 29. Depth measuring
Move the excavator to a new place. After moving the excavator, move the laser receiver to the
beam (Figure 30). It is advisable to move the dipper stick to as upright position as possible when
reaching the laser beam.
Figure 30. Moving the excavator and receiving the laser beam
After receiving the laser hit, digging can be continued. Depth is measured compared to the original
reference level, even though the altitude of the excavator might have changed (Figure 31).
Figure 31. Work can be continued after moving the machine
